Indicators
Features and controls 5-215
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turnsignal lever is used. Both arrows will flash when the hazard warn- ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520200175
This indicator comes on while the front foglights are on.
N00551301078
This indicator light illuminates while theparking lights are on.
N00575601020
This indicator comes on in blue while thecoolant temperature is low.
N00579200030
This function displays
how fuel-efficiently
you are driving under different driving condi- tions. The ECO drive assist display will change asfollows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
24- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P. 5-217
25- Seat belt
reminder/warning light
 P. 4-23
26- Tire pressure moni
toring system warn-
ing light
 P. 5-143
27- Brake warning light (red)
 P. 5-216
28- Multi information display
 P. 5-183
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator Low coolant temperature indi- cator - blue (Vehicle equipped with the multi information dis- play - Type 2)
NOTE
 When the indicator goes out, this should be used as a rough indication of when the heat-ing starts working.
ECO Drive Assist (Vehicle equipped with the multi infor-mation display - Type 2)
ECO drive level Low High
BK0239700US.book 215 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Turn signal lever 5-230 Features and controls
5
N00522601529
When changing lanes, or to making a gradual turn, hold the lever in the “lane change” posi-tion (1). It will return
to the neutral position
when you let go. Use the full position (2) when making a normal turn. The lever willreturn to the neutral position when the turn is complete. There may be times when the lever does not return to the neutral position. Thisusually happens when the steering wheel is turned only slightly. You can easily return the lever by hand.Also, when you move the lever to (1) slightly then release it, the turn signal lights and the indicator light in the instrument cluster willflash three times. Keep the knob in the “0” position except when using the knob to lower the headlightbeam angle.  Always return the knob to the “0” position when the load is removed and the peoplehave left the vehicle.
Turn signal lever
NOTE
NOTE
 A light in the instrument panel flashes to show when the front and rear turn signallights are working properly. If this light flashes fa
ster than usual, check
for a burned out turn signal light bulb or mal-functioning connect
ion in the signal.
If the panel light does not come on when the lever is moved, check for a blown fuse or aburned out bulb in the panel. Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  It is possible to modify functions as follows: • Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function.
See your authorized Mitsubishi Motorsdealer for details.For vehicles equipped
with the Mitsubishi
Multi-Communication System, adjustments can be made using sc
reen operations. For
further details, refer to the separate owner’smanual.  It is possible to cha
nge the tone of a sound-
ing buzzer as the turn signal lights flash. [Vehicle equipped with the multi information display - type 1]Refer to “Changing the turn-signal sound” on page 5-182. [Vehicle equipped with the multi informationdisplay - type 2] See your authorized Mitsubishi Motors dealer for details.NOTE
BK0239700US.book 230 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
4. Use the fuse location diagrams and the matching tables, to check the fuse that isrelated to the problem. If the fuse is not blown, something else must be causing the problem. Have the system inspectedby your authorized Mitsubishi Motors dealer or a repair facility of your choice.
5. Insert a new fuse
of the same capacity
securely into the appropriate slot.
N00942901391
Before replacing the bulb, be sure the light is off. Do not touch the glass part of the new bulb with your bare fingers; the oil from yourskin will stay on the glass and dim or destroy the bulb when it gets hot.
B- Fuse is OK C- Blown fuse
CAUTION Never use a fuse with a capacity greater than the one listed or any s
ubstitute, such as wire,
foil etc. This would
cause the circuit wiring
to heat up and could cause a fire. If the replacement fuse blows again after a short time, have the electrical systemchecked by an authorized Mitsubishi Motors dealer or a repair faci
lity of your choice to
find and correct
the cause.

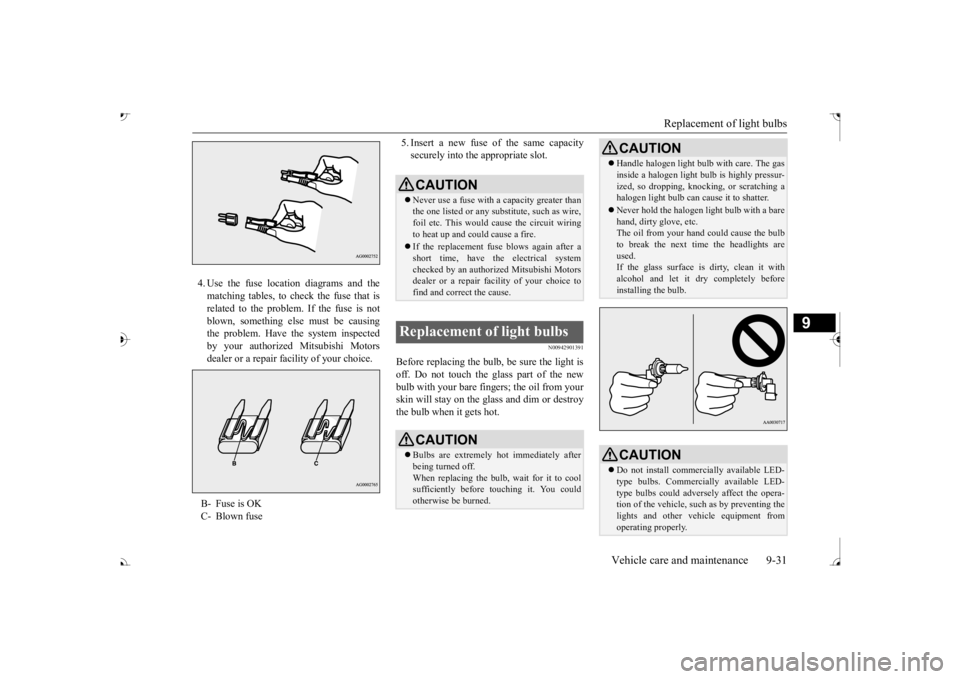

Replacement of light bulbs
CAUTIONBulbs are extremely hot immediately after being turned off. When replacing the bulb, wait for it to coolsufficiently before
touching it. You could
otherwise be burned.
 Handle halogen light bul
b with care. The gas
inside a halogen light
bulb is highly pressur-
ized, so dropping, knocki
ng, or scratching a
halogen light bulb can
cause it to shatter.
Never hold the halogen
light bulb with a bare
hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights areused. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.CAUTION Do not install commercially available LED- type bulbs. Commercia
lly available LED-
type bulbs could adversely affect the opera- tion of the vehicle, such as by preventing thelights and other vehicle equipment from operating properly.CAUTION
BK0239700US.book 31 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00943000132
The bulb should only be replaced with a new bulb with the same rating and type. The typeand rating are listed on the base of the bulb.
N00950302072
NOTE
 If you are unsure of how to carry out the work as required, it is recommended thatthese procedures be ca
rried out by an autho-
rized Mitsubishi Motors
dealer or a repair
facility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.  When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimes becomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi Motors dealer or a repair facility of your choice.
Bulb capacity
Outside Type A: Halogen headlights type Type B: LED headlights typeFront Ty p e A Ty p e B
Item
Wa t t-age
ANSI Tr a d e No. or Bulb type
1 - Front turn signal light 21 W PY21W 2 - Headlight, high beam 60 W
9005 HB3
3 -
Head- light, low beam
Halogen bulb
55 W H7
LED — —
Daytime running light
——
5 - Front side-marker
light
5 W W5W
6-
Front fog light (if so equipped)
Halogen bulb
19 W H16
LED — —
(if so equipped)
 The following lights use an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when either light need
s to be repaired or
replaced.
BK0239700US.book 32 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00950401731
• Headlight, low be
am (LED type)
• Parking light • Daytime running light • Front fog light (LED type) • Side turn signal light
Item
Wattage
ANSI trade No. or Bulb type
1 - High-mounted
stop light
——
2 - Tail light — —
marker light
——
4 - License plate
light
5 W W5W
5 - Back-up light 16 W W16W
NOTE
Rear
6 - Rear turn sig-
nal light
21 W WY21W
7 - Stop light — — The following lights use an LED instead of the bulb. Check with an authorized Mitsubi- shi Motors dealer or a
repair facility of your
choice when either light
needs to be repaired
or replaced. • Rear side-marker light• High-mounted stop light • Tail light • Stop light
Item
Wattage
ANSI trade No. or Bulb type
Inside
Item
Wattage
1 - Cargo room light 8 W 2 - Dome light (rear) 8 W 3 -
Dome light (front)/Read- ing light
8 W
4 - Downlight – 6 - Glove compartment light 1.4 W
NOTE
 The following lights us
e an LED instead of
the bulb. Check with an authorized Mitsubi- shi Motors dealer or a repair facility of yourchoice when the light needs to be repaired or replaced. • Downlight
BK0239700US.book 33 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
N00901801216
1. When replacing the bulb on the left side of the vehicle, remove the bolts (A) hold- ing down the relay box and the sub fuseblock, and then move them toward the rear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
N00900301171
• Front foot lights • Floor console box light
Headlights (low beam, halogen bulb type) *- Front of the vehicle
NOTE
*- Front of the vehicle
NOTE
 When installing the bulb, align the tab (D) with the notch (E) of the socket.
Headlights (low beam, LED type)
NOTE
 The headlights use an LED instead of the bulb.Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
BK0239700US.book 34 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00901901132
1. When replacing the bulb on the right side of the vehicle, rem
ove the clip (A) hold-
ing down the washer tank spout and movethe spout toward the rear of the vehicle. 2. Turn the cap (B) counterclockwise to remove it.
3. Turn the bulb (C) counterclockwise to remove it and then while holding downthe tab (D), pull out the bulb (E). 4. To install the bulb, perform the removal steps in reverse.
N00943201359
The alignment of th
e headlights should be
checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
N00915501214
1. When replacing the bulb on the left sideof the vehicle, move the relay box towardthe rear of the vehi
cle. (if so equipped)
(Refer to “Headlight
(low beam, halogen
bulb type): Step 1” on page 9-34.
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out ofthe socket. 3. To install the bulb, perform the removal steps in reverse.
Headlights (high beam) *- Front of the vehicle
Headlight aim adjustment Front side-marker lights
*- Front of the vehicle
BK0239700US.book 35 ページ ２０１６年６月１６日　木曜日　午前１０時５８分
