2017 MITSUBISHI OUTLANDER III keyless

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-33
5
N00562001062
N00562101076
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object. 2. With the Mitsubishi mark facing you,insert the cloth-covered tip of a flat blade screwdriver into the notch in the case and use it to open the case. 3. Remove the old battery.
 If the UNLOCK button (2) is pressed when all doors and the liftgate are locked and nodoors or the liftgate
are opened within about
30 seconds, the doors and the liftgate will automatically re-lock. On a vehicle equippe
d with a Mitsubishi
Multi-Communication System, the functions can be adjusted on the screen. For details, refer to the separa
te operation manual.
 If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, the battery in the F.A.S.T.-key may need to be replaced. • The doors and the liftgate cannot be locked or unlocked. • The panic alarm
cannot be operated.
• The indicator light
(5) is dim or does not
come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional F.A.S.T.- key, please contact an
authorized Mitsubishi
Motors dealer. A maximum of four F.A.S.T.- key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer
and keyless entry sys-
tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer F.A.S.T.-key programming” on page 5-29.NOTE
General information

Your F.A.S.T.-key operates on a radio fre- quency subject to Fe
deral Communications
Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industr
y Canada Rules (For
vehicles sold in Canada). This device com- plies with Part 15 of FCC Rules and Industry Canada licence-exem
pt RSS standard(s).
Operation is subject to
the following two con-
ditions.
•This device may
not cause harmful
interference. •This device must ac
cept any interference
received, including interference that may cause undesired operation.CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat-tery
NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi- shi mark is not facing you when you open the case, the transmitter may come out.
BK0239700US.book 33 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Door locks 5-34 Features and controls
5
4. Install a new battery with the +side (A) 5. Close the case firmly. 6. Check the keyless entry system to see that it works.
N00509201544
Turn the key toward the front of the vehicle tolock the door. After checking that the door is locked, turn the key back to the center andremove it.
NOTE
 You may purchase a re
placement battery at
an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to
keep water, dust, etc.
out. Also, do not touch the internal compo- nents.
+ side - side
Coin type bat- tery CR2032
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in co
mbination with the
use of seat belts, can help reduce the riskof ejection in
an accident.
• Locked doors can help keep passengers, especially small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help
prevent outsiders
from gaining access to your vehicle when you slow or come to a stop.
 Lock your vehicle when
ever you leave it.
Children who get into
unlocked vehicles
may not be able to get out. Children trapped inside vehicles can quickly be overcome by heat
and suffer serious
injury or death due to heat stroke. Never leave a ch
ild alone in the vehicle. In
addition to the risk
of heat stroke, chil-
dren can activate switches and controls, resulting in an injury
or fatal accident.
When closing a door,
make sure that the
door is fully closed and the door-ajarwarning display goes
out on the informa-
tion screen on the multi-information dis- play. If the door is aj
ar it could open while
driving and cause an accident.
To lock and unlock with the key (driver’s door) 1- Insert or remove the key 2- Lock3- Unlock
BK0239700US.book 34 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Door locks
Features and controls 5-35
5
Move the lock knob to the lock position to lock the door. All doors should be kept
locked while driv-
ing. The driver’s door can be unlocked without using the lock knob by pulling on the insidedoor handle. 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549601250
If the ignition switch is turned off and thedriver’s door is opened with the key in theignition switch, the ke
y reminder buzzer will
sound intermittently to remind you to remove the key.The warning display will be displayed on the information screen in the multi-information
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked orunlocked.To lock or unlock all doors and liftgate, use the power door lock swit
ch, the keyless entry
system or the F.A.S.T.-key operation.Refer to “Power door locks” on page 5-36, “Keyless entry system” on pages 5-7 and 5-30, and “To operate using the F.A.S.T.-key” on page 5-15.  In vehicles equipped wi
th the F.A.S.T.-key,
the driver’s door can be locked and unlocked using the emergency key. Refer to “Emergency key” on page 5-28.
To lock or unlock the door from the inside 1- Lock 2- UnlockTo lock the door without using the key
Key reminder system (except for vehicles equipped with the F. A . S . T. - k e y )
BK0239700US.book 35 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

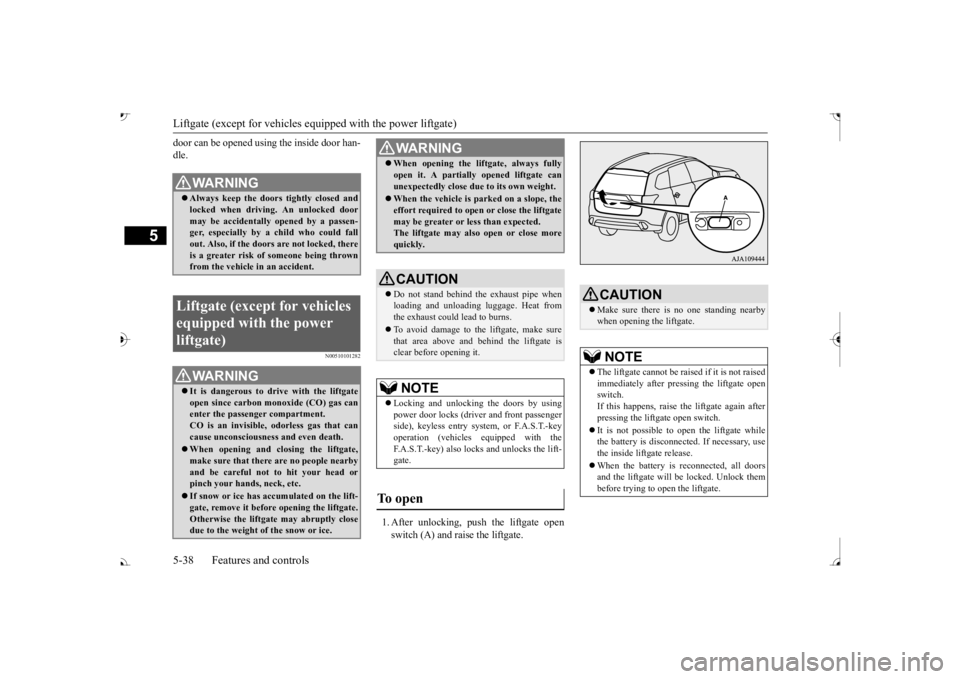

Liftgate (except for vehicles e
quipped with the power liftgate)
5-38 Features and controls
5
door can be opened using the inside door han- dle.
N00510101282
1. After unlocking, push the liftgate open switch (A) and raise the liftgate.
WA R N I N G Always keep the door
s tightly closed and
locked when driving. An unlocked door may be accidentally
opened by a passen-
ger, especially by
a child who could fall
out. Also, if the doors are not locked, there is a greater risk of someone being thrown from the vehicle
in an accident.
Liftgate (except for vehicles equipped with the power liftgate)
WA R N I N G It is dangerous to drive with the liftgate open since carbon mo
noxide (CO) gas can
enter the passenger compartment. CO is an invisible, odorless gas that cancause unconsciousness and even death. When opening and cl
osing the liftgate,
make sure that there are no people nearbyand be careful not to hit your head or pinch your hands, neck, etc. If snow or ice has ac
cumulated on the lift-
gate, remove it before
opening the liftgate.
Otherwise the liftgate may abruptly closedue to the weight of the snow or ice.
 When opening the lift
gate, always fully
open it. A partially opened liftgate canunexpectedly close due to its own weight. When the vehicle is parked on a slope, the effort required to open or close the liftgatemay be greater or less than expected. The liftgate may also open or close more quickly.CAUTION Do not stand behind the exhaust pipe when loading and unloading
luggage. Heat from
the exhaust could lead to burns. To avoid damage to the liftgate, make sure that area above and behind the liftgate is clear before opening it.NOTE
 Locking and unlocking the doors by using power door locks (driver and front passenger side), keyless entry system, or F.A.S.T.-keyoperation (vehicles
equipped with the
F.A.S.T.-key) also locks and unlocks the lift- gate.
To open
WA R N I N G
CAUTION Make sure there is no one standing nearby when opening the liftgate.NOTE
 The liftgate cannot be rais
ed if it is not raised
immediately after pressing the liftgate open switch.If this happens, raise th
e liftgate again after
pressing the liftgate open switch.  It is not possible to open the liftgate while the battery is disconnect
ed. If necessary, use
the inside liftgate release.  When the battery is reconnected, all doors and the liftgate will be locked. Unlock thembefore trying to open the liftgate.
BK0239700US.book 38 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Power liftgate (if so equipped) Features and controls 5-39
5
1. Pull the liftgate grip (B) downward as illustrated and release it before the liftgate closes completely. Gently close the lift- gate from the outside so that it is com-pletely closed.
N00575900026
Before operating the pow
er liftgate, unlock
the power liftgate by pushing the power doorlock switch or the unlock button on the key- less entry system or F.A.S.T.-key. Refer to “Keyless entry system”, “Free-handAdvanced Security Transmitter (F.A.S.T.- key)” and “Power door locks” on pages 5-7, 5-13 and 5-36 respectively.
N00576000037
 On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when
the liftgate and all
doors are unlocked using the liftgate open switch (A).
To close
CAUTION To avoid injuring your hand or arm, do not attempt to close the lift
gate without releasing
the liftgate grip (B).NOTE
 Before starting the vehi
cle, be sure to con-
firm that the liftgate is locked. If the liftgateopens while driving the vehicle, objectsstored in the luggage compartment could fall out into the road.NOTE
 Gas struts (C) are installed in the locations illustrated in order to
support the liftgate.
Please observe the foll
owing in order to pre-
vent damage or faulty operation: • Do not touch, push or pull the gas struts when closing the liftgate. • Do not attach any pl
astic material, tape,
etc., to the gas struts. • Do not tie string, etc., around the gas struts.• Do not hang objects on the gas struts.CAUTION
Power liftgate
(if so equipped)

WA R N I N G The luggage area was not designed for people to ride in. Do not let your children ride in or play in
the luggage area. Riding
or playing in the lu
ggage area could result
in a serious accide
nt and/or injury.
Before driving, make sure the power lift- gate is securely closed. If you drive with th
e power liftgate open,
exhaust gas may enter the vehicle and cause carbon monoxide poisoning. To avoid injury, the power liftgate should not be operated by children.
BK0239700US.book 39 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Power liftgate (if so equipped) Features and controls 5-41
5
N00576100038
The power liftgate ca
n be opened automati-
cally when all of the
following conditions are
met.  The operation mode is in OFF.  The power liftgate is completely closed.  The power liftgate is unlocked.
 The operation mode is in ON with the selector lever in the “P” (PARK) position.
 The power liftgate is completely closed.  The power liftgate is unlocked.
 The power liftgate is unlocked.  The F.A.S.T.-key is within the operating range (2.3 feet (70 cm) from the powerliftgate open switch) and the power lift- gate is locked.
The power liftgate can be closed automati- cally when all of the following conditions are met.  The operation mode is in OFF.  The power liftgate is completely open.  Nothing is touching th
e auto reverse sen-
sors (A) on the power liftgate.
CAUTION Do not apply excessive force to the power liftgate when opening or closing it. Doing socould damage to th
e power liftgate.
NOTE
Do not start the engine while the power lift- gate is operating. The sudden operation pre- vention mechanism c
ould operate, making
the power liftgate stop intermittently while itmoves.  The power liftgate cannot be opened when the battery is discha
rged or disconnected.
The liftgate must be then opened using the inside liftgate release.Refer to “Inside lift
gate release” on page
5-46.  If the keyless entry system or close switch is operated when the pow
er liftgate main
switch is off, the warning buzzer sounds 4times to notify the driver that the power lift- gate cannot
be operated.
 The power liftgate does not operate normally under the following conditions: • When parked on an incline • In strong winds • When the power liftga
te is covered with
snow
 Repeated continuous
opening and closing
operation of the power lif
tgate will activate a
built-in protection ci
rcuit and switch the
power liftgate to
manual operation.
If one of the power lift
gate switches is oper-
ated while the power lift
gate is operating, the
power liftgate will reve
rse and return to the
full open or close position.  If the selector lever is moved from “P” the power liftgate is operating or completely open, a warning buzzer will sound forapproximately 10 sec
onds to notify the
driver that the power liftgate is open.  If the battery or fuse is replaced while the power liftgate is open,
it cannot be closed
automatically.In this case close the power liftgate manu- ally.
Operating conditions

NOTE
BK0239700US.book 41 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Theft-alarm system
Features and controls 5-47
5
N00510301226
Park the vehicle and st
op the engine. Arm the
system as described below. 1. Except for vehicles equipped with the F.A.S.T.-key, remove the key from theignition switch. For vehicles equipped with the F.A.S.T.- key, put the operation mode in OFF.2. Make sure that the engine hood is closed. 3. Lock all doors and the liftgate by using the keyless entry system or the F.A.S.T.-key operation.
At this time, the theft-alarm indicator (A)mation. 4. The system has entered the armed stage after about 20 seconds, when the theft-alarm indicator (A) flashing becomes slower. The theft-alarm indicator (A) continues toflash while the system is in the armed stage.
N00510401230
The alarm will be activated if any of the fol- lowing occur while the ve
hicle is parked and
the system is armed.  One of the doors and the liftgate is opened without using the keyless entry system or the F.A.S.T.-key operation. The engine hood is opened.
CAUTIONDo not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarmto malfunction.
Armed stage Arm the system and leave
NOTE
 If the engine hood is open, the theft-alarm indicator (A) illuminates and the system can- not enter the armed stage. The system enters the armed stage about 20seconds after the e
ngine hood is closed.
 The system will be disarmed if, while the theft-alarm indicator (A) is illuminated, all doors and the liftgate are unlocked by using the keyless entry system or the F.A.S.T.-keyoperation.
 The system will be disarmed if, while the theft-alarm indicator is illuminated, the fol-lowing operation is performed. • Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turnedto the “ON” position. • For vehicles equippe
d with the F.A.S.T.-
key, if the operation mode is put in ON.
 The system will not be armed if a door, the liftgate or the engine
hood is not completely
closed. If this happens, rearm the system as described above.  The theft-alarm system can be activated when people are riding inside the vehicle orwhen the windows are open. To prevent acci- dental activati
on of the alarm, do not set the
system to the system armed mode while peo-ple are riding in the vehicle.
Alarm stage
NOTE
BK0239700US.book 47 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Theft-alarm system 5-48 Features and controls
5
N00582500040
When the alarm is activated: 1. The headlights blink on and off for 3 min- utes. After 3 minutes the headlights automati-cally shut off. 2. The horn will sound intermittently for 3 minutes.
N00582600025
The alarm can be deacti
vated in the following
ways.  By using the keyless entry system or the F.A.S.T.-key operation to lock or unlockthe doors and liftgate.  Turn the ignition switch to the “ON” posi- tion or put the operation mode in ON.
N00510501172
The system will be disarmed if the followingoperation is performed.  Except for vehicles equipped with the F.A.S.T.-key, if the ignition switch is turned to the “ON” position. For vehicles equipped with the F.A.S.T.- key, if the operation mode is put in ON.  All doors and the lift
gate are unlocked by
using the keyless entry system or the F.A.S.T.-key operation.
Type of alarm
NOTE
 The alarm will continue
to operate for 3 min-
utes. At the end of that
period, the alarm will
automatically shut off
to save battery power.
The system will then be rearmed until theproper disarming step is taken.  The alarm will resu
me if unauthorized
actions are taken again, even if the alarm has stopped.Horn sounds! Headlights blink on and off!
Alarm deactivation Disarmed stage
NOTE
 If the UNLOCK button on the remote control transmitter, or the driver’s or front passen-ger’s door lock/unlock switch is pressed when all doors and the li
ftgate are closed and
no door is opened with
in approximately 30
seconds, re-arming will
automatically occur.
 The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized Mitsubishi Motors dealer for details.On a vehicle equippe
d with a Mitsubishi
Multi-Communication System, the functions can be adjusted on the screen. For details,refer to a separa
te operation manual.
 Once the system has been disarmed, it can- not be rearmed except
by repeating the arm-
ing procedure.Disarm...by using the keyless entry system or F.A.S.T.-key operation
BK0239700US.book 48 ページ ２０１６年６月１６日　木曜日　午前１０時５８分
