Break-in recommendations
Features and controls 5-3
5
N00508701395
Advanced automobile manufacturing tech- niques permit you to operate your new vehi-cle without requiring a long break-in period of low-speed driving. However, you can add to the future perfor-mance and economy of your vehicle by observing the following precautions during the first 300 miles (500 km).Drive your vehicle at moderate speeds duringthe break-in period.  Avoid revving the engine.  Avoid rough driving such as fast starts, sudden acceleration, prolonged high-speed driving and sudden braking. These would have a detrimental effect on the engine and also cause increased fuel andoil consumption, which could result in malfunction of the engine components. Be particularly careful to avoid full accelera-tion while in low gear.  Do not overload the vehicle. Observe the seating capacity (See “Cargo load precau-tions” on page 6-10).  Do not use this vehicle for trailer towing.
N00508801657
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key.
Two Free-hand Advanced Security Transmit- ter (F.A.S.T.-key) and two emergency keysare provided.Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of spare keys.
Break-in recommendations
Keys Type 1 1- Key for the electronic immobilizer2- Key number plateType 2
1- Key for the electronic immobilizer and
keyless entry system
2- Key number plateType 3
BK0237700US.bo
ok 3 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Loading information 6-6 Driving safety
6
Your front bumper can be damaged if you scrape it over curbs or parking stop blocks.Be careful when traveling up or down steep slopes where your bumper can scrape the road. When leaving the vehicle unattended, always carry the key and lock all doors.Always try to park your vehicle in a well lit area.
N00629900349
It is very important to know how much weight your vehicle can carry. This weight iscalled the vehicle capacity weight and includes the weight of all occupants, cargo and non-factory-installed options. The tireand loading information placard located on the driver’s door sill of your vehicle will show how much weight it may properly carry. It is important to familiarize yourself with the following terms before loading your vehicle:  Vehicle maximum load on the tire: load on an individual tire that is determined by distributing to each axle its share of the maximum loaded vehicle weight anddividing by two.  Vehicle normal load on the tire: load on an individual tire that is determined by dis-tributing to each axle its share of the curb weight, accessory weight, and normal occupant weight and dividing by two.
 Maximum loaded vehicle weight: the sum of - (a) Curb weight; (b) Accessory weight;(c) Vehicle capacity weight; and (d) Production options weight.  Curb weight: the weight of a motor vehi- cle with standard equipment including the maximum capacity of fuel, oil, and cool- ant. Accessory weight: the combined weight (in excess of those standard items which may be replaced) of automatic transmis- sion, power steering, power brakes, powerwindows, power seats, radio, and heater, to the extent that these items are available as factory- installed equipment (whetherinstalled or not).  Vehicle capacity weight: the rated cargo and luggage load plus 150 lbs (68 kg)
*
times the vehicle’s designated seating capacity.  Production options weight: the combined weight of those installed regular produc- tion options weighing over 5 lbs (2.3 kg) in excess of those standard items whichthey replace, not previously considered in curb weight or accessory weight, includ- ing heavy duty brakes, ride levelers, roofrack, heavy duty battery, and special trim.
WA R N I N G Leaving the engine running risks injury or death from accidentally moving the gear- shift lever (manual transaxle or the selec- tor lever (CVT) or from the accumulation of toxic exhaust fumes in the passengercompartment.
Where you park
WA R N I N G Do not park your vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hotexhaust, since a fire could occur.
When leaving the vehicle
Loading information
WA R N I N G Never overload your vehicle. Overloading can damage your vehicle, adversely affectvehicle performance, including handling and braking, cause tire failure, and result in an accident.
BK0237700US.bo
ok 6 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Fuses 9-28 Vehicle care and maintenance
9
* - Fusible link  Some fuses may not be installed on your vehicle, depending on the vehicle modelor specifications.  The table above shows the main equip- ment corresponding to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of these capacities blows,replace it temporarily by borrowing one of the fuses indicated below. 7.5 A: 10 A spare fuse25 A: 20 A spare fuse 30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct capacity as soon as possible.
N00954900027
1. Before replacing a fuse, always turn offthe electrical item connected to the fuseand turn the ignition switch to the“LOCK” position. 2. There is a fuse puller (A) in the engine compartment fuse block.
17
Head- light (low/high beam) (right)
Dis- charge
20 A
18
Headlight (low beam) (left)
Halogen 10 A
19
Headlight (low beam) (right)
Halogen 10 A
20
ENG/ POWER
10 A
21 Ignition coil 10 A 22
ENG/ POWER
20 A
Fuel line heater 25 A
23 Fuel pump 15 A 24 Starter 30 A
*
25 Valve lift control 40 A
*
26
Anti-lock braking
system
40 A
*
No.
Sym- bol
Electrical system
Capac-ity
27
Anti-lock braking
system
30 A
*
28
Air conditioning con- denser fan motor
30 A
*
29 Radiator fan motor 40 A
*
30 IOD IOD 30 A31 Audio amplifier 30 A 32 Diesel 30 A 33 — Spare fuse 10 A 34 — Spare fuse 15 A35 — Spare fuse 20 ANo.
Sym- bol
Electrical system
Capac-ity
Identification of fuse Capacity
Color
7.5 A Brown10 A Red15 A Blue20 A Yellow25 A Natural (White) 30 A
Green (fuse type)/Pink (fusible
link type)
40 A Green
Fuse replacement
BK0237700US.bo
ok 28 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

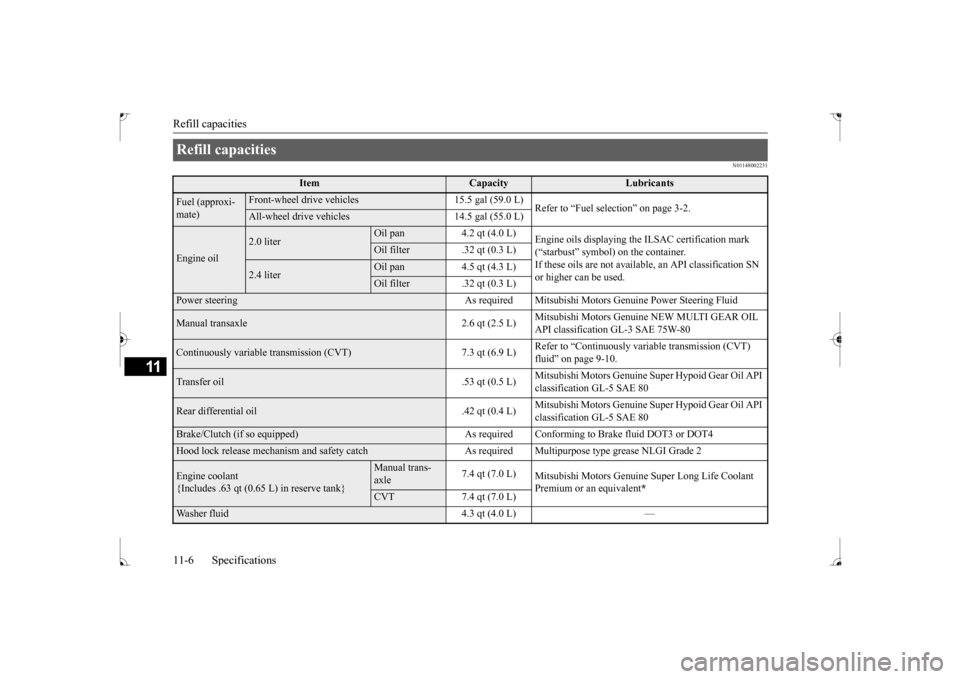

Refill capacities 11-6 Specifications
11
N01148002231
Refill capacities
Item
Capacity
Lubricants
Fuel (approxi- mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starbust” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Mitsubishi Motors Genuine Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.3 qt (6.9 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-10.
Transfer oil .53 qt (0.5 L)
Mitsubishi Motors Genuine
Super Hypoid Gear Oil API
classification GL-5 SAE 80
Rear differential oil .42 qt (0.4 L)
Mitsubishi Motors Genuine
Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required C
onforming to Brake fluid DOT3 or DOT4
Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {Includes .63 qt (0.65 L) in reserve tank}
Manual trans- axle
7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or an equivalent
*
CVT 7.4 qt (7.0 L)
Washer fluid 4.3 qt (4.0 L) — BK0237700US.bo
ok 6 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Alphabetical index 12-2
12
Consumer information
........................
10-2
Continuously variable transmission (CVT)
....
5-59 Fluid
.....................
...............
9-10
, 11-6
Selector lever operation
...................
5-59
Sports mode
..................
.................
5-64
Coolant (engine)
..........................
9-7
, 11-6
Cruise control
....................
.................
5-80
Cup holder
....................
...................
5-168
D
Daytime running lights
Bulb capacity
................
.................
9-30
Defogger (rear window)
....................
5-138
Defrosting or defogging (windshield, door windows)
.................
.................
7-8
, 7-13
Digital clock
Time Setting
.........................
7-47
, 7-52
Dimensions
...................
.....................
11-4
Dimmer (high/low beam change)
.......
5-130
Disc brake pads
.................
.................
9-23
Dome light
Bulb capacity
................
.................
9-32
Replacement
.................
.................
9-41
Switch
......................
...................
5-165
Dome light/Reading lights
Bulb capacity
................
.................
9-32
Replacement
.................
.................
9-40
Switch
.....................
.....................
5-164
Doors
Lock
.......................
.......................
5-34
Power door locks
............................
5-37
Drive mode indicator
...........................
5-69
Drive mode-selector
............................
5-68
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
....................
6-2
E
Electric power steering system (EPS)
....
5-79
Electric rear window defogger switch
..5-138
Electronic immobilizer (Anti-theft starting system)
.....................
................
5-4
, 5-27
Electronic power steering system warning display
......................
.......................
5-79
Electronically controlled 4WD system
..5-68
Drive mode indicator
.......................
5-69
Drive mode-selector
........................
5-68
Emergency key
...................
................
5-22
Emission-control system maintenance
...
9-22
Engine
Compartment
..................
.................
9-5
Coolant
...................
................
9-7
, 11-6
Hood
.......................
........................
9-3
Oil and oil filter
.......................
9-5
, 11-6
Overheating
....................
.................
8-4
Serial number
.................
................
11-2
Specifications
................
.................
11-5
Engine coolant temperature display
......
5-99
EPS
...........................
........................
5-79
Exhaust system
..................
.................
9-23
F
Filling the fuel tank
...............
................
3-3
Floor console box
.............................
5-167
Floor mat
......................
.......................
6-2
Fluid
..........................
........................
11-6
Brake fluid
............................
9-11
, 11-6
Clutch fluid
...........................
9-11
, 11-6
Continuously variable transmission (CVT)fluid
....................
...............
9-10
, 11-6
Engine coolant
........................
9-7
, 11-6
Power steering fluid
...............
9-12
, 11-6
Washer fluid
.........................
9-10
, 11-6
Fluid capacities and lubricants
.............
11-6
Free-hand advanced security transmitter (F.A.S.T.-key)
.................
.................
5-12
Front fog lights
Bulb capacity
................
.................
9-30
Indicator
...................
...................
5-123
Replacement
.................
.................
9-36
Switch
......................
...................
5-134
Front seats
.........................
...................
4-3
Front side-marker and parking lights
Bulb capacity
................
.................
9-30
Replacement
.........................
9-34
, 9-35
