2017 MITSUBISHI ASX Service

2.Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press and hold the LOCK switch (1) for
4 to 10 seconds and then also press the
UNLOCK switch (2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.Procedure for replacing the re-
mote control switch battery
E00309601114
1. Before replacing the battery, remove
static electricity from your body bytouching a metal part such as doorknob
of the room.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an
equivalent type.CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-
nents.NOTEl You may purchase a replacement battery at
an electric appliance store.
l A
MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you
if you prefer.
2. With the MITSUBISHI mark facing
you, insert the cloth covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the remote control switch
case and use it to open the case.
NOTEl Be sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the transmitter may come out.
3. Remove the old battery.
4. Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
5. Close the case firmly.
6. Check the keyless operation function to
see that it works.
Doors
E00300402060CAUTIONlMake sure the doors are closed: driving with
doors not completely closed is dangerous.
l Never leave children in the vehicle unatten-
ded.
l Be careful not to lock the doors while the
key is inside the vehicle.
Doors
3-24OGAE17E2Locking and unlocking3

Operation mode ON remindersystem*
E00310100268
For vehicles equipped with the keyless op-
eration system
If the driver’s door is opened with the engine stopped and the operation mode in any posi-
tion other than OFF, the operation mode ON reminder buzzer sounds intermittently to re-
mind you to put the operation mode in OFF.
In addition, the warning display will be dis- played on the information screen in the multi-information display.
Central door locks
E00300801777NOTElEach of the doors can be locked or unlocked
independently by using the inside lock knob.
l When locking or unlocking with the key on
the driver’s door, only the driver’s door will
lock or unlock.NOTEl Repeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating.
If this occurs, wait approximately 1 minute before operating the central door lockswitch.
l When the driver’s door is open, the central
door lock switch cannot be used to lock it.
To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
1- Lock
2- Unlock
To unlock the doors and tail-
gate
E00311300313
You can select the functions to unlock the doors and tailgate either using the ignition
switch or the engine switch, or using the se- lector lever position A/T or CVT).
These functions are not activated when the vehicle is shipped from the factory. To acti-
vate or deactivate these functions, please contact a MITSUBISHI MOTORS Author-
ized Service Point.
Central door locks
3-26OGAE17E2Locking and unlocking3 LHD RHD

NOTElIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate OPEN switch), the doors and
tailgate are automatically relocked and the Dead Lock System is simultaneously set
again.
l Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver’s door. When
the key is used to unlock the driver’s door, the Dead Lock System is cancelled for only
the driver’s door. If you wish to subsequent- ly unlock all other doors, perform the fol-
lowing operation.
• Except for vehicles equipped with the
keyless operation system, turn the ignitionswitch to the “ON” or “ACC” position.
• For vehicles equipped with the keyless
operation system, put the operation mode in ON or ACC.
l It is possible to adjust the time between
pressing the UNLOCK switch (D) on the re- mote control switch or the driver’s or front
passenger’s door lock/unlock switch (E) and automatic locking. For details, please con- tact a MITSUBISHI MOTORS Authorized
Service Point.NOTEl It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (B), or the tailgate LOCK switch (C).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
E00305400104
Open all of the door windows, then set the
Dead Lock System. (Refer to “Setting the system” on page 3-27.)
After setting the Dead Lock System, reach
into the vehicle through a window and con-
firm that you cannot unlock the doors using the lock knobs.
NOTEl If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.“Child-protection” rear
doors E00300900999
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
“Child-protection” rear doors
3-29OGAE17E2Locking and unlocking3

NOTE•Taking the vehicle on a ferry
• Parking in an automated car park
• Leaving someone or a pet in the vehicle
• Leaving a window open
• Leaving an unstable object such as a stuf-
fed toy or accessory in the vehicle
• Suffering a continuous impact or vibra-
tion by hail, thunder, etc.
According to the situations, deactivate the
vehicle inclination detection function and the interior intrusion detection function.
Refer to “To deactivate the vehicle inclina-
tion detection function and the interior intru- sion detection function” on page 3-37.
l The sensitivity of the interior intrusion de-
tection function can be adjusted. For details,
please contact a MITSUBISHI MOTORS
Authorized Service Point.The security alarm has four
modes:
System preparation mode (ap- prox. 20 seconds)
(The buzzer sounds intermittently and the se-curity indicator (A) blinks.)
The system preparation time extends fromthe point at which all of the doors and the
tailgate are locked by pressing the LOCK
switch on the remote control switch or the
keyless operation function to the point at which the system armed mode goes into ef- fect.
During this time, it is possible to temporarily
open a door or the tailgate without using the
keyless entry system or the keyless operation function and without causing the alarm tosound (for example, when you forget some-
thing inside the vehicle or realize that a win- dow is open).
System armed mode
(The security indicator continues to blink with the indicator’s reduced lit-up duration
time.)
Once the system preparation mode has ended,
the system armed mode starts.
If an unlawful opening of any of the doors, tailgate or bonnet is detected during the sys-
tem armed mode, the alarm will be activated to warn people around the vehicle of an ab-
normal condition.
Also, if unlawful moving of the vehicle is at-
tempted or a vehicle intrusion is detected, the alarm will be activated.
Alarm activation
The turn-signal lamps blink and the siren sounds for approximately 30 seconds.
Refer to “Alarm activation” on page 3-38.
Security alarm system*
3-33OGAE17E2Locking and unlocking3

NOTElIf the bonnet is opened during the system
preparation mode, the system preparationcondition is suspended.
The system returns to the system preparation mode when the bonnet is closed.
l If the battery terminals are disconnected
while the system is in the system preparation mode, the memory will be erased.
l It is possible to register up to 8 remote con-
trol switches for the keyless entry system and 4 remote control switches for the key-
less operation system.
As long as they are registered, any of the re-
mote control switches, other than the one used to activate the system, can be used to cancel the system.
If you want to register additional remote control switches, please contact aMITSUBISHI MOTORS Authorized Serv-
ice Point.
l The activation distance for the keyless entry
system is approximately 4 m.
If it is not possible to lock or unlock the ve-
hicle by pressing the switch at the correct
distance or the security alarm system cannot be set or cancelled using the switch, the bat-
tery may need to be replaced.
For further information, please consult a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If you replace the battery yourself, refer to “Procedure for replacing the remote control
switch battery” on pages 3-06, 3-24.NOTEl If the UNLOCK switch on the remote con-
trol switch, or the driver’s or front passen-ger’s door lock/unlock switch is pressed and no door or the tailgate is opened within 30 seconds, the doors and the tailgate will auto- matically relock. In this case as well, the
system preparation mode will go into effect.
l The time between pressing the UNLOCK
switch on the remote control switch, or thedriver’s or front passenger’s door lock/
unlock switch and automatic locking can be adjusted. Please consult a MITSUBISHI
MOTORS Authorized Service Point.Alarm activation
E00301902310
When the system is in the system armed
mode, the alarm will be activated as follows
if the vehicle is unlocked or if any of the doors, tailgate or bonnet is opened using a
method other than the keyless entry system or the keyless operation function. 1. The alarm will be activated for approxi-
mately 30 seconds.
The turn-signal lamps will blink, and the siren will sound intermittently.
2. The alarm will resume if unlawful ac-
tions are taken again, even if the alarm has stopped.
Security alarm system*
3-38OGAE17E2Locking and unlocking3

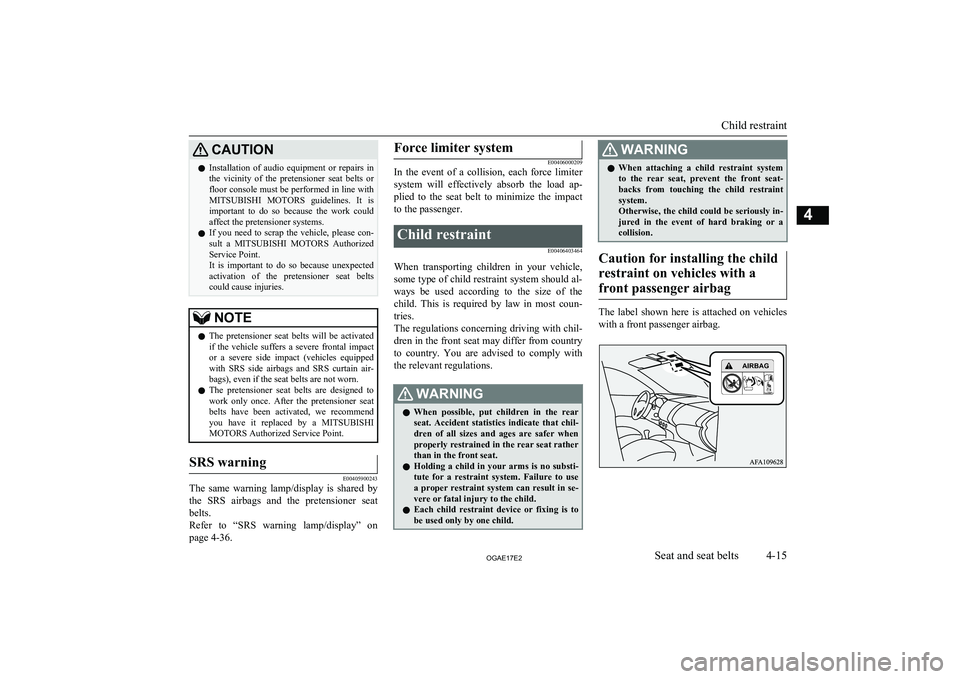

CAUTIONlInstallation of audio equipment or repairs in
the vicinity of the pretensioner seat belts or
floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is
important to do so because the work could affect the pretensioner systems.
l If you need to scrap the vehicle, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
It is important to do so because unexpected activation of the pretensioner seat belts
could cause injuries.NOTEl The pretensioner seat belts will be activated
if the vehicle suffers a severe frontal impact or a severe side impact (vehicles equipped
with SRS side airbags and SRS curtain air- bags), even if the seat belts are not worn.
l The pretensioner seat belts are designed to
work only once. After the pretensioner seat belts have been activated, we recommend
you have it replaced by a MITSUBISHI
MOTORS Authorized Service Point.SRS warning
E00405900243
The same warning lamp/display is shared by
the SRS airbags and the pretensioner seat
belts.
Refer to “SRS warning lamp/display” on page 4-36.
Force limiter system
E00406000209
In the event of a collision, each force limiter
system will effectively absorb the load ap- plied to the seat belt to minimize the impact
to the passenger.Child restraint
E00406403464
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil- dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.
WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.WARNINGl When attaching a child restraint system
to the rear seat, prevent the front seat- backs from touching the child restraintsystem.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.
Caution for installing the child
restraint on vehicles with a
front passenger airbag
The label shown here is attached on vehicles with a front passenger airbag.
Child restraint
4-15OGAE17E2Seat and seat belts4

Key of characters to be inserted in the table above:
lIUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS genuine parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.IL (Genuine part information) Genuine part No.UN No.*1MZ314393 (Child restraint system),
MZ314394 (ISOFIX base)E1-04301146
*2
MZ314390E (Child restraint system for East area),
MZ314390CS (Child restraint system for Central-South area), MZ314390N (Child restraint system for North area),
MZ314417 (Rearward facing ISOFIX base for ALL areas)
E4-04443718
* 3MZ313045E1-04301133
*4
MZ314390E (Child restraint system for East area),
MZ314390CS (Child restraint system for Central-South area), MZ314390N (Child restraint system for North area),
MZ314416 (Forward facing ISOFIX base for ALL areas)
E4-04443718
NOTEl MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.

Child restraint
4-19OGAE17E2Seat and seat belts4

L (Genuine part information) Genuine part No.UN No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314390E (for East area),
MZ314390CS (for Central-South area), MZ314390N (for North area)E4-03443416*4MZ314250E1-04301169NOTEl
There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Child restraint
4-21OGAE17E2Seat and seat belts4
