2017 MERCEDES-BENZ CLS Owners Manual

Problems with the windshield wipers Problem
Possible causes/consequences and P Solutions
The windshield wipers
are jammed. Leaves or snow, for example, are obstructing windshield wiper move-
ment. The wiper motor has been deactivated. X
Switch off the engine. X
Remove the SmartKey from the ignition lock.
or, on vehicles with KEYLESS ‑ GO:X
Open the driver's door.
The vehicle electronics now have status 0 . This is the same as the
SmartKey having been removed. X
Remove the cause of the obstruction. X
Switch the windshield wipers back on.
The windshield wipers
fail completely. The windshield wiper drive is malfunctioning. X
Select another wiper speed on the combination switch. X
Have the windshield wipers checked at a qualified specialist work-
shop.
The windshield washer
fluid from the spray noz-
zles no longer hits the
center of the windshield. The spray nozzles are misaligned. X
Have the spray nozzles adjusted at a qualified specialist workshop. Windshield wipers 111
Lights and windshield wipers Z

Overview of climate control systems
General notes Observe the settings recommended on the fol-
lowing pages. The windows could otherwise fog
up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only briefly R
switch on the cooling with air dehumidifica-
tion function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature and
the humidity in the vehicle interior and filters
undesirable substances out of the air.
Climate control can only be operated when the
engine is running. Optimum operation is only
achieved with the side windows and roof closed.
The residual heat function can only be activated
or deactivated with the ignition switched off
( Y
page 120). i Ventilate the vehicle for a brief period during
warm weather, e.g. using the convenience
opening feature ( Y
page 88). This will speed
up the cooling process and the desired inte-
rior temperature will be reached more
quickly.
i The integrated filter filters out most parti-
cles of dust and soot and completely filters
out pollen. It also reduces gaseous pollutants
and odors. A clogged filter reduces the
amount of air supplied to the vehicle interior.
For this reason, you should always observe
the interval for replacing the filter, which is
specified in the Maintenance Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance Book-
let.
i It is possible that the residual heat function
may be activated automatically an hour after
the SmartKey is removed. The vehicle is then
ventilated for 30 minutes to dry the automatic
climate control.
Control panel for dual-zone automatic climate control
Canada only
C
Sets the temperature, left ( Y
page 117)
D
Defrosts the windshield ( Y
page 118)

k
Switches air-recirculation mode on/off ( Y
page 120)l
Setting the air distribution ( Y
page 118)m
Increases the airflow ( Y
page 118)n
Reduces the airflow ( Y
page 118)o
Activates/deactivates climate control ( Y
page 116)p
Sets climate control to automatic ( Y
page 117)

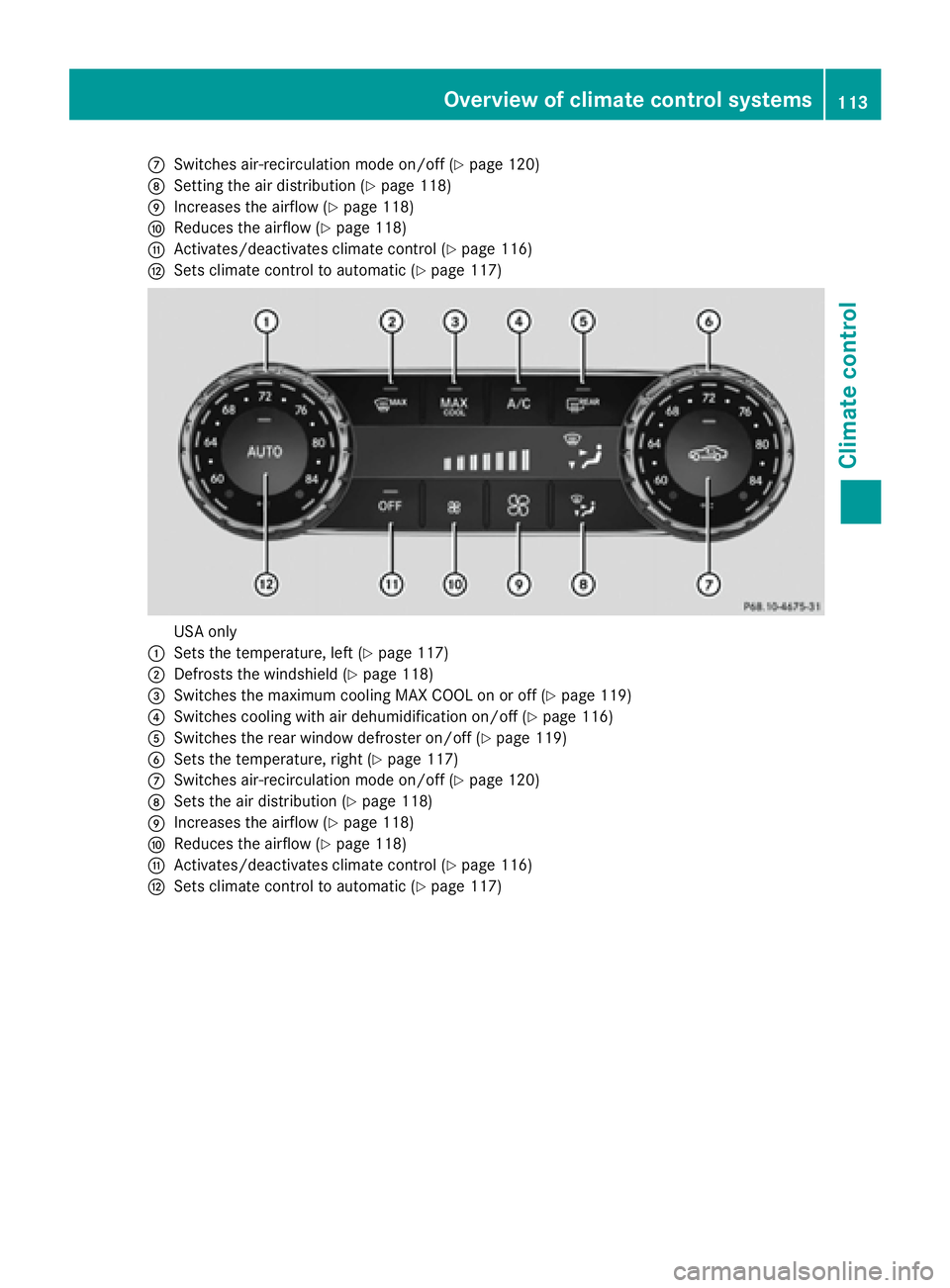

USA onlyC
Sets the temperature, left ( Y
page 117)D
Defrosts the windshield ( Y
page 118)

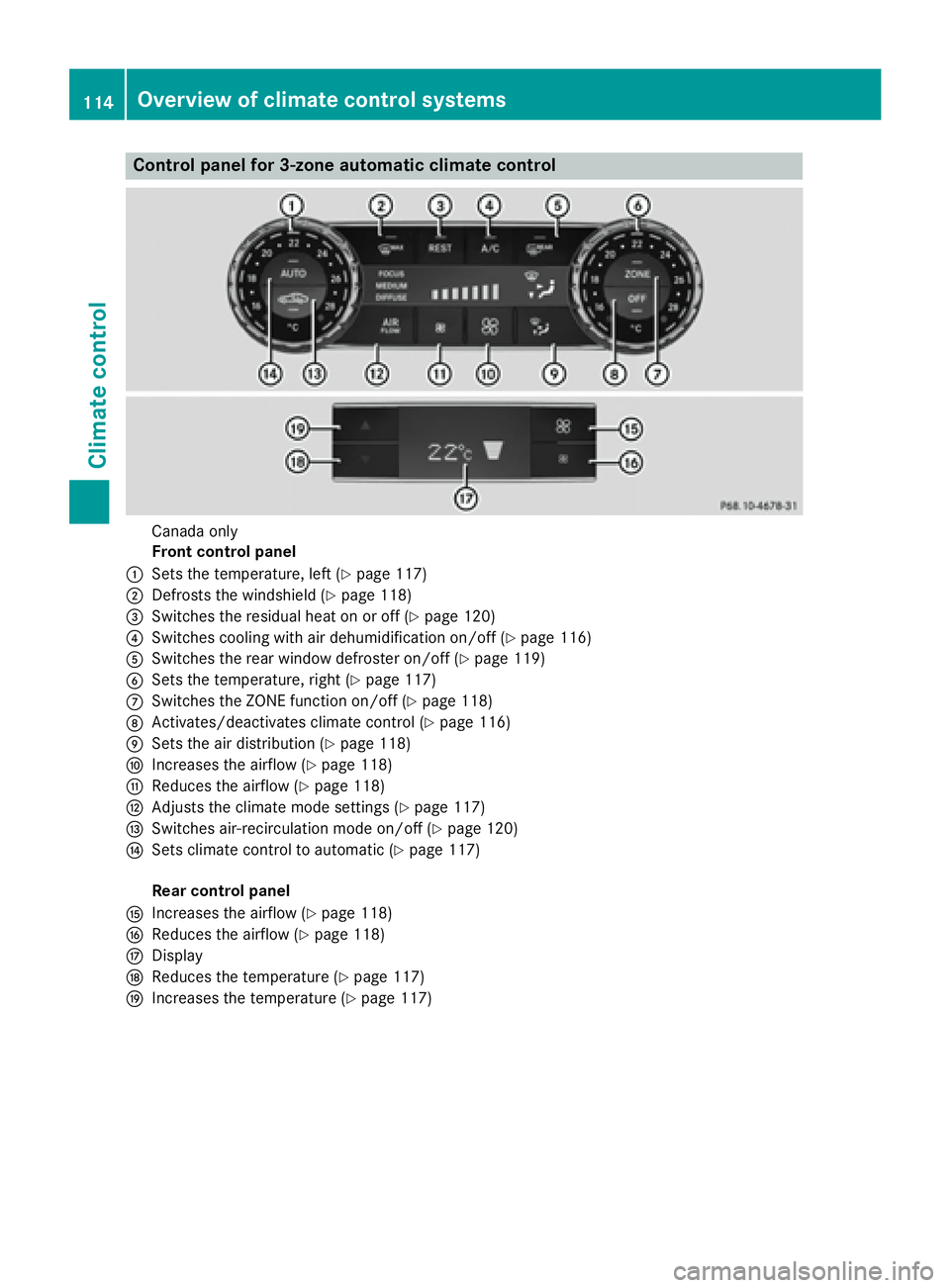

Control panel for 3-zone automatic climate control
Canada only
Front control panelC
Sets the temperature, left ( Y
page 117)D
Defrosts the windshield ( Y
page 118)

USA only
Front control panelC
Sets the temperature, left ( Y
page 117)D
Defrosts the windshield ( Y
page 118)

R
Only use the "Windshield defrosting" function
briefly until the windshield is clear again. R
Only use air-recirculation mode briefly, e.g. if
there are unpleasant outside odors or when in
a tunnel. The windows could otherwise fog up,
since no fresh air is drawn into the vehicle in
air-recirculation mode. R
Use the ZONE function to adopt the temper-
ature settings on the driver's side for the
front-passenger side and the rear compart-
ment as well. The indicator lamp above the

Problems with the "Cooling with air dehumidification" function Problem
Possible causes/consequences and P Solutions
The indicator lamp in the
Z button flashes
three times or remains
off. The "Cooling with air
dehumidification" func-
tion cannot be switched
on. Cooling with air dehumidification has been deactivated due to a mal-
function. X
Visit a qualified specialist workshop.
Setting climate control to automatic
General notes In automatic mode, the set temperature is main-
tained automatically at a constant level. The
system automatically regulates the temperature
of the dispensed air, the airflow and the air dis-
tribution.
The "Cooling with air dehumidification" function
is activated automatically in automatic mode.
Automatic control X
Turn the SmartKey to position 2 in the ignition
lock ( Y
page 123).X
Set the desired temperature. X
To switch on: press the X button.
The indicator lamp in the X button lights
up. Automatic air distribution and airflow are
activated.
3-zone automatic climate control: when auto-
matic mode is activated, you can set the climate
mode ( Y
page 117).X
To switch to manual mode: press the

Only change the temperature setting in small
increments. Start at 72 ‡ (22 †). X
To increase or reduce the temperature in
the rear compartment using the front con-
trol panel: press the
