2017 MERCEDES-BENZ CLA-Class Owner's Manual

Cockpit
FunctionPage
:Steering wheel paddle shift-
ers135
;Combination switch100
=Instrument cluster32
?Horn
ADIRECT SELECT lever129
BParking Assist PARKTRONIC
warning display161
COverhead control panel38
FunctionPage
DClimate control systems109
EIgnition lock121
FAdjusts the steering wheel94
GCruise control lever148
HElectric parking brake141
ILight switch99
JDiagnostics connection27
KOpens the hood254
Cockpit31
At a glance

Instrument cluster
FunctionPage
:Speedometer wit hsegments17 4
Warning and indicator lamps:
L Low-beam headlamps100
T Parking lamp s100
K High-beam headlamps100
÷ ESP®21 9
Electric parking brak e
applie d(red)
F (USAonly)
! (Canada only)222
! Electric parking brak e
(yellow)22 2
· Distanc ewarning22 5
å ESP®OF F219
! ABSmalfunctioning21 8
Brake s217
$ (USAonly)
J (Canada only)
FunctionPage
;#! Turn signals100
=Multifunction display176
?Tachometer174
6 Restrain tsystem40
ü Seat belt no tfastene d216
M SPORT handlin gmod e
(Mercedes-AM Gvehicles)22 0
R Rear fog lamp100
; CheckEngin e222
h Tirepressur emonitor22 6
ACoolan ttemperature gauge17 5
Warning and indicator lamps:
? Coolan tto ohot/cold22 3
BFue llevel indicator
Warning and indicator lamps:
æ Reserve fuel222
32Instrument cluster
At a glance

Multifunction steering wheel
FunctionPage
:Multifunction display176
;Multimedia system display
=~Rejects or ends a call
6Makes or accepts a call
Further telephone functions180
WXAdjusts volume
8 Mute
?Switches on voice-
operated control of the navi-
gation system or the Voice
Control System
FunctionPage
?ò Opens the menu list
9:Selects a menu
aConfirms the selection
%Back
Operates the on-board com-
puter175
?Switches off voice-
operated control of the navi-
gation system or the Voice
Control System
iIn vehicles with multimedia system Audio 20
you can find further information:
Ron the multimedia system in the Digital
Operator's Manual
Ron voice-operated control of the navigation
system in the manufacturer's operating
instructions
iIn vehicles with multimedia system
COMAND you can find further information:
Ron the multimedia system in the Digital
Operator's Manual
Ron the DVD changer or single DVD drive in
the Digital Operator's Manual
Ron the Voice Control System in the sepa-
rate operating instructions
Multifunction steering wheel33
At a glance

Center console
Center console, upper section
FunctionPage
:Multimedia system (see the
separate operating instruc-
tions)
;cSeat heating93
Mercedes-AMG vehicles:
AMG adaptive sport suspen-
sion system (left side)
158
Mercedes-AMG vehicles:
adjusts the exhaust flap of
the AMG performance
exhaust system (right side)
126
=cParking Assist
PARKTRONIC161
FunctionPage
?è ECO start/stop func-
tion124
A£ Hazard warning lamps101
BPASSENGER AIR BAG indica-
tor lamp40
CDYNAMIC SELECT button127
åMercedes-AMG vehi-
cles: ESP®65
34Center console
At a glance

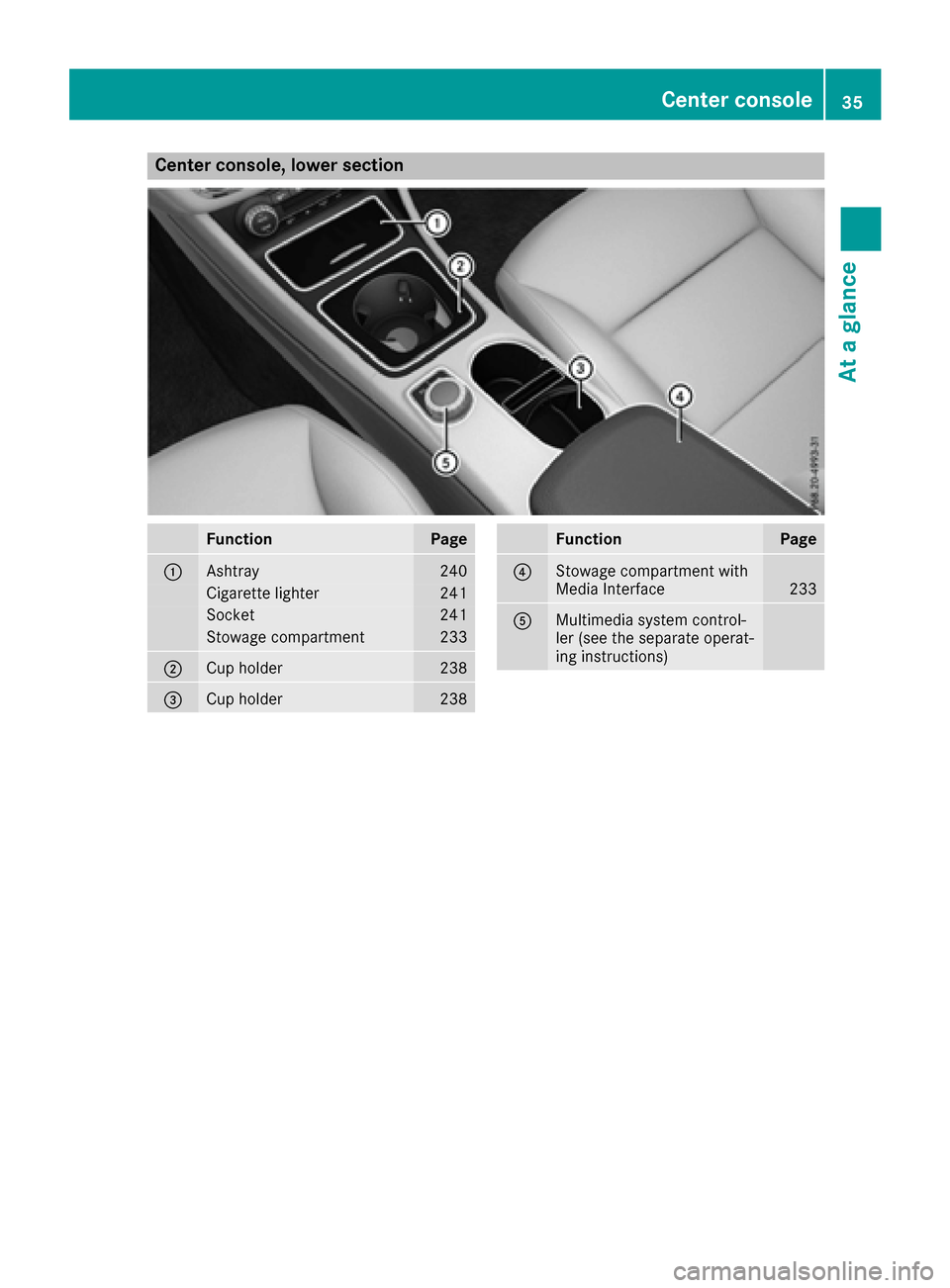

Center console, lower section
FunctionPage
:Ashtray240
Cigarette lighter241
Socket241
Stowage compartment233
;Cup holder238
=Cup holder238
FunctionPage
?Stowage compartment with
Media Interface233
AMultimedia system control-
ler (see the separate operat-
ing instructions)
Center console35
At a glance

iMercedes-AMG vehicles
FunctionPage
:Ashtray240
Cigarette lighter241
Socket241
Stowage compartment233
;Selector lever131
=Manual gearshifting (perma-
nent setting)135
FunctionPage
?DYNAMIC SELECT controller128
ACup holder238
BStowage compartment with
Media Interface233
CMultimedia system control-
ler (see the separate operat-
ing instructions)
36Center console
At a glance

Door controlpanel
FunctionPage
:Opens th edoo r75
;%&Unlocks/locks
the vehicle75
=r45= Saves
the seat and exterior mirror
settings
97
?Adjusts the seats electrically91
A7 Zö\
Adjusts and folds the exterior
mirrors in/out electrically
95
FunctionPage
BW Opens/closes the side
windows81
Cn Activates/deactivates
the override feature for the
side windows in the rear
compartment
59
Dq Opens the trunk79
Door control panel37
At a glance

Overhead control panel
FunctionPage
:uSwitches the rear com-
partment interior lighting
on/off
102
;p Switches the right-
hand reading lamp on/off102
=| Switches the front inte-
rior lighting/automatic inte-
rior lighting control off
102
?ï MB Info call button
(mbrace system)244
ARear-view mirror96
BSets the compass252
CButtons for the garage door
opener249
FunctionPage
DF Roadside assistance
call button (mbrace system)244
EG SOS button (mbrace
system)243
FEyeglasses compartment234
G3 Opens/closes the pan-
orama roof with power tilt/
sliding panel with roller sun-
blinds
85
Hc Switches the front inte-
rior lighting on102
Ip Switches the left-hand
reading lamp on/off102
38Overhead control panel
At a glance
