4–14 6
When Driving
Tyre Pressure Monitoring System
System Error Activation
When the TPMS warning light À ashes,
there may be a system malfunction.
Consult an Authorised Mazda Dealer.
A system error activation may occur in the
following cases:



 When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tyre pressure
sensors.



 When a metallic device such as a non-
genuine navigation system is equipped
near the centre of the instrument panel,
which may block radio signals from the
tyre pressure sensor to the receiver unit.



 When using the following devices in the
vehicle that may cause radio interference
with the receiver unit.



 A digital device such as a personal
computer.



 A current converter device such as a
DC-AC converter.



 When excess snow or ice adheres to the
vehicle, especially around the wheels.



 When the tyre pressure sensor batteries
are exhausted.



 When using a wheel with no tyre
pressure sensor installed.



 When using tyres with steel wire
reinforcement in the side walls.



 When using tyre chains.
Tyres and Wheels
CAUTION
When inspecting or adjusting the tyre air
pressures, do not apply excessive force
to the stem part of the wheel unit. The
stem part could be damaged.
Changing tyres and wheels
The following procedure allows the TPMS
to recognise a tyre pressure sensor's
unique ID signal code whenever tyres or
wheels are changed, such as changing to
and from winter tyres.
NOTE
Each tyre pressure sensor has a unique
ID signal code. The signal code must be
registered with the TPMS before it can
work. The easiest way to do it is to have
an Authorised Mazda Dealer change
your tyre and complete ID signal code
registration.
When having tyres changed at an
Authorised Mazda Dealer
When an Authorised Mazda Dealer
changes your vehicle's tyres, they will
complete the tyre pressure sensor ID signal
code registration.
When changing tyres yourself
If you or someone else changes tyres, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
/:A(.'',A'FKVKQPKPFD

5–45
Interior Features
Audio System

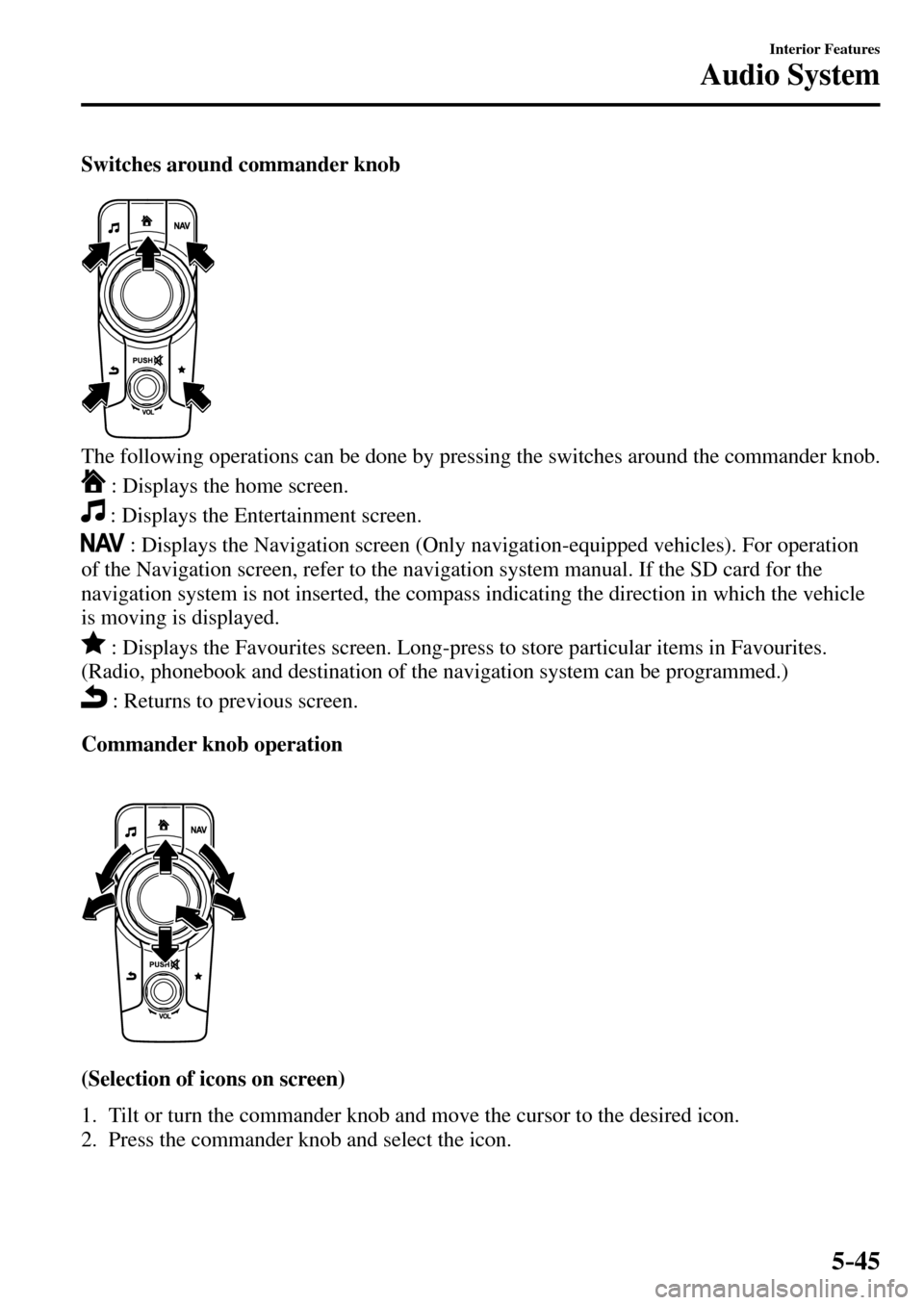

Switches around commander knob
The following operations can be done by pressing the switches around the commander knob.
: Displays the home screen.
: Displays the Entertainment screen.
: Displays the Navigation screen (Only navigation-equipped vehicles). For operation
of the Navigation screen, refer to the navigation system manual. If the SD card for the
navigation system is not inserted, the compass indicating the direction in which the vehicle
is moving is displayed.
: Displays the Favourites screen. Long-press to store particular items in Favourites.
(Radio, phonebook and destination of the navigation system can be programmed.)
: Returns to previous screen.
Commander knob operation
(Selection of icons on screen)
1. Tilt or turn the commander knob and move the cursor to the desired icon.
2. Press the commander knob and select the icon.
/:A(.'',A'FKVKQPKPFD

5–48
Interior Features
Audio System
Return to previous screen
1. Touch the
.
Displaying the home screen
1. Touch the
.
Home screen
Icon Function
Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.
Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the
icon displayed at the bottom of the screen.
Communication
Bluetooth ® related functions are available.
Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or travelling
at a slow speed.
Settings
Overall setting menu (Such as display, sound, Bluetooth ® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.
/:A(.'',A'FKVKQPKPFD

5–71
Interior Features
Audio System
*Some models.
Mute Switch *
Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition is switched off with the
audio muted, the mute will be cancelled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch (
).
AUX/USB mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug lead is required.
Contact an expert repairer, we recommend
an Authorised Mazda Repairer for details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
NOTE
(Type B/Type C)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine)
with stored map data is inserted into the
SD card slot and used.
Ty p e A
Auxiliary jack/USB port
/:A(.'',A'FKVKQPKPFD

5–98
Interior Features
Bluetooth®
*Some models.
Entertainment (audio) related command
Voice command Function Corresponding audio
source
(Go to/Play) AM (Radio) Switches the audio source to AM radio. All
(Go to/Play) FM (Radio) Switches the audio source to FM radio. All
(Go to/Play) DAB (Radio) Switches the audio source to DAB radio. All
(Go to/Play) Bluetooth (Audio) Switches the audio source to BT audio. All
(Go to/Play) Aha (Radio) Switches the audio source to Aha
™ Radio. All
(Go to/Play) Stitcher Switches the audio source to Stitcher™ Radio. All
(Go to/Play) USB 1 Switches the audio source to USB 1. All
(Go to/Play) USB 2 Switches the audio source to USB 2. All
Play Playlist {Playlist name} Plays the selected playlist. USB
Play Artist {Artist name} Plays the selected artist. USB
Play Album {Album name} Plays the selected album. USB
Play Genre {Genre name} Plays the selected genre. USB
Play Folder {Folder name} Plays the selected folder. USB
Navigation related command *
For the navigation screen voice commands, refer to the separate navigation system manual.
NOTE
  Some commands cannot be used depending on the grade and speci¿ cation.
 Some commands cannot be used depending on the device connection conditions and
the use conditions.
  The commands are examples of the available commands.
/:A(.'',A'FKVKQPKPFD

5–113
Interior Features
Bluetooth®
Playback
Select the
icon on the home screen to display the Entertainment screen. When is
selected, the following icons are displayed at the bottom of the centre display. The displayed
icon differs depending on the selected station.
In addition, icons other than the following icons may be displayed.
Icon Function
Displays the Entertainment menu. Use to switch to a different audio source.
Displays the main menu.
Use to switch to other stations.
Displays the content list.
Use to switch to other desired content on the station.
Shout
Records voice.
Records voice and posts it as playable audio to Facebook and other social stations.
Like*2
Evaluates the current content as “Like”.
Dislike*2
Evaluates the current content as “Dislike”.
Reverses for 15 seconds.
Map (vehicles with navigation system)
Displays the destination searched by the location based services on the navigation system.
Call
A call can be made to the telephone number of a shop searched using the Location Based
Services. Available when a device is connected as a Hands-Free.
Returns to the previous content.
Pauses playback of the content. When selected again, playback resumes.
Goes to the next content.
/:A(.'',A'FKVKQPKPFD

5–115
Interior Features
Bluetooth®
Example of use (Location Based
Services)
1. Select the desired station from the
“Nearby” tab on the main menu.
The destination name or address
playback starts in the order of the
destination name list.
2. When the icon is selected, the
currently displayed destination is
displayed on the navigation system
(vehicles with navigation system).
3. When the
icon is selected, a phone
call is placed to the currently displayed
destination.
4. Select the
icon to display the
content list.
Selection of other destinations from the
list can be made.
Shout
Some social stations, such as Facebook or
Caraoke, support the ability to record and
share voice messages using the “Shout”
function.
1. Select the
icon and start the
countdown (3, 2, 1, 0). Recording starts
when the countdown reaches zero.
2. Records voice.
3. Select
and store/post the
recording.
NOTE
  Recordable time varies depending on
the station (Max. 30 seconds).
  Recording stops automatically when
the recordable time has elapsed. You
can then post or delete the recording.
/:A(.'',A'FKVKQPKPFD

8–4
Customer Information
Cell Phones
Cell Phones Warning
WARNING
Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous.
Dialing a number on a cell phone while driving also ties-up the driver's hands. Use of
these devices will cause the driver to be distracted and could lead to a serious accident.
If a passenger is unable to use the device, pull off the right-of-way to a safe area before
use. If use of a cell phone is necessary despite this warning, use a hands-free system
to at least leave the hands free to drive the vehicle. Never use a cell phone or other
electrical devices while the vehicle is moving and, instead, concentrate on the full-time
job of driving.
