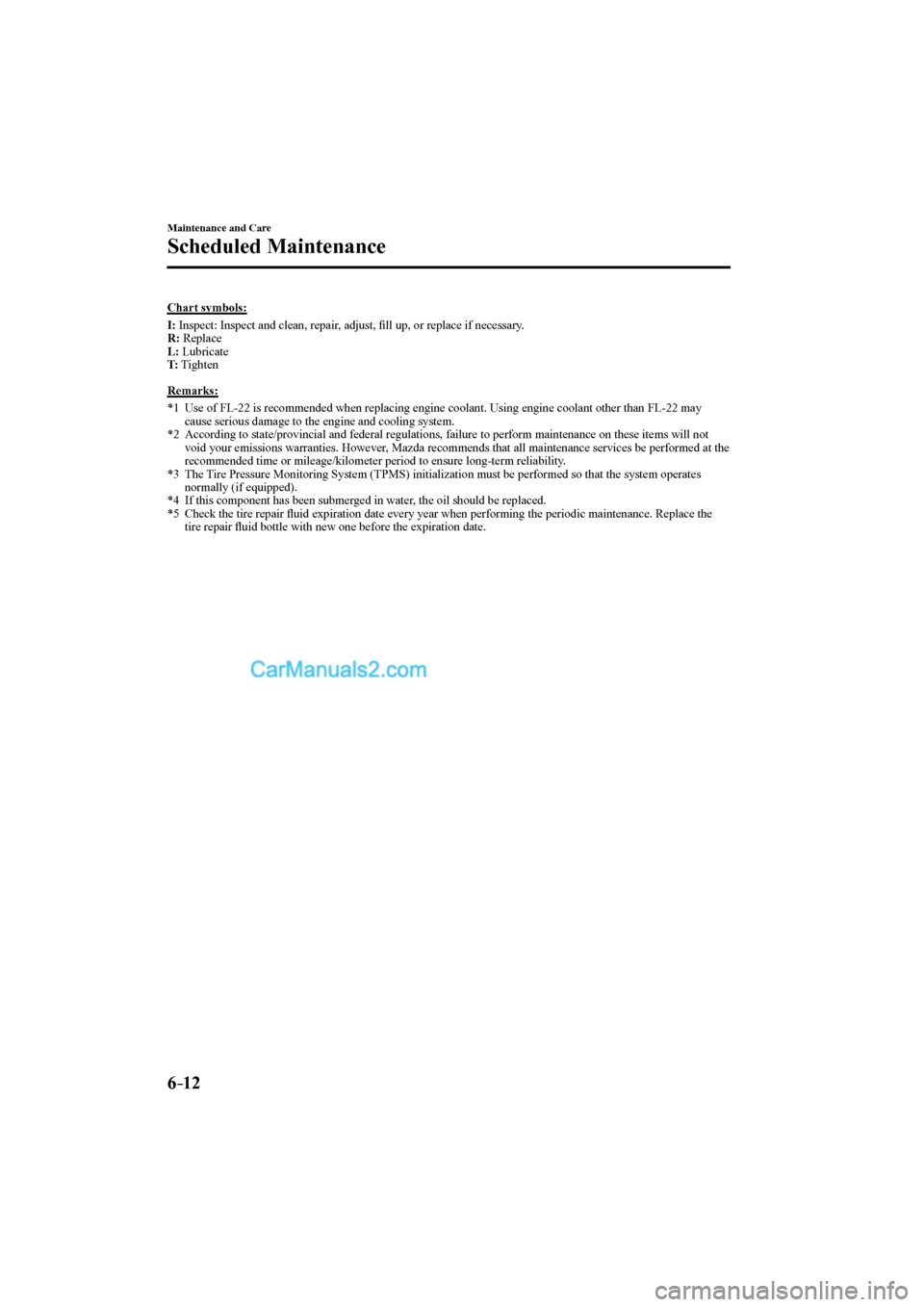

Maintenance and Care
Scheduled Maintenance
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten

Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If this component has been submerged in water, the oil should be replaced.
*5 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–15
Maintenance and Care
Scheduled Maintenance
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If this component has been submerged in water, the oil should be replaced.
*5 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–17
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
Wa s h e r À uid level I I I I I I
Emergency À at tire repair kit (if installed)
*5 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If this component has been submerged in water, the oil should be replaced.
*5 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.




/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–19
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95
100 105 110 115 120
Wa s h e r À uid level I I I I I I
Emergency À at tire repair kit (if installed)
*5 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If this component has been submerged in water, the oil should be replaced.
*5 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

6–23
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suffi cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
qualifi ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.

If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.

Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running indefi nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.

Do not leave items in the engine compartment:
After you have fi nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fi re
leading to an unexpected accident.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

7–27
If Trouble Arises
Overheating
O v e r h e a t i n g
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before attempting
to work near the cooling fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.

Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the high engine coolant temperature
warning light turns on:


1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic
transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

7–34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning


Electronic Brake Force
Distribution System
Warning If the electronic brake force distribution control unit determines that some components
are operating incorrectly, the control unit may illuminate the brake system warning
light and the ABS warning light simultaneously. The problem is likely to be the
electronic brake force distribution system. WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes
inspected as soon as possible:
Driving when the brake system warning light and ABS warning light are
illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an
emergency stop than under normal circumstances.


Charging System
Warning Indication/
Warning Light If the warning light illuminates while driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated
because the engine could stop unexpectedly.


Engine Oil Warning
Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil pan.
3. Inspect the engine oil level 6-28 . If it's low, add the appropriate amount of engine
oil while being careful not to over¿ ll.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Contact Authorized Mazda Dealer and Have Vehicle Inspected
If any of the following warning lights or the indicator light turns on/À ashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.

Signal Warning


Master Warning
Indication/Warning
Light
*
Type A instrument cluster
(Master warning indication)
Displays when noti¿ cation of the system malfunctions is required.
Check the message indicated in the display and consult an Authorized Mazda Dealer.
(Master warning light)
The master warning light displays when a warning message occurs.
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicator lights, in the warning/
indicator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the
“Warning” screen.
Refer to Message Indicated in Multi-information Display and INFO switch on page 4-18 .
Type B instrument cluster
The light illuminates continuously if any one of the following occurs. Consult an
Authorized Mazda Dealer.
y There is a malfunction in the battery management system.
y There is a malfunction in the brake switch.

Electric Vacuum
Pump Warning
Light The light turns on if the electric vacuum pump system has a problem. Have your vehicle
inspected at an Authorized Mazda Dealer.


ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible. N O T E
y
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
y
The brake assist system does not operate while the ABS warning light is illuminated.


Check Engine Light If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:
y The engine's electrical system has a problem.
y The emission control system has a problem.
y The fuel tank level being very low or approaching empty.
y The fuel-¿ ller cap is missing or not tightened securely.
If the check engine light remains on, or it À ashes continuously , do not drive at high speeds
and consult an Authorized Mazda Dealer as soon as possible.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
