2017 MAZDA MODEL MX-5 language

5–23
Interior Features
Audio System
NOTE
  Video data (DVD-Video/DVD-VR
¿ les) written to DVD/DVD-R/DVD
R/DVD-RW/DVD RW can be played.
 This unit is compatible for playback
of dual-layer DVD/DVD-R.
  Regional number for this unit is [2]
or [3] (regional number depends on
market).
  DVD-Video/DVD-VR ¿ les written
under speci¿ cations other than the
indicated speci¿ cation may not play
normally or ¿ les or folder names
may not display correctly.
Mark indicating on disc
Marks indicated on discs or packages are
as follows:
Mark Meaning
NTSC PAL Indicates a colour TV
system (broadcast system
depends on market).
Indicates the number of
audio tracks.
The number indicates
the number of audio
recordings.
Indicates the number of
subtitled languages.
The number indicates
the number of recorded
languages.
Number of angles.
The number indicates
the number of recorded
angles.
Indicates the screen modes
which can be selected.
“16:9” indicates a wide
screen and “4:3” indicates
a standard screen.
Indicates the region code
for which a disc can be
played.
ALL indicates global
applicability, and a number
indicates applicability
based on region.
/:A(.'',A'FKVKQPKPFD

5–24
Interior Features
Audio System
Glossary
DVD-Video
DVD-Video is a video image storing
standard determined by the DVD forum.
“MPEG2”, a global standard in digital
compression technologies, has been
adopted which compresses on average
about 1/40th of the image data and stores
it. In addition, a variable-rate coding
technology, which changes the assigned
information amount according to the shape
of the screen image, has been adopted.
Audio information can be stored using
Dolby digital instead of PCM (Pulse Code
Modulation) and more realistic sounding
audio can be enjoyed.
In addition, various, supplementary
functions such as multi-language
availability are provided for enhanced
enjoyment.
DVD-VR
DVD-VR is short for DVD Video
Recording Format; video image storing
standard determined by the DVD forum.
Multi-angle
One of the DVD player's functions.
Because scenes can be recorded in
multiple angles (camera position), users
can choose a desired angle.
Multi-language
As a function of the DVD player, audio
or subtitles for the same video images can
be stored in multiple languages and the
language can be selected freely. Region code
DVD players and discs are assigned codes
for each market region and only discs
manufactured for that speci¿ c region can
be played.
A disc cannot be played if the region code
assigned to the player is not indicated on
the disc.
In addition, even if a region code is not
indicated on the disc, disc playback may
be prohibited depending on the region. In
this case, a disc may not be playable in
this DVD player.
Operating Tips for OGG
OGG is the audio compression format for
Xiph. Org Foundation.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays ¿ les with the extension
(.ogg) as OGG ¿ les.
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the¿ le correctly resulting in noise or a
malfunction.



 OGG ¿ les written under speci¿ cations
other than the indicated speci¿ cation
may not play normally or ¿ les or folder
names may not display correctly.



 The ¿ le extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the ¿ le extension “.ogg” to
the end of the ¿ le name, and then write
it to the disc/memory.
/:A(.'',A'FKVKQPKPFD

5–48
Interior Features
Audio System
Return to previous screen
1. Touch the
.
Displaying the home screen
1. Touch the
.
Home screen
Icon Function
Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.
Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the
icon displayed at the bottom of the screen.
Communication
Bluetooth ® related functions are available.
Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or travelling
at a slow speed.
Settings
Overall setting menu (Such as display, sound, Bluetooth ® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.
/:A(.'',A'FKVKQPKPFD

5–68
Interior Features
Audio System
Tab Item Function
System Tool Tips Turns button explanations ON/OFF.
Language Changes the language.
Temperature Changes the setting between Fahrenheit and
Celsius.
Distance Changes the setting between miles and
kilometres.
Music Database Update Used to update Gracenote
® . Gracenote is used
with USB Audio, and provides:
1. Supplementary music information (Such as
song name, artist name)
2. Voice recognition assistance for Play Artist
and Play Album
Gracenote can be downloaded from the Mazda
Handsfree Website.
Refer to Gracenote Database (Type B/Type C)
on page 5-87 .
Factory Reset Memory and settings are initialized to the
factory settings.
The initialization launches by selecting the
button.
About Agreements and
Disclaimers Verify the disclaimer and agree.
Version Information Can verify the current audio unit OS version
and Gracenote Database version.
/:A(.'',A'FKVKQPKPFD

5–95
Interior Features
Bluetooth®
*Some models.
Disconnecting a device
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the device name which is
currently connected.
6. Select
.
Deleting a device


Selecting and deleting devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the device name which you
would like to delete.
6. Select
.
7. Select
.
Deleting all devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Select
.
Changing PIN code
PIN code (4 digits) can be changed.
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.
Available Language *
The language can be changed.
Refer to Settings on page 5-67 .
NOTE
Depending on the language, it may only
be available for the screen display, but
not for the voice recognition.
Voice Recognition
In this section, the basic operation of the
voice recognition is explained.
Activating Voice Recognition
Press the talk button.

Ending Voice Recognition
Use one of the following methods:



 Press the hang-up button.



 Say, “Cancel”.



 Operate the commander switch or the
centre display (only when vehicle is
stopped).
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
/:A(.'',A'FKVKQPKPFD

5–106
Interior Features
Bluetooth®
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.
3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.
Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.
Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.
NOTE
  Select the icon to change the
language.
  Select the icon to switch between
capitalized and lower-case
characters.
  Select the icon to return to the
previous screen without storing the
edit.
/:A(.'',A'FKVKQPKPFD

5–122
Interior Features
Bluetooth®
Other problems
Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the device The indication method is different
between the vehicle and the device. —
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appear The number has not been registered
into the phonebook. If the number has been registered
into the phonebook, the incoming/
outgoing call record is updated by
the name in the phonebook when the
engine is restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call record Some types of cell phones do not
synchronize automatically. Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is
required. —
/:A(.'',A'FKVKQPKPFD

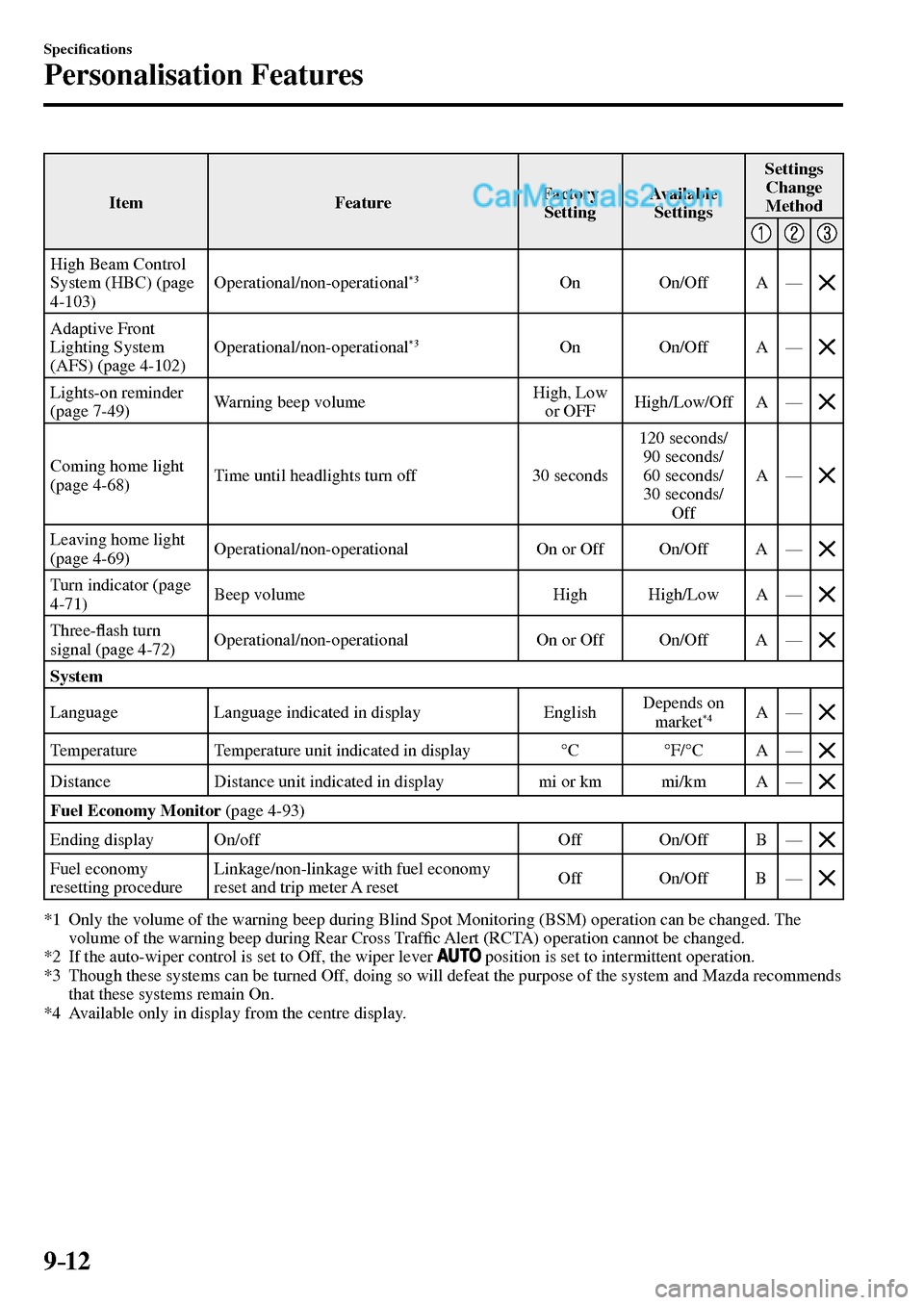

9–12
Speci¿ cations
Personalisation Features
Item Feature Factory
Setting Available
Settings Settings
Change
Method
High Beam Control
System (HBC) (page
4-103 ) Operational/non-operational *3 On On/Off A —
Adaptive Front
Lighting System
(AFS) (page 4-102 ) Operational/non-operational *3 On On/Off A —
Lights-on reminder
(page 7-49 ) Warning beep volume High, Low
or OFF High/Low/Off A —
Coming home light
(page 4-68 ) Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
O f f A —
Leaving home light
(page 4-69 ) Operational/non-operational On or Off On/Off A —
Turn indicator (page
4-71 ) Beep volume High High/Low A —
Three-À ash turn
signal (page 4-72 ) Operational/non-operational On or Off On/Off A —
System
Language Language indicated in display English Depends on
market
*4 A —
Temperature Temperature unit indicated in display °C °F/°C A —
Distance Distance unit indicated in display mi or km mi/km A —
Fuel Economy Monitor (page 4-93 )
Ending display On/off Off On/Off B —
Fuel economy
resetting procedure Linkage/non-linkage with fuel economy
reset and trip meter A reset Off On/Off B —
*1 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traf¿ c Alert (RCTA) operation cannot be changed.
*2 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*3 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends
that these systems remain On.
*4 Available only in display from the centre display.
/:A(.'',A'FKVKQPKPFD
