2017 MAZDA MODEL MX-5 engine mount

2–53
Essential Safety Equipment
Active Bonnet
*Some models.
Active Bonnet precautions *
In the unlikely event that the vehicle were to hit a pedestrian and a certain amount of impact
is applied to the front of the vehicle, impact to the head of the pedestrian if it were to hit the
bonnet is lessened by the rear area of the bonnet raising instantly to maintain a wide space
between it and the parts in the engine compartment. If the sensor installed to the back of the
front bumper detects a certain amount of impact by a collision with a pedestrian or other
obstruction while the vehicle is being driven at a speed suf¿ cient to activate the system, the
system is activated and the bonnet is raised.
Actuator
Actuator
SensorActive bonnet warning light
Electronic control unit
WARNING
If the active bonnet has activated, always consult an expert repairer, we recommend an
Authorised Mazda Repairer.
If the bonnet release handle is pulled after the active bonnet has activated, the bonnet
will rise even further. If the vehicle is driven with the bonnet raised it will obstruct
visibility and could result in an accident. In addition, do not attempt to push the bonnet
back down. Otherwise, it could deform the bonnet or cause injury because the activated
bonnet cannot be lowered manually. Before driving the vehicle to an expert repairer, we
recommend an Authorised Mazda Repairer after the active bonnet has activated, make
sure that the raised bonnet does not obstruct vision and drive the vehicle at a low speed.
/:A(.'',A'FKVKQPKPFD

4–14
When Driving
Start/Stop Engine
Automatic transmission
1. Engine idling stops when the brake pedal is depressed while the vehicle is driven (except
for driving in the R or M position second gear ¿ xed mode) and the vehicle is stopped.
2. The engine restarts automatically when the brake pedal is released with the selector lever
in the D or M position (not in second gear ¿ xed mode).
3. If the selector lever is in the N or P position, the engine does not restart when the brake
pedal is released. The engine restarts when the brake pedal is depressed again or the
selector lever is shifted to the D, M (not in second gear ¿ xed mode) or the R position.
(For the purposes of safety, always keep the brake pedal depressed when shifting the
selector lever while engine idling is stopped.)
Operation conditions
When the system is operable
Under the following conditions, engine idling stops and the i-stop indicator light (green)
turns on.



 The engine is warmed up.



 The engine has been started and the vehicle is driven for a certain period.



 The engine is started with the bonnet closed.



 The battery is in good condition.



 All doors, boot lid, and bonnet are closed.



 The driver's seat belt is fastened.



(Manual Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in a position other than ( ).



 The airÀ ow amount is other than the maximum airÀ ow amount.




(Fully Automatic Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in a position other than ( ).



 The temperature setting dial of the air conditioner is in a position other than maximum
heating or maximum cooling (A/C ON) position.



 The vehicle's interior temperature and the set temperature for the air conditioner are
nearly the same.



 The i-stop warning light (amber) is not turned on/À ashing.



 The keyless entry & push button start system functions are normal.



 The brake vacuum is suf¿ ciently high.



 The steering wheel is not being operated.



(Manual transmission)




 The vehicle speed is 3 km/h (1.8 mph) or less.



 The shift lever is in the neutral position.



 The clutch pedal is not depressed.
/:A(.'',A'FKVKQPKPFD

4–15
When Driving
Start/Stop Engine



(Automatic transmission)




 The vehicle is stopped.



 The selector lever is in the D or M position (not in second gear ¿ xed mode).



 The automatic transmission À uid has warmed up suf¿ ciently.



 The automatic transmission À uid temperature is not abnormally high.



 The steering wheel is almost in the straight-ahead position (idling may not stop even
with the steering wheel in the straight-ahead position if force is applied to the steering
wheel. Release the force applied to the steering wheel to stop engine idling).



 The vehicle is stopped by depressing the brake pedal.



 Emergency braking is not applied.
When the system is not operable
Engine idling does not stop in the following conditions:



 The vehicle is stopped but the engine is kept idling.



(Manual Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in the ( ) position and the fan control
dial is in a position other than 0.



 The airÀ ow amount is the maximum airÀ ow amount.




(Fully Automatic Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in the ( ) position.



 The temperature setting dial of the air conditioner is in the maximum heating or
maximum cooling (A/C ON) position.



 There is a large difference between the cabin temperature and the set temperature of the
air conditioner.



 The ambient temperature is extremely high or low.



 The atmospheric pressure is low (when driving at high altitudes).



(Automatic transmission)




 The vehicle is stopped on a steep incline.



 The steering wheel is not in the straight-ahead position while the vehicle is stopped.




(Retractable fastback model)
 The retractable fastback is operating
/:A(.'',A'FKVKQPKPFD

4–17
When Driving
Start/Stop Engine
NOTE
Engine restarts automatically while engine idling is stopped
Under the following conditions, the engine restarts automatically.

 The i-stop OFF switch is pressed until the beep sounds.
 The ambient temperature is extremely high or low.
(Manual Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in the ( ) position and the fan
control dial is in a position other than 0.



 The airÀ ow amount is the maximum airÀ ow amount.

(Fully Automatic Air-Conditioning)



 The airÀ ow mode dial of the air conditioner is in the ( ) position.



 The temperature setting dial of the air conditioner is in the maximum heating or
maximum cooling (A/C ON) position.



 The cabin temperature differs greatly from the set temperature of the air conditioner.

 The brakes are released slightly on a slope and the vehicle begins to move.
 Two minutes have elapsed since the idling was stopped.
 The battery power is depleted.
(Automatic transmission)




 The accelerator pedal is depressed with the selector lever in the D or M (not in
second gear ¿ xed mode) position.




 The selector lever is shifted to the R position.



 The selector lever is shifted from N or P position to D or M (not in second gear ¿ xed
mode) position.



 The steering wheel is operated with the selector lever in the D or M (not in second
gear¿ xed mode) position.




 The selector lever is in the M position and the second gear ¿ xed mode is selected.

(Retractable fastback model) The retractable fastback switch is operated.
(Except European model)




(Manual transmission)
 With the shift lever in the neutral position, the driver's seat belt is unfastened and the
driver's door is opened.



(Automatic transmission)

 With the selector lever in the N or P position, the driver's seat belt is unfastened and
the driver's door is opened.
/:A(.'',A'FKVKQPKPFD

4–57
When Driving
Transmission
*Some models.
Using steering shift switch *
To shift up to a higher gear with the
steering shift switches, pull the UP switch
(
) toward you once with your
¿ ngers.
UP switch (+/OFF)
WARNING
Keep your hands on the steering wheel
rim when using ¿ ngers on the steering
shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
collision, your hands could be impacted
causing injury.
NOTE
  When driving slowly, the gears may
not shift up.
  Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In
addition, manual shift mode switches
to automatic shift mode while the
accelerator pedal is completely
depressed.
 This function is cancelled while
the DSC is turned off. However,
if the vehicle is continuously
driven at a high rpm, the gears may
automatically shift up to protect the
engine.
  The steering shift switch can be used
temporarily even if the selector lever
is in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (
)
is pulled rearward for a suf¿ cient
amount of time.
/:A(.'',A'FKVKQPKPFD

4–61
When Driving
Transmission
*Some models.
Direct Mode *
Direct mode can be used for temporarily
switching gears by operating the steering
shift switch while the vehicle is being
driven with the selector lever in the D
range.
While in direct mode, the D and M
indication illuminate and the gear position
in use is illuminated.
Direct mode is cancelled (released) under
the following conditions.



 The UP switch ( ) is pulled
rearward for a certain amount of time or
longer.



 The vehicle is driven for a certain
amount of time or longer (time differs
depending on the driving conditions
while operating).



 The vehicle is stopped or moving at a
slow speed.
Gear position indication
Direct mode indication
NOTE
Shifting up and down while in direct
mode may not be possible depending on
the vehicle speed. In addition, because
direct mode is cancelled (released)
depending on the rate of acceleration
or if the accelerator is fully depressed,
use of the manual shift mode is
recommended if you need to drive the
vehicle in a particular gear for long
periods.
Driving Tips
WARNING
Do not let the vehicle move in a
direction opposite to the direction
selected by the selector lever:
Do not let the vehicle move backward
with the selector lever in a forward
position, or do not let the vehicle move
forward with the selector lever in the
reverse position. Otherwise, the engine
may stop, causing the loss of the power
brake and power steering functions,
and make it dif¿ cult to control the
vehicle which could result in an
accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transmission will
shift to a lower gear, depending on vehicle
speed.
/:A(.'',A'FKVKQPKPFD

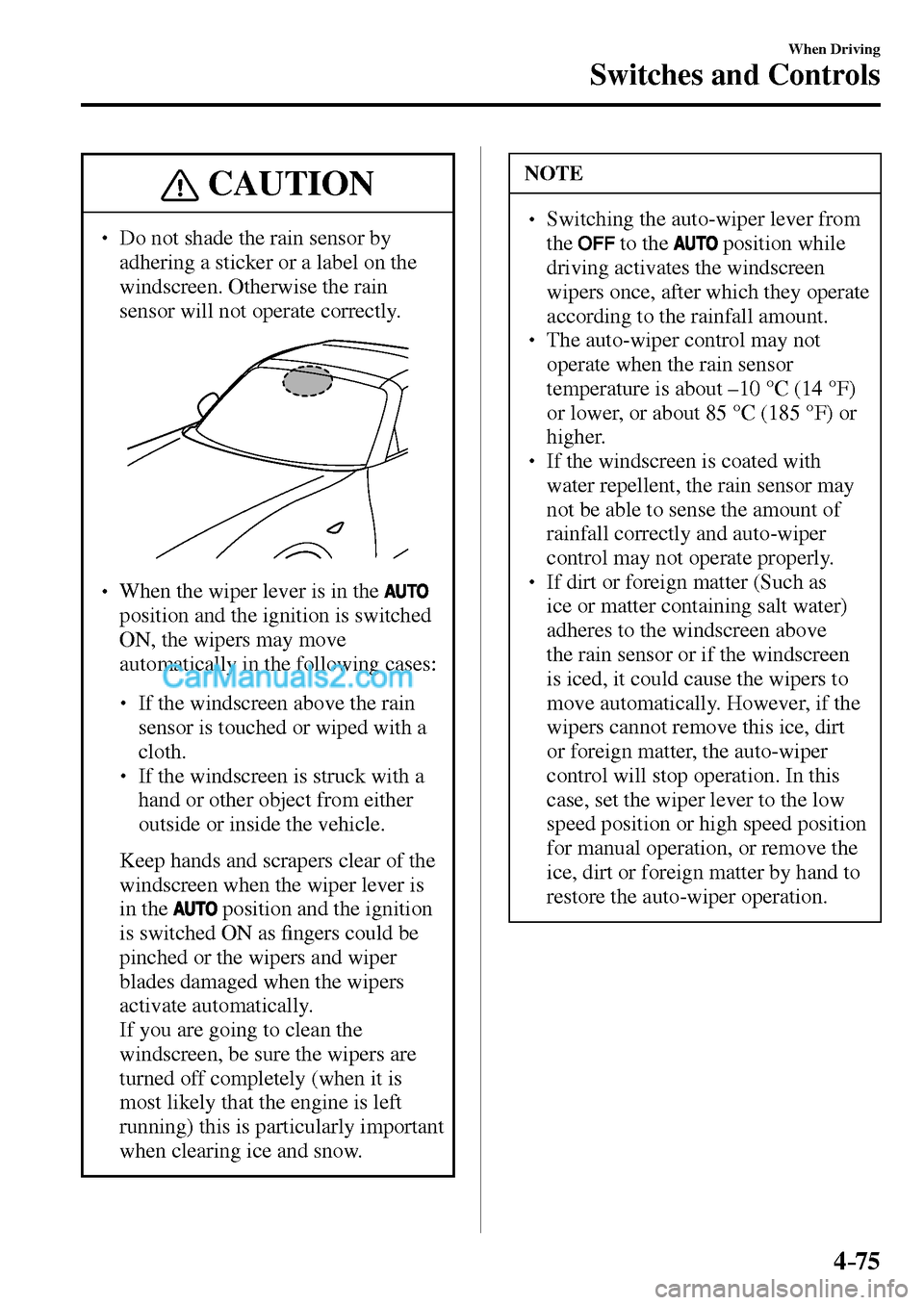

4–75
When Driving
Switches and Controls
CAUTION
  Do not shade the rain sensor by
adhering a sticker or a label on the
windscreen. Otherwise the rain
sensor will not operate correctly.

 When the wiper lever is in the
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:



 If the windscreen above the rain
sensor is touched or wiped with a
cloth.



 If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
  Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the
position and the ignition
is switched ON as ¿ ngers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically.
 If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.
NOTE
  Switching the auto-wiper lever from
the
to the position while
driving activates the windscreen
wipers once, after which they operate
according to the rainfall amount.
  The auto-wiper control may not
operate when the rain sensor
temperature is about –10 °C (14 °F)
or lower, or about 85 °C (185 °F) or
higher.
  If the windscreen is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and auto-wiper
control may not operate properly.
  If dirt or foreign matter (Such as
ice or matter containing salt water)
adheres to the windscreen above
the rain sensor or if the windscreen
is iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt
or foreign matter, the auto-wiper
control will stop operation. In this
case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the
ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
/:A(.'',A'FKVKQPKPFD

4–90
When Driving
i-ELOOP
*Some models.
i-ELOOP *
i-ELOOP is a regenerative braking system. When you depress the brake pedal or use
engine braking, the kinetic energy that occurs is converted to electrical energy by the power
generator and the converted electrical energy is stored in the rechargeable battery (capacitor
and battery). The stored electricity is used as power to charge the battery and the vehicle's
electrical devices.



 A variable voltage alternator is incorporated in the power generator which converts
the kinetic energy to electricity and can generate electricity ef¿ ciently according to the
vehicle conditions.



 A capacitor is used to store large amounts of electricity instantly which can be utilized
quickly.



 A DC-DC converter is incorporated which steps down the stored electricity to voltage
useable by the vehicle's electrical devices.
Vehicle electric
devices
Vehicle electric
devices
Accelerator OFF
Accelerator ONEnergy
regeneration
ChargeBattery
Battery Power
Power Engine
Variable
voltage
alternator
Variable
voltage
alternator Engine
Tyre TyreCapacitor
CapacitorDC-DC converter
DC-DC converter
Kinetic energy
Electrical power
/:A(.'',A'FKVKQPKPFD
