5–17
Interior Features
Audio System
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz Station 1
88.1 MHz
Operating Tips for CD Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in
the CD player may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded optical
components will clear naturally in about
an hour. Wait for normal operation to
return before attempting to use the unit.
Handling the CD player
The following precautions should be
observed.
Do not use deformed or cracked CDs.
The disc may not eject resulting in a
malfunction.
Do not use non-conventional discs such
as heart-shaped, octagonal discs, etc.
The disc may not eject resulting in a
malfunction.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 312 of 609
5–18
Interior Features
Audio System
If the memory portion of the CD is
transparent or translucent, do not use the
disc.
Transparent
A new CD may have rough edges on its
inner and outer perimeters. If a disc with
rough edges is used, proper setting will
not be possible and the CD player will
not play the CD. In addition, the disc
may not eject resulting in a malfunction.
Remove the rough edges in advance
by using a ball-point pen or pencil
as shown in the following ¿ gure. To
remove the rough edges, rub the side of
the pen or pencil against the inner and
outer perimeter of the CD.
When driving over uneven surfaces, the
sound may jump.
CDs bearing the logo shown in the
illustration can be played. No other discs
can be played.
Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system may
not operate properly.
Be sure never to touch the signal surface
when handling the CDs. Pick up a CD
by grasping the outer edge or the edge of
the hole and the outer edge.
Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.
Dust, ¿ nger smudges, and dirt can
decrease the amount of light re À ected
from the signal surface, thus affecting
sound quality. If the CD should become
soiled, gently wipe it with a soft cloth
from the centre of the CD to the edge.
Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 313 of 609
5–19
Interior Features
Audio System

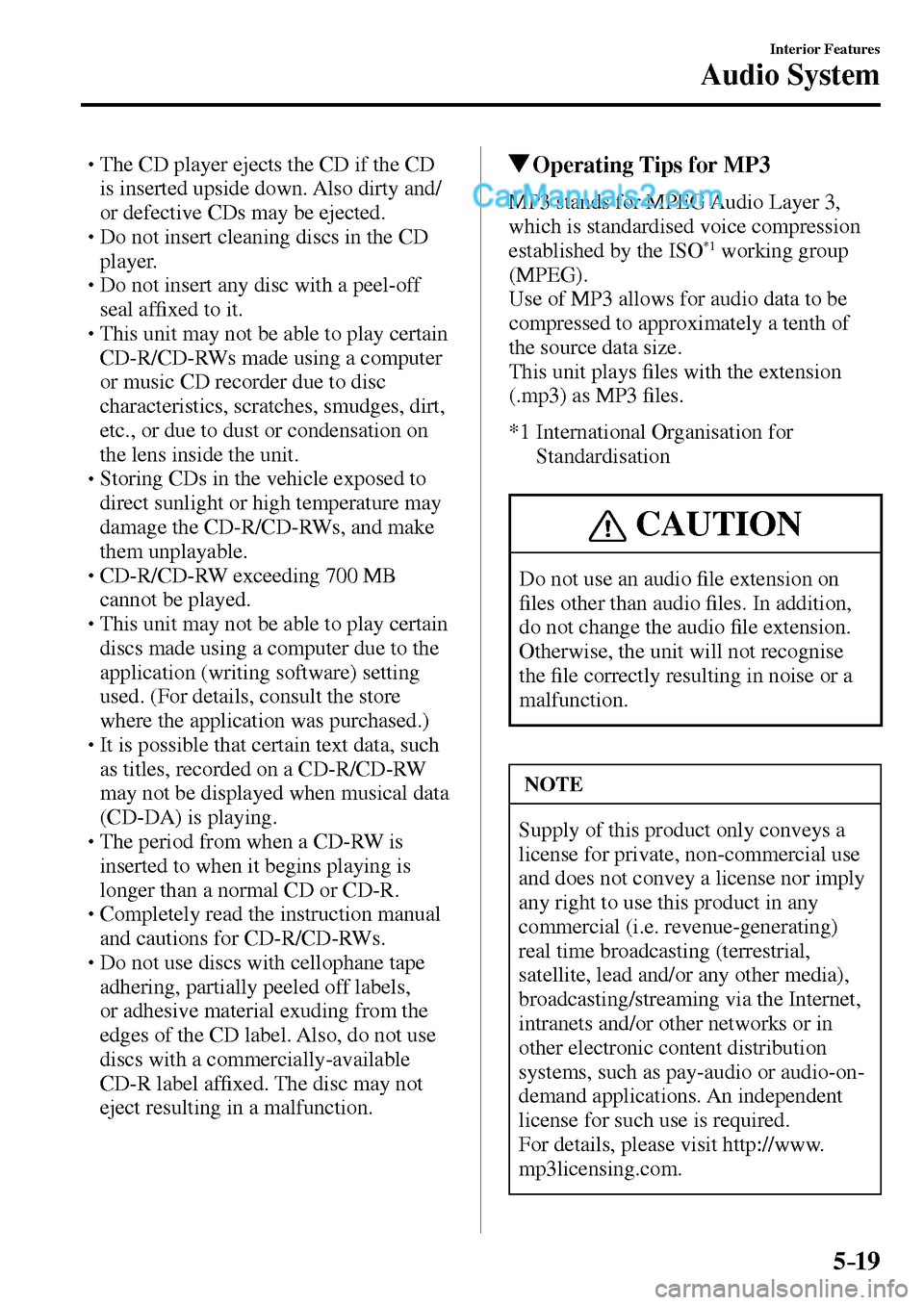

The CD player ejects the CD if the CD
is inserted upside down. Also dirty and/
or defective CDs may be ejected.
Do not insert cleaning discs in the CD
player.
Do not insert any disc with a peel-off
seal af ¿ xed to it.
This unit may not be able to play certain
CD-R/CD-RWs made using a computer
or music CD recorder due to disc
characteristics, scratches, smudges, dirt,
etc., or due to dust or condensation on
the lens inside the unit.
Storing CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
CD-R/CD-RW exceeding 700 MB
cannot be played.
This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)
It is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical data
(CD-DA) is playing.
The period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
Completely read the instruction manual
and cautions for CD-R/CD-RWs.
Do not use discs with cellophane tape
adhering, partially peeled off labels,
or adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label af ¿ xed. The disc may not
eject resulting in a malfunction.
Operating Tips for MP3
MP3 stands for MPEG Audio Layer 3,
which is standardised voice compression
established by the ISO
*1 working group
(MPEG).
Use of MP3 allows for audio data to be
compressed to approximately a tenth of
the source data size.
This unit plays ¿ les with the extension
(.mp3) as MP3 ¿ les.
*1 International Organisation for
Standardisation
CAUTION
Do not use an audio ¿ le extension on
¿ les other than audio ¿ les. In addition,
do not change the audio ¿ le extension.
Otherwise, the unit will not recognise
the ¿ le correctly resulting in noise or a
malfunction.
NOTE
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating)
real time broadcasting (terrestrial,
satellite, lead and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in
other electronic content distribution
systems, such as pay-audio or audio-on-
demand applications. An independent
license for such use is required.
For details, please visit http://www.
mp3licensing.com.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 315 of 609
5–21
Interior Features
Audio System
Operating Tips for DVD Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the DVD or
optical components (prism and lens) in the
DVD player may become clouded with
condensation. At this time, the DVD will
eject immediately when placed in the unit.
A clouded DVD can be corrected simply
by wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the DVD player
The following precautions should be
observed.
Do not use deformed or cracked DVDs.
The disc may not eject resulting in a
malfunction.
Do not use non-conventional discs such
as heart-shaped, etc. The disc may not
eject resulting in a malfunction.
If the memory portion of the DVD is
transparent or translucent, do not use the
disc.
Transparent
A new DVD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper setting
will not be possible and the DVD player
will not play the DVD. In addition,
the disc may not eject resulting in a
malfunction. Remove the rough edges
in advance by using a ball-point pen or
pencil as shown in the following ¿ gure.
To remove the rough edges, rub the side
of the pen or pencil against the inner and
outer perimeter of the DVD.
When driving over uneven surfaces, the
sound may jump.
DVDs bearing the logo shown in the
illustration or DVD-R/DVD
R/DVD-
RW/DVD
RW written with video data
(DVD-Video/DVD-VR ¿ le) can be
played.
Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system may
not operate properly.
/ : A ( . ' ' , A ' F K V K Q P K P F D
