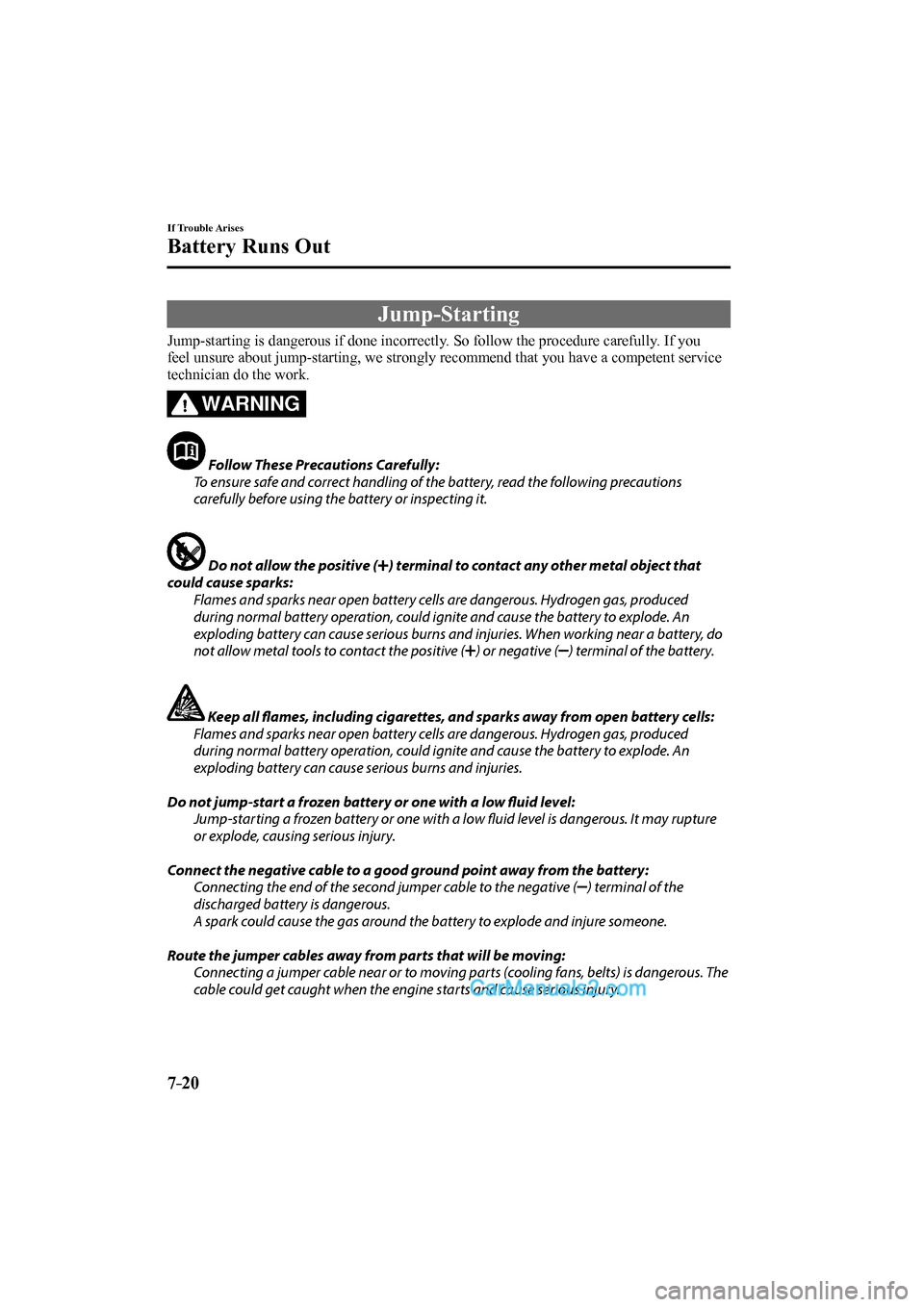

7–20
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.


Do not allow the positive ( ) terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative ( ) terminal of the battery.


Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.

Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.

CX-9_8FS7-EA-16K_Edition2.indb 20CX-9_8FS7-EA-16K_Edition2.indb 202016/12/15 18:36:342016/12/15 18:36:34

7–21
If Trouble Arises
Battery Runs Out
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a
24 V motor generator set).



Connect cables in numerical order and disconnect in reverse order.
Jumper cables
Booster battery
Discharged battery

CX-9_8FS7-EA-16K_Edition2.indb 21CX-9_8FS7-EA-16K_Edition2.indb 212016/12/15 18:36:352016/12/15 18:36:35

7–22
If Trouble Arises
Battery Runs Out
1. Remove the battery cover.



2. Make sure the booster battery is 12
V and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, do not allow both vehicles
to touch. Turn off the engine of the
vehicle with the booster battery and
all unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
 


 Connect one end of a cable to the
positive terminal on the discharged
battery (1).
 


 Attach the other end to the positive
terminal on the booster battery (2).
 


 Connect one end of the other cable to
the negative terminal of the booster
battery (3).
 


 Connect the other end to the ground
point indicated in the illustration
away from the discharged battery (4).

5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6. When fi nished, carefully disconnect the
cables in the reverse order described in
the illustration. 7. If the battery cover has been removed,
install it in the reverse order of
removal.

NOTE
Verify that the covers are securely
installed.

CX-9_8FS7-EA-16K_Edition2.indb 22CX-9_8FS7-EA-16K_Edition2.indb 222016/12/15 18:36:352016/12/15 18:36:35

7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Contact Authorized Mazda Dealer and Have Vehicle Inspected
If any of the following warning lights or the indicator light turns on/fl ashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.

Signal Warning

ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible.
NOTE
 When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.

 The brake assist system does not operate while the ABS warning light is illuminated.

Master Warning
Indication/Warning
Light
Type A instrument cluster
Displays when notifi cation of the system malfunctions is required.
Check the message indicated in the display and consult an Authorized Mazda Dealer.

Master
warning
light

Indication in display and master warning light in instrument cluster are illuminated at same
time.
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicator lights, in the warning/
indicator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the
“Warning” screen.
Refer to Message Indicated in Multi-information Display and INFO Switch on page 4-21 .
Type B instrument cluster
The light illuminates continuously if any one of the following occurs. Consult an
Authorized Mazda Dealer.
 There is a malfunction in the battery management system.
 There is a malfunction in the brake switch.

Electric Parking
Brake (EPB)
Warning Light The warning light illuminates when the system has a malfunction. Have your vehicle
inspected at an Authorized Mazda Dealer.


Engine Oil Level
Warning Indication
* The message is displayed when the system has a malfunction. Have your vehicle inspected
at an Authorized Mazda Dealer.
