2017 MAZDA MODEL CX-9 ignition

2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.

OFF
High
Mid
Low

WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
as follows, and could cause a low-
temperature burn.
  Infants, small children, elderly
people, and physically challenged
people
 


 People with delicate skin



 People who are excessively fatigued



 People who are intoxicated



 People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.

Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.

Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.

CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.

NOTE
 


 If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
 


 Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
 


 The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.

CX-9_8FS7-EA-16K_Edition2.indb 7CX-9_8FS7-EA-16K_Edition2.indb 72016/12/15 18:32:372016/12/15 18:32:37

2–9
Essential Safety Equipment
Seats
To move the driving position to a
programmed position
(Using a button on the side of the seat)
1. Make sure the parking brake is on.
2. Make sure the selector lever is in the P
position.
3. Start the engine.
4. Press the programming button for the
driving position you want to call up
(button 1 or 2).
5. A beep sound is heard when the driving
position adjustment is completed.

NOTE
 


 If the driving position movement is not
changed, only the beep sounds.
 


 A seat position can be called up even
with the engine not running.
 


 The driving position adjustment is
canceled in the following cases:
 


 Any of the seat adjustment switches
is operated.
 


 The SET button is pressed.



 Programming button 1 or 2 is
pressed.
 


 The key button or button is
operated.
 


 The vehicle starts moving.



 The active driving display is
adjusted.


(Using a programmed key)
1. Unlock the doors by pressing a request
switch or the key
button.
2. After unlocking the doors, the seat
position adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is fi nished.
3. Make sure the parking brake is on.
4. Make sure the selector lever is in the P
position.
5. Start the engine.
6. The active driving display adjustment
begins.

NOTE
 


 If there is no driving position movement,
a beep is not heard.
 


 The driving position adjustment is
canceled in the following cases:
 


 Any of the seat adjustment switches
is operated.
 


 The SET button is pressed.



 Programming button 1 or 2 is
pressed.
 


 The key button or button is
operated.
 


 The vehicle starts moving.



 The active driving display is
adjusted.


Erasing programmed driving positions
(Erasing the driving positions
programmed to the key)
1. Switch the ignition OFF.
2. Press the SET button on the side of the
seat until a beep sound is heard one
time.
3. After the beep sounds, press the key

button within 5 seconds until a beep
sound is heard one time.

NOTE
If a beep sound is heard three times, the
operation is canceled.

CX-9_8FS7-EA-16K_Edition2.indb 9CX-9_8FS7-EA-16K_Edition2.indb 92016/12/15 18:32:392016/12/15 18:32:39

2–42
Essential Safety Equipment
Child Restraint
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:
Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a serious
accident, injury or death.
Refer to Head Restraints on page
2-16 .

Front Passenger's Seat Child-Restraint
System Installation (With Front
Passenger Occupant Classifi cation
System)
1. Make sure the ignition is switched off.
2. Slide the seat as far back as possible.


3. Remove the head restraint. However,
when installing a backless booster seat,
always install the vehicle head restraint
to the seat where the backless booster
seat is installed.
4. Place the child-restraint system on the
seat without putting your weight on
the seat and fasten the seat belt. See
the manufacturer's instructions on the
child-restraint system for belt routing
instructions.
5. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
6. Push the child-restraint system fi rmly
into the vehicle seat. Be sure the
belt retracts as snugly as possible. A
clicking noise from the retractor will
be heard during retraction if the system
is in automatic locking mode. If the
belt does not lock the seat down tight,
repeat the previous step and also this
one.
CX-9_8FS7-EA-16K_Edition2.indb 42CX-9_8FS7-EA-16K_Edition2.indb 422016/12/15 18:32:532016/12/15 18:32:53

2–43
Essential Safety Equipment
Child Restraint
NOTE
 


 Inspect this function before each use of
the child-restraint system. You should
not be able to pull the shoulder belt
out of the retractor while the system is
in the automatic locking mode. When
you remove the child-restraint system,
be sure the belt fully retracts to return
the system to emergency locking mode
before occupants use the seat belts.
 


 Follow the child-restraint system
manufacturer's instructions carefully.
  Depending on the type of child-restraint
system, it may not employ seat belts
which are in automatic locking mode.

7. Seat your child safely in the child-
restraint system and secure the child
according to the instructions from the
child-restraint system manufacturer.
8. Switch the ignition ON and make sure
the front passenger air bag deactivation
indicator light illuminates after
installing a child-restraint system on
the front passenger seat.
If the front passenger air bag
deactivation indicator light does not
illuminate, remove the child-restraint
system, switch the ignition to OFF, and
then re-install the child-restraint system
(page 2-65 ).


WARNING
Do not seat a child in a child-restraint
system on the front passenger seat if the
front passenger air bag deactivation
indicator light does not illuminate:
While it is always better to install any
child-restraint system on the rear seat,
it is imperative that a child-restraint
system ONLY be used on the front
passenger seat if the deactivation
indicator light illuminates when the
child is seated in the child-restraint
system (page 2-65 ). Seating a child
in a child-restraint system installed
on the front passenger seat with the
front passenger air bag deactivation
indicator light not illuminated is
dangerous. If this indicator light does
not illuminate, this means that the
front passenger front and side air
bags, and seat belt pretensioner are
ready for deployment. If an accident
were to deploy an air bag, a child in
a child-restraint system sitting in the
front passenger seat could be seriously
injured or killed. If the indicator light
does not illuminate after seating a
child in a child-restraint system on
the front passenger seat, seat a child
in a child-restraint system on the rear
seat and consult an Authorized Mazda
Dealer as soon as possible.

CX-9_8FS7-EA-16K_Edition2.indb 43CX-9_8FS7-EA-16K_Edition2.indb 432016/12/15 18:32:532016/12/15 18:32:53

2–49
Essential Safety Equipment
SRS Air Bags
If your vehicle is also equipped with a front passenger occupant classifi cation system,
refer to the Front Passenger Occupant Classifi cation System (page 2-65 ) for details.
If your vehicle is equipped with a front passenger occupant classifi cation system, the front
passenger air bag deactivation indicator light illuminates for a specifi ed time after the
ignition is switched ON.




Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-29 ).

Carefully consider which child-restraint system is necessary for your child and follow
the installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
infl ate only in the fi rst accident, such as frontal, near frontal or side collisions or roll-over
accidents that are at least moderate. Vehicle occupants should always wear seat belts.

Children should not ride in the front passenger seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit
by a deploying air bag and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side air bag in moderate collision to the
front-passenger side of the vehicle. Whenever possible, always secure a child 12 years and
under on the rear seats with an appropriate child-restraint system for the child's age and
size.

CX-9_8FS7-EA-16K_Edition2.indb 49CX-9_8FS7-EA-16K_Edition2.indb 492016/12/15 18:32:552016/12/15 18:32:55

2–66
Essential Safety Equipment
SRS Air Bags
Front passenger air bag deactivation indicator light
This indicator light turns on to remind you that the front passenger front and side air bags
and seat belt pretensioner will not deploy during a collision.


If the front passenger occupant classifi cation sensor is normal, the indicator light turns
on when the ignition is switched ON. The light turns off after a few seconds. Then, the
indicator light turns on or is off under the following conditions:

Front passenger air bag deactivation indicator light on/off condition chart
Condition detected by the
front passenger occupant
classifi cation system Front passenger air
bag deactivation
indicator light Front passenger front
and side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied) On Deactivated Deactivated
A child less than 1 year old is
seated in a child-restraint system On Deactivated Deactivated
Child
*1 On or off Deactivated or ready Deactivated or ready
Adult *2 Off Ready Ready
*1 The occupant classifi cation sensor may not detect a child seated on the seat, in a child-restraint system, or a
junior seat depending on the child's physical size and seated posture.
*2 If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child depending
on the person's physique.


The curtain air bag is ready for infl ating regardless of what the front passenger air bag
deactivation indicator light on/off condition chart indicates.
If the front passenger air bag deactivation indicator light does not turn on when the ignition
is switched ON and does not turn on as indicated in the front passenger air bag deactivation
indicator light on/off condition chart, do not allow an occupant to sit in the front passenger
seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work
properly in an accident.
CX-9_8FS7-EA-16K_Edition2.indb 66CX-9_8FS7-EA-16K_Edition2.indb 662016/12/15 18:33:022016/12/15 18:33:02

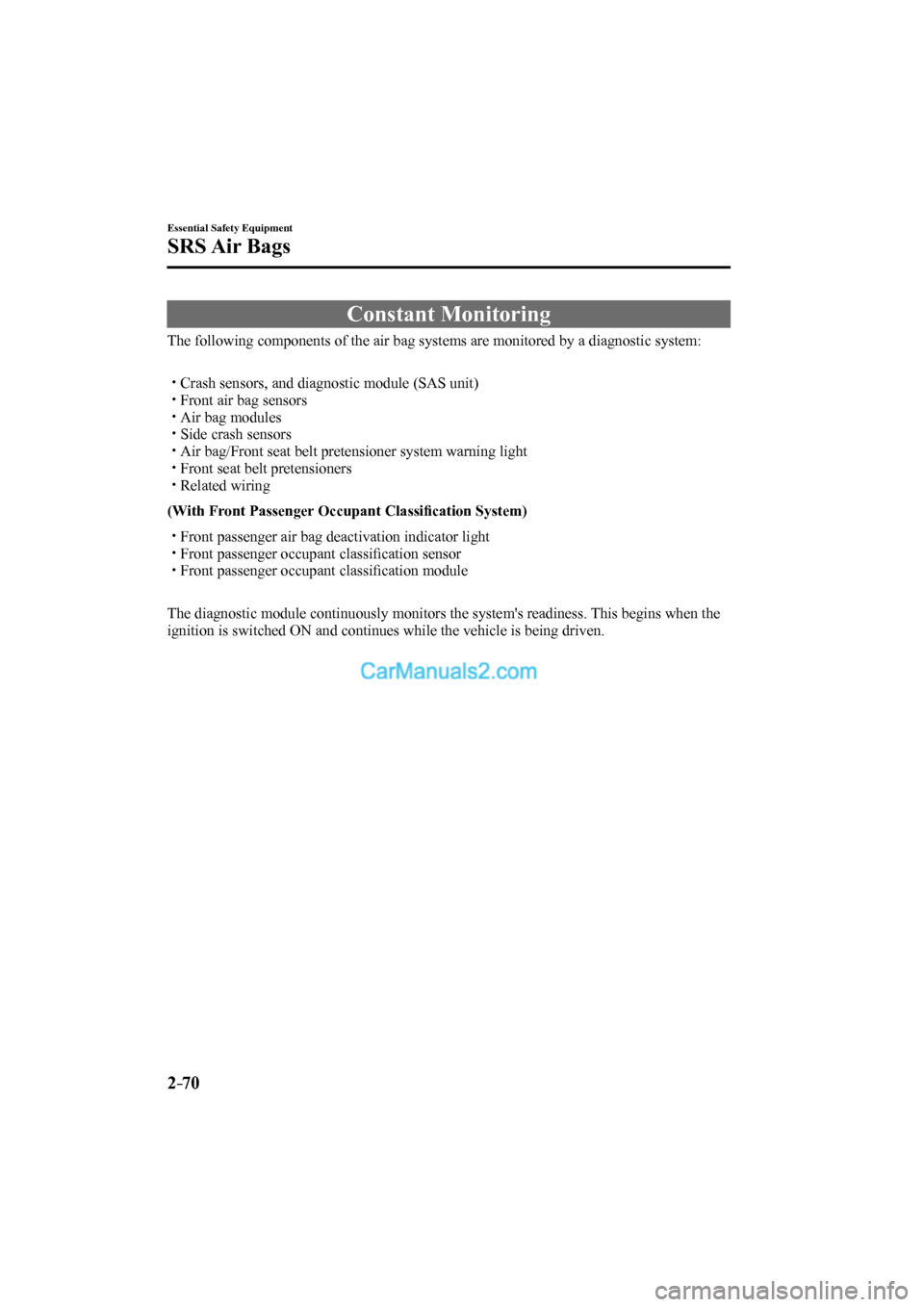

2–70
Essential Safety Equipment
SRS Air Bags
Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:

 


 Crash sensors, and diagnostic module (SAS unit)



 Front air bag sensors



 Air bag modules



 Side crash sensors



 Air bag/Front seat belt pretensioner system warning light



 Front seat belt pretensioners



 Related wiring

(With Front Passenger Occupant Classifi cation System) 



 Front passenger air bag deactivation indicator light



 Front passenger occupant classifi cation sensor



 Front passenger occupant classifi cation module

The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.

CX-9_8FS7-EA-16K_Edition2.indb 70CX-9_8FS7-EA-16K_Edition2.indb 702016/12/15 18:33:032016/12/15 18:33:03

3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.

If your key (auxiliary key) is lost, consult
your Authorized Mazda Dealer and have
your code number ready.
NOTE
The driver must carry the key to ensure the
system functions properly.


Auxiliary key Transmitter
Key code number plate

To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.

Knob

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate, and opens/closes the liftgate.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you signal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
 


 KEY Warning Light (Red)
 Refer to Warning/Indicator Lights on
page 4-31 .




 Ignition Not Switched Off (STOP)
Warning Beep
  Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-46 .
 


 Key Removed from Vehicle Warning
Beep
  Refer to Key Removed from Vehicle
Warning Beep on page 7-47 .

If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CX-9_8FS7-EA-16K_Edition2.indb 3CX-9_8FS7-EA-16K_Edition2.indb 32016/12/15 18:33:042016/12/15 18:33:04
