▼Key Left-in-luggage compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all the doors locked and
the liftgate closed, a
beep will be heard
outside for about 10 seconds to notify the
driver that the key is in the luggage
compartment. In this case, take out the key
by pressing the electric liftgate opener and
opening the liftgate. The key taken out of
the luggage compartment may not operate
because its functions have been
temporarily stopped. To restore the key's
functions, perform the applicable
procedure (page 3-7).
▼ Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment
are locked using another key while the key
is left in the cabin, the beep which sounds
outside of the vehic
le will be heard for
about 10 seconds to notify the driver that
the key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this method
may not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-7).
▼ Electronic Steering Lock Warning
Beep
The warning beep operates if the steering
wheel is not unlocked after the push
button start is pressed. (page 4-4)
▼
Power Liftgate Warning Beep*
If system operation precautions are
necessary, the driver is notified by the
warning sound.
Cautions
What to check
The beep sounds 3 times The conditions required
for the power liftgate to
operate have not been
met, such as an object
being stuck in the lift-
gate.
The beep sound contin-
ues The vehicle is being
driven with the liftgate
open. Stop the vehicle
and close the liftgate.
▼
Outside Temperature Warning
Beep*
Warns the driver of the possibility of icy
roads when the outside temperature is low.
If the outside temperature is lower than
about 4 °C (39 °F) , a beep sound is heard
once and the outside temperature display
flashes for about ten seconds.
(Type A instrument cluster)
Refer to Outside Temperature Display on
page 4-35.
(Type B instrument cluster)
Refer to Outside Temperature Display on
page 4-27.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-65
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼i-stop Warning Beep*
•If the driver's door is opened while
engine idling is sto
pped, the warning
sound operates to notify the driver that
engine idling is sto pped. It stops when
the driver's door is closed.
•(European model)
The warning sound operates if the
following operations are performed
while the engine id ling is stopped. In
such cases, the engine does not restart
automatically to ensure safety. Start the
engine using the normal method.
•(Manual transaxle)
With the shift lever in a position other
than neutral, the dri ver's seat belt is
unfastened and the driver's door is
opened.
•(Automatic transaxle)
With the selector lever in the D or M
(not in second gear fixed mode)
position, the driver's seat belt is
unfastened and the driver's door is
opened.
▼ Vehicle Speed Alarm*
The vehicle speed alarm function is
designed to alarm the driver via a single
beep sound and a warning indication in the
instrument cluster that the previously set
vehicle speed has been exceeded.
You can change the vehicle speed setting
at which the warning is triggered.
▼120 km/h Warning Beep*
If the vehicle speed exceeds 120 km/h, a
chime sounds for 5 seconds.
▼ Electric Parking Brake (EPB)
Warning Beep
The warning buzzer is activated under the
following conditions:
•The vehicle is driven with the electric
parking brake (EPB) applied.
•The electric parking
brake (EPB) switch
is pulled while the vehicle is driven.
▼ AUTOHOLD Warning Beep
Warning light flashes/m
essage is displayed
and beep sound is activated
simultaneously for about five seconds
when using AUTOHOLD function or
when AUTOHOLD swi tch is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the warning light flashes/message is
displayed and the beep sound is activated
simultaneously, have your vehicle
inspected at an expert repairer, we
recommend an Authorised Mazda
Repairer.
▼ Power Steering Warning Buzzer
If the power steer
ing system has a
malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Indication/Warning
Lights on page 4-42.
▼ Tyre Inflation Pressure Warning
Beep*
The warning beep sound will be heard for
about 3 seconds if the tyre pressures
decrease.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-66*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

If the tyre pressure decreases extremely, a
beep sound will be heard for
approximately 30 seconds.
Refer to Tyre Pressure Monitoring System
on page 4-212.
▼Blind Spot Monitoring (BSM)
Warning Beep*
Driving forward
The warning beep operates when the
direction indicator lever is operated to the
side where the Blind Spot Monitoring
(BSM) warning light is illuminated.
NOTE
A personalised function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalisation Features on page
9-12.
Reversing
The Blind Spot Monitoring (BSM)
warning sound is activated if there is a
possibility of collision with a vehicle
approaching from behind and from the
rear on the left and
right sides of the
vehicle.
▼ Mazda Radar Cruise Control
(MRCC) System Warnings*
The Mazda Radar Cruise Control (MRCC)
system warnings notify the driver of
system malfunctions and cautions on use
when required.
Check based on the beep sound.
Cautions
What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control (MRCC)
is operating The vehicle speed is
slower than 25 km/h (16
mph) and the Mazda Ra-
dar Cruise Control
(MRCC) system has
been cancelled.
(European models)
The beep sounds 5 times
while driving
(Except European
models)
The beep continues to
sound while the vehicle
is being driven. The distance between
your vehicle and the ve-
hicle ahead is too close.
Verify the safety of the
surrounding area and re-
duce vehicle speed.
When the Mazda Radar
Cruise Control (MRCC)
is operating, the beep
sounds and the multi-in-
formation display indi-
cates a problem with the
Mazda Radar Cruise
Control (MRCC) sys-
tem. A malfunction in the
system may be indicated.
Have your vehicle in-
spected at an expert re-
pairer, we recommend an
Authorised Mazda Re-
pairer.
▼
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
War ni ng s
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) system warnings notify the
driver of system malfunctions and
cautions on use when required.
Check based on the beep sound.
Cautions
What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) is operating The Mazda Radar Cruise
Control with Stop & Go
function (MRCC with
Stop & Go function) sys-
tem has been cancelled.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-67
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

CautionsWhat to check
(European models)
The beep sounds 3 times
while driving
(Except European
models)
The beep continues to
sound while the vehicle
is being driven. The distance between
your vehicle and the ve-
hicle ahead is too close.
Verify the safety of the
surrounding area and re-
duce vehicle speed.
When the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) is operating, the
beep sounds and the
multi-information dis-
play indicates a problem
with the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system. A malfunction in the
system may be indicated.
Have your vehicle in-
spected at an expert re-
pairer, we recommend an
Authorised Mazda Re-
pairer.
▼
Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
•The volume of the Lane-keep Assist
System (LAS) & Lane Departure
Warning System (LDWS) warning sound
can be changed.
Refer to Personalisation Features on
page 9-12.
•The type of the Lane-keep Assist System
(LAS) & Lane Departure Warning
System (LDWS) warning sound can be
changed.
Refer to Personalisation Features on
page 9-12.
▼ Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed on the active driving
display, the warning sound is activated and
the area around the speed limit sign
displayed on the active driving display
flashes 3 times in ambe
r, and if the vehicle
speed continues to exceed the displayed
speed limit sign, the indication stops
flashing and remains on.
▼ Speed Limiter Warning Beep*
If the vehicle speed exceeds the set speed
by about 5 km/h (3 mph) or more, a
warning beep operates continuously. The
warning beep operates until the vehicle
speed decreases to the set speed or less.
CAUTION
(With cruise control)
If the set speed is set lower than the current
vehicle speed by pressing the SET
or RES/
switch, the warning beep is not activated
for about 30 seconds even if the vehicle
speed is faster than the newly set speed by
5 km/h (3 mph). Be careful not to drive over
the set speed.
(With Mazda Radar Cruise Control (MRCC)
or Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function))
If the set speed is set lower than the current
vehicle speed by pressing the SET
or RES
switch, the warning beep is not activated
for about 30 seconds even if the vehicle
speed is faster than the newly set speed by
5 km/h (3 mph). Be careful not to drive over
the set speed.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-68*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
When the system is temporarily cancelled
by depressing the accelerator pedal fully,
the Adjustable Speed Limiter (ASL)
display shows the can cel display. If the
vehicle speed exceeds the set speed by
about 5 km/h (3 mph) or more while the
cancel display is displayed, the set speed
display flashes but the warning sound is
not operated.
▼ Collision warning*
If there is a possibility of a collision with a
vehicle ahead or an obstruction at the rear
of the vehicle, the warning light in the
instrument cluster flashes at the same time
as the warning indica
tion is displayed in
the multi-information di splay or the active
driving display, and a warning sound is
activated intermittently.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-69
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

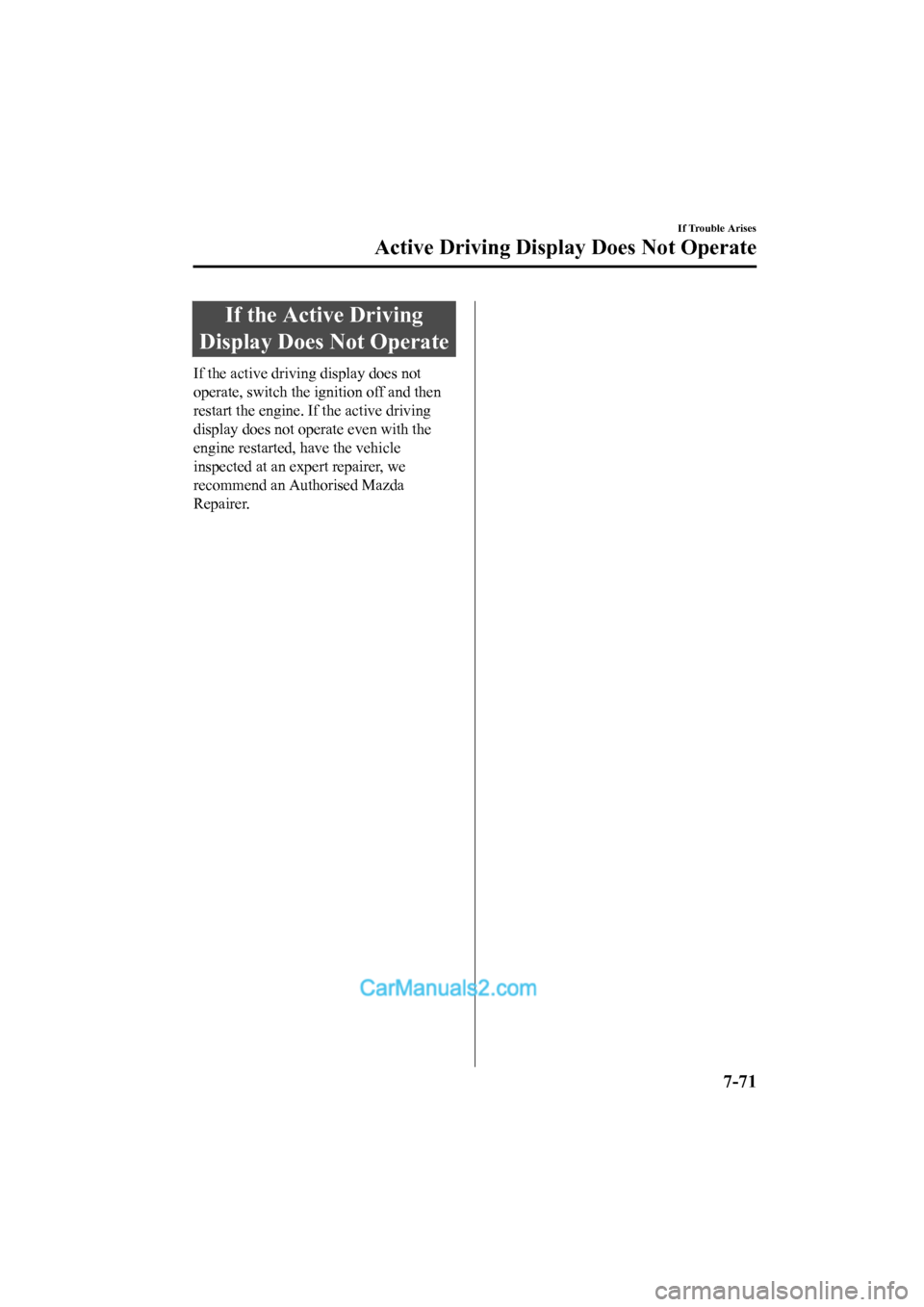

If the Active Driving
Display Does Not Operate
If the active driving display does not
operate, switch the ignition off and then
restart the engine. If the active driving
display does not operate even with the
engine restarted, have the vehicle
inspected at an expert repairer, we
recommend an Authorised Mazda
Repairer.
If Trouble Arises
Active Driving Display Does Not Operate
7-71
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Personalisation Features
The following personalisation features can be set or changed by the customer or an Author-
ised Mazda Repairer. Consult an Authorised Mazda Repairer for d etails.
Additionally, some of the personalisation features can be changed by the customer depend-
ing on the feature.
Personalisation features and se ttings which can be changed diff er depending on the market
and specification.
Settings Change Method
Settings can be changed by oper ating the centre display screen.
A: Refer to Settings on page 5-122.
B: Refer to Fuel Economy Monitor on page 4-96.
C: Refer to Active Driving Display on page 4-39.
Settings can be changed by op erating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-14.
E: Refer to Transmitter on page 3-4.
F: Refer to Locking, Unlocking with Request Switch (With the ad vanced keyless function)
on page 3-11.
Settings can be changed by an Authorised Mazda Repairer.
ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Safety
Advanced Smart
City Brake Sup-
port (Advanced
SCBS) (Except
Indonesia and
Ta i w a n ) ( p a g e
4-181)
Smart Brake
Support (SBS)
(page 4-193) The system can be chan
ged so that Advanced
Smart City Brake Support (Advanced SCBS)
does not operate.
*1On On/Off A ―
The distance at which the collision warning ac-
tivates can be changed. Mid Near/Mid/Far A ―
The volume of the collision warning can be
changed.High High/Low/Off A ―
Specifications
Personalisation Features
9-12
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Blind Spot Mon-
itoring (BSM)
(page 4-115) The system can be changed so that Blind Spot
Monitoring (BSM) does not operate.*1On On/Off A ―
Warning beep volume*2High
High/
Low/ Off A―
Distance Recog-
nition Support
System (DRSS)
(page 4-127) The system can be changed so that Distance
Recognition Support System (DRSS) does not
operate.*1On On/Off A ―
The distance at which the vehicle ahead indi-
cated in the display illuminates in amber can be
changed.
Near
Far/Medium/
Near A―
Driver Attention
Alert (DAA)
(page 4-131) The system can be changed so that Driver At-
tention Alert (DAA) does not operate.
*1On On/Off A ―
Traffic Sign
Recognition
System (TSR)
*3
(page 4-120)The Traffic Sign Recognition System (TSR)
can be set to inoperable.
*1On On/Off A ―
The warning pattern of the excessive speed
warning can be changed.
OffOff/
Vi s u a l /
Audio & Visual A―
The activation timing for the excessive speed
warning can be changed.00/5/10
A―
Parking sensor
system (page
4-232) Display/non-display
On On/Off A ―
Ve h i c l e
Door locks
(page 3-14)Operation condition of auto lock/unlock func-
tion Lock: Driv-
ing, Unlock: IGN Off Off/
Lock When Driving/
Lock: Driving, Unlock: IGN Off/
Lock When
Shifting Out Of P/
Lock: Shift
From P, Unlock: In P/
Lock: Driving, Unlock: In P AD
Keyless entry
system (page 3-
3)
Time for locking door automatically
30 seconds90 seconds/
60 seconds/
30 seconds A―
Specifications
Personalisation Features
9-15
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
