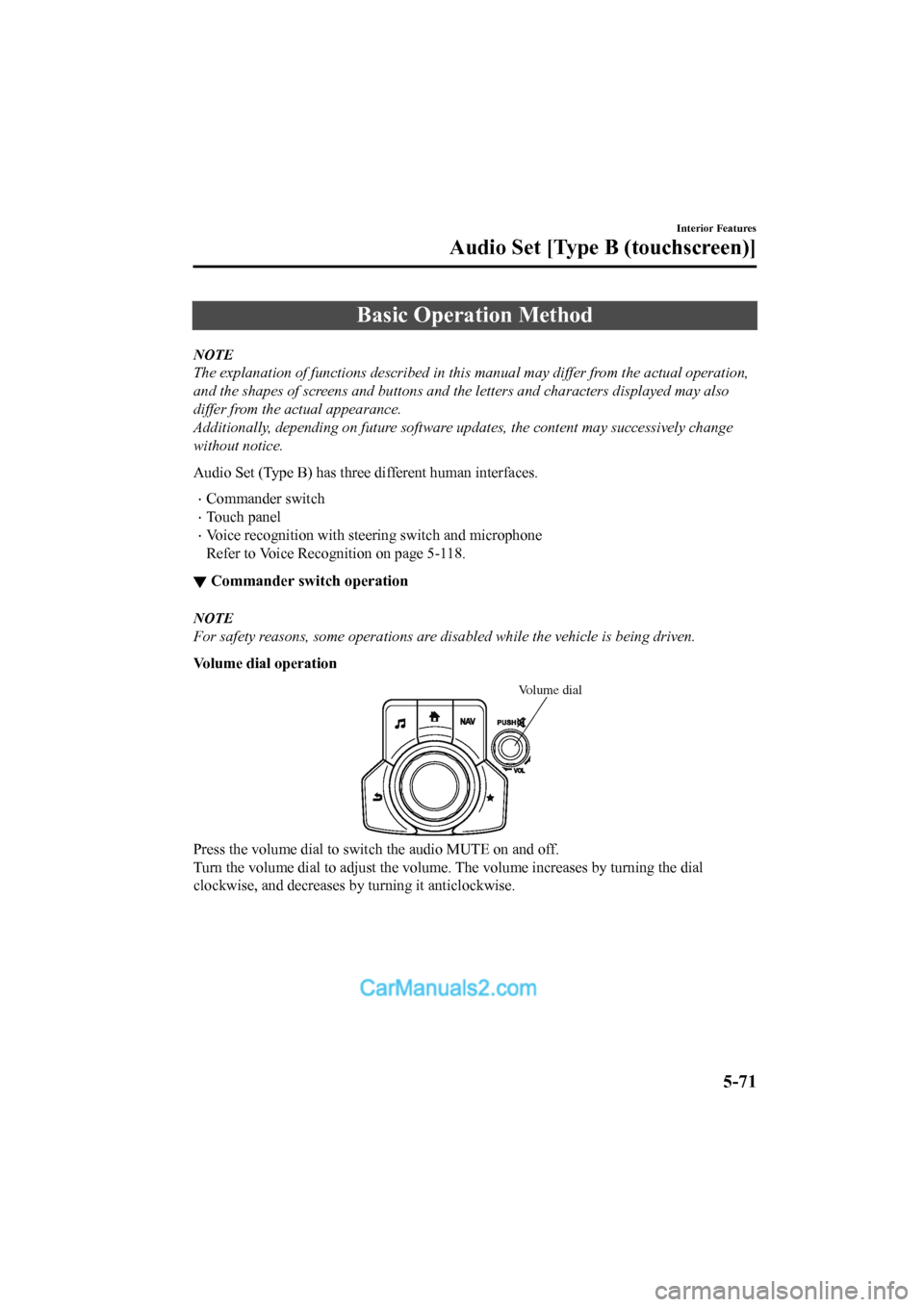

Basic Operation Method
NOTE
The explanation of functions described in this manual may differ from the actual operation,
and the shapes of screens and buttons and the letters and characters displayed may also
differ from the actual appearance.
Additionally, depending on future software updates, the content may successively change
without notice.
Audio Set (Type B) has three different human interfaces.
•Commander switch
•Touch panel
•Voice recognition with steering switch and microphone
Refer to Voice Recogn ition on page 5-118.
▼Commander switch operation
NOTE
For safety reasons, some operations are disabled while the vehicle is being driven.
Volume dial operation
Volume dial
Press the volume dial to switch the audio MUTE on and off.
Turn the volume dial to adjust t
he volume. The volume increases by turning the dial
clockwise, and decreases by turning it anticlockwise.
Interior Features
Audio Set [Type B (touchscreen)]
5-71
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Volume/Display/Sound Controls
Commander switchAudio control switch
Volume switch
Volume dial
▼Volume adjustment
Turn the commander switch volume dial.
The volume switch on the steering switch
can also be pressed.
▼Display setting
Select the icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Display OFF/Clock
The centre display can be turned off.
Select
to turn the display off.
When
is
selected the centre display turns off and
the clock is displayed.
The centre display can be turned back on
as follows:
•Touch the centre display.
•Operate the commander switch.
Daytime/nighttime (Mode) screen
setting
The daytime or nighttime screen can be
selected.
: Switches scr een automatically
according to headlight illumination
condition
*1
: Daytime screen setting
: Nighttime screen setting
*1 The display is constantly on daytime screen when the il lumination dimmer
is cancelled.
Brightness adjustment
Adjust the centre display brightness using
the slider.
Contrast adjustment
Adjust the centre display contrast using
the slider.
Display setting reset
All of the screen setting values can be
reset to their initial settings.
1. Select
.
2. Select
.
▼ Audio sound adjustment
Select the icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Interior Features
Audio Set [Type B (touchscreen)]
5-76
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Settings
NOTE
Depending on the grade and specification, the screen display may differ.
Select the
icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Tab Item Function
AD-Disp Height
Brightness Control
Other
Refer to Active Driving Display on page 4-39.
Display Refer to Volume/Display/Sound Controls on page 5-76. Safety Distance Recognitio
n Support System
SBS/SCBS
Other Refer to Personalisation Features on page 9-
12.
Sound Refer to Volume/Display/Sound Controls on page 5-76.
Clock Adjust Time
Displays the currently s
et time is displayed.
Press
to advance the hour /minute, and select to move the hour/minute back.
AM/PM can only be selected with the 12-hour
clock display.
GPS Sync Synchronizes with GPS when turned on.
When turned off, the time can be changed
from “Adjust Time”.
Time Format Changes the display between 12 and 24-hour
clock time.
Time Zone Select When it's not synchr
onized with GPS, select
the region you want to specify.
Daylight Savings Time Turns the daylight savin
g time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.
Ve h i c l e Rain Sensing Wiper
Door Locks
Other Refer to Personalisation Features on page 9-
12.
Devices Bluetooth
Refer to Bluetooth
® Preparation on page 5-98.
Network Management Wi-Fi™ is used to obtain Navi POI/Real Time
Traffic function (Such as gas prices, weather,
nearest restaurant)
Interior Features
Audio Set [Type B (touchscreen)]
5-122
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Index
A
Accessory Socket............................ 5-144
Active Driving Display..................... 4-39
Adaptive Front Lighting System
(AFS)............................................... 4-108
Adaptive LED Headlights (ALH)... 4-112
Add-On Non-Genuine Parts and
Accessories.......................................... 8-3
Adjustable Speed Lim iter (ASL).... 4-174
Activation/deactivation..............4-178
Adjustable Speed Limiter (ASL)
display........................................4-176
Adjustable Speed Limiter (ASL)
main indication (white)............. 4-177
Adjustable Speed Limiter (ASL) set
indication (green)...................... 4-177
Setting the system..................... 4-179
Speed limiter warning beep....... 4-177
Temporarily cancelling the
system........................................ 4-180
Adjustable Speed Limiter (ASL)
Display.............................................. 4-28
Advanced Key Advanced keyless entry system..... 3-8
Operational range.......................... 3-9
Advanced Keyless Entry System........ 3-8
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-181 Collision warning.... .................. 4-183
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-183
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-184
Air Bag Systems............................... 2-41
Air Bag/Seat Belt Pr etensioner System
Warning Beep.................................... 7-63
Air-Conditioning System .................... 5-4
Fully Automatic Type..................5-11
Manual Type.................................. 5-7
Operating Tips............................... 5-4
Vent Operation...............................5-5
Ambient Temperature Display.......... 4-27
Antilock Brake System (ABS).......... 4-90
Armrest Box.................................... 5-149
Ashtray............................................ 5-152
Audio Control Switch
Adjusting the Volume.................. 5-15
Mute Switch................................ 5-15
Seek Switch................................. 5-16
Audio Set [Type A (non-touchscreen)] AUX.............................................5-31
Bluetooth®.................................. 5-38
CD Player.................................... 5-27
Clock............................................5-22
Error Indications.......................... 5-37
iPod mode....................................5-35
Power/Volume/Sound Controls... 5-20
Radio............................................5-23
Radio (RDS)................................ 5-23
Troubleshooting.......... ................. 5-67
USB............................................. 5-32
Voice Recognition.... ................... 5-63
Audio Set [Type B (touchscreen)] Applications............................... 5-124
AUX.............................................5-89
Bluetooth®.................................. 5-95
CD Player.................................... 5-83
Digital Audio Broadcasting (DAB)
Radio............................................5-81
DVD Player................................. 5-86
Radio............................................5-78
Radio (RDS)................................ 5-78
Settings...................................... 5-122
Troubleshooting........... .............. 5-125
USB............................................. 5-90
Voice Recognition......................5-118
Volume/Display/Sound
Controls....................................... 5-76
Audio System
Aerial........................................... 5-19
10-2
