If Trouble Arises
Flat Tire
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the ¿ gure.


Wing bolt
Jack screw

3. Turn the wing bolt completely to secure
the jack.
N O T E
If the jack is not completely secured, it
could rattle while driving. Make sure the
jack screw is suf¿ ciently tightened.

4. Insert the cover tabs and install the
cover.
N O T E
Verify that the cover is securely installed.
M a i n t e n a n c e





y Always keep the jack clean.



y Make sure the moving parts are kept
free from dirt or rust.



y Make sure the screw thread is
adequately lubricated.

Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be aff ected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tire to the front wheel and install the
temporary spare tire to the rear.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–8
If Trouble Arises
Flat Tire

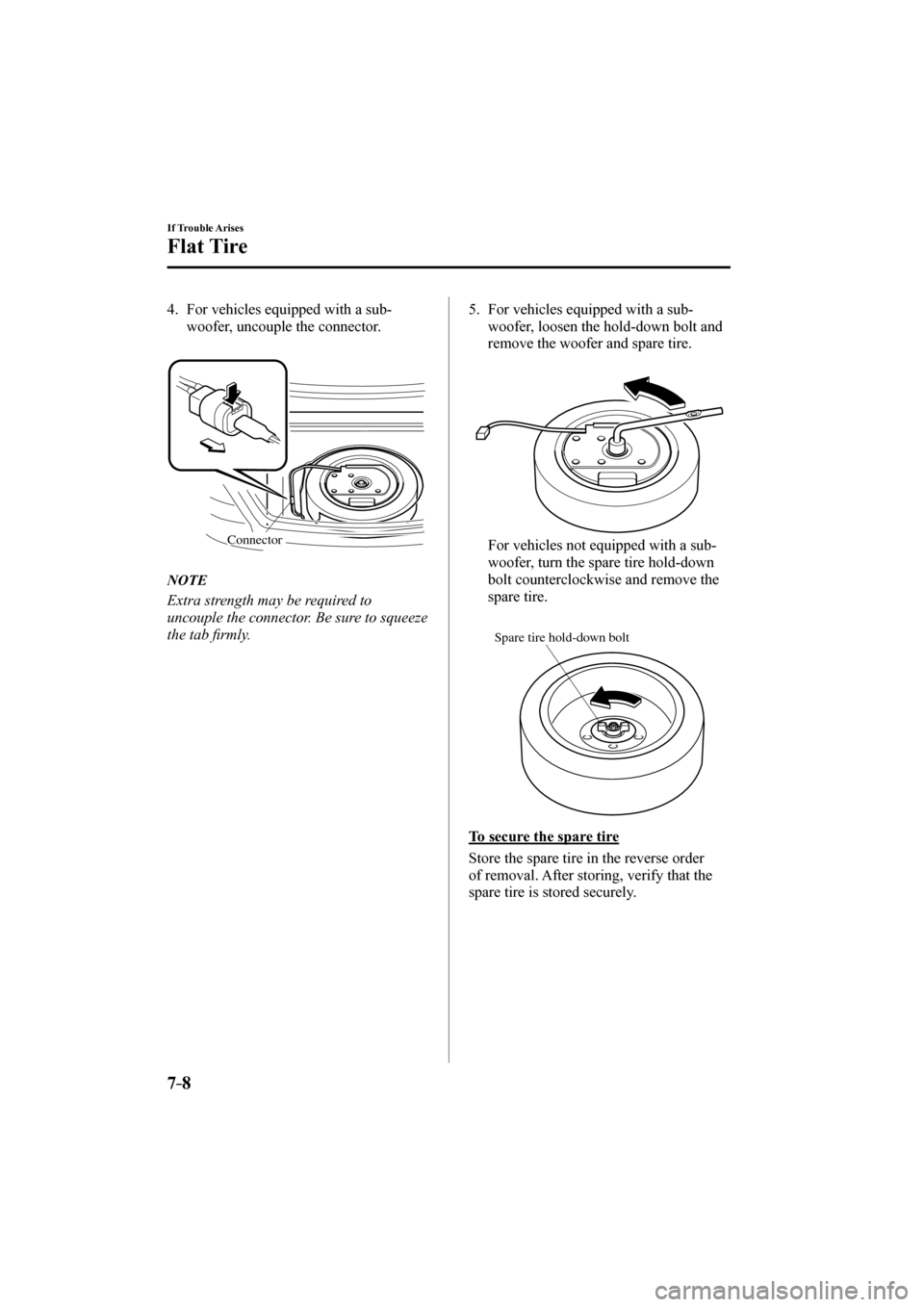

4. For vehicles equipped with a sub-
woofer, uncouple the connector.


Connector
N O T E
Extra strength may be required to
uncouple the connector. Be sure to squeeze
the tab ¿ rmly.

5. For vehicles equipped with a sub-
woofer, loosen the hold-down bolt and
remove the woofer and spare tire.



For vehicles not equipped with a sub-
woofer, turn the spare tire hold-down
bolt counterclockwise and remove the
spare tire.


Spare tire hold-down bolt

To secure the spare tire
Store the spare tire in the reverse order
of removal. After storing, verify that the
spare tire is stored securely.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–10
If Trouble Arises
Flat Tire
Removing a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the jack lever.



N O T E
Force the end of the jack lever ¿ rmly
between wheel and cover, or removal will
be dif¿ cult.

CAUTION
Align the notch on the wheel cover
with the valve stem when installing it.


Tire valve Notch

Damage could occur during
installation if the wheel cover is not
properly aligned.

2. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.



3. Place the jack on the ground.
4. Turn the jack screw in the direction
shown in the ¿ gure and adjust the jack
head so that it is close to the jack-up
position.


Jack head

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–12
If Trouble Arises
Flat Tire
7. Insert the jack lever and attach the lug
wrench to tire jack.



8. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is ¿ rmly in position and that it
cannot slip or move.



WARNING
Do not jack up the vehicle higher than is
necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.

Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.

9. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–13
If Trouble Arises
Flat Tire
*Some models.
Locking Lug Nuts *
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must
use a special key to unlock them. This
key will attach to the lug wrench.
Register them with the lock manufacturer
by ¿ lling out the card provided in the
glove compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire
is installed, one of the original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.

Special key Antitheft lug nut

To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.

To install the antitheft lug nut
1. Place the special key on top of the nut,
and be sure to hold the key square to
it. If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.

Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)

Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.



%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–14
If Trouble Arises
Flat Tire
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off , resulting in
an accident.

2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.



WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the
lug nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off , resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary.

4. Turn the lug wrench counterclockwise
and lower the vehicle. 5. Use the lug wrench to tighten the nuts
in the order shown.



If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.

Nut tightening torque
N·m (kgf·m, ft·lbf) 108—147 (12—14, 80—108)

WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off . This could result
in loss of vehicle control and cause a
serious accident.

Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same confi guration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD
