8–36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will aff ect the drive system which could result in vehicle damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will provide
maximum return of vehicle design performance. Before loading your vehicle, familiarize
yourself with the following terms for determining your vehicle's weight ratings, from the
vehicle's Safety Certi ¿ cation Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the size of
the tire, its load range, and corresponding infl ation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certifi cation and Tire and Load Information labels.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 550 of 582
8–40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GVW (Gross Vehicle Weight) is the Vehicle Curb Weight cargo passengers.
GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certi ¿ cation Label located on the driver's door frame
or door pillar. The GVW must never exceed the GVWR.
SAMPLE
WARNING
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certifi cation Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 551 of 582
8–41
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.
WARNING
Never Exceed GVWR or GAWR Specifi cations:
Exceeding the GVWR or the GAWR specifi ed on the certifi cation label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement tires
with a higher limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specifi ed on the certifi cation label.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 555 of 582
8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
Bluetooth ® Hands-Free
T y p e A
U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The term “IC: ” before the radio certi ¿ cation number only signi ¿ es that Industry Canada
technical speci ¿ cations were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth
® Hands-Free Customer Service
y U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth
y Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 570 of 582
9–10
Speci ¿ cations
Personalization Features
Personalization Features
The following personalization features can be set or changed by an Authorized Mazda
Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features and settings which can be changed differ depending on the market
and speci ¿ cation.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-53 .
B: Refer to Active driving display on page 4-22 .
C: Refer to Fuel Economy Monitor on page 4-62 .
Settings can be changed by operating the vehicle switches.
D: Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-107 .
E: Refer to Auto Lock/Unlock Function on page 3-17 .
F: Refer to Transmitter on page 3-4 .
G: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)
on page 3-13 .
Settings can be changed by an Authorized Mazda Dealer.
Item Feature Factory
Setting Available Settings Settings
Change
Method
Safety
Smart City Brake
Support (SCBS) (page
4-103 ) The system can be changed
so that Smart City Brake
Support (SCBS) does not
operate.
*1 On On/Off A D —
Smart Brake Support
(SBS) (page 4-108 ) The system can be changed
so that Smart Brake Support
(SBS) does not operate.
*1 On On/Off A —
The distance at which the
collision warning activates
can be changed. Near Near/Far A —
The volume of the collision
warning can be changed. High High/Low/Off A —
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D

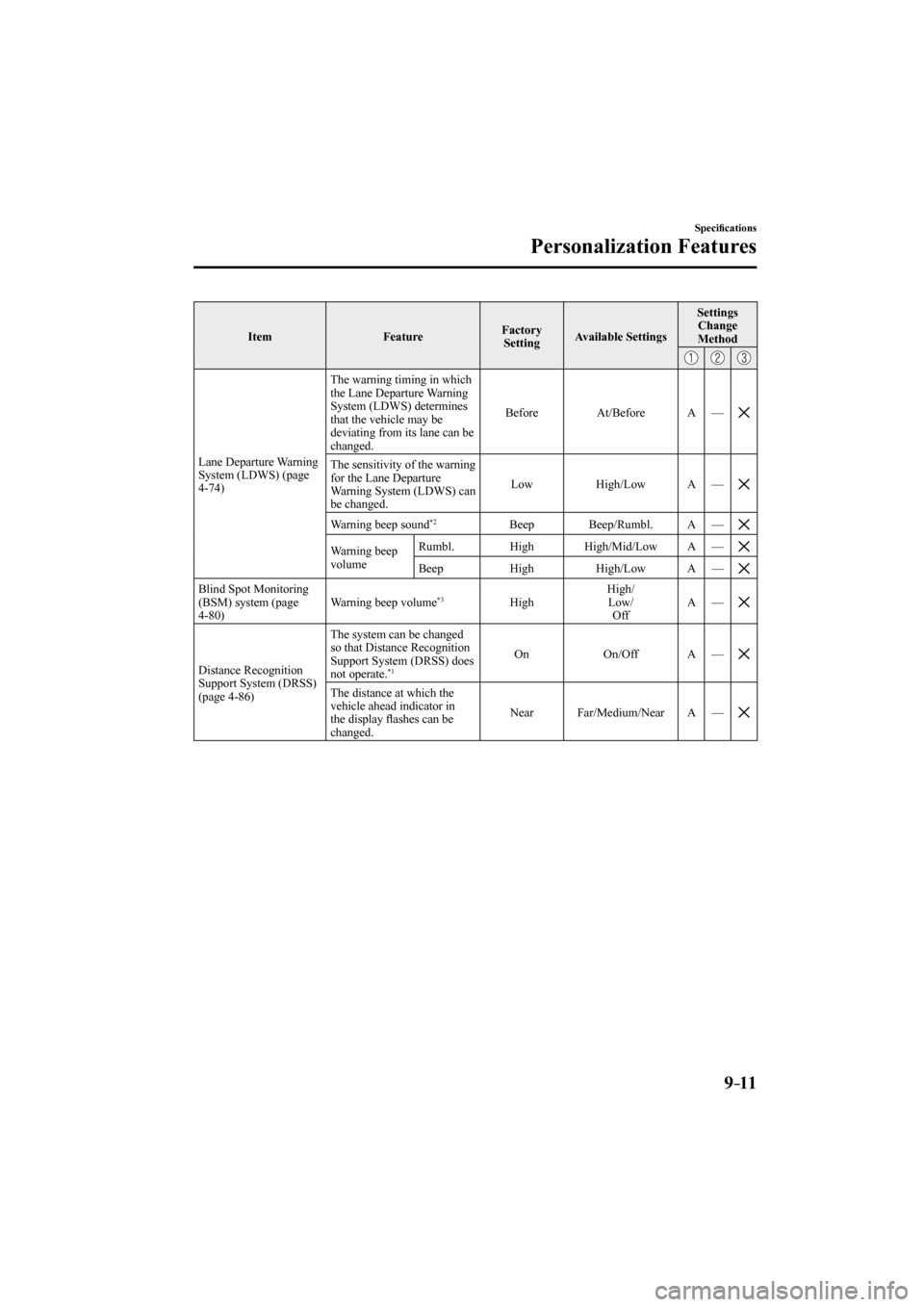

Page 571 of 582
9–11
Speci ¿ cations
Personalization Features
Item Feature Factory
Setting Available Settings Settings
Change
Method
Lane Departure Warning
System (LDWS) (page
4-74 ) The warning timing in which
the Lane Departure Warning
System (LDWS) determines
that the vehicle may be
deviating from its lane can be
changed. Before At/Before A —
The sensitivity of the warning
for the Lane Departure
Warning System (LDWS) can
be changed. Low High/Low A —
Warning beep sound
*2 Beep Beep/Rumbl. A —
Warning beep
volume Rumbl. High High/Mid/Low A —
Beep High High/Low A —
Blind Spot Monitoring
(BSM) system (page
4-80 ) Warning beep volume
*3 High High/
L o w /
O f f A —
Distance Recognition
Support System (DRSS)
(page 4-86 ) The system can be changed
so that Distance Recognition
Support System (DRSS) does
not operate.
*1 On On/Off A —
The distance at which the
vehicle ahead indicator in
the display À ashes can be
changed. Near Far/Medium/Near A —
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 573 of 582
9–13
Speci ¿ cations
Personalization Features
Item Feature Factory
Setting Available Settings Settings
Change
Method
Auto headlight off
*5
(page 4-41 ) Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
O f f
*6 A —
Auto-light control (page
4-41 ) Timing by which lights turn
on Medium High/
Med. High/
Medium/
Med. Low/
L o w A —
High Beam Control
System (HBC) (page
4-71 ) Operational/non-operational
*1 O n O n / O f f A —
Adaptive Front Lighting
System (AFS) (page
4-70 ) Operational/non-operational
*1 O n O n / O f f A —
Lights-on reminder
*7
(page 7-39 ) Warning beep volume Off High/Low/Off A —
Coming home light
(page 4-44 ) Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
O f f A —
Leaving home light
(page 4-45 ) Operational/non-operational On On/Off A —
Turn indicator (page
4-46 ) Beep volume High High/Low A —
Three- À ash turn signal
(page 4-47 ) Operational/non-operational On On/Off A —
Active driving display
(page 4-22 ) Setting can be changed so
that the Turn-by-Turn (TBT)
of the Active driving display
is not displayed. On On/Off B —
System
Language Language indicated in display English Depends on market
*8 A —
Temperature Temperature unit indicated
in display °F or °C °F/°C A —
Distance Distance unit indicated in
display mi or km mi/km A —
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 574 of 582
9–14
Speci ¿ cations
Personalization Features
Item Feature Factory
Setting Available Settings Settings
Change
Method
Fuel Economy Monitor (page 4-62 )
Ending display On/off Off On/Off C —
Fuel economy resetting
procedure Linkage/non-linkage with
fuel economy reset and trip
meter reset Off On/Off C —
*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends
that these systems remain On.
*2 For vehicles with an audio system other than the on-screen function type, the warning sound cannot be changed.
The warning sound is only a beep.
*3 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traf ¿ c Alert (RCTA) operation cannot be changed.
*4 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*5 If the setting is changed to Off, the following operation is performed according to the headlight switch position:
y A t position: Headlights turn off immediately after the ignition is switched off.
y At any position other than : Headlights do not turn off after the ignition is switched off. *6 When set to Off, the lights-on reminder is operable.
*7 The setting of the lights-on reminder can be changed with the time setting of auto headlight off function set to
Off.
Refer to Lights-On Reminder on page 7-39 .
*8 Available only in display from the center display.
