2017 MAZDA MODEL CX-3 reset

4–21
When Driving
Instrument Cluster and Display
N O T E



y Even though the distance-to-empty
display may indicate a suf¿ cient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.



y The display may not change unless you
add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.



y The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.



y If there is no past fuel economy
information such as after ¿ rst
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.

Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.



To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - L/100
km (- - - mpg) will be displayed for about
1 minute before the fuel economy is
recalculated and displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance traveled.

Current fuel economy will be calculated
and displayed every 2 seconds.



When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.



To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–23
When Driving
Instrument Cluster and Display
N O T E



y It may be dif¿ cult to view the display when wearing sunglasses. Take off your sunglasses
or adjust the luminosity.



y If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.



y The display may be dif¿ cult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.



y If the audio system is removed, the active driving display cannot be operated.
The active driving display indicates the following information:



y Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-92 .



y Lane Departure Warning System (LDWS) Operation Conditions and Warnings
 Refer to Lane Departure Warning System (LDWS) on page 4-74 .



y Smart City Brake Support (SCBS) Operation Conditions
 Refer to Smart City Brake Support (SCBS) on page 4-103 .



y Smart Brake Support (SBS) Operation Conditions and Warnings
 Refer to Smart Brake Support (SBS) on page 4-108 .



y Distance Recognition Support System (DRSS) Operation Conditions and Warnings
 Refer to Distance Recognition Support System (DRSS) on page 4-86 .



y Vehicle Speed Setting Using Cruise Control
 Refer to Cruise Control on page 4-122 .



y Turn-by-Turn (TBT) (Direction and Distance) and Lane Guidance



y Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the center
display (Type B audio).

1. Select the icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.


y
 Height : Active driving display position


y
 Brightness Control : Method for adjusting screen brightness (Automatically/
Manually)


y
 Calibration : Brightness initialization setting (when selecting automatic adjustment)


y
 Brightness : Brightness adjustment (when selecting manual adjustment)


y
 Navigation : On/Off


y
 Active Driving Display : On/Off


y
 Reset
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–29
When Driving
Instrument Cluster and Display
Wrench Indicator Light

When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.

The wrench indicator light is illuminated
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page
6-20 .
Low Engine Coolant Temperature
Indicator Light (Blue)

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf¿ ciently warmed
up, the temperature sensor could have
a malfunction. Consult an Authorized
Mazda Dealer.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–62
When Driving
Fuel Economy Monitor
*Some models.
Fuel Economy Monitor *
For vehicles with type B audio, the Fuel Consumption are switched and displayed by
operating each icon in the display.
In addition, after completing a trip, the total energy ef¿ ciency to date is displayed in the
ending display when the ending display is turned on.

1. Select the icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Operate the commander switch or touch the screen and display the menu.
N O T E
When the menu is displayed by touching the screen, the display is hidden automatically after
6 seconds.

4. Select the icon in the menu and perform the operation. Each icon operates as follows:

Indication on display Control status


Hides the menu display.

Displays the application screen.

Switches the Fuel Economy Monitor in the order of
Fuel Consumption.

Resets the fuel economy data.

Displays the following setting screen. y Ending display on/off switching
y On/off switching for function which synchronizes
reset fuel economy data to trip meter (Trip A)

Fuel Consumption Display
Information regarding the fuel economy is displayed.

Indication on display Control status


Displays the fuel economy for the past 60 minutes. y Displays the fuel economy every minute for the
past 1 to 10 minutes.

y Displays the fuel economy every 10 minutes for
the past 10 to 60 minutes.
Displays the average fuel economy over the past 5
resets and after the current reset.

Calculates the average fuel economy every minute
after vehicle travel begins, and displays it.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–63
When Driving
Fuel Economy Monitor
N O T E



y The fuel economy data can be reset by doing the following operation:



y Press the reset switch from the menu screen.



y When the function which synchronizes the fuel economy monitor and the trip meter is
on, reset trip A of the trip meter.



y Delete the average fuel economy information displayed in the trip computer.



y After resetting the fuel economy data, “-- -” is displayed while the average fuel economy
is calculated.

Ending Screen Display
If the ending display on the fuel economy monitor is on when the ignition is switched from
ON to OFF, the information regarding the fuel economy is displayed.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–92
When Driving
i-ACTIVSENSE
*Some models.
Mazda Radar Cruise Control (MRCC) *
The Mazda Radar Cruise Control (MRCC) system is designed to maintain headway control *1
according to the vehicle speed using a radar sensor (front) to detect the distance to a vehicle
ahead, and by presetting the vehicle speed between 30 km/h (19 mph) and 145 km/h (90
mph), the driver is freed from having to constantly use the accelerator or brake pedals.

*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cruise Control (MRCC) system.

Additionally, if your vehicle starts closing in on the vehicle ahead because, for example, the
vehicle ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a suf¿ cient distance between the vehicles.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and other highways
which do not require a lot of repeated acceleration and deceleration.
WARNING
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system and always
drive carefully:
The Mazda Radar Cruise Control (MRCC) system is designed to reduce load on the
driver, and although it maintains a constant vehicle speed, or specifi cally, it maintains
a constant distance between your vehicle and the detected vehicle ahead according to
the vehicle speed, the system has detection limitations depending on the type of vehicle
ahead and its conditions, the weather conditions, and the road conditions. Additionally,
the system may be unable to decelerate suffi ciently to avoid hitting the vehicle ahead
if the vehicle ahead applies the brakes suddenly or another vehicle cuts into the driving
lane, which could result in an accident. Always verify the safety of the surrounding area
and depress the brake pedal or accelerator pedal while keeping a safer distance from
vehicles ahead or on-coming vehicles.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–102
When Driving
i-ACTIVSENSE
Cancelling the function
Cancelling using OFF switch
When the OFF switch is pressed, the
cruise control function is cancelled.
Cancelling using ON switch
When the ON switch is pressed
continuously for about 2 seconds, the
cruise control function is canceled and
the headway control function is made
available for operation.
The cruise control function is canceled
automatically in the following cases. If
the RESUME switch is pressed while
the vehicle speed is 25 km/h (16 mph) or
higher, the speed returns to the original set
speed.



y The CANCEL switch is pressed.



y The brake pedal is depressed.



y The parking brake is applied.



y The selector lever is shifted to P or N
position.

N O T E



y If the vehicle speed decreases by about
15 km/h (9.4 mph) or more than the set
speed, the cruise control function may
be canceled.



y When the vehicle speed is less than
21 km/h (13 mph), the cruise control
function is canceled. In this case, the
vehicle speed will not return to the
original set speed even if the vehicle
is accelerated to 25 km/h (16 mph) or
higher and the RES switch is pressed.
Reset the cruise control function.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

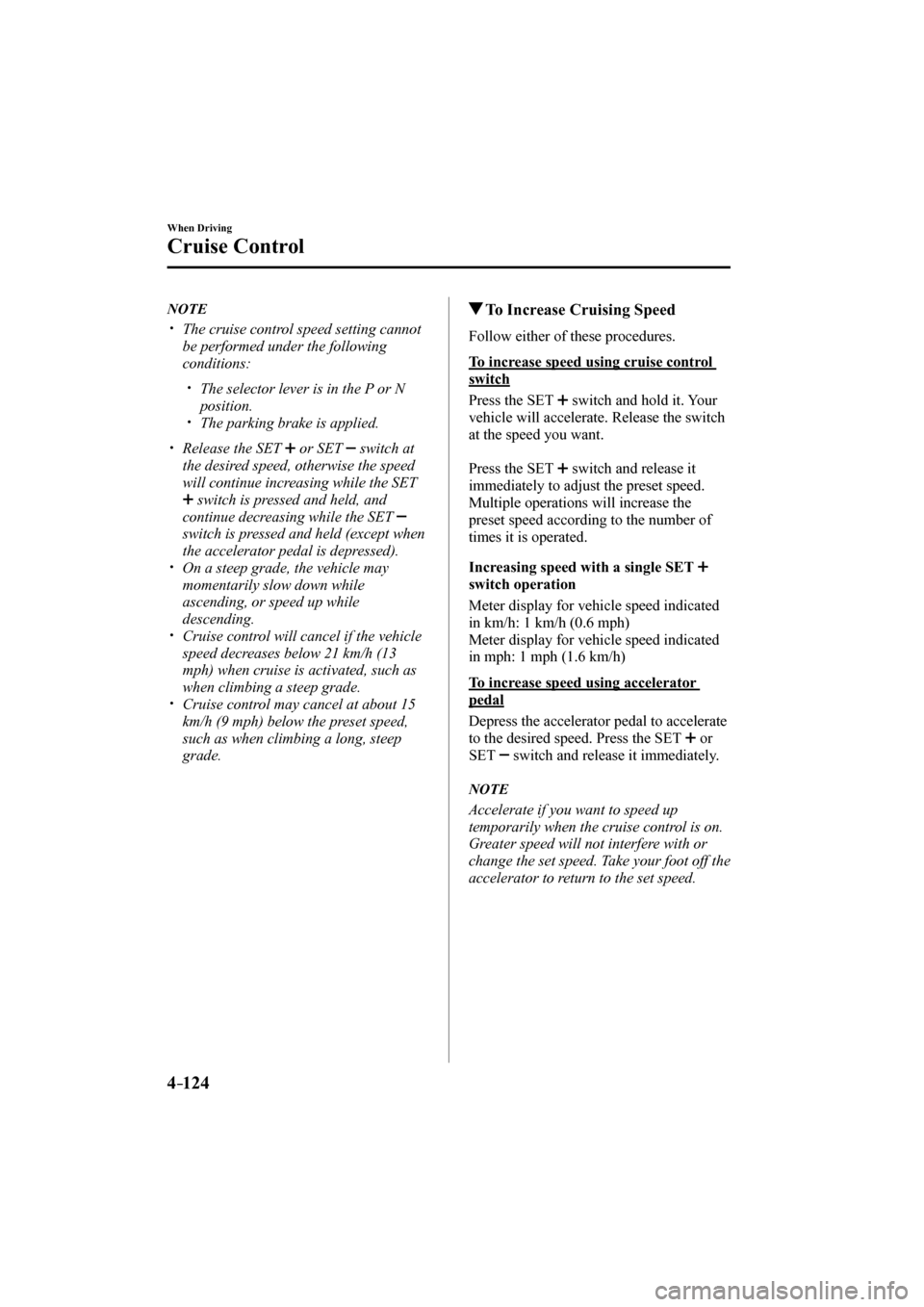

4–124
When Driving
Cruise Control
N O T E



y The cruise control speed setting cannot
be performed under the following
conditions:



y The selector lever is in the P or N
position.



y The parking brake is applied.



y Release the SET or SET switch at
the desired speed, otherwise the speed
will continue increasing while the SET

switch is pressed and held, and
continue decreasing while the SET

switch is pressed and held (except when
the accelerator pedal is depressed).



y On a steep grade, the vehicle may
momentarily slow down while
ascending, or speed up while
descending.



y Cruise control will cancel if the vehicle
speed decreases below 21 km/h (13
mph) when cruise is activated, such as
when climbing a steep grade.



y Cruise control may cancel at about 15
km/h (9 mph) below the preset speed,
such as when climbing a long, steep
grade.

To Increase Cruising Speed
Follow either of these procedures.
To increase speed using cruise control
switch
Press the SET
switch and hold it. Your
vehicle will accelerate. Release the switch
at the speed you want.

Press the SET
switch and release it
immediately to adjust the preset speed.
Multiple operations will increase the
preset speed according to the number of
times it is operated.
Increasing speed with a single SET

switch operation
Meter display for vehicle speed indicated
in km/h: 1 km/h (0.6 mph)
Meter display for vehicle speed indicated
in mph: 1 mph (1.6 km/h)
To increase speed using accelerator
pedal
Depress the accelerator pedal to accelerate
to the desired speed. Press the SET
or
SET
switch and release it immediately.
N O T E
Accelerate if you want to speed up
temporarily when the cruise control is on.
Greater speed will not interfere with or
change the set speed. Take your foot off the
accelerator to return to the set speed.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD
