2017 MAZDA MODEL CX-3 dashboard

4–13
When Driving
Instrument Cluster and Display



Speedometer .......................................................................................................... page 4-14



Odometer, Trip Meter and Trip Meter Selector .................................................... page 4-14



Tachometer ............................................................................................................ page 4-18



Fuel Gauge ............................................................................................................ page 4-18



Dashboard Illumination......................................................................................... page 4-19



Outside Temperature Display ................................................................................ page 4-19



Cruise Control Set Vehicle Speed Display ............................................................ page 4-20



Active Driving Display ......................................................................................... page 4-22



Trip Computer and INFO Switch .......................................................................... page 4-20



Speed Unit Selector ............................................................................................... page 4-14



Odometer, Trip Meter, Trip Computer and Trip Meter Selector ........................... page 4-16
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

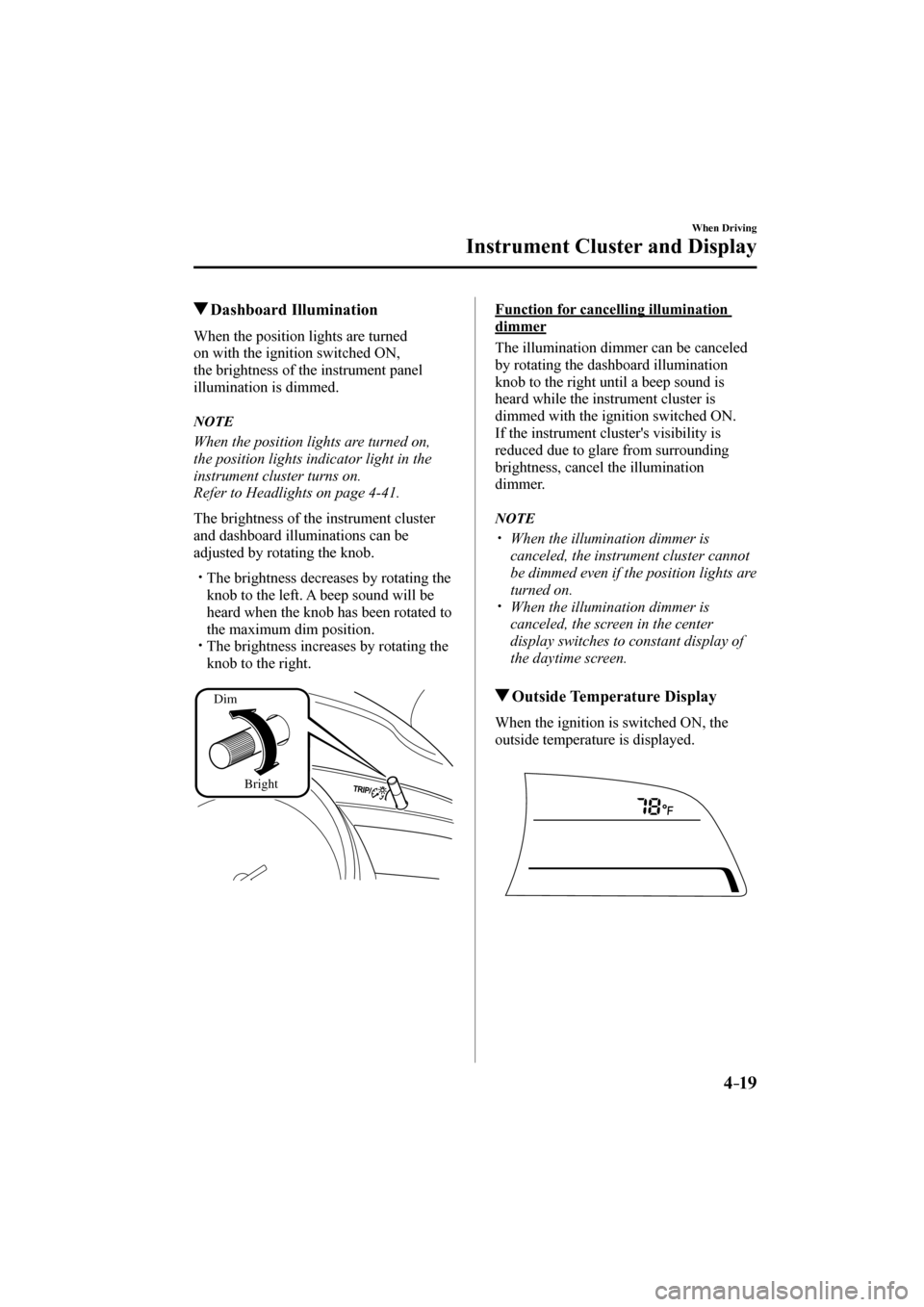

4–19
When Driving
Instrument Cluster and Display
Dashboard Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
N O T E
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-41 .

The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.



y The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



y The brightness increases by rotating the
knob to the right.


Dim
Bright

Function for cancelling illumination
dimmer
The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON.
If the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
N O T E



y When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the position lights are
turned on.



y When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.

Outside Temperature Display
When the ignition is switched ON, the
outside temperature is displayed.



%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–24
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and speci¿ cations.

Warning/Indicator lights will appear in any of the highlighted areas Type A
Type B
Type C
Center of Dashboard(Digital Speedometer Type)
(Analog Speedometer Type (With Tachometer))
(Analog Speedometer Type (Without Tachometer)) Instrument Cluster
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–41
When Driving
Switches and Controls
Lighting Control
Headlights
Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.



N O T E



y If the light switch is left on, the lights will automatically switch off approximately 30
seconds after switching the ignition off.
  The time setting can be changed.
 Refer to Personalization Features on page 9-10 .



y To prevent discharging the battery, do not leave the lights on while the engine is off unless
safety requires them.

Without auto-light control


Switch Position
Ignition Position ON ACC or
OFF O N ACC or
OFF O N ACC or
OFF
Headlights Off Off Off Off On On
*2
Daytime running lights On *1 Off On *1 Off Off Off
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illumination Off Off On On
*2 On On *2
*1 The lights are turned on while the vehicle is driven.
*2 The lights are turned on for the speci¿ ed period by the auto headlight off function.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–42
When Driving
Switches and Controls
*Some models.
With auto-light control


Switch Position
I g n i t i o n P o s i t i o n O N O F F O N O F F O N O F F O N O F F
Headlights Off Off Auto
*2 A u t o *4 Off Off On On *4
Daytime running lights On *1 Off On *3 Off On *1 Off Off Off
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illumination Off Off Auto
*2 A u t o *4 On On *4 On On *4
*1 The lights are turned on while the vehicle is driven.
*2 The headlight and other light settings switch automatically depending on the surrounding brightness detected by
the sensor.
*3 The lights are turned on while the vehicle is driven, and turned off when the headlights are turned on by the auto
light function.
*4 The lights are turned on for the speci¿ ed period by the auto headlight off function.


Auto-light control
*
When the headlight switch is in the
position and the ignition is switched ON, the light
sensor senses the surrounding lightness or darkness and automatically turns the headlights,
other exterior lights and dashboard illumination on or off (see chart above).
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–43
When Driving
Switches and Controls
CAUTION



¾ Do not shade the light sensor by adhering a sticker or a label on the windshield. Otherwise
the light sensor will not operate correctly.




¾ The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windshield when the wiper lever is in the
position and the
ignition is switched ON as fi ngers could be pinched or the wipers and wiper blades could be
damaged when the wipers activate automatically. If you are going to clean the windshield,
be sure the wipers are turned off completely when it is particularly tempting to leave the
engine running. This is particularly important when clearing ice and snow.

N O T E



y The headlights, other exterior lights and dashboard illumination may not turn off
immediately even if the surrounding area becomes well-lit because the light sensor
determines that it is night time if the surrounding area is continuously dark for several
minutes such as inside long tunnels, traf¿ c jams inside tunnels, or in indoor parking lots.

 In this case, the lights turn off if the light switch is turned to the position.



y (Without auto headlight off function)
 When the headlight switch is in the position and the ignition is switched to ACC or
the ignition is switched off, the headlights, other exterior lights and dashboard
illumination will turn off.



y The dashboard illumination can be adjusted by rotating the knob in the instrument cluster.
Also, the day/night mode can be changed by rotating the knob until a beep sound is heard.
To adjust the brightness of the dashboard illumination:
  Refer to Dashboard Illumination on page 4-19 .



y The sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer.
 Refer to Personalization Features on page 9-10 .
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–45
When Driving
Switches and Controls
*Some models.
N O T E



y The time until the headlights turn off
after all of the doors are closed can be
changed.
  Refer to Personalization Features on
page 9-10 .



y If no operations are done for 3 minutes
after the lever is pulled, the headlights
turn off.



y The headlights turn off if the lever is
pulled again while the headlights are
illuminated.

Leaving Home Light
The leaving home light turns on the lights
when the transmitter unlock button is
pressed while away from the vehicle.
The following lights turn on when the
leaving home light is operated.
Low beams, Parking lights, Taillights,
License lights, Dashboard illumination
To turn on the lights
When the ignition switch and the headlight
switch are in the following conditions,
the headlights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The headlights turn off after a certain
period of time has elapsed (30 seconds).



y Ignition switch: off



y Headlight switch: or

Unlock button
Lock button

N O T E




y Operation of the leaving home light can
be turned on or off.
  Refer to Personalization Features on
page 9-10 .



y When the transmitter lock button is
pressed and the vehicle receives the
transmitter signal, the headlights turn
off.



y When the headlight switch is in a
position other than
or , the
headlights turn off.

Headlight Leveling *
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.

The angle of the headlights will be
automatically adjusted when turning on
the headlights.
Daytime Running Lights
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.

The daytime running lights turn on
automatically when the vehicle starts
moving.
They turn off when the parking brake is
operated or the shift lever is shifted to the
P position .
N O T E
(Except Canada)
The daytime running lights can be
deactivated.
Refer to Personalization Features on page
9-10 .

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

4–46
When Driving
Switches and Controls
*Some models.
Fog Lights *
The fog lights can be used when the
ignition is switched ON.
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
The fog lights turn on when the fog light
switch is turned to the
position and turn
off when the switch is turned to the

position.
The fog lights turn on when the headlights
are turned on. They will not turn on if the
headlight switch is in the
position or

position.

Fog light switch
N O T E



y The fog lights will turn off when the
headlights are set at high beams.



y (With auto-light control)
 If the fog light switch is in the
position and the headlight switch is in
the
position, the fog lights will
turn on when the headlights, the
exterior lights and dashboard
illumination turn on.

Turn and Lane-Change
Signals
The ignition must be switched ON to use
the turn and lane-change signals.
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.

If the indicator light continues to À ash
after a turn, manually return the lever to its
original position.

Right turn
Left turn Right lane change
Left lane changeOFF

The turn signal indicators in the instrument
cluster À ash according to the operation of
the turn signal lever to show which signal
is working.
