2017 MAZDA MODEL CX-3 engine

7–30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Contact Authorized Mazda Dealer and Have Vehicle Inspected
If any of the following warning lights or the indicator light turns on/À ashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.

Signal Warning


Master Warning
Light (Vehicles with type B audio)
The light turns on when the system has a malfunction.
Operate the center display and verify the content.
Refer to If a Warning Light Turns On or Flashes on page 7-27 .
(Vehicles without type B audio)
The light illuminates continuously if any one of the following occurs. Consult an
Authorized Mazda Dealer.
y There is a malfunction in the battery management system.
y There is a malfunction in the brake switch.


ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible. N O T E
y When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
y The brake assist system does not operate while the ABS warning light is illuminated.


Check Engine Light If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:
y The fuel tank level being very low or approaching empty.
y The engine's electrical system has a problem.
y The emission control system has a problem.
y The fuel-¿ ller cap is missing or not tightened securely.
If the check engine light remains on, or it À ashes continuously , do not drive at high speeds
and consult an Authorized Mazda Dealer as soon as possible.


Automatic
Transaxle Warning
Light The light illuminates when the transaxle has a problem. CAUTION
If the automatic transaxle warning light illuminates, the transaxle has an electrical
problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

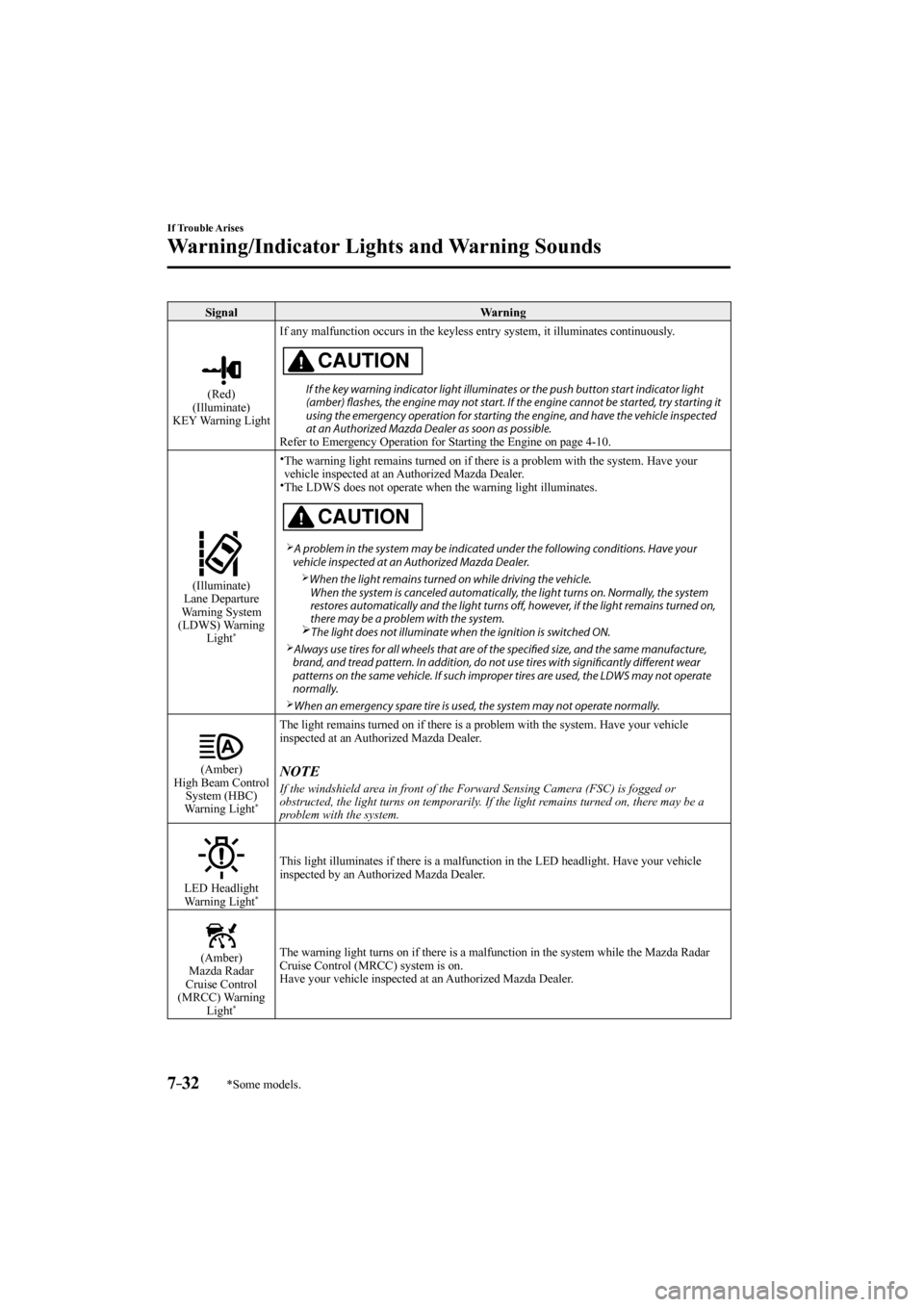

7–32
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning


(Red)
(Illuminate)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) fl ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10 .

(Illuminate)
Lane Departure
Warning System
(LDWS) Warning
Light
*
y The warning light remains turned on if there is a problem with the system. Have your
vehicle inspected at an Authorized Mazda Dealer.

y The LDWS does not operate when the warning light illuminates.
CAUTION
¾ A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an Authorized Mazda Dealer.
¾ When the light remains turned on while driving the vehicle.
When the system is canceled automatically, the light turns on. Normally, the system
restores automatically and the light turns off , however, if the light remains turned on,
there may be a problem with the system.
¾
The light does not illuminate when the ignition is switched ON.
¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle. If such improper tires are used, the LDWS may not operate
normally.
¾ When an emergency spare tire is used, the system may not operate normally.

(Amber)
High Beam Control
System (HBC)
Warning Light
* The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an Authorized Mazda Dealer.
N O T E
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.

LED Headlight
Warning Light * This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.

(Amber)
Mazda Radar
Cruise Control
(MRCC) Warning
Light
* The warning light turns on if there is a malfunction in the system while the Mazda Radar
Cruise Control (MRCC) system is on.
Have your vehicle inspected at an Authorized Mazda Dealer.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning


Blind Spot
Monitoring (BSM)
OFF Indicator
Light
* A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
y The light does not turn on when the ignition is switched ON.
y The light remains turned on even if the Blind Spot Monitoring (BSM) switch is operated.
y It turns on while driving the vehicle.
N O T E
If the vehicle is driven on a road with less traf¿ c and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator light in
the instrument cluster illuminates). However, it does not indicate a malfunction.

Taking Action
Take the appropriate action and verify that the warning light turns off.

Signal Warning Action to be taken

Low Fuel
Warning Light The light turns on when the remaining fuel is
about 9.0 L (2.3 US gal, 1.9 Imp gal). N O T E
The light illumination timing may vary because
fuel inside the fuel tank moves around according
to the driving conditions and the vehicle posture. Add fuel.


Check Fuel Cap
Warning Light If the check fuel cap warning light illuminates
while driving, the fuel-¿ ller cap may not be
installed properly. Stop the engine and reinstall the fuel-¿ ller
cap.
Refer to Fuel-Filler Cap on page 3-28
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Message Indicated on Display *
If a message is displayed in the center display (Type B audio), take appropriate action (in a
calm manner) according to the displayed message.


(Display example)

Stop Vehicle in Safe Place Immediately
If the following messages are displayed in the center display (Type B audio), a vehicle
system may be malfunctioning. Stop the vehicle in a safe place and contact an Authorized
Mazda Dealer.

Display Indicated Condition

Displays if the engine coolant temperature has increased
excessively.

Displays if the charging system has a malfunction.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–43
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Over Rev. Buzzer *
The buzzer sounds to notify the driver if
the engine speed is about to exceed the
permissible engine speed.
CAUTION
Operate the accelerator and shift gears
according to the driving conditions so
that the buzzer does not sound. If the
engine speed exceeds the permissible
engine speed, the engine could be
damaged.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

7–45
If Trouble Arises
Active Driving Display Does Not Operate*
*Some models.
If the Active Driving Display does not operate
If the active driving display does not operate, switch the ignition off and then restart the
engine. If the active driving display does not operate even with the engine restarted, have
the vehicle inspected at an Authorized Mazda Dealer.

%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–16
Customer Information and Reporting Safety Defects
Warranty
Outside the United States/Canada
Government regulations in the United States/Canada require that automobiles meet speci¿ c
emission regulations and safety standards. Therefore, vehicles built for use in the United
States/Canada may differ from those sold in other countries.

The differences may make it dif¿ cult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States/Canada.

United States
However, in the event that you are moving to Canada permanently, Mazda vehicles built
for use in the United States could be eligible for exportation to Canada with speci¿ c vehicle
modi¿ cations to comply with the Canadian Motor Vehicle Safety Standards (CMVSS).

Canada
However, in the event that you are moving to the United States permanently, Mazda vehicles
built for use in Canada could be eligible for exportation to the United States with speci¿ c
vehicle modi¿ cations to comply with the United States Federal Motor Vehicle Safety
Standards (FMVSS).
N O T E
The above is applicable for a permanent import/export situation and not related to travelers
on vacation.

You may have the following problems if you do take your vehicle outside of the United
States/Canada:



y Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.



y Proper repair facilities, tools, testing equipment, and replacement parts may not be
available.

Please refer to your Manufacturer's Warranty Booklet for more information.
%:A(*'#'A'FKVKQPKPFD%:A(*'#'A'FKVKQPKPFD

8–18
Customer Information and Reporting Safety Defects
Warranty
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may ¿ t your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's
performance or safety systems; the Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Improperly designed parts or accessories could seriously aff ect your vehicle's performance
or safety systems. This could cause you to have an accident or increase your chances of
injuries in an accident.

Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-
bag (SRS) activation, ABS/TCS/DSC inactivation, or a fi re in the vehicle.

Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
