Exterior Lamps
Power (Watt)
Specification
Lamp
LED
LED
Front parking lamp.
LED
LED
Front side marker lamp.
21
T20
Front direction indicator.
LED
LED
Daytime running lamps.
LED
LED
Front signature lamp.
HID
D3S
High-intensity discharge headlamps.
LED
LED
Side direction indicator.
LED
LED
Rear side marker lamp.
LED
LED
Brake and rear lamp.
LED
LED
Central high mounted brake lamp.
LED
LED
Rear direction indicator.
LED
LED
Reversing lamps.
LED
LED
License plate lamp.
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
328
MKX (CD9) Canada/United States of America, enUSA, First Printing Maintenance

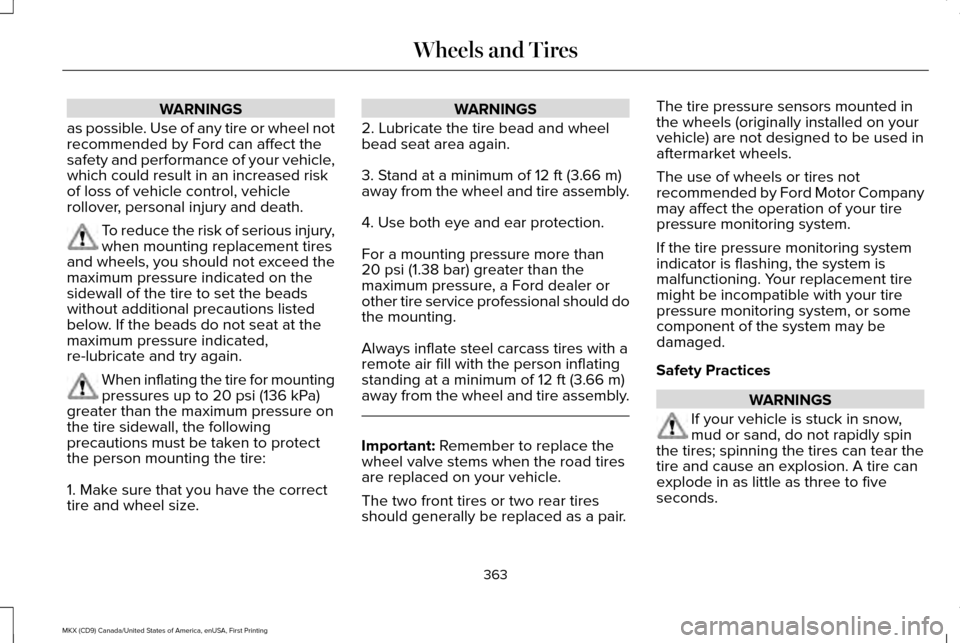

WARNINGS
as possible. Use of any tire or wheel not
recommended by Ford can affect the
safety and performance of your vehicle,
which could result in an increased risk
of loss of vehicle control, vehicle
rollover, personal injury and death. To reduce the risk of serious injury,
when mounting replacement tires
and wheels, you should not exceed the
maximum pressure indicated on the
sidewall of the tire to set the beads
without additional precautions listed
below. If the beads do not seat at the
maximum pressure indicated,
re-lubricate and try again. When inflating the tire for mounting
pressures up to 20 psi (136 kPa)
greater than the maximum pressure on
the tire sidewall, the following
precautions must be taken to protect
the person mounting the tire:
1. Make sure that you have the correct
tire and wheel size. WARNINGS
2. Lubricate the tire bead and wheel
bead seat area again.
3. Stand at a minimum of
12 ft (3.66 m)
away from the wheel and tire assembly.
4. Use both eye and ear protection.
For a mounting pressure more than
20 psi (1.38 bar)
greater than the
maximum pressure, a Ford dealer or
other tire service professional should do
the mounting.
Always inflate steel carcass tires with a
remote air fill with the person inflating
standing at a minimum of
12 ft (3.66 m)
away from the wheel and tire assembly. Important:
Remember to replace the
wheel valve stems when the road tires
are replaced on your vehicle.
The two front tires or two rear tires
should generally be replaced as a pair. The tire pressure sensors mounted in
the wheels (originally installed on your
vehicle) are not designed to be used in
aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor Company
may affect the operation of your tire
pressure monitoring system.
If the tire pressure monitoring system
indicator is flashing, the system is
malfunctioning. Your replacement tire
might be incompatible with your tire
pressure monitoring system, or some
component of the system may be
damaged.
Safety Practices
WARNINGS
If your vehicle is stuck in snow,
mud or sand, do not rapidly spin
the tires; spinning the tires can tear the
tire and cause an explosion. A tire can
explode in as little as three to five
seconds.
363
MKX (CD9) Canada/United States of America, enUSA, First Printing Wheels and Tires
Cleaning Products.........................................331
Materials................................................................331
Cleaning the Engine
....................................333
Cleaning the Exterior...................................332 Exterior Chrome Parts.......................................332
Exterior Plastic Parts..........................................333
Stripes or Graphics.............................................333
Underbody...........................................................333
Under Hood.........................................................333
Cleaning the Instrument Panel and Instrument Cluster Lens...........................336
Cleaning the Interior....................................334 Cleaning Black Label or Presidential
Interior ...............................................................335
Cleaning the Wheels...................................337
Cleaning the Windows and Wiper Blades...........................................................334
Clearing All MyKeys.......................................63
Climate............................................................446
Climate Control
...............................................141
Climate Controlled Seats............................156 Cooled Seats........................................................157
Coolant Check See: Engine Coolant Check..............................314
Crash Sensors and Airbag Indicator
..........53
Creating a MyKey...........................................62 Programming/Changing Configurable
Settings...............................................................62 Cross Traffic Alert.........................................242
False Alerts..........................................................245
Switching the System Off and On..................246
System Errors......................................................246
System Lights, Messages and Audible
Alerts.................................................................245
System Limitations.............................................245
Using the System...............................................242
Cruise Control
.................................................86
Principle of Operation.......................................224
Type 1.......................................................................86
Type 2......................................................................87
Cruise control See: Using Cruise Control................................224
Customer Assistance
..................................278
D
Data Recording
..................................................9
Event Data Recording...........................................10
Service Data Recording.........................................9
Daytime Running Lamps
...............................94
Type 1 - Conventional
(Non-Configurable)..........................................94
Type 2 - Configurable..........................................94
Direction Indicators
........................................97
Doors and Locks.............................................68 Drive Control
..................................................251
LINCOLN DRIVE CONTROL.............................251
Driver Alert.....................................................233 PRINCIPLE OF OPERATION............................233
USING DRIVER ALERT......................................233
Driver and Passenger Airbags....................46 Children and Airbags...........................................47
Proper Driver and Front Passenger Seating
Adjustment.........................................................47
Driver and Passenger Knee Airbags.........52
Driving Aids....................................................233
Driving Hints
..................................................268
Driving Through Water...............................269
DRL See: Daytime Running Lamps...........................94
E
Economical Driving......................................268
Electric Parking Brake..................................196 Applying the Electric Parking Brake...............
196
Battery With No Charge....................................198
Releasing the Electric Parking Brake.............197
Emission Control System............................180 On-Board Diagnostics (OBD-II).........................
181
Readiness for Inspection and Maintenance (I/M) Testing......................................................182
575
MKX (CD9) Canada/United States of America, enUSA, First Printing Index
