15Pictorial index
RC300h_EE(OM24740E)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 337
To prevent freezing (windshield wiper de-icer)*1 . . . . . . . . . . . . . . . . . . . . . . P. 439 Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 249
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249 Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 484
Tire size/inflation pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 604 Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 33 7
Checking/rotation/tire pressure warning system . . . . . . . . . . . . . . . . . . . . . . P. 484 Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 563
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 471
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 471 Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 599 Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 587
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 229, 232
Front fog lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 239
Rear fog light*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Back up light*2
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 232
Stop lights
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 232
Rear fog light*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Back up light*3
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 518, Watts: P. 605)
*1: If equipped
*2: Left-hand drive vehicles
*3: Right-hand drive vehicles
8
9
10
11
12
13

2074-1. Before driving
4
Driving
RC300h_EE(OM24740E)
■When starting off on an uphill
The hill-start assist co ntrol will activate. (P. 304)
■For fuel-efficient driving
Keep in mind that hybrid vehicles are similar to conventional vehicles, and it is necessary
to refrain from activities such as sudden acceleration. ( P. 334)
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows may
become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially slip- pery.
●Refrain from high speeds when driving on an expressway in the rain, because there maybe a layer of water between the tires and the road surface, preventing the steering andbrakes from operating properly.
■Restraining the hybrid system output (brake override system)
●When the accelerator and brake pedals are de pressed at the same time, the hybrid sys- tem output may be restrained.
●A warning message is displayed on the multi-information display while the system is operating. ( P. 552)
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recommended:
●For the first 300 km (186 miles): Avoid sudden stops.
●For the first 1000 km (621 miles):
• Do not drive at extremely high speeds. • Avoid sudden acceleration.
• Do not drive continuously in low gears. • Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parkin g brake system. This type of brake system needs bedding-down of the brake shoes periodically or whenever the parking brakeshoes and/or drum are replaced. Have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, perform the bedding down operation.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the cor-
rect fuel. ( P. 598)

249
4
Driving
RC300h_EE(OM24740E)
4-4. Refueling
●Close both side doors and windows, and turn the power switch off.
●Confirm the type of fuel.
■Fuel types
 P. 606
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom-
modates the special nozzle on unleaded fuel pumps.
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

5768-2. Steps to take in an emergency
RC300h_EE(OM24740E)
One of the following may be the cause of the problem:
●The electronic key may not be functioning properly. (P. 580)
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●There may be a malfunction in the immobilizer system. ( P. 95)
●There may be a malfunction in the steering lock system.
●The hybrid system may be malfunctioning due to an electrical problem such
as electronic key battery depletion or a blown fuse. However, depending on
the type of malfunction, an interim measure is available to start the hybrid sys-
tem. ( P. 577)
One of the following may be the cause of the problem:
●The 12-volt battery may be discharged. ( P. 582)
●The 12-volt battery terminal connections may be loose or corroded.
( P. 481)
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the situation.
Check the following and perform the appropriate procedure:
The hybrid system will not start even though the correct starting proce-
dure is being followed. ( P. 215)
The interior lights and headlights are dim, or the horn does not sound or
sounds at a low volume.

5989-1. Specifications
RC300h_EE(OM24740E)
Engine
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu. in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area: Unleaded gasoline conforming to European standard
EN228 only Except EU area: Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp. gal.)
Electric motor (t raction motor)
TypePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity32 modules
Overall voltage230.4 V

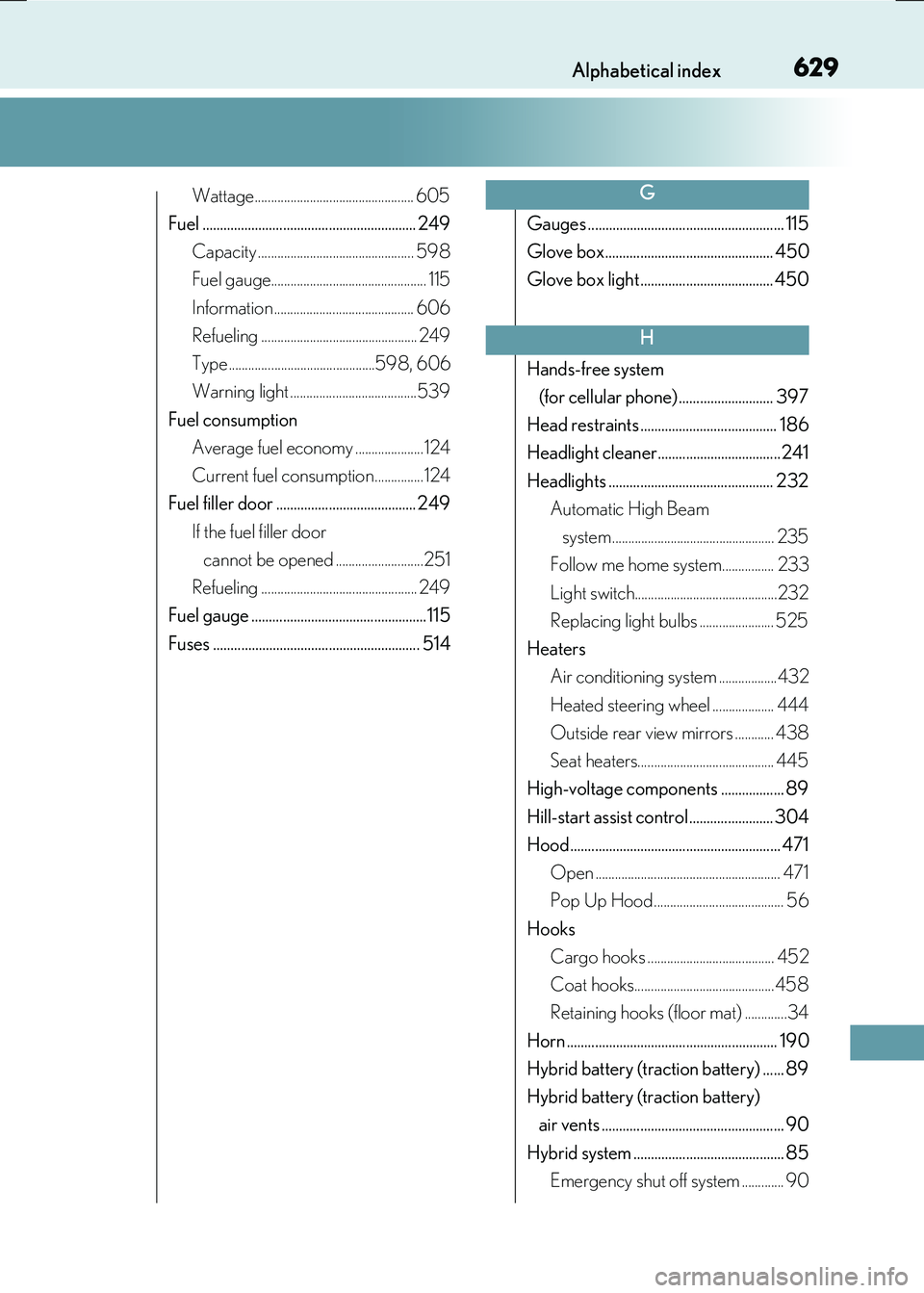

629Alphabetical index
RC300h_EE(OM24740E)
Wattage................................................. 605
Fuel ............................................................. 249
Capacity ................................................ 598
Fuel gauge................................................ 115
Information ........................................... 606
Refueling ................................................ 249
Type .............................................598, 606
Warning light .......................................539
Fuel consumption
Average fuel economy ..................... 124
Current fuel consumption............... 124
Fuel filler door ........................................ 249
If the fuel filler door
cannot be opened ...........................251
Refueling ................................................ 249
Fuel gauge .................................................. 115
Fuses ........................................................... 514
Gauges ........................................................ 115
Glove box................................................ 450
Glove box light ...................................... 450
Hands-free system
(for cellular phone) ........................... 397
Head restraints ....................................... 186
Headlight cleaner................................... 241
Headlights ............................................... 232
Automatic High Beam
system.................................................. 235
Follow me home system................ 233
Light switch............................................232
Replacing light bulbs ....................... 525
Heaters
Air conditioning system ..................432
Heated steering wheel ................... 444
Outside rear view mirrors ............ 438
Seat heaters.......................................... 445
High-voltage components .................. 89
Hill-start assist control ........................ 304
Hood ............................................................ 471
Open ......................................................... 471
Pop Up Hood ........................................ 56
Hooks
Cargo hooks ....................................... 452
Coat hooks........................................... 458
Retaining hooks (floor mat) .............34
Horn ............................................................ 190
Hybrid battery (traction battery) ...... 89
Hybrid battery (traction battery)
air vents .................................................... 90
Hybrid system ........................................... 85
Emergency shut off system ............. 90
G
H

634Alphabetical index
RC300h_EE(OM24740E)
Radar cruise control (dynamic
radar cruise control) ........................ 257
Radiator ................................................... 480
Radio .......................................................... 369
Rear fog light .......................................... 239
Replacing light bulb..........................525
Switch ...................................................... 239
Rear passengers’ seat belt
reminder lights....................................539
Rear seat......................................................181
Fold down the seatback .................... 181
Luggage security system .................. 151
Rear turn signal lights.......................... 229
Replacing light bulbs........................ 522
Turn signal lever ................................. 229
Wattage................................................. 605
Rear view mirror
Inside rear view mirror....................... 191
Outside rear view mirrors...............193
Rear window defogger .....................438
Refueling .................................................. 249
Capacity ................................................ 598
Fuel types .............................................. 598
If the fuel filler door cannot
be opened ...........................................251
Opening the fuel tank cap ..............251
Regenerative braking ............................ 86
Remote Touch*
Replacing
Electronic key battery .........................511
Fuses .......................................................... 514
Light bulbs ..............................................518
Tires.......................................................... 499
Reset the maintenance data .............476
Rev indicator ............................................126
Rev peak .................................................... 126
R

640
RC300h_EE(OM24740E)
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 471 P. 150 P. 249
Hood lock release leverTire inflation pressure
P. 471P. 604
Fuel tank capacity (Reference) 66 L (17.4 gal., 14.5 Imp. gal.)
Fuel type
EU area: Unleaded gasoline conforming to European
standard EN228 only Except EU area: Unleaded gasoline onlyP. 598, 606
Cold tire inflation
pressure P. 604
Engine oil capacity (Drain and refill — reference)
L (qt., Imp. qt.) With filter 4.5(4.8, 4.0)Without filter 4.1 (4.3, 3.6)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: 0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy- Conserving” or SN “Resource-Conserving”; or ILSACmultigrade engine oil
15W-40: API grade SL, SM or SN multigrade engine oilP. 599
