2017 LEXUS RC200T odometer

19Pictorial index
RC200t_RC F_EE(OM24728E)
Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Windshield wiper de-icer switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 485
Active rear wing switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
Odometer/trip meter/trip meter reset button. . . . . . . . . . . . . . . . .P. 121, 128
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . P. 122, 129
Lexus parking assist-sensor switch*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 320
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
ASC switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
*1: If equipped
*2: For vehicles with a navigation or multimedia system, refer to “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

30Pictorial index
RC200t_RC F_EE(OM24728E)
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129
Odometer/trip meter/trip meter reset button. . . . . . . . . . . . . . . . . . . . . P. 128
Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Lexus parking assist-sensor switch*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 320
Active rear wing switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
ASC switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 262
1
2
3
4
5
6
7

1192. Instrument cluster
2
Instrument cluster
RC200t_RC F_EE(OM24728E)

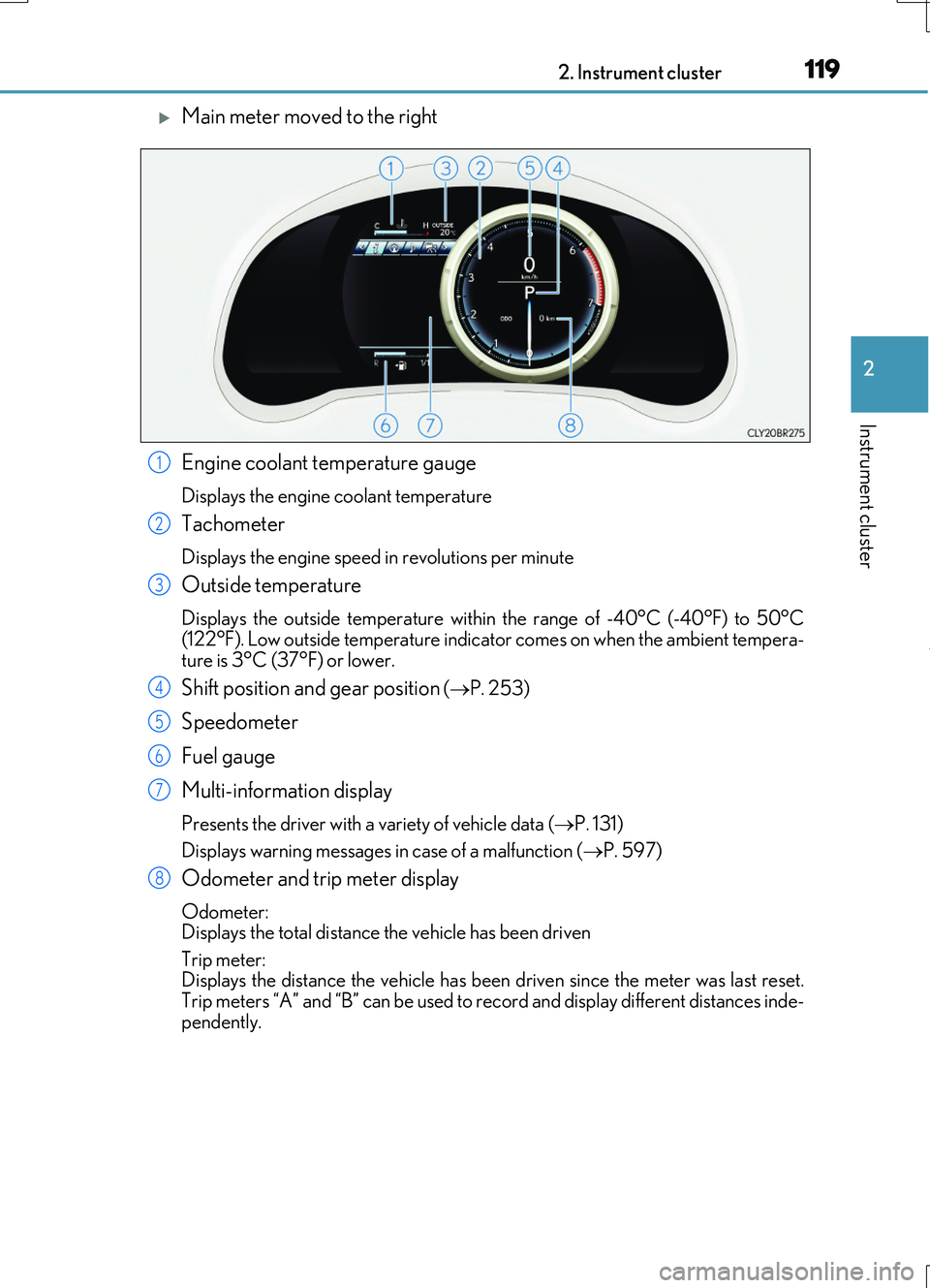

Main meter moved to the right
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low outside temperature indicator comes on when the ambient tempera-
ture is 3°C (37°F) or lower.
Shift position and gear position ( P. 253)
Speedometer
Fuel gauge
Multi-information display
Presents the driver with a variety of vehicle data ( P. 131)
Displays warning messages in case of a malfunction ( P. 597)
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde- pendently.
1
2
3
4
5
6
7
8

1212. Instrument cluster
2
Instrument cluster
RC200t_RC F_EE(OM24728E)
■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Main meter (F SPORT models)
Moves between center and right-
side positions.
Changing the display

1222. Instrument cluster
RC200t_RC F_EE(OM24728E)
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when th e tail lights are on and off can be adjusted
individually. However, when the surroundings ar e bright (daytime, etc.), turning on the tail lights will not change the in strument panel brightness.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “ ” or “E” is displayed, the system may be malfunctioning. Take your vehicle to any authorized Lexus de aler or repairer, or another duly qualified and equipped professional.
■Pop-up display
●In some situations, a pop-up display will be temporarily displayed on the multi-informa- tion display or the odometer/trip meter screen (F SPORT models only).
●Some pop-up displays can be set on/off. (P. 136)
■Liquid crystal display
Small spots or light spots may appear on th e display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. (P. 131)
Instrument panel light control
1
2

1262. Instrument cluster
RC200t_RC F_EE(OM24728E)
Multi-information display
Presents the driver with a variety of vehicle data (P. 139)
Displays warning messages in case of a malfunction (P. 597)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge
indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red
and start flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator
( ) enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position and gear position
(  P. 253)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Eco driving meter
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the
lower the number of blue segments displayed, indicating that your driving is less eco-
friendly. This meter is designed as a guid eline to show the eco-friendliness of your
driving.
1
2
3
4
5
6
7
8
9
10
11

1282. Instrument cluster
RC200t_RC F_EE(OM24728E)
■Rev peak (Normal mode/SPORT S mode)
The engine speed reaches or
exceeds 3600 r/min, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Meter display and layout
If the drive mode is changed, some
of the meter displays and the gauge
layout will be changed.
Changing the display

715Alphabetical index
RC200t_RC F_EE(OM24728E)
Navigation system*
Odometer......................................... 118, 124
Oil
Differential oil .......................................678
Engine oil .................................................671
Opener
Hood ......................................................... 518
Trunk ..........................................................170
Outer foot lights .................................... 492
Outside rear view mirrors ................ 224
Adjusting and folding....................... 224
BSM (Blind Sport Monitor)..........364
Linked mirror function
when reversing................................ 225
Mirror position memory...................214
Outside rear view mirror
defoggers ..........................................484
Outside temperature ...................118, 124
Overheating ...........................................659
Paddle shift switches ................255, 256
Parking assist sensors......................... 320
Parking brake...........................................261
PCS
(Pre-Crash Safety system)............ 356
PCS OFF switch................................ 357
Warning light....................................... 592
Personal lights........................................ 494
Pollen removal mode.......................... 484
Pop-up display.............................. 136, 148
Pop Up Hood............................................ 62
Power outlet ............................................ 501
Power steering (Electric power
steering system)................................. 349
Warning light....................................... 592
Power windows ......................................227
Door lock linked window
operation.............................................229
Jam protection function ................. 228
Operation .............................................. 227
Window lock switch ......................... 227
Pre-Crash Safety system (PCS) .... 356
PCS OFF switch................................ 357
Warning light....................................... 592
N
O
P
*: For vehicles with a navigation or multimedia system, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
