6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4
■CORRESPONDING SAMPLING
FREQUENCY
■ CORRESPONDING BIT RATES*
1
■COMPATIBLE CHANNEL MODES
zMP3 (MPEG Audio Layer 3), WMA
(Windows Media Audio) and AAC
(Advanced Audio Coding) are audio com-
pression standards.
z This system can play MP3/WMA/AAC
files on CD-R/CD-RW/DVD-R/DVD-RW
discs and USB memory.
z MP4, WMV and AVI files can use the fol-
lowing resolutions:
128x96, 160x120, 176x144 (QCIF),
320x240 (QVGA), 352x240 (SIF),
352x288 (CIF), 640x480 (VGA),
720x480 (NTSC), 720x576 (PAL)
z This system can play disc recordings com-
patible with ISO 9660 level 1 and level 2
and with the Romeo an d Joliet file system
and UDF (2.01 or lower).
z When naming an MP3/WMA/AAC file,
add an appropriate file extension (.mp3/
.wma/.m4a).
z This system plays back files with .mp3/
.wma/.m4a file extensions as MP3/WMA/
AAC files respectively. To prevent noise
and playback errors, use the appropriate
file extension.
z This system can play only the first session/
border when using multi session/border
compatible discs.
z MP3 files are compatible with the ID3 Tag
Ve r. 1 . 0 , Ve r. 1 .1 , Ve r. 2 . 2 a n d Ve r. 2 . 3 f o r -
mats. This system cannot display disc title,
track title and artist name in other formats.
File typeFrequency
(kHz)
MP3 files:
MPEG 1 LAYER 332/44.1/48
MP3 files:
MPEG 2 LSF LAYER 316/22.05/24
WMA files:
Ver. 7, 8, 9* (9.1/9.2)32/44.1/48
AAC files:
MPEG4/AAC-LC11.025/12/16/
22.05/24/32/
44.1/48
*: Only compatible with Windows Media Audio Standard
File typeBit rate (kbps)
MP3 files:
MPEG 1 LAYER 332 - 320
MP3 files:
MPEG 2 LSF LAYER 38 - 160
WMA files:
Ver. 7, 8CBR 48 - 192
WMA files:
Ver. 9*2 (9.1/9.2)CBR 48 - 320
AAC files:
MPEG4/AAC-LC16 - 320
*
1: Variable Bit Rate (VBR) compatible
*2: Only compatible with Windows Media Audio Standard
File typeChannel mode
MP3 filesStereo, joint stereo, dual
channel and monaural
WMA files2ch
AAC files1ch, 2ch (Dual channel is not
supported)

217
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
IS_NAVI_EE
AUDIO/VISUAL SYSTEM
4
ERROR MESSAGES
ModeMessageExplanation
CD/DVD
“No disc found.”It indicates that there is no disc in the DVD player.
“Check DISC”
It indicates that the disc is dirty, damaged, or it was
inserted upside down. Clean the disc or insert it
correctly.
It indicates a disc which is not playable is inserted.
“DISC error”There is a trouble inside the system.
Eject the disc.
“Region code error”It indicates that the DVD region code is not set
properly.
USB
“USB error”This indicates a problem in the USB memory or its
connection.
“No music files found.”This indicates that no MP3/WMA/AAC files are
included in the USB memory.
“No video files found.”This indicates that no video files are included in the
USB memory.
“No image files found.”This indicates that no image files are included in the
USB memory.
iPod
“iPod error.”This indicates a problem in the iPod or its connec-
tion.
“No music files found.”This indicates that there is no music data in the iPod.
“No video files found.”This indicates that no video files are included in the
iPod.
“Check the iPod firm-
ware version.”This indicates that the software version is not com-
patible. Perform the iPod firmware updates and try
again.
“iPod authorisation un-
successful.”This indicates that it failed to authorize the iPod.
Please check your iPod.
Bluetooth®
Audio“Music tracks not sup-
ported. Check your
portable player.”This indicates a problem in the Bluetooth® device.

8

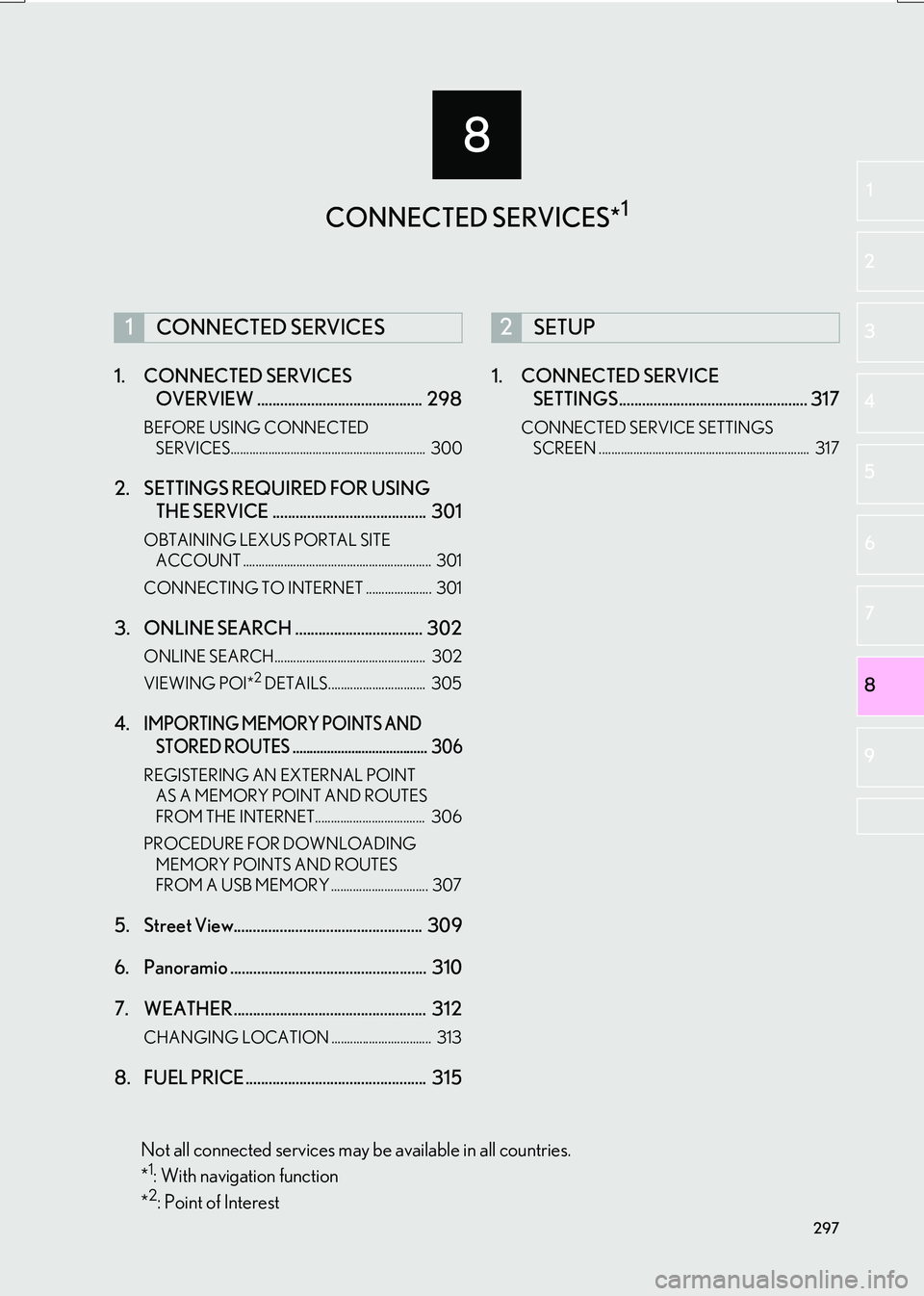

297
IS_NAVI_EE
82
1
3
4
5
6
7
9
1. CONNECTED SERVICES
OVERVIEW ........................................... 298
BEFORE USING CONNECTED
SERVICES.............................................................. 300
2. SETTINGS REQUIRED FOR USING THE SERVICE ........................................ 301
OBTAINING LEXUS PORTAL SITE
ACCOUNT ............................................................ 301
CONNECTING TO INTERNET ..................... 301
3. ONLINE SEARCH ................................. 302
ONLINE SEARCH................................................ 302
VIEWING POI*2 DETAILS............................... 305
4.IMPORTING MEMORY POINTS AND STORED ROUTES ....................................... 306
REGISTERING AN EXTERNAL POINT
AS A MEMORY POINT AND ROUTES
FROM THE INTERNET................................... 306
PROCEDURE FOR DOWNLOADING MEMORY POINTS AND ROUTES
FROM A USB MEMORY ............................... 307
5. Street View................................................. 309
6. Panoramio ................................................... 310
7. WEATHER .................................................. 312
CHANGING LOCATION ................................ 313
8. FUEL PRICE ............................................... 315 1. CONNECTED SERVICE
SETTINGS................................................. 317
CONNECTED SERVICE SETTINGS
SCREEN ................................................................... 317
1CONNECTED SERVICES2SETUP
CONNECTED SERVICES*1
Not all connected services may be available in all countries.
*1: With navigation function
*2: Point of Interest

299
1. CONNECTED SERVICES
CONNECTED SERVICES
IS_NAVI_EE
8
XImporting memory points and routes: Downloading via the internet
X Importing memory points and routes: Downloading from a USB memory
No.NameOperation
Your personal comput-
er and Lexus portal
site*
Access Lexus portal site and search POIs and routes.
Lexus portal site*The POIs and routes are saved on Lexus portal site.
USB memoryThe POIs and routes are saved to the USB memory.
System
Via the internet, the POIs are downloaded to the system.
Via the USB memory, the POIs and routes are downloaded to
the system.
*: For details about Lexus portal site, refer to www.my.lexus.eu.

306
1. CONNECTED SERVICES
IS_NAVI_EE
4. IMPORTING MEMORY POINTS AND STORED ROUTES
1Press the “MAP” button on the Remote
Touch.
2Select “Menu” .
3Select “My memory” .
4Select “Memory points” .
5Select “External points” .
6Check that a confirmation screen is dis-
played when the operation is complete.
POIs and routes searched on Lexus
portal site can be downloaded to the
system and set as a destination or saved
as memory points.
There are 2 methods to download POIs
and routes to the system:
(a) After saving the POIs and routes on
Lexus portal site, they can be down-
loaded via the internet.
(b) After saving the POIs and routes on Lexus portal site, download them to
a USB memory.
The POIs and routes can then be
downloaded via the USB memory.
When downloading POIs and routes to
the system, both procedures are per-
formed in the vehicle.
For details about POI and route search-
es on Lexus portal site and downloading
POIs and routes to a USB memory, re-
fer to www.my.lexus.eu
.
REGISTERING AN EXTERNAL
POINT AS A MEMORY POINT
AND ROUTES FROM THE
INTERNET
To access Lexus portal site via the inter-
net, the cellular phone or Wi-Fi
® must
already be registered with the system.
( → P.301)
zTo edit memory points and routes:
→ P.1 2 9 , 1 3 1

308
1. CONNECTED SERVICES
IS_NAVI_EE
4Display the “My memory” screen.
(→ P.306)
5Select “Copy from USB” .
zIf a password has already been set, enter
the password. For instructions on setting a
password: →P.1 3 6
z If there are multiple memory points stored
on the USB memory, select the memory
points and routes to be copied and select
“Start” .
6Check that a progress bar is being dis-
played while the data copy is in
progress.
zTo cancel this function, select “Cancel”.
7Check that a confirmation screen is dis-
played when the operation is complete.
NOTICE
●Depending on the size and shape of the
device that is connected to the system,
the console box may not close fully. In this
case, do not forcibly close the console
box as this may damage the device or the
terminal, etc.
INFORMATION
●
Memory points that are located outside
of the map’s data range cannot be regis-
tered.
●A maximum of 500 memory points can
be registered.
●When there are 21 or more memory
points and routes stored on a USB mem-
ory, only 20 memory points and routes
will be displayed at a time.
●Memory points acquired from Lexus por-
tal site can only be registered with the
registered system at the time of acquire-
ment.
●In some cases, memory points and routes
may not be able to be imported. If this
occurs, “Unable to read memory point
data. (Device ID error)” will be displayed.
●If memory points and routes which have
the same name are already stored in the
system, the system may not update those
memory points and routes.

330
ALPHABETICAL INDEX
IS_NAVI_EE
Numerics
10.3-inch display .................................................... 322Full screen display............................................. 322
Split-screen display .......................................... 323
A
AAC .......................................................... 172, 212, 215
Adding destinations ............................................... 120
“Address”...................................................................... 101
AF (Alternative frequency) ..................... 170, 200
AM ................................................................................. 167
Area to avoid ............................................................ 132
Arrival time .................................................................. 114
Audio ............................................................................ 156Basic operation ................................................... 158
Disc slot .................................................................. 160
Selecting an audio source .............................. 159
“Sound settings” screen................................... 162
Speech command system .............................. 166
System on/off....................................................... 158
USB/AUX port .................................................... 161
Audio settings ........................................................... 199
Audio/visual operating information ............... 205 DVD player and disc ....................................... 206
Error messages .................................................... 217
File (audio) ............................................................ 212
iPod ............................................................................ 211
Radio ...................................................................... 205
Terms....................................................................... 215
Auto hide buttons.................................................... 138
AUX ............................................................................. 194
Control screen/panel ...................................... 194
AUX port ........................................................... 161, 194
Average speed......................................................... 140
B
Bluetooth®.................................................................. 40
Profiles...................................................................... 44
Registering a Bluetooth
® phone .................. 42
Bluetooth® audio ................................................... 189
Connecting ........................................................... 193
Control screen/panel ...................................... 189
Listening ................................................................. 193
Bluetooth
® phone ................................................. 258
Basic operation.................................................. 259
Phonebook .......................................................... 262
Selling or disposing of the vehicle ............. 262
Speech command system ............................... 261
Telephone switch/microphone .................. 260
Troubleshooting ................................................ 292
Bluetooth
® settings ................................................. 46
Bluetooth® setup screen ................................. 46
Detailed Bluetooth® settings ......................... 53
Setting internet connection ............................. 57

336
ALPHABETICAL INDEX
IS_NAVI_EE
U
“UK Postal code” or “NL Postal code” .......... 108
USB/AUX port ......................................................... 161
USB memory ............................................................ 180Control screen/panel ...................................... 180
Music ....................................................................... 180
Photo ....................................................................... 184
Video ....................................................................... 180
V
“Vehicle” ....................................................................... 73Dealer setting ........................................................ 75
Maintenance .......................................................... 74
Voice guidance prompts ....................................... 119
Voice settings ............................................................. 72
W
Weather ...................................................................... 312
Wi-Fi®........................................................................... 60
Operating hints ..................................................... 63
WMA ........................................................ 172, 212, 215
