381-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
Airbag system components
Knee airbags
Curtain shield airbags
Front passenger airbag
Side impact sensors (front door)
“A I R B A G O N ” a n d
“AIR BAG OFF” indicator lights
Front side airbags
SRS warning light
Side impact sensors (rear)
Rear side airbags (outer second
seats [7-passenger models] or sec-
ond seats [6-passenger models])Driver airbag
Driver’s seat belt buckle switch
Safing sensor (rear)
Front passenger’s seat belt buckle
switch
Airbag sensor assembly
Front impact sensors
Seat belt pretensioners and force
limiters
Front passenger occupant classifi-
cation system (ECU and sensors)1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
GX460_OM_OM60F68U_(U).book Page 38 Wednesday, June 8, 2016 6:37 PM

481-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
SRS warning light
Seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light1
2
3
4
GX460_OM_OM60F68U_(U).book Page 48 Wednesday, June 8, 2016 6:37 PM

491-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security
■Adult*1
■Child*4 or child restraint system with infant*5
Condition and operation in the fron t passenger occupant classification
system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lights“A I R B A G O N ”
SRS warning lightOff
Seat belt reminder lightOff*2 or flashing*3
Devices
Front passenger airbag
Activated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“A I R B A G O F F ”*6
SRS warning lightOff
Seat belt reminder lightOff*2 or
flashing*3
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
GX460_OM_OM60F68U_(U).book Page 49 Wednesday, June 8, 2016 6:37 PM

501-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lightsNot illuminated
SRS warning light
Off
Seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensioner
Activated*7
or
d
eactivated*8
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“A I R B A G O F F ”
SRS warning light
On
Seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated
GX460_OM_OM60F68U_(U).book Page 50 Wednesday, June 8, 2016 6:37 PM

511-1. For safe use
GX 460 _O M_ OM6 0F 6 8U _(U )
1
For safety and security

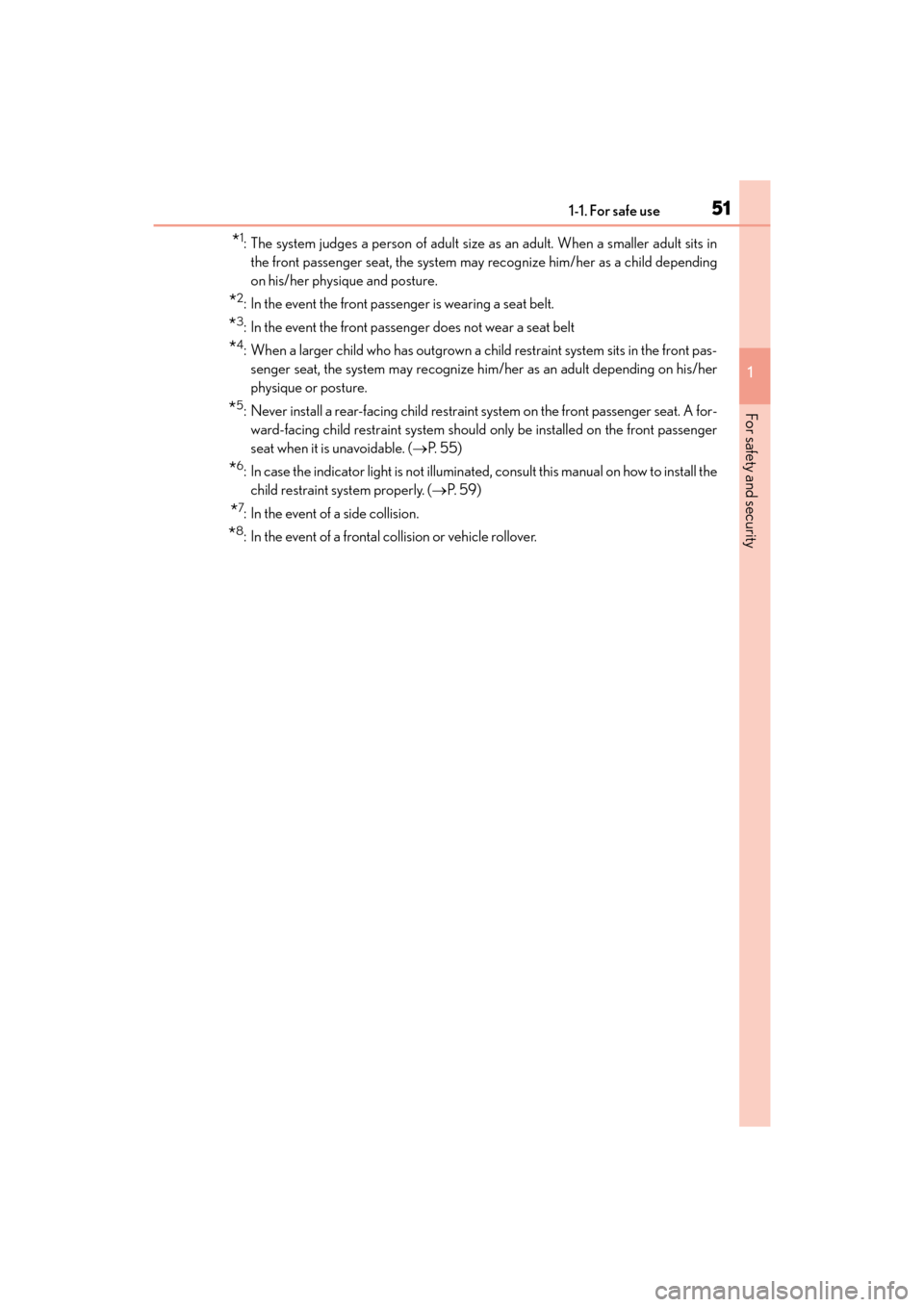

*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/her as a child depending
on his/her physique and posture.
*2: In the event the front passenger is wearing a seat belt.
*3: In the event the front passenger does not wear a seat belt
*4: When a larger child who has outgrown a child restraint system sits in the front pas-senger seat, the system may recognize him/her as an adult depending on his/her
physique or posture.
*5: Never install a rear-facing child restraint system on the front passenger seat. A for-
ward-facing child restraint system should only be installed on the front passenger
seat when it is unavoidable. ( →P. 5 5 )
*6: In case the indicator light is not illuminated, consult this manual on how to install the
child restraint system properly. ( →P. 5 9 )
*7: In the event of a side collision.
*8: In the event of a frontal collision or vehicle rollover.
