5337-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Indicates that the automatic transmission fluid tempera-
ture is too high A buzzer also sounds.
→ Immediately stop the vehicle in a safe place, shift the
shift lever to P and wait until the warning message
and light go off. If the warning message and light go
off, you may start the vehicle again.
If the warning message and light do not go off, con-
tact your Lexus dealer.
Indicates a malfunction in the automatic transmission
system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open) A buzzer also sounds.
→ Close the moon roof.
Indicates that engine oil level is low
A buzzer also sounds.
→ Check the level of engine oil, and add if necessary.
Indicates a malfunction in:
• The LED headlight system;
• The automatic headlight leveling system; or
• The Automatic High Beam system (if equipped)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the washer fluid level is low
→Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
GX460_OM_OM60F68U_(U).book Page 533 Wednesday, June 8, 2016 6:37 PM

5447-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
CAUTION
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Be sure to turn off the height control and stop the engine.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle will be injured.
■Using the jack handle
Tighten all the jack handle bolts securely us ing a Phillips-head screwdriver, to prevent
the extension parts from coming apart unexpectedly.
GX460_OM_OM60F68U_(U).book Page 544 Wednesday, June 8, 2016 6:37 PM

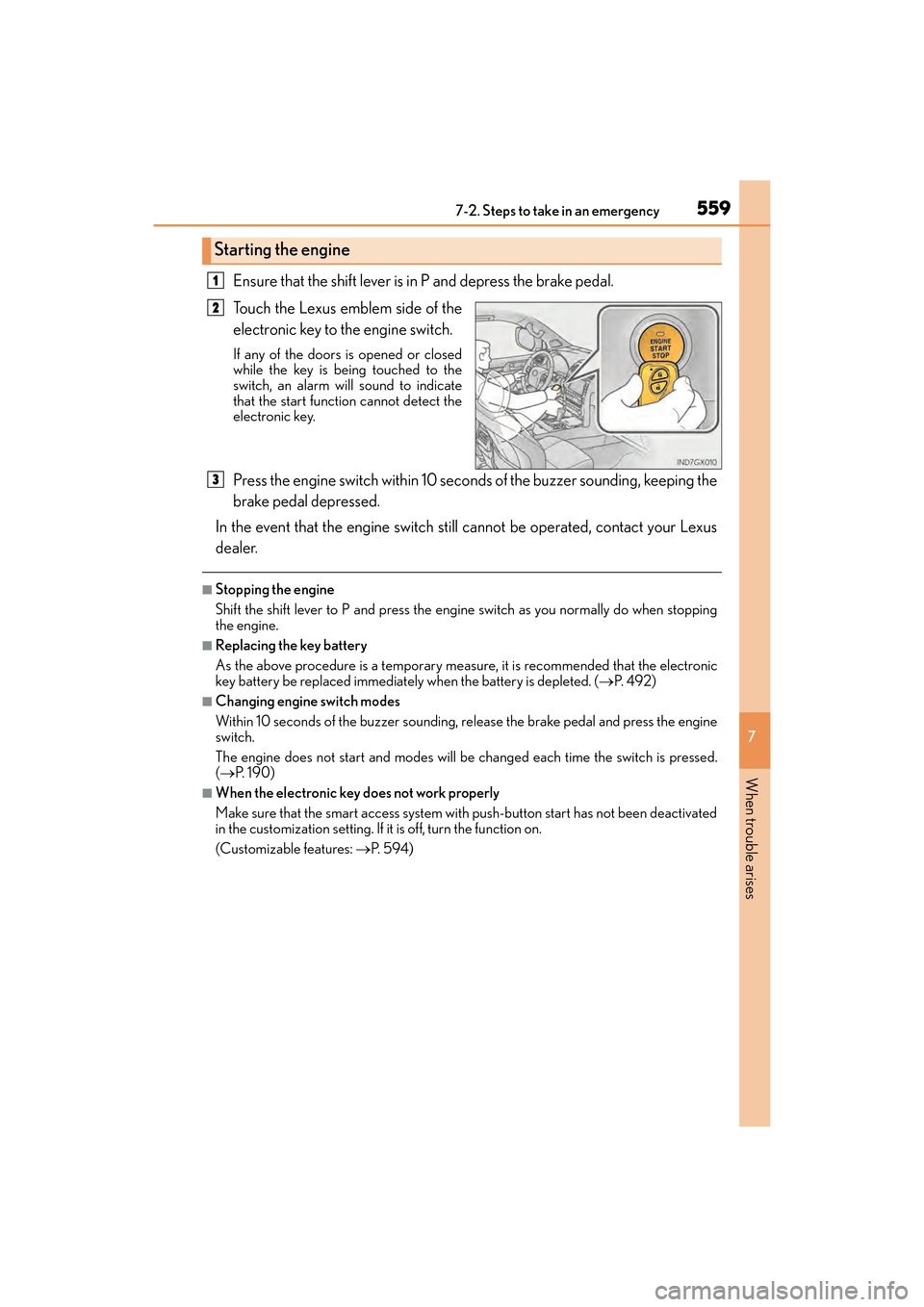

5597-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
If any of the doors is opened or closed
while the key is being touched to the
switch, an alarm will sound to indicate
that the start function cannot detect the
electronic key.
Press the engine switch within 10 seconds of the buzzer sounding, keeping the
brake pedal depressed.
In the event that the engine switch still cannot be operated, contact your Lexus
dealer.
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( →P. 4 9 2 )
■Changing engine switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the engine
switch.
The engine does not start and modes will be changed each time the switch is pressed.
( → P. 1 9 0 )
■When the electronic key does not work properly
Make sure that the smart access system with push-button start has not been deactivated
in the customization setting. If it is off, turn the function on.
(Customizable features: →P. 5 9 4 )
Starting the engine
1
2
3
GX460_OM_OM60F68U_(U).book Page 559 Wednesday, June 8, 2016 6:37 PM

5657-2. Steps to take in an emergency
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir. Reservoir
“F”
“L”
Radiator cap
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
4
5
6
7
GX460_OM_OM60F68U_(U).book Page 565 Wednesday, June 8, 2016 6:37 PM

567
GX 460 _O M_ OM6 0F 6 8U _(U )
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help provide
traction.
Restart the engine.
Lock the center differential. (→P. 3 4 3 )
Shift the shift lever to the D or R positi on and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Turn off TRAC or Active TRAC/VSC/Trailer Sway Control if these functions are ham-
pering your attempts to free the vehicle. ( →P. 3 5 3 )
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow:
Press to turn off TRAC or Active TRAC/VSC/
Trailer Sway Control.
1
2
3
4
5
6
GX460_OM_OM60F68U_(U).book Page 567 Wednesday, June 8, 2016 6:37 PM

624What to do if... (Troubleshooting)
GX 460 _O M_ OM6 0F 6 8U _(U )
●It is locked automatically to prevent theft of the vehicle. ( →P. 1 9 1 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( →P. 1 5 0 )
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 1 9 1 )
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(→ P. 522)
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 0 1 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 520, 528)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 74 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
GX460_OM_OM60F68U_(U).book Page 624 Wednesday, June 8, 2016 6:37 PM

634Alphabetical index
GX 460 _O M_ OM6 0F 6 8U _(U )
Seat heaters ............................................400
Seat ventilators ....................................... 401
Seat position memory.......................... 135
Seats................................................... 122, 124Adjustment ....................................122, 124
Adjustment precautions ........ 123, 134
Child seats/child restraint system installation..............................59
Cleaning .................................................449
Driving position memory ................ 135
Head restraint ....................................... 140
Properly sitting in the seat ................28
Seat position memory....................... 135
Ventilators .............................................. 401
Sensor Automatic headlight system .........204
Inside rear view mirror ..................... 146
Intuitive parking
assist-sensor ..................................... 244
Rain-sensing windshield
wipers .................................................... 215
Service reminder indicators ............... 78
Shift lever Automatic transmission ................... 194
If the shift lever cannot be shifted from P .................................... 198
Shift lock system...................................... 197
Shopping bag hooks .............................413
Side airbags ............................................... 36
Side mirrors .............................................. 147 Adjusting and folding .........................147
Blind Spot Monitor............................357
Side turn signal lights ..........................200 Replacing light bulbs ....................... 507
Turn signal lever ................................ 200 Smart access system with
push-button start.................................. 115
Antenna location................................... 115
Starting the engine ............................. 189
Snow tires .................................................379
Spare tire ..................................................542 Inflation pressure................................ 578
Storage location ................................. 543
Spark plug ................................................574
Specifications......................................... 570
Speedometer ............................................ 83
Steering lock Column lock release ......................... 192
Steering wheel ........................................ 143
Adjustment.............................................. 143
Audio switches
*
Heated steering wheel ................... 399
Steering wheel position memory.................................................135
Stop/tail lights
Replacing light bulbs ....................... 507
Storage feature ..................................... 405
Stuck If the vehicle becomes stuck........ 567
Sun shade Roof ............................................................154
Sun visors................................................... 421
Switch “2nd START” button ..........................195
AVS switch ............................................. 341
BSM (Blind Spot Monitor) switch ................................................... 357
Center differential lock/ unlock switch.................................... 343
Crawl Control switch ...................... 346
Cruise control switch ........... 224, 227
“DAC” switch ...................................... 349
