GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
●Turning course line display mode
The projected course line is added
to the minimum projected turning
circle mode.
●Minimum projected turning circle display mode
The minimum projected turning cir-
cle line is added to the no course
lines mode.
●No course lines mode
Vehicle width line displayed.
Projected course line display mode (W
ide view front & side monitor dis-
play)
GX460_OM_OM60F68U_(U).book Page 322 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3234-5. Using the driving support systems
4
Driving
■Switching projected course line display mode
Select .
The display mode switches in the fol-
lowing order:
■Using the vehicle width line & course line
●Vehicle width line
Turning course line display
mode
Minimum projected turning
circle display mode
No course lines mode
Use the vehicle width line to
check the vehicle’s distance from
objects such as curbstones etc.
As shown in the illustration, be
sure that the vehicle width line
does not overlap the object. If you
also move the vehicle so that the
vehicle width line and the object
are parallel, you can park parallel
to the object.
GX460_OM_OM60F68U_(U).book Page 323 Wednesday, June 8, 2016 6:37 PM

324
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
●Minimum projected turning circle & projected course line
Use the minimum projected turn-
ing circle & projected course line
(when displayed) to check the
vehicle’s path with relation to
obstacles.
If the minimum projected turning
circle line (blue) is over the obsta-
cle as shown in the illustration, or
the obstacle falls within the mini-
mum projected turning circle, if
you turn with the minimum possi-
ble turning circle, the vehicle may
collide with the object.
When the projected course line
(yellow) is displayed, be sure to
operate the steering wheel so
that the obstacle stays outside the
projected course line until the
vehicle has passed the object.
GX460_OM_OM60F68U_(U).book Page 324 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3254-5. Using the driving support systems
4
Driving
■The Multi-terrain Monitor can be operated when
XNormal display mode
●The engine switch is in IGNITION ON mode.
●The vehicle speed is less than approximately 7 mph (12 km/h).
XAutomatic display mode
●When automatic display mode is selected
●When the shift lever is shifted to D, S or N
●When the shift lever is in D, S or N and th e vehicle speed is below approximately 6 mph
(10 km/h)
■Automatic system cancellation
In the following situations, the image is canceled automatically.
●When the vehicle speed exceeds approximately 7 mph (12 km/h).
After the vehicle speed exceeds approximately 7 mph (12 km/h), the image will con-
tinue to be displayed for a short time.
If the vehicle speed returns to below 7 mph (12 km/h) before the image extinguishes,
the image will continue to be displayed.
●When “SETUP” or another switch outside the screen has been pressed
●When the shift lever is in P or R.
■Insert display
An insert display is displayed when an obstac le is within the detection range of the intui-
tive parking assist. ( →P. 244)
■When folding or extending the door mirrors
The screen will be turned off temporarily while the door mirrors are folding or extending,
and the screen will return to normal after the door mirror operation has been completed.
GX460_OM_OM60F68U_(U).book Page 325 Wednesday, June 8, 2016 6:37 PM

326
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Displayed area
The area displayed on the screen may vary depending on vehicle orientation or road
conditions.
The camera uses a special lens. The distances in the image displayed on the screen will
differ from the actual distances.
●Front camera
Camera’s field of view
Objects visible to the camera
Objects not visible to the camera
Parts of the vehicle (bumper, grille, etc.)
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 326 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3274-5. Using the driving support systems
4
Driving
●Side camera (Wide view front & side monitor display)Camera’s field of view
Objects visible to the camera
Right side of vehicle
1
2
3
GX460_OM_OM60F68U_(U).book Page 327 Wednesday, June 8, 2016 6:37 PM

328
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
●Side camera (side-front simultaneous display monitor)
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle
1
2
3
4
GX460_OM_OM60F68U_(U).book Page 328 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3294-5. Using the driving support systems
4
Driving

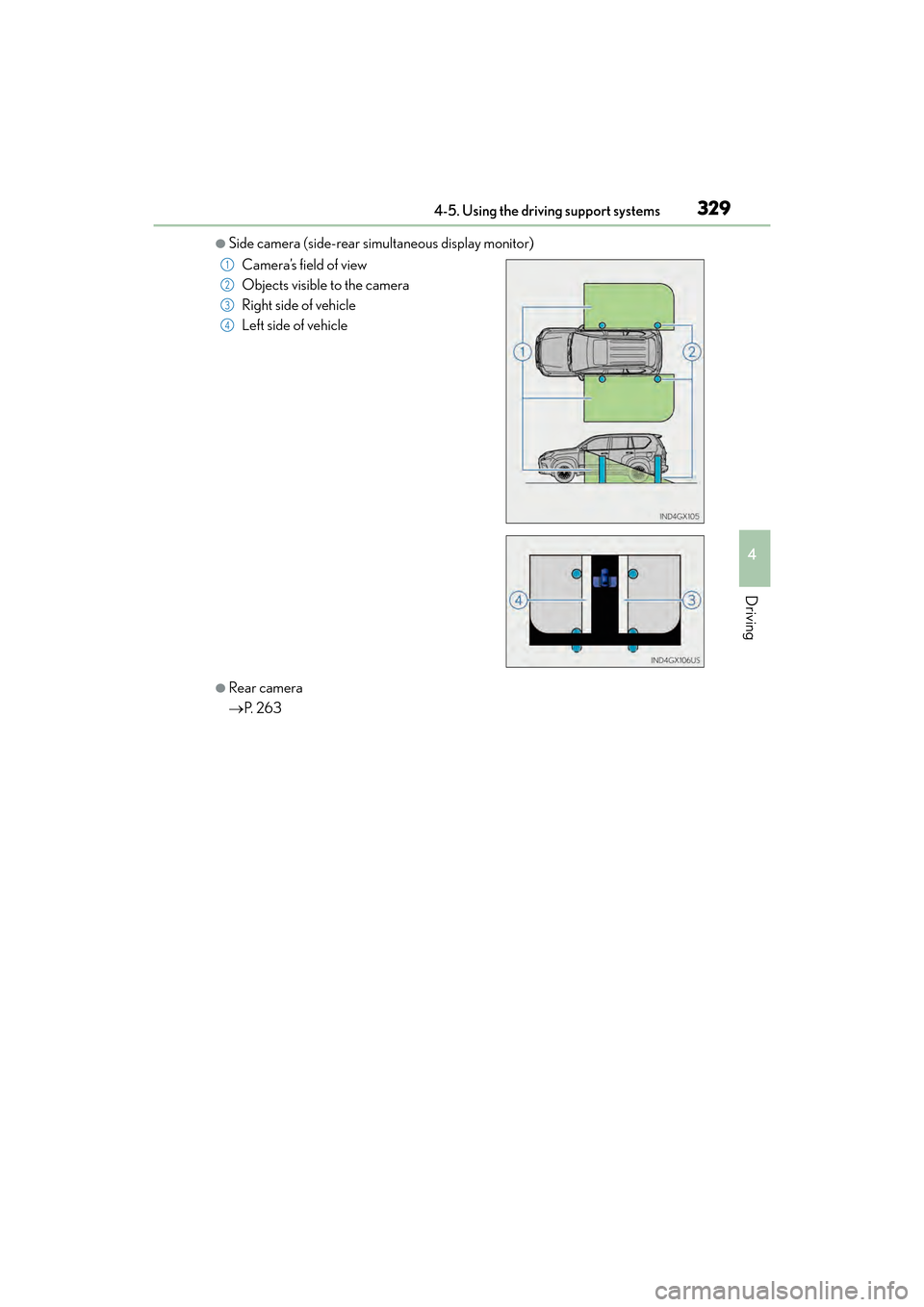

●Side camera (side-rear simultaneous display monitor)
●Rear camera
→P. 2 6 3
Camera’s field of view
Objects visible to the camera
Right side of vehicle
Left side of vehicle
1
2
3
4
