2017 Lexus GS450h key

TABLE OF CONTENTS2
GS450h_300h_OM_OM30F92E_(EE)
For your information ...................................8
Reading this manual .................................. 12
How to search ............................................. 13
Pictorial index .............................................. 14
1-1. For safe use
Before driving ................................. 34
For safety drive............................... 36
Seat belts ..........................................38
SRS airbags ..................................... 43
Airbag manual on-off
system ............................................. 54
Safety information
for children....................................56
Child restraint systems ............... 57
Installing child restraints ............. 66
Exhaust gas precautions ............ 75
1-2. Hybrid system
Hybrid system features............... 76
Hybrid system precautions ...... 80
1-3. Theft deterrent system
Immobilizer system ..................... 85
Double locking system ...............90
Alarm .................................................. 91
2. Instrument cluster
Warning lights
and indicators ..............................98
Gauges and meters ................... 104
Multi-information display............ 111
Head-up display ............................119
Energy monitor/
consumption screen ............... 126
3-1. Key information
Keys .................................................. 134
3-2. Opening, closing and locking
the doors and trunk
Doors ............................................... 139
Trunk ................................................ 146
Smart entry & start system ...... 153
3-3. Adjusting the seats
Front seats...................................... 175
Driving position memory ......... 178
Head restraints............................. 183
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................. 186
Inside rear view mirror..............188
Outside rear view mirrors ....... 190
1For safety and security
2Instrument cluster
3Operation of
each component

5
1
8
7
6
5
4
3
2
GS450h_300h_OM_OM30F92E_(EE)
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ................................399
Hood ................................................ 401
Positioning a floor jack.............402
Engine compartment............... 403
12-volt battery............................... 412
Tires .................................................. 416
Tire inflation pressure...............429
Wheels............................................. 431
Air conditioning filter................433
Electronic key battery ..............435
Checking and replacing
fuses .............................................. 437
Light bulbs ..................................... 442
7-1. Essential information
Emergency flashers...................452
If your vehicle has to be
stopped in an
emergency.................................453
7-2. Steps to take in an
emergency
If your vehicle needs
to be towed ................................454
If you think something
is wrong .......................................459
If a warning light turns on
or a warning buzzer
sounds..........................................460
If a warning message
is displayed................................. 466
If you have a flat tire
(vehicles with spare tire) ..... 498
If you have a flat tire
(vehicles without spare
tire) ............................................... 509
If the hybrid system
will not start................................523
If the parking brake
cannot be released.................525
If the electronic key does
not operate properly ............. 527
If the 12-volt battery is
discharged ................................ 530
If your vehicle overheats .........535
If the vehicle becomes
stuck.............................................. 542
7When trouble arises

10
GS450h_300h_OM_OM30F92E_(EE)
For Russia and Kazakhstan:
TECHNICAL REGULATION OF THE CUSTOMS UNION “ON THE SAFETY OF WHEELED VEHICLES” TR CU 018/2011 Attachment No.3, Section 2 (Requirements
for vehicles concerning their interior noise), Table 2.1, Remarks 3
This vehicle may not be used for public purposes (as taxis, for example).
Noise levels inside the vehicle (GS450h only)
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, whichcould lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full atte ntion to driving. Anything that distracts the
driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicl e, and never allow children to have or use the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold tem- peratures inside the vehicle can be fatal to children.

14Pictorial index
GS450h_300h_OM_OM30F92E_(EE)
Pictorial index
■Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 139
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 139
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193 Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . .P. 527Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Opening from inside the cabin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146 Opening by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 527Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 468
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178 Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
1
2
3

551-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
Insert the mechanical key into the cylin-
der and rotate to the “OFF” position.
The “OFF” indicator light turns on (only
when the power switch is in ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the sys- tem. Have the vehicle inspected by any au thorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is switchedto “ON” or “OFF”.
Deactivating the front seat passenge r airbag, front passenger knee air-
bag and front passenger side airbag
WARNING
■When installing a child restraint system
For safety reasons, always install a child rest raint system in a rear seat. In the event that
the rear seat cannot be used, the front seat can be used as long as the airbag manual on-off system is set to off.If the airbag manual on-off system is left on, the strong impact of the airbag deployment
(inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may result in serious injury or even death.

561-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)

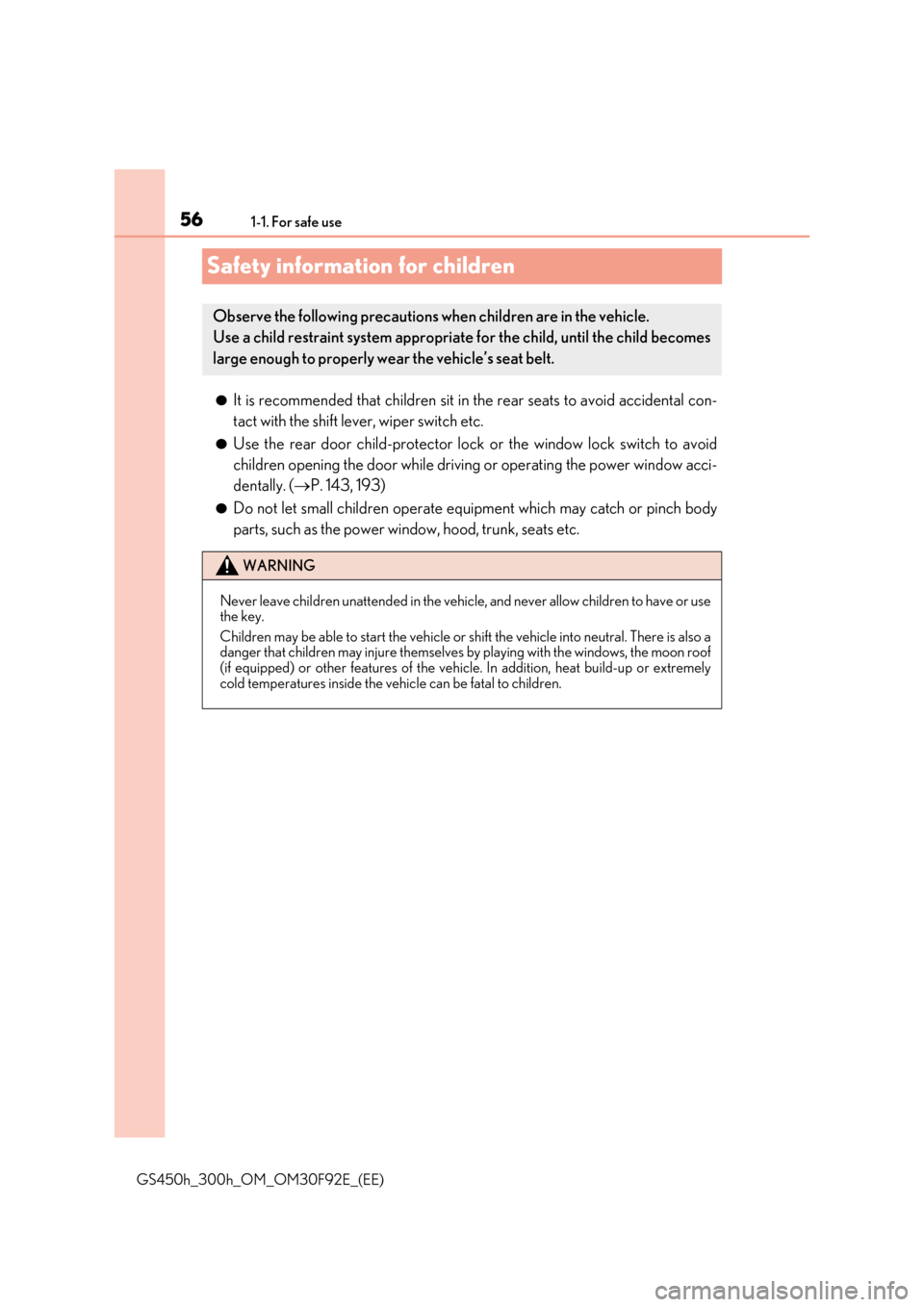

Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to avoid
children opening the door while drivin g or operating the power window acci-
dentally. ( P. 143, 193)
●Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
WARNING
Never leave children unattended in the vehicl e, and never allow children to have or use the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof (if equipped) or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.

601-1. For safe use
GS450h_300h_OM_OM30F92E_(EE)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for use in
this mass group.
UF: Suitable for forward-facing “universal” category child restraint systems
approved for use in this mass group.
L: Suitable for child restraint systems sh own in the child restraint system list.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position. Move the front seat to the rear-
most position.
If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
If the passenger seat is equipped with a vertical height adjuster, it must be placed in
the upper most position.
Follow these procedures:
• For installing a baby seat with support base
If the baby seat interferes with the seatback when latching the baby seat into the support base, adjust the seatback rear ward until there is no interference. • For installing a forward-facing child seat
If there is gap between the child seat and the seatback, tilt the seatback rearward until good contact is achieved.If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward. • For installing a junior seatIf the child in your child restraint system is in a very upright position, adjust the seat-
back to the most comfortable position. If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.

631-1. For safe use
1
For safety and security
GS450h_300h_OM_OM30F92E_(EE)
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of universal cat-
egory approved for use in this mass group.
IL: Suitable for child restraint systems sh own in the ISOFIX child restraint sys-
tem list.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg and ISO-
FIX connectors as follows:
Lock the ISOFIX connectors where
numbers 3, 4 and 5 can be seen.
Lock the support leg where 5th hole
can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass
group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer and retailer.
1
2
