5367-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.
Reservoir
“FULL”
“LOW”
Coolant inlet cap
Add coolant if necessary. ( P. 539)
Water can be used in an emergency if engine coolant is unavailable.
4
1
2
3
4
GS450hGS300h
5
GS450hGS300h

5407-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions. Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the power
switch and the “READY” indicator are off. When the hybrid system is operating, the gasoline engine may automatically start, orthe cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fan, which may lead to fingers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in serious injury.
●Do not loosen the coolant inlet cap or thecoolant reservoir caps while the hybrid sys-tem and radiator are hot.
High temperature steam or coolant could spray out.
GS450h
GS300h

5417-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

547
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
Vehicle identification
GS450hGS300h

5488-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)

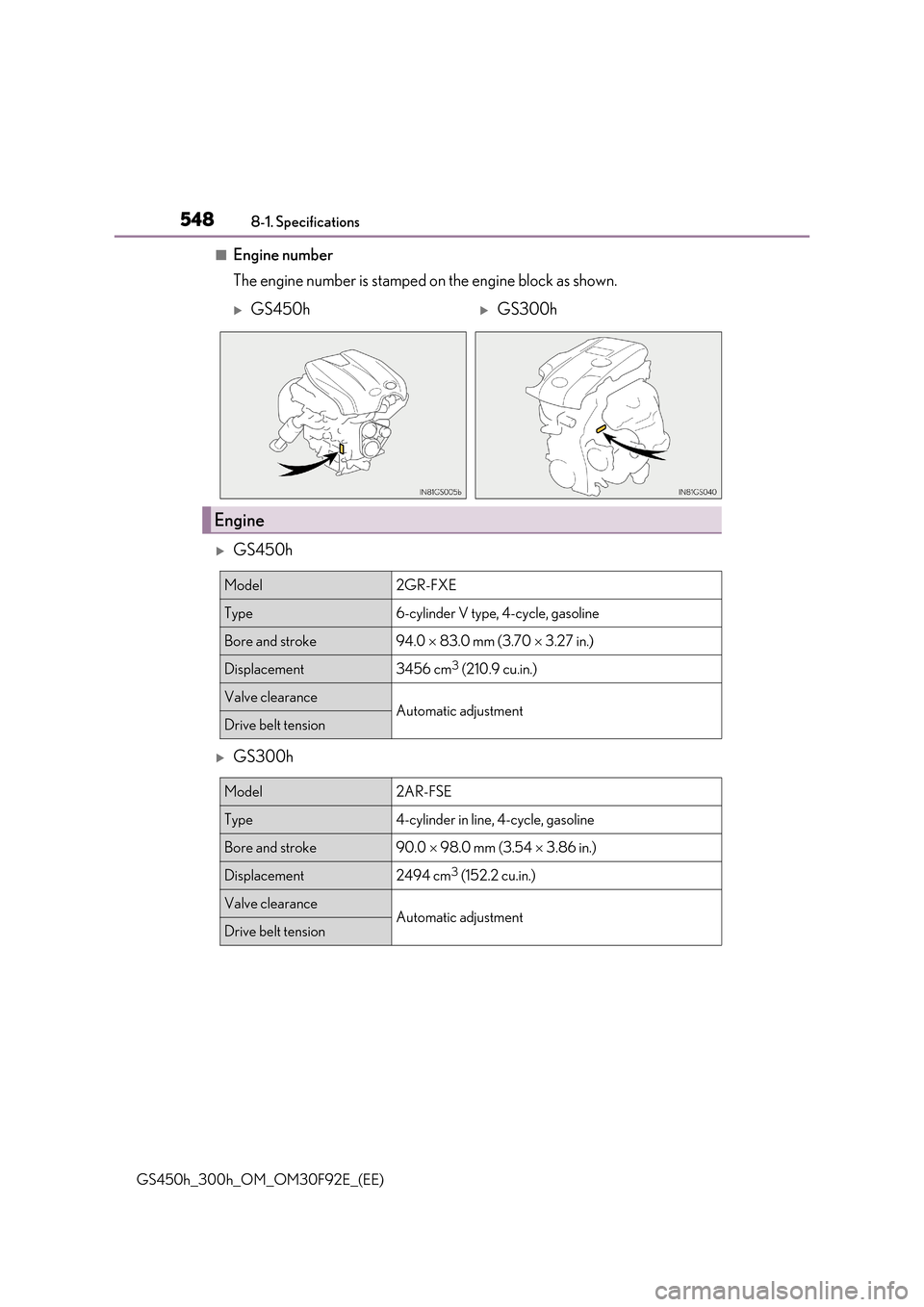

■Engine number
The engine number is stamped on the engine block as shown.
GS450h
GS300h
GS450hGS300h
Engine
Model2GR-FXE
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  83.0 mm (3.70  3.27 in.)
Displacement3456 cm3 (210.9 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension

5508-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
Oil capacity
(Drain and refill  reference*)With filter
Without filter
GS450hGS300h
6.3 L (6.7 qt., 5.5 Imp.qt.)
5.9 L (6.2 qt., 5.2 Imp.qt.)
4.5 L (4.8 qt., 4.0 lmp. qt.)
4.1 L (4.3 qt., 3.6 lmp. qt.)
Temperature range anticipated
before next oil change
Preferred

551
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20” means the SAE viscosity grade.
Lower portion: “Resource-Conserv- ing” means that the oil has fuel-saving and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica- tion Mark is displayed on the front of the container.
1
2

5528-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)
Cooling system
Gasoline engine
Power control unit
Left-hand drive
vehicles
Right-hand drive
vehicles
Capacity
GS450h9.2 L (9.7qt., 8.1 Imp.qt.)2.1 L (2.2qt., 1.8 Imp.qt.)1.9 L (2.0qt., 1.7 Imp.qt.)
GS300h8.1 L (8.6 qt., 7.1 Imp.qt.)1.6 L (1.7 qt., 1.4 Imp.qt.)1.8 L (1.9 qt., 1.6 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology Do not use plain water alone.
Ignition system
Spark plug
MakeGapDENSO FK20HBR80.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
