3725-4. Using the storage features
GS450h_300h_OM_OM30F92E_(EE)
●Rear cup holder: When stowing the cup holder, stow the cup holder with the armrest
down. The cup holder cannot be stowed if the armrest is not down.
●Front cup holder: The cup holder insert may be removed for cleaning.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holder s in the event of an accident or sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-rest.

3745-4. Using the storage features
GS450h_300h_OM_OM30F92E_(EE)
Trunk features
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Pull the strap when using the hook.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Luggage hook
NOTICE
Do not hang any object heavier than 5 kg (11 lb.) on the luggage hook.

399
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
12-volt battery
condition ( P. 412)
•Grease
• Conventional wrench (for terminal clamp bolts)
Engine/power
control unit coolant level ( P. 409)
•“Toyota Super Long Life Coolant” or a similar high quality ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid technology“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( P. 406)
• “Toyota Genuine Motor Oil” or equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 437)• Fuse with same amperage rating as original
Light bulbs ( P. 442)
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver• Flathead screwdriver
•Wrench
Radiator and condenser ( P. 411)
Tire inflation
pressure ( P. 429)• Tire pressure gauge• Compressed air source
Washer fluid
( P. 411)
• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

407 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations, oil consumption may increase, and engine oil may need to be refilled in between oilmaintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or afterreplacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
GS450hGS300h
Engine oil selection P. 550
Oil quantity (Low  Full) 1.5 L (1.6 qt., 1.3 Imp.qt.)
Items Clean funnel
1
2
3

4206-3. Do-it-yourself maintenance
GS450h_300h_OM_OM30F92E_(EE)
■When rotating the tires (vehicles with the tire pressure warning system featuring a tire inflation pressure display function)
Make sure that the power switch is off. If the tires are rotated while the power switch is in
ON mode, the tire position information will not be updated. If this accidentally occurs, either turn the power switch to off and then to ON mode, orinitialize the system after checking that the tire pressure is properly adjusted.
■Low profile tires (except 225/50R17 tires)
Generally, low profile tires will wear more rapidly and tire grip performance will be reduced on snowy and/or icy roads when comp ared to standard tires. Be sure to use
snow tires or tire chains on snowy and/or icy roads and drive carefully at a speed appro- priate for road and weather conditions. ( P. 336)
■If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
■Situations in which the tire pressure warning system may not operate properly (vehi- cles with the tire pressure warning system)
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used. • A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size. • Tire chains etc. are equipped.• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed. • If there is a lot of snow or ice on the vehi cle, particularly around the wheels or wheel housings.
• If the tire inflation pressure is extr emely higher than the specified level. • If wheel without the tire pressure warning valve and transmitter are used.
• If the ID code on the tire pressure warning valves and transmitters is not registered in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, air- port or other facility that generates st rong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wireless communication deviceVehicles with the tire inflation pressure display function: If tire position information is
not correctly displayed due to the radio wave conditions, the display may be corrected by driving and changing the radio wave conditions.
●When the vehicle is parked, the time taken for the warning to start or go off could be
extended.
●When tire inflation pressure declines rapi dly for example when a tire has burst, the warning may not function.

427 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause damage to parts of the drive train as well as dangerous han-
dling characteristics, which may lead to an acc ident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns. Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.Do not use tires if you do not know how they were used previously.
●Vehicles with compact spare tire: Do not tow if your vehicle has a compact spare tire
installed.
●Vehicles with emergency tire puncture repair kit: Do not tow anything if a tire that has been repaired using the emergency tire punc ture repair kit is installed. The load on
the tire may cause unexpected damage to the tire.
■When initializing the tire pressure warning system (vehicles with the tire pressure warning system)
Do not initialize tire inflation pressure withou t first adjusting the tire inflation pressure to the specified level. Otherwise, the tire pre ssure warning light may not come on even if the tire inflation pressure is low, or it may come on when the tire inflation pressure is
actually normal.
■Caution regarding interference with electronic devices (vehicles with the tire pres- sure warning system featuring a tire inflation pressure display function)
●Users of any electrical medical device other than implantable cardiac pacemakers,cardiac resynchronization therapy-pacemakers or implantable cardioverter defi-
brillators should consult the manufacturer of the device for information about its operation under the influence of radio waves.Radio waves could have unexpected effects on the operation of such medical
devices.
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-pacemak-
ers or implantable cardioverter defibrillators should not come within 450 mm (17.7 in.) ofthe tire pressure warning system initiators.
The radio waves may affect the operation of such devices.

445 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS450h_300h_OM_OM30F92E_(EE)

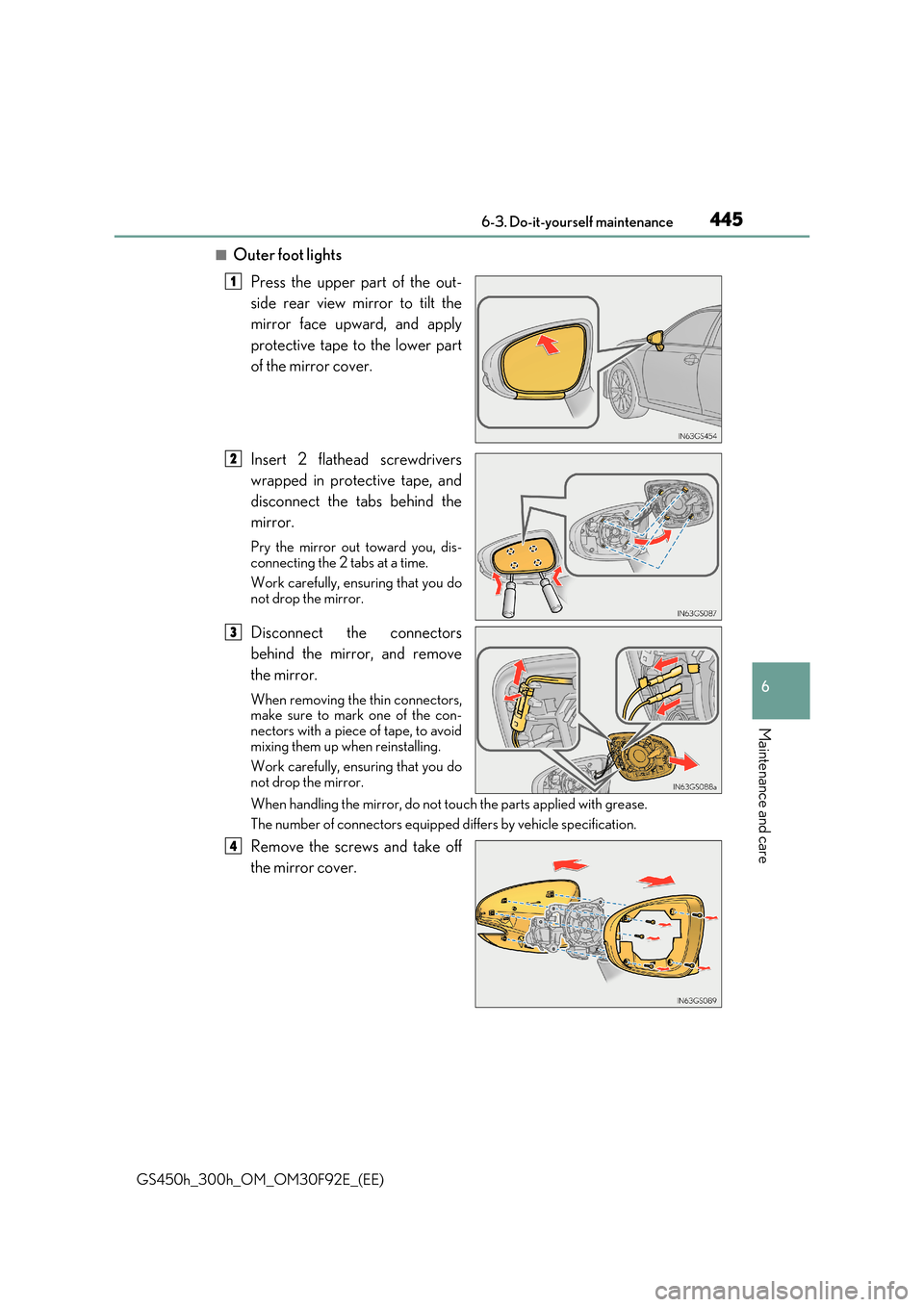

■Outer foot lights
Press the upper part of the out-
side rear view mirror to tilt the
mirror face upward, and apply
protective tape to the lower part
of the mirror cover.
Insert 2 flathead screwdrivers
wrapped in protective tape, and
disconnect the tabs behind the
mirror.
Pry the mirror out toward you, dis-
connecting the 2 tabs at a time.
Work carefully, ensuring that you do not drop the mirror.
Disconnect the connectors
behind the mirror, and remove
the mirror.
When removing the thin connectors, make sure to mark one of the con-
nectors with a piece of tape, to avoid mixing them up when reinstalling.
Work carefully, ensuring that you do
not drop the mirror.
When handling the mirror, do not touch the parts applied with grease.
The number of connectors equipped differs by vehicle specification.
Remove the screws and take off
the mirror cover.
1
2
3
4

451
7When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
7-1. Essential information
Emergency flashers ..................452
If your vehicle has to be
stopped in an
emergency.................................453
7-2. Steps to take in an
emergency
If your vehicle needs
to be towed................................ 454
If you think something
is wrong....................................... 459
If a warning light turns on
or a warning buzzer
sounds..........................................460
If a warning message
is displayed ................................ 466
If you have a flat tire
(vehicles with spare tire) ......498
If you have a flat tire
(vehicles without spare
tire)................................................509
If the hybrid system
will not start................................ 523
If the parking brake
cannot be released................. 525
If the electronic key does
not operate properly ............. 527
If the 12-volt battery is
discharged .................................530
If your vehicle overheats .........535
If the vehicle becomes
stuck ............................................. 542
