3274-5. Using the driving support systems
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
■Turning off both TRC and VSC systems
To turn the TRC and VSC systems off, press and hold for more than 3 seconds while the vehicle is stopped.
The VSC OFF indicator light will come on an d the “Traction Control Turned Off” will
be shown on the multi-information display.*
Press again to turn the systems back on.
*: On vehicles with PCS (Pre-Crash Safety system), pre-crash brake assist and pre-
crash braking will also be disabled. The PCS (Pre-Crash Safety system) warning
light will come on and a message will be di splayed on the multi-information display.
( P. 466)
■When the message is displayed on the multi-information display showing that TRC has
been disabled even if has not been pressed
TRC and hill-start assist control cannot be operated. Contact any authorized Lexus
retailer or Lexus authorized repa irer, or any reliable repairer.
■VGRS is disabled when
VGRS may stop operating in the following situations.
In this event, the steering wheel may move fr om its straight forward position, but it will return when the system restarts.
●The steering wheel is operated for an extended period of time while the vehicle is
stopped or is moving very slowly.
●When force is continuously applied for a long time with the steering wheel turned as far as it will go.
The center position of the steering wheel may change when VGRS is disabled. How- ever, the position will return to normal after VGRS is reactivated.
■When the 12-volt battery is disconnected
The steering wheel may move from its straight forward position, but this will be corrected automatically when driving.

3284-5. Using the driving support systems
GS450h_300h_OM_OM30F92E_(EE)
■Sounds and vibrations caused by the ABS, brake assist, VSC, Hill-start assist control, TRC and VGRS systems
Any of the following conditions may occur when the above systems are operating. None
of these indicates that a malfunction has occurred.
●Vibrations may be felt through the vehicle body and steering.
●A motor sound may be heard after the vehicle comes to a stop.
■ECB operation sound
ECB operating sound may be heard in the follow ing cases, but it does not indicate that a malfunction has occurred.
●Operating sound heard from the engine compartment when the brake pedal is oper-ated.
●Motor sounds of the brake system heard from the front part of the vehicle when the
driver’s door is opened.
●Operating sound heard from the engine compartment when one or two minutes passed after the stop of the hybrid system.
■EPS, VGRS and DRS operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be heard. This does not indicate a malfunction.
■Automatic reactivation of TRC and VSC systems
After turning the TRC and VSC systems off, the systems will be automatically re-enabled in the following situations:
●When the power switch is turned off
●If only the TRC system is turned off, the TR C will turn on when vehicle speed increases If both TRC and VSC systems are turned off, automatic re-enabling will not occur when
vehicle speed increases.
■Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from overheating when there is frequent steering input over an extended period of time. The steeringwheel may feel heavy as a result. Should this occur, refrain from excessive steering input
or stop the vehicle and turn the hybrid system off. The EPS system should return to nor- mal within 10 minutes.
■Operating conditions of hill-start assist control
When the following four conditions are met, the hill-start assist control will operate;
●The shift lever is in a position other than N or P (when starting off forward/backward on an upward incline).
●The vehicle is stopped.
●The accelerator pedal is not depressed.
●The parking brake is not engaged.

3294-5. Using the driving support systems
4
Driving
GS450h_300h_OM_OM30F92E_(EE)
■Automatic system cancelation of hill-start assist control
The hill-start assist control will be canc eled in any of the following situations;
●The shift lever is shifted to N or P.
●The accelerator pedal is depressed.
●The parking brake is engaged.
●Approximately 2 seconds elapse after the brake pedal is released.
■Operating conditions of emergency brake signal
When the following three conditions are me t, the emergency brake signal will operate:
●The emergency flashers are off.
●Actual vehicle speed is over 55 km/h (35 mph).
●The brake pedal is depressed in a manner that cause the system to judge from the vehi- cle deceleration that this is a sudden braking operation.
■Automatic system cancelation of emergency brake signal
The emergency brake signal will turn of f in any of the following situations:
●The emergency flashers are turned on.
●The brake pedal is released.
●The system judges from the vehicle deceleration that is not a sudden braking operation.
WARNING
■The ABS does not operate effectively when
●The limits of tire gripping performance have been exceeded (such as excessively
worn tires on a snow covered road).
●The vehicle hydroplanes while driving at high speed on wet or slick roads.
■Stopping distance when the ABS is operating may exceed that of normal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always maintain a safe distance from the vehicle in front of you, especially in the following situations:
●When driving on dirt, gravel or snow-covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with potholes or uneven surfaces
■TRC may not operate effectively when
Directional control and power may not be achievable while driving on slippery road surfaces, even if the TRC system is operating.
Drive the vehicle carefully in conditions where stability and power may be lost.
■Hill-start assist control does not operate effectively when
●Do not overly rely on the hill-start assist control. The hill-start assist control may not
operate effectively on steep inclines and roads covered with ice.
●Unlike the parking brake, hill-start assist co ntrol is not intended to hold the vehicle stationary for an extended period of time. Do not attempt to use hill-start assist con-
trol to hold the vehicle on an incline, as doing so may lead to an accident.

3545-2. Using the air conditioning system and defogger
GS450h_300h_OM_OM30F92E_(EE)
■Adjusting the position of and opening and closing the air outlets
Direct air flow to the left or right, up or down.
Turn the knob to open or close the vent.
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic key and turning the power switch to ON
mode will recall that key’s registered air conditioning settings.
●When the power switch is turned off, the cu rrent air conditioning settings will automati- cally be registered to the electronic key that was used to unlock the vehicle.
●The system may not operate correctly if more than one electronic key is in the vicinity orif the smart entry & start system is used to unlock a passenger door.
●Settings for the electronic key and the corresponding door can be changed. Contact
any authorized Lexus retailer or Lexus author ized repairer, or any reliable repairer.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the ambi-
ent conditions. Therefore, the fan may stop for a while until wa rm or cool air is ready to flow immediately
after is pressed.
Cool air may blow around the upper body even when the heater is on due to sunlight.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Turning “A/C” on will dehumidify the air from the outlets and defog the windshield effectively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
Front center outlets and front side
outlets
Rear seat outlets
1
2

451
7When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
7-1. Essential information
Emergency flashers ..................452
If your vehicle has to be
stopped in an
emergency.................................453
7-2. Steps to take in an
emergency
If your vehicle needs
to be towed................................ 454
If you think something
is wrong....................................... 459
If a warning light turns on
or a warning buzzer
sounds..........................................460
If a warning message
is displayed ................................ 466
If you have a flat tire
(vehicles with spare tire) ......498
If you have a flat tire
(vehicles without spare
tire)................................................509
If the hybrid system
will not start................................ 523
If the parking brake
cannot be released................. 525
If the electronic key does
not operate properly ............. 527
If the 12-volt battery is
discharged .................................530
If your vehicle overheats .........535
If the vehicle becomes
stuck ............................................. 542

4717-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
Indicates that the hybrid battery (traction battery) power has dropped because a long period of time has elapsedafter shifting the shift lever to N
A buzzer also sounds.  Restart the hybrid system when starting the vehicle.
Indicates a malfunction in the hybrid system Depending on the malfunctio n, troubleshooting meth-
ods may also be displayed. A buzzer also sounds. Immediately stop the vehicle in a safe place and
contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
Indicates that the traction battery is low
A buzzer also sounds.  When stopping the vehicle for a long period of time, shift the shift lever to P. The battery cannot be
charged with the shift lever in N.
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system A buzzer also sounds. Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
Warning messageDetails/Actions
(Flashes)
(Flashes)

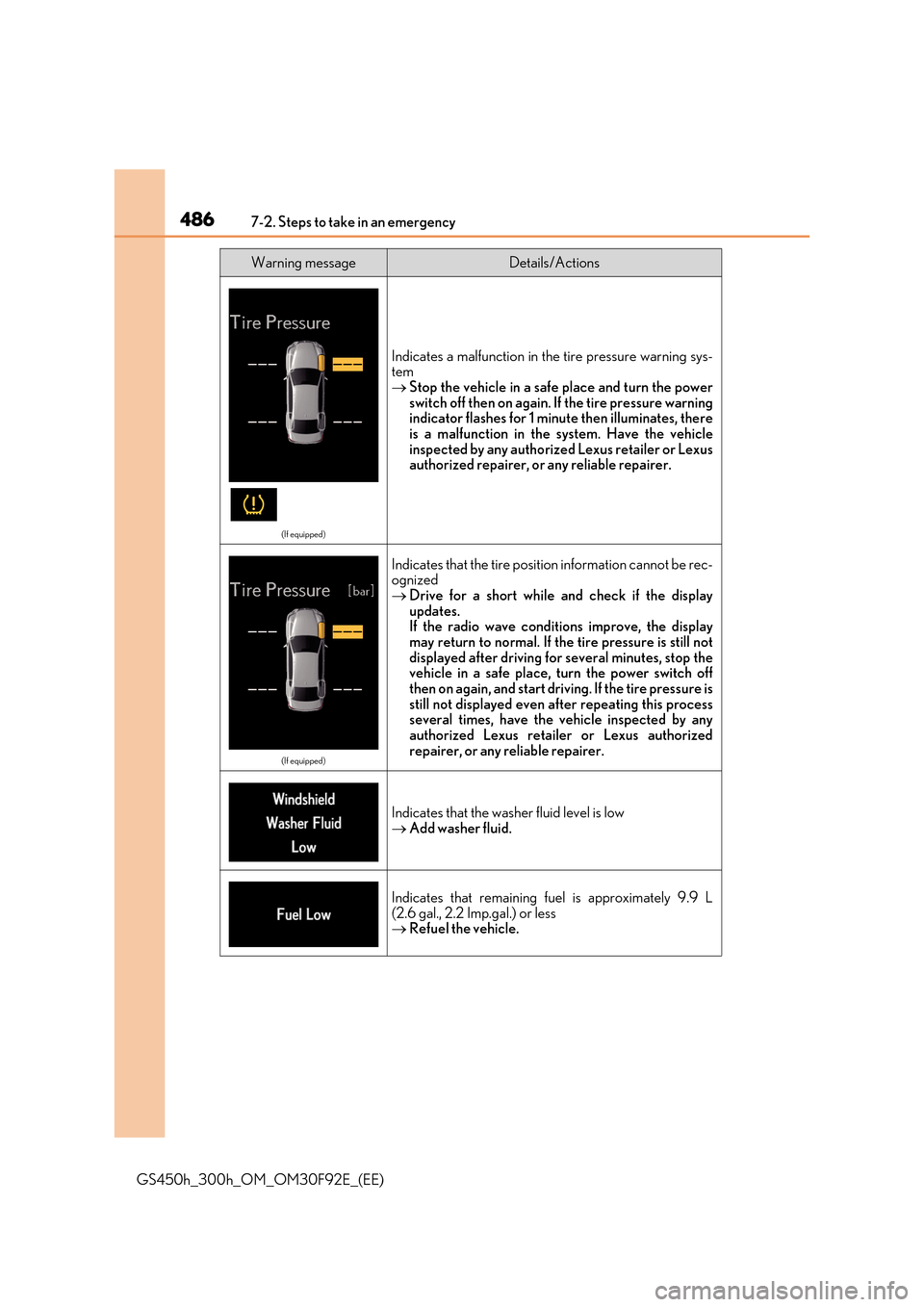

4867-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
(If equipped)
Indicates a malfunction in the tire pressure warning sys- tem
 Stop the vehicle in a safe place and turn the power switch off then on again. If the tire pressure warningindicator flashes for 1 minute then illuminates, there
is a malfunction in the system. Have the vehicle inspected by any authorized Lexus retailer or Lexusauthorized repairer, or any reliable repairer.
(If equipped)
Indicates that the tire position information cannot be rec-ognized
 Drive for a short while and check if the display updates.If the radio wave conditio ns improve, the display
may return to normal. If the tire pressure is still not displayed after driving for several minutes, stop thevehicle in a safe place, turn the power switch off
then on again, and start driving. If the tire pressure is still not displayed even after repeating this processseveral times, have the vehicle inspected by any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that remaining fuel is approximately 9.9 L
(2.6 gal., 2.2 Imp.gal.) or less  Refuel the vehicle.
Warning messageDetails/Actions

5287-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
When the electronic key is detected, a buzzer sounds and the power switch willturn to ON mode.
When the smart entry & start system is deactivated in customization setting, thepower switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and ch eck that is shown on the multi-
information display.
Press the power switch.
In the event that the hybrid system still cannot be started, contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when stopping the hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced immediately when the battery is depleted. ( P. 435)
■Alarm (if equipped)
Using the mechanical key to lock the doors or trunk will not set the alarm system. If a door or trunk are unlocked using the me chanical key when the alarm system is set,
the alarm may be triggered. ( P. 91)
■Changing power switch modes
Release the brake pedal and press the power switch in step above.
The hybrid system does not start and modes will be changed each time the switch is pressed. ( P. 218)
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated in the customi- zation setting. If it is off, turn the function on. (Customizable features: P. 561)
●Check if battery-saving mode is set. If it is set, cancel the function. (P. 154)
Starting the hybrid system
1
2
3
4
3
