2017 Lexus GS450h light

369
5
5-4. Using the storage features
Interior features
GS450h_300h_OM_OM30F92E_(EE)
List of storage features
Cup holders ( P. 371)
Glove box ( P. 370)
Auxiliary boxes (if equipped)
( P. 3 7 3 )
Ashtrays (if equipped) ( P. 3 7 8 )
Auxiliary boxes ( P. 373)
Console box ( P. 370)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other
stored items. • Lighters or spray cans may explode. If they come into contact with other storeditems, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

3705-4. Using the storage features
GS450h_300h_OM_OM30F92E_(EE)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the tail lights are on.
●The trunk opener main switch is located in the glove box. (P. 148)
●The insert inside the glove box can be removed.
●An SRS knee airbag for the front passenger’s seat is built into the glove box door. ( P. 43)
Using with half-open
Grip the knob to release the lock,
and slide the armrest as far back.
Using with fully open
Grip the knob to release the lock,
and lift the armrest to open.
Glove box
1
2
3
Console box
1
2

3715-4. Using the storage features
5
Interior features
GS450h_300h_OM_OM30F92E_(EE)

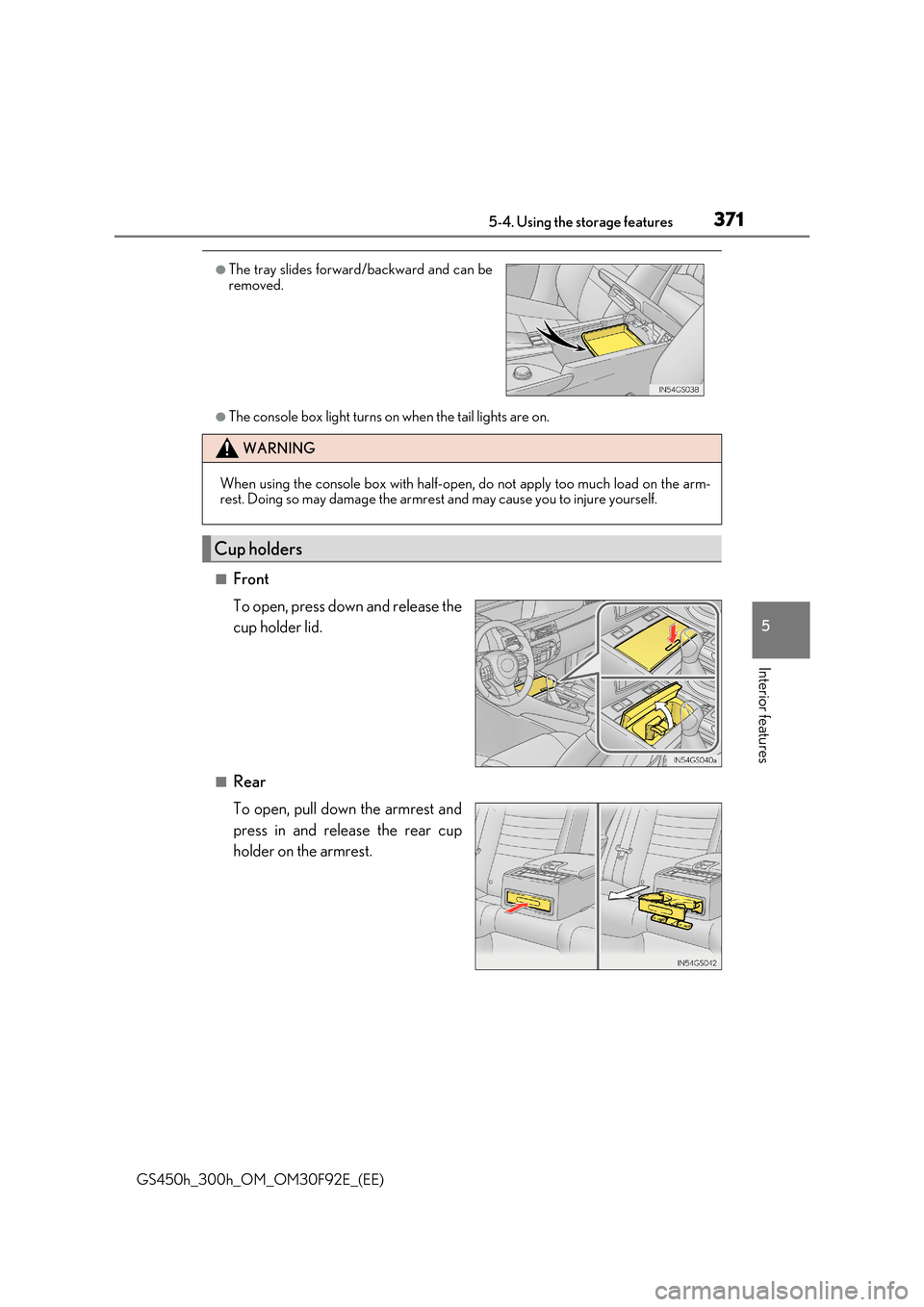

●The console box light turns on when the tail lights are on.
■Front
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.
●The tray slides forward/backward and can be removed.
WARNING
When using the console box with half-open, do not apply too much load on the arm-rest. Doing so may damage the armrest and may cause you to injure yourself.
Cup holders

377
5
5-5. Using the other interior features
Interior features
GS450h_300h_OM_OM30F92E_(EE)

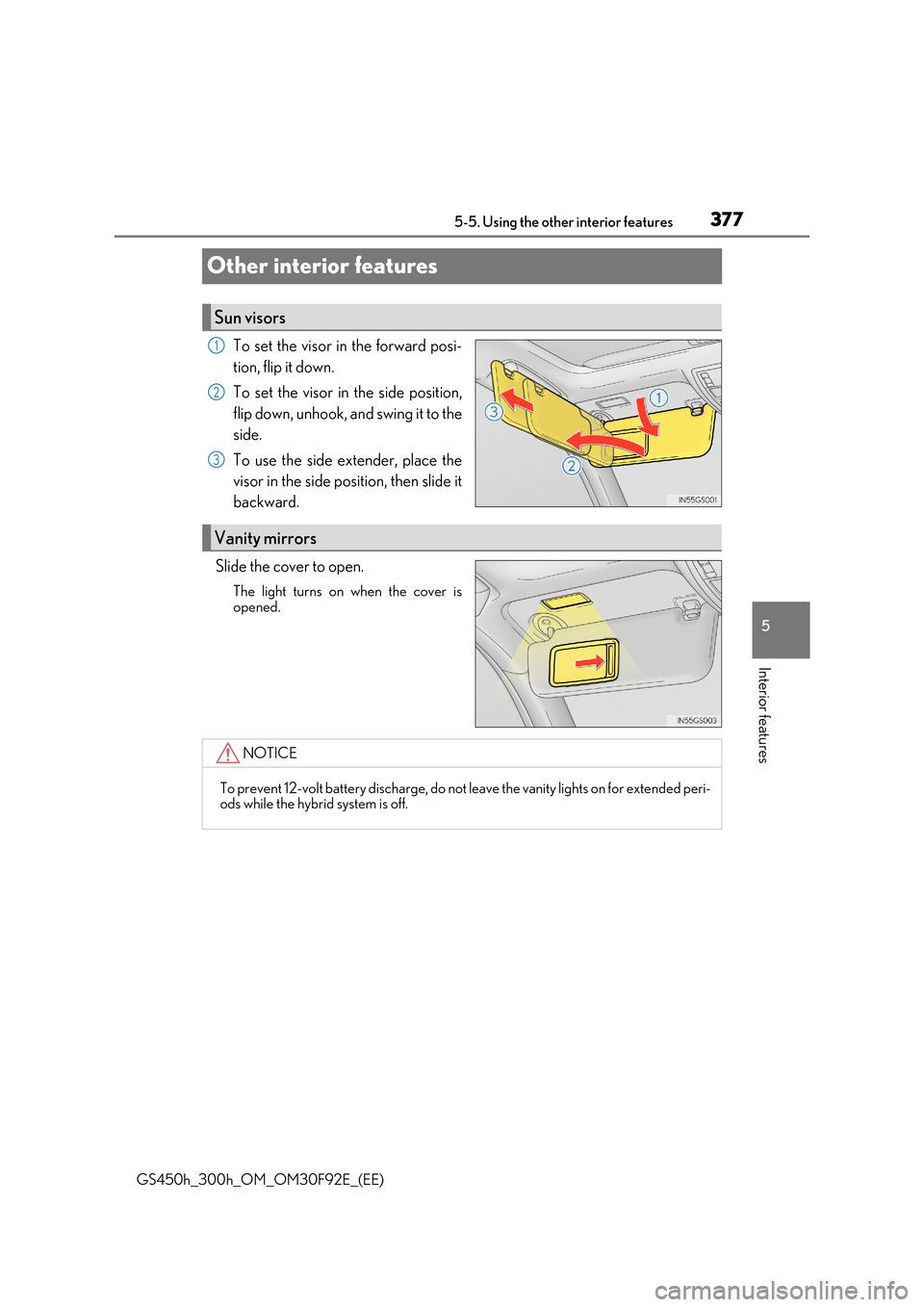

Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for extended peri-ods while the hybrid system is off.

3845-5. Using the other interior features
GS450h_300h_OM_OM30F92E_(EE)
ERA-GLONASS
“SOS” button
Indicator lights
Microphone
■Automatic Collision Notification
If any airbag deploys, the system is designed to automatically call the Public
Safety Answering Point (PSAP)*. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level
of emergency. If the occupants are unable to communicate, the agent auto-
matically treats the call as an emer gency, contacts the nearest emergency
services provider to describe the situation, and requests that assistance be
sent to the location.
*: In some cases, the call cannot be made. ( P. 386)
: If equipped
ERA-GLONASS is a telematics service that uses Global Navigation Satellite
System (GLONASS) data and embedded cellular technology to enable the
following emergency calls to be ma de: Automatic emergency calls (Auto-
matic Collision Notification) and manu al emergency calls (by pressing the
“SOS” button). This service is require d by Eurasian Customs Union Regula-
tions.
System components
1
2
3
Emergency Notification Services

3855-5. Using the other interior features
5
Interior features
GS450h_300h_OM_OM30F92E_(EE)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Public
Safety Answering Point (PSAP). The answering agent will determine your
vehicle’s location, assess the emergency, and dispatch the necessary assis-
tance required.
If you accidentally press the “SOS” button, tell the agent that you are not experi-
encing an emergency.
When the power switch is turned to ON mode, the red indicator light will illumi-
nate for 10 seconds and then the green indicator light will illuminate for 2 sec-
onds, indicating that the system is enab led. The indicator lights indicate the
following:
●If the green indicator light illuminates and stays on, the system is enabled.
●If the green indicator light flashes, an emergency call is being made (either
automatically or manually).
●If no indicator lights illuminate, the system is not enabled.
●If the red indicator light illuminates any time other than immediately after the
power switch is turned to ON mode, the system may be malfunctioning or the
backup battery may be depleted. Contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
The service life of the backup battery is 3 years or more.
Indicator lights

3865-5. Using the other interior features
GS450h_300h_OM_OM30F92E_(EE)
WARNING
■When the Emergency Call may not be made
●Any of the followings may occur. In such cases, report to the Public Safety Answering Point (PSAP) by other means such as nearby public phones.
• It may sometimes be difficult to connect to the Public Safety Answering Point (PSAP) even in the reception area of the cellular phone due to the reception level,or if the line is busy.
In such cases, you may not be able to connect to the Public Safety Answering Point (PSAP) and thus will not be able to make emergency calls and report to the emer- gency departments even though the system tries to connect to the Public Safety
Answering Point (PSAP). • When the vehicle is out of the cellular phone service area, the Emergency Callcannot be made.
• When any related equipment (such as th e “SOS” button panel, indicator lights, microphone, speaker, DCM, antenna, or any wires connecting the equipment.)has an abnormality, is damaged or brok en, the Emergency Call cannot be made.
• During the Emergency Call, the system makes repeated attempts to connect to the Public Safety Answering Point (PSAP). However, if it cannot connect to thePublic Safety Answering Point (PSAP) due to poor radio wave reception, the sys-
tem may not be able to connect to the cellular network and the call may finish with- out connecting. The red indicator light w ill blink for approximately 30 seconds to indicate this disconnection.
• This device may not function if a shock is applied to it.
●If the 12-volt battery’s voltage decreases or there is a disconnection, the system may
not be able to access the Public Safety Answering Point (PSAP).
■When replacing DCM to a new one
ERA-GLONASS have to be activated. Contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
