2017 Lexus GS200t maintenance reset

109
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40 C (-40 F) to 50 C
(122 F). Low outside temperature indicator comes on when the ambient temperature
is 3 C (37 F) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 429)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( P. 121)
Displays warning messages in case of a malfunction (P. 524)
Odometer, trip meter, maintenance required information and speed warning
display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:

1102. Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 r/min, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 seconds.
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
Changing the display

4626-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil (GS350/GS200t)
The engine oil maintenance data should be reset. Perform the following procedures:
Press or of the meter control switch and select .
Press or of the meter control switch an d select “Vehicle Settings”. Then press
.
Press or of the meter control switch and select “Oil Maintenance”. Then press
.
Select the “Yes” and press .
A message is displayed on the multi-informa-
tion display.
1
2
3
4
5

5487-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
Indicates that the washer fluid level is low Add washer fluid.
Indicates that remaining fuel is approximately 9.9 L
(2.6 gal., 2.2 Imp.gal.) or less Refuel the vehicle.
Indicates that the outside temperature is approximately 3C (37 F) or lower
A buzzer also sounds.
 Drive carefully, as the road may be icy.
(GS350/GS200t only)
Indicates that the engine oil is scheduled to be changed
 Check the engine oil and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 461)
(The indicator will not work properly unless the oil
maintenance data has been reset.)
(If equipped)
Indicates that the fuel in jectors require maintenance
soon  Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer replenish the
injector cleaner to the fuel tank and reset the mes-
sage as necessary.
(GS350/GS200t only)
Indicates that the engine oil and oil filter should be
changed Have the engine oil and oil filter checked and/or
changed by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. After
changing the engine oil, the oil change system
should be reset. ( P. 461)
Warning messageDetails/Actions

549
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the fuel injectors require maintenance  Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer replenish the
injector cleaner and reset the message.
(If equipped)
Indicates that the Automatic High Beam switch was
pressed while the low beams were onTurn the high beam headlights on before pressing
the Automatic High Beam switch.
(If equipped)
Indicates that the Adaptive High-beam System switch
was pressed while th e low beams were on
 Turn the high beam headlights on before pressing
the Adaptive High-beam System switch.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-crash braking and pre-
crash brake assist are stopped (The pre-crash warning
function will be operational) Turn the VSC on. ( P. 378)
Warning messageDetails/Actions

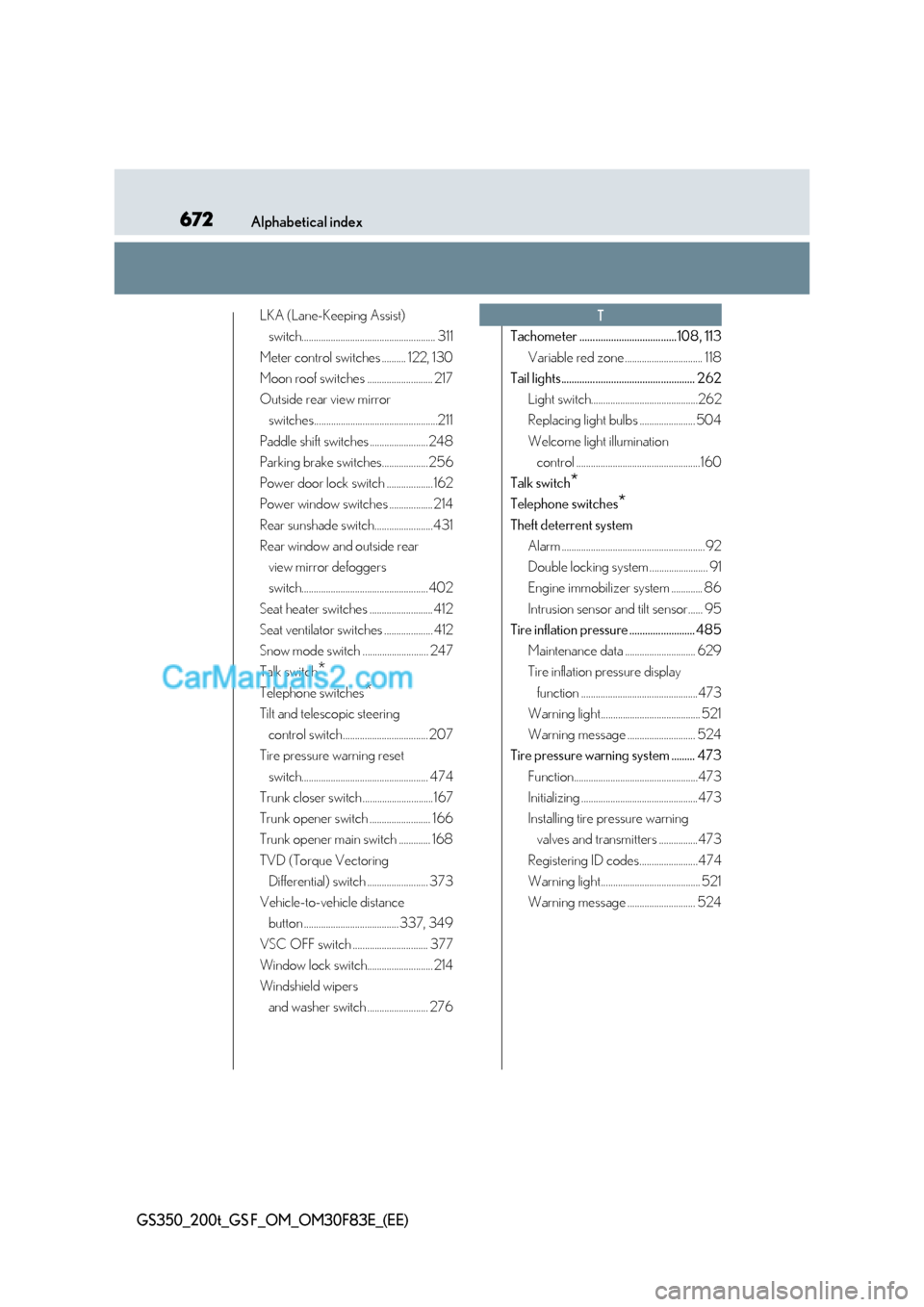

672Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
LKA (Lane-Keeping Assist)
switch....................................................... 311
Meter control switches .......... 122, 130
Moon roof switches ........................... 217
Outside rear view mirror switches...................................................211
Paddle shift switches ........................ 248
Parking brake switches................... 256
Power door lock switch ...................162
Power window switches .................. 214
Rear sunshade switch........................431
Rear window and outside rear view mirror defoggers
switch.................................................... 402
Seat heater switches .......................... 412
Seat ventilator switches .................... 412
Snow mode switch ........................... 247
Talk switch *
Telephone switches *
Tilt and telescopic steering
control switch................................... 207
Tire pressure warning reset
switch.................................................... 474
Trunk closer switch .............................167
Trunk opener switch ......................... 166
Trunk opener main switch ............. 168
TVD (Torque Vectoring Differential) switch ......................... 373
Vehicle-to-vehicle distance button ....................................... 337, 349
VSC OFF switch ............................... 377
Window lock switch........................... 214
Windshield wipers and washer switch ......................... 276 Tachometer .....................................108, 113
Variable red zone ................................ 118
Tail lights................................................... 262
Light switch............................................262
Replacing light bulbs ....................... 504
Welcome light illumination control ...................................................160
Talk switch *
Telephone switches *
Theft deterrent system Alarm ...........................................................92
Double locking system ........................ 91
Engine immobilizer system ............. 86
Intrusion sensor and tilt sensor...... 95
Tire inflation pressure ......................... 485
Maintenance data ............................. 629
Tire inflation pressure display function ................................................473
Warning light......................................... 521
Warning message ............................ 524
Tire pressure warning system ......... 473
Function...................................................473
Initializing ................................................473
Installing tire pressure warning valves and transmitters ................473
Registering ID codes........................474
Warning light......................................... 521
Warning message ............................ 524T
