2017 Lexus GS200t child restraint

TABLE OF CONTENTS2
GS350_200t_GS F_OM_OM30F83E_(EE)
For your information ...................................8
Reading this manual .................................. 12
How to search ............................................. 13
Pictorial index .............................................. 14
1-1. For safe useBefore driving ................................. 42
For safety drive............................... 44
Seat belts .......................................... 46
SRS airbags ...................................... 51
Airbag manual on-off system .............................................. 61
Safety information for children.................................... 63
Child restraint systems ............... 64
Installing child restraints ............. 76
Exhaust gas precautions ........... 85
1-2. Theft deterrent system Engine immobilizer system .......86
Double locking system ................ 91
Alarm ................................................. 92 2. Instrument cluster
Warning lights and indicators ............................100
Gauges and meters (GS350/GS200t) ................108
Gauges and meters (GS F) .............................................113
Multi-information display (GS350/GS200t) ..................121
Multi-information display (GS F) ........................................... 129
Head-up display ............................141
Fuel consumption information.................................. 148
1For safety and security
2Instrument cluster

31
Pictorial index
GS350_200t_GS F_OM_OM30F83E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 209
Sun visors *1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 428
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 428
Interior light *2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 417
Personal lights *2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 417
Moon roof switches *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Intrusion sensor cancel switch *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 95
Intrusion sensor and tilt sensor cancel switch *3
. . . . . . . . . . . . . . . . . . . . . P. 95
“SOS” button *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 4351
2
3
4
5
6
7
8
*1
: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 83)
* 2
: The illustration shows the front, but they are also equipped in the rear.
* 3
:If equipped

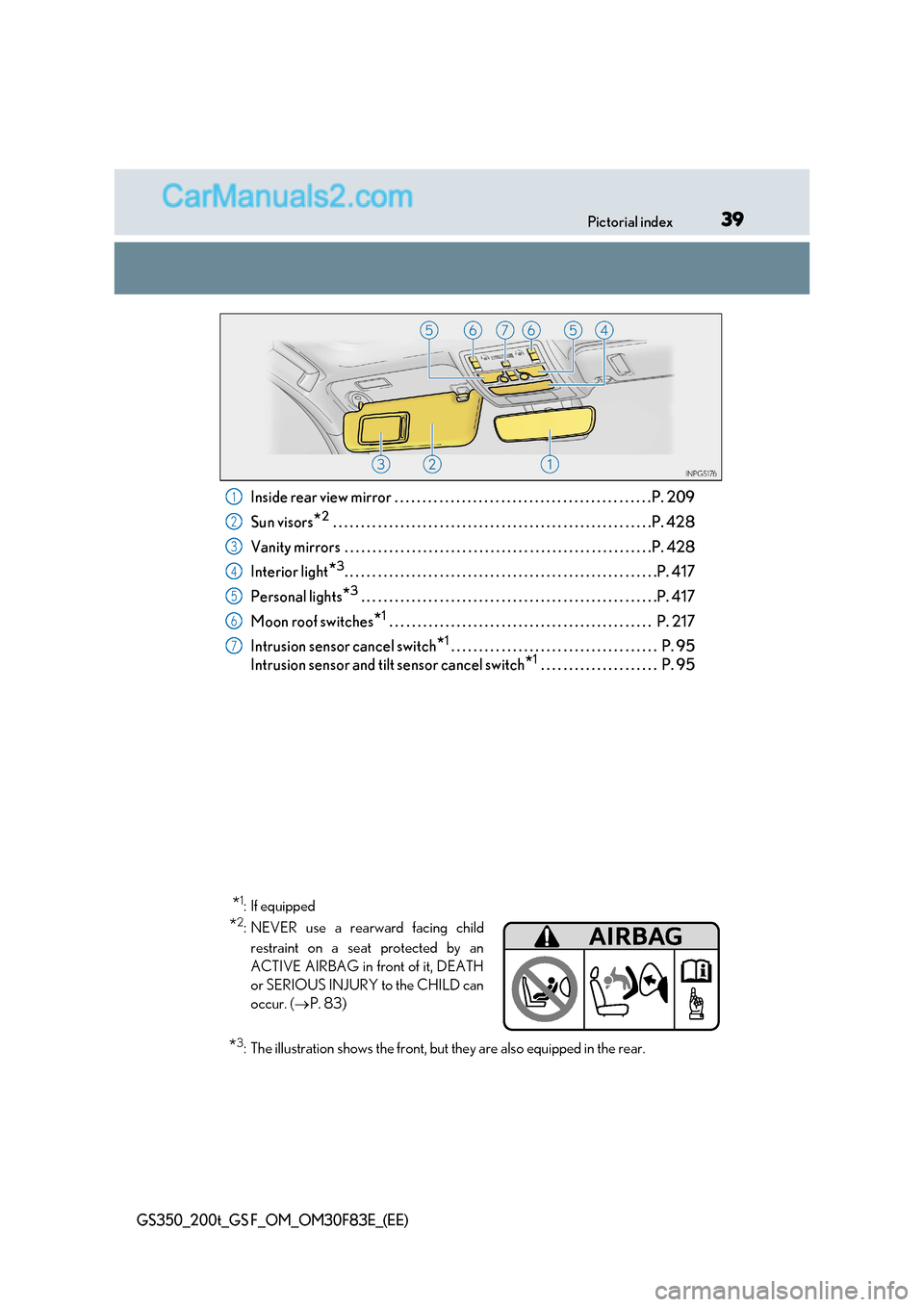

39
Pictorial index
GS350_200t_GS F_OM_OM30F83E_(EE)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 209
Sun visors *2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 428
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 428
Interior light *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 417
Personal lights *3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 417
Moon roof switches *1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Intrusion sensor cancel switch *1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 95
Intrusion sensor and tilt sensor cancel switch *1
. . . . . . . . . . . . . . . . . . . . . P. 951
2
3
4
5
6
7
* 1
:If equipped
* 2
: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( P. 83)
* 3
: The illustration shows the front, but they are also equipped in the rear.

41
1For safety and security
GS350_200t_GS F_OM_OM30F83E_(EE)
1-1. For safe useBefore driving................................. 42
For safety drive .............................. 44
Seat belts .......................................... 46
SRS airbags .......................................51
Airbag manual on-off system ...............................................61
Safety information for children ................................... 63
Child restraint systems ............... 64
Installing child restraints............. 76
Exhaust gas precautions ............85
1-2. Theft deterrent system Engine immobilizer system....... 86
Double locking system .................91
Alarm ................................................. 92

441-1. For safe use
GS350_200t_GS F_OM_OM30F83E_(EE)
For safety drive
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (P. 196)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel. (  P. 196)
GS350/GS200t: Lock the head restraint in place with the center of the head
restraint closest to the top of your ears. ( P. 204)
Wear the seat belt correctly. ( P. 46)
Make sure that all occupants are wearing their seat belts before driving the vehi -
cle. ( P. 46)
Use a child restraint system appropriat e for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( P. 64)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( P. 209, 211)
For safe driving, adjust the seat and mirror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

481-1. For safe use
GS350_200t_GS F_OM_OM30F83E_(EE)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
■Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( P. 64)
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regardin g seat belt usage. (P. 46)
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisio ns, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any autho-
rized Lexus retailer or Lexus au thorized repairer, or any reliable repairer for seat belt
replacement or installation.

49
1-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at on ce, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( P. 46)
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking or a collision.

541-1. For safe use
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■SRS airbag precautions
●The SRS front passenger airbag also deploys with considerable force, and can cause
death or serious injury especially if the fron t passenger is very close to the airbag. The
front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits upright.
●Improperly seated and/or restrained infant s and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt
should be properly secured using a child restraint system. Lexus strongly recom-
mends that all infants and children be placed in the rear seats of the vehicle and prop-
erly restrained. The rear seats are safer for infants and children than the front
passenger seat. ( P. 64)
●Do not sit on the edge of the seat or lean
against the dashboard.
●Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on the
knees of a front passenger.
●Do not allow the front seat occupants to hold
items on their knees.
●Do not lean against the door, the roof side rail
or the front, side and rear pillars.
