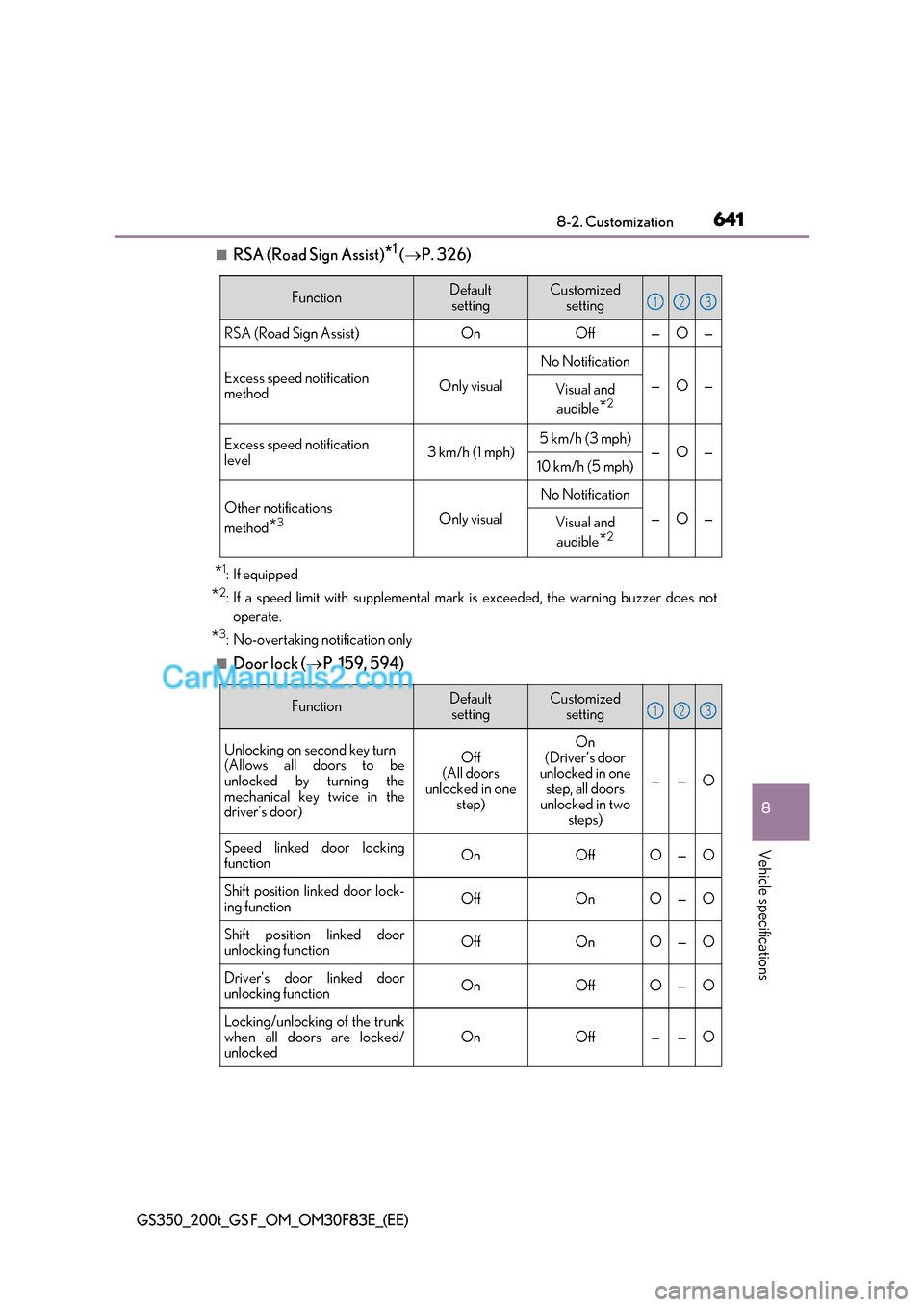

8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
■RSA (Road Sign Assist)*1
(  P. 326)
* 1
: If equipped
* 2
: If a speed limit with supplemental mark is exceeded, the warning buzzer does not
operate.
* 3
: No-overtaking notification only
■Door lock ( P. 159, 594)
FunctionDefault
settingCustomized setting
RSA (Road Sign Assist)OnOff—O—
Excess speed notification
methodOnly visual
No Notification
—O—Visual and
audible *2
Excess speed notification level3 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
Other notifications
method
*3Only visual
No Notification
—O—Visual and
audible *2
123
FunctionDefault
settingCustomized setting
Unlocking on second key turn
(Allows all doors to be
unlocked by turning the
mechanical key twice in the
driver’s door)Off
(All doors
unlocked in one
step)
On
(Driver’s door
unlocked in one step, all doors
unlocked in two steps)
——O
Speed linked door locking
functionOnOffO—O
Shift position linked door lock-
ing functionOffOnO—O
Shift position linked door
unlocking functionOffOnO—O
Driver’s door linked door
unlocking functionOnOffO—O
Locking/unlocking of the trunk
when all doors are locked/
unlocked
OnOff——O
123

643
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
■Front seats (P. 196)
■Outside rear view mirrors ( P. 211)
■Power windows and moon roof * ( P. 214, 217)
* : If equipped
FunctionDefault
settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffO—OPartial
Selecting the door linking driv-
ing position memory with door
unlock operationDriver’s doorAll doors——O
123
FunctionDefaultsettingCustomized setting
Automatic mirror folding and
extending operation
Linked to the
locking/
unlocking of the
doorsOff
——OLinked to opera-
tion of the engine
switch
Linked mirror function when reversingOnOff——O
123
FunctionDefaultsettingCustomized setting
Mechanical key linked opera- tionOffOn——O
Wireless remote control linked operationOffOn——O
Buzzer sounds if operated
using wireless remote controlOnOff——O
123

6488-2. Customization
GS350_200t_GS F_OM_OM30F83E_(EE)
■Illumination (P. 416)
FunctionDefault
settingCustomized setting
Interior lights illumination con-
trolOnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds7.5 secondsO—O30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person (vehicles
with entry function)
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Enable/disable operation of the
outer foot lights when you
approach the vehicle with the
electronic key on your person
OnOff——O
Enable/disable operation of the
outer foot lights when the doors
are unlocked with the power
door lock switch
OnOff——O
123

654What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30F83E_(EE)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer. ( P. 156)
● If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer immediately. ( P. 157)
● Is the electronic key battery weak or depleted? ( P. 491)
● Vehicles with entry function
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 241)
● Vehicles with entry function
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your person.
● The function may not operate properly due to the condition of the radio wave.( P. 175)
● Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock. ( P. 163)
If you have a problem, check the following before contacting any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
The doors cannot be locked, un locked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

655
What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30F83E_(EE)
● The function to prevent the electronic ke y from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk. (  P. 168)
● Did you press the engine switch while firmly depressing the brake pedal?
(  P. 240)
● Is the shift lever in P? ( P. 242)
● Is the electronic key anywhere detectable inside the vehicle? ( P. 173)
● Is the steering wheel unlocked? ( P. 242)
● Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 595)
● Is the battery discharged? ( P. 597)
● Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( P. 253)
● It is locked automatically to prevent theft of the vehicle. ( P. 242)
The trunk lid is closed with the electronic key left inside
If you think som
ething is wrong
The engine does not start
The shift lever cannot be shifted fr om P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped

656What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30F83E_(EE)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 214)
● The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 242)
● The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 520)
● The parking brake indicator is on
Is the parking brake released? ( P. 256)
Depending on the situation, other type s of warning buzzer may also sound.
(  P. 518, 524)
● Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 92)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. ● Is the electronic key left inside the vehicle or the moon roof opened (if
equipped)?
Check the message on the multi-information display. ( P. 524)
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th
e horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with entry function)

660Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Card key.................................................... 154
Care ............................................... 440, 444
Aluminum wheels ................................441
Exterior....................................................440
Interior ..................................................... 444
Seat belts ................................................445
Cargo hooks........................................... 424CD player *
Chains ...................................................... 385
Child restraint system ............................ 64 Baby seats, definition .......................... 65
Baby seats, installation ........................77
Child seats, definition.......................... 65
Child seats, installation........................77
Installing CRS with ISOFIX
rigid anchors........................................80
Installing CRS with seat belts...........77
Installing CRS with top strap ............81
Junior seats, definition ........................ 65
Junior seats, installation ..................... 79 Child safety ................................................ 63
Airbag precautions ............................. 53
Battery precautions............... 469, 601
Child restraint system .........................64
How your child should
wear the seat belt...................... 47, 48
Installing child restraints .....................76
Moon roof precautions .................. 220
Power window lock switch ............ 214
Power window precautions........... 216
Rear door child-protectors ............ 163
Removed electronic key battery precautions....................... 492
Seat belt comfort guide...................... 47
Seat belt precautions.......................... 50
Seat heater precautions ..................... 411
Trunk precautions .............................. 169
Child-protectors ....................................163
Cleaning........................................440, 444 Aluminum wheels................................ 441
Exterior ................................................... 440
Interior..................................................... 444
Seat belts ............................................... 445
C

662Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Double locking system ........................... 91
Drive info 1/Drive info 2/
Drive info 3 ................................. 126, 138 Drive information ...................... 122, 130
Resetting........................................ 122, 130
Drive-Start Control ..................223, 252
Driver’s seat position memory ......... 199 Driving position memory .............. 200
Memory recall function .................. 202
Power easy access system ............ 199
Driving ....................................................... 222 Break-in tips ......................................... 224
Correct driving posture .................... 44
Driving mode select switch ......... 358
Procedures ........................................... 222
Winter drive tips.................................383
Dynamic radar cruise control.......... 343 Function .................................................. 343
Warning message............................. 524
Dynamic radar cruise control with
full-speed range .................................. 331Function ....................................................331
Warning message............................. 524
DVD player *
Eco drive mode .................................... 358
Eco Driving Indicator ........................... 106
Eco Driving Indicator Light ................................................126, 137 Eco driving meter .................................... 113
Electric Power Steering (EPS) ....... 376
Function.................................................. 376
Warning light.........................................519
Warning message ............................ 524
Electronic key ..........................................154
Battery-saving function .................... 175
If the electronic key does not operate properly............................ 594
Replacing the battery ........................ 491
Emergency, in case of If a warning buzzer sounds ............518
If a warning light turns on ................518
If a warning message is
displayed ............................................ 524
If the battery is discharged ........... 597
If the electronic key does not operate properly............................ 594
If the engine will not start ...............590
If the parking brake cannot be released ....................................... 592
If you have a flat tire.............. 557, 573
If you think something is wrong ................................................ 516
If your vehicle becomes stuck ....608
If your vehicle has to be stopped in an emergency .........509
If your vehicle needs to
be towed ..............................................510
If your vehicle overheats................ 602
E
