2017 Lexus GS F fuse

4385-5. Using the other interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■For your safety
●Please drive safely.
The function of this system is to assist you in making the Emergency Call in case of
accidents as traffic accidents or sudden medi cal emergencies, and it does not protect
the driver or the passengers in any way. Plea se drive safely and fasten your seatbelts
at all times for your safety.
●In case of an emergency, make lives the top priority.
●If you smell anything burning or another unus ual smell, do not stay inside the vehicle
and evacuate to a safe area immediately.
●Since the system detects shocks, the automatic reporting may not always occur syn-
chronized with the operation of the airbag system. (If the vehicle is bumped from
behind, etc.)
●The airbag may not inflate even in case of an accident, if it does not involve high
impact. In such cases, the system may not make emergency calls automatically. The
system may also not make automatic emergency calls even if the airbag has been
inflated. If any of these should occur, plea se report to the Public Safety Answering
Point (PSAP) by operating the “SOS” button.
●For safety, do not make the Emergency Call while driving.
Making calls during driving may cause mish andling of the steering wheel, which may
lead to unexpected accidents.
Stop the vehicle and confirm the safety of the area before making the Emergency
Call.
●When changing fuses, please use fuses that correspond to the described standard.
If you use fuses other than those described, it may cause ignition or smoke in the cir-
cuit and may lead to a fire.
●Using the system while there is smoke or an unusual smell may cause a fire. Stop
using the system immediately and consult any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
NOTICE
■To prevent damage
Do not pour any liquid on to the “SOS” button panel etc. and make any impact to it.
■If the “SOS” button panel malfunctions
It may not be able to make the Emergency Call or inform you of the correct condition
of the system. If the “SOS” button panel has been broken, please consult any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■If there is any malfunction of the speaker or the microphone during the Emergency
Call or the Manual Maintenance Check
You will not be able to communicate with the Public Safety Answering Point (PSAP)
operator.
If any of this equipment has been broken, please consult any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.

439
6Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
6-1. Maintenance and careCleaning and protecting the vehicle exterior ................ 440
Cleaning and protecting the vehicle interior.................. 444
6-2. Maintenance Maintenance requirements ............................ 447
6-3. Do-it-yourself maintenance Do-it-yourself service precautions................................ 449
Hood ................................................ 451
Positioning a floor jack ............ 452
Engine compartment ............... 454
Tires ...................................................471
Tire inflation pressure ..............485
Wheels ........................................... 487
Air conditioning filter ...............489
Electronic key battery............... 491
Checking and replacing fuses.............................................. 493
Light bulbs.....................................498

4426-1. Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes and rear bumper diffusers
Exhaust gases cause the exhaust pipes and rear bumper diffusers to become quite hot.
When washing the vehicle, be careful not to touch the pipes and diffusers until they
have cooled sufficiently, as touching hot exhaust pipes and rear bumper diffusers can
cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If
this occurs, consult any authorized Lexus re tailer or Lexus authorized repairer, or any
reliable repairer.
Turn off AUTO mode of the wiper to prevent the wiper from operating. ( P. 276)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades.

4546-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
Engine compartment
GS350
Fuse boxes (P. 493)
Battery ( P. 466)
Engine oil level dipstick( P. 459)
Engine coolant reservoir ( P. 464) Engine oil filler cap (
P. 461)
Washer fluid tank ( P. 470)
Electric cooling fans
Condenser ( P. 466)
Radiator ( P. 466)1
2
3
4
5
6
7
8
9

455
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
GS200t
Fuse boxes ( P. 493)
Battery ( P. 466)
Intercooler coolant reservoir ( P. 465)
Engine oil level dipstick( P. 459)
Engine oil filler cap ( P. 461) Engine coolant reservoir
( P. 464)
Washer fluid tank ( P. 470)
Condenser ( P. 466)
Electric cooling fans
Radiator ( P. 466)1
2
3
4
5
6
7
8
9
10

4566-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
For right-hand drive vehicles:
The battery and the fuse box in front of the battery are located on the opposite
side of the engine compartment.
Fuse boxes ( P. 493)
Battery ( P. 466)
Engine oil level dipstick( P. 459)
Engine coolant reservoir ( P. 464) Engine oil filler cap (
P. 461)
Washer fluid tank ( P. 470)
Electric cooling fans
Condenser ( P. 466)
Radiator ( P. 466)1
2
3
4
5
6
7
8
9

493
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
Engine compartment: type A fuse
box (left-hand drive vehicles)Engine compartment: type A fuse
box (right-hand drive vehicles)
Push the tab in and lift the lid off. Push the tab in and lift the lid off.
Engine compartment (type B fuse box)
Push the tab in and lift the lid off.
1
2

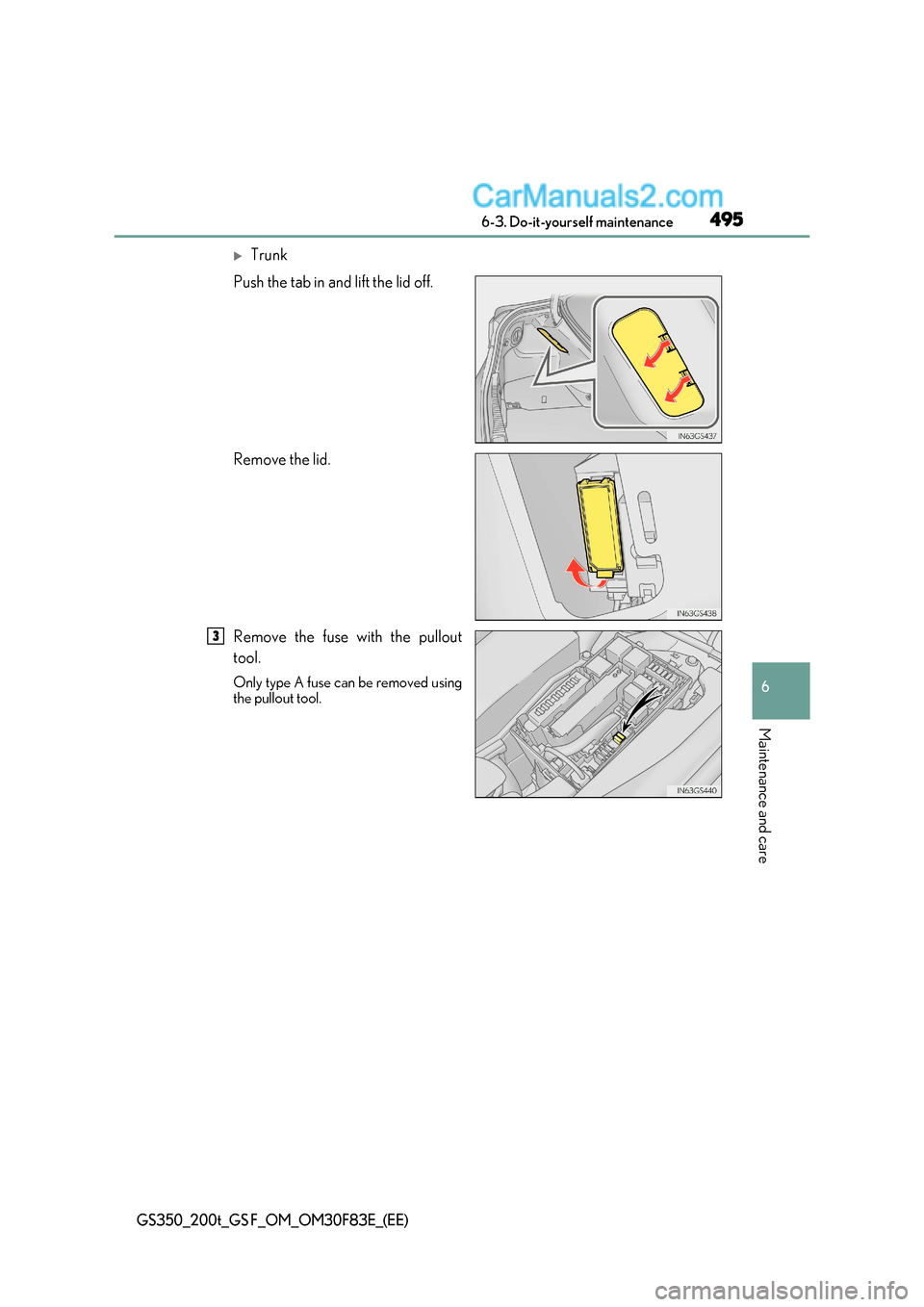

495
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
Trunk
Push the tab in and lift the lid off.
Remove the lid.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed using
the pullout tool.
3
