2017 Lexus ES350 USB

TABLE OF CONTENTS4
ES350_OM_OM33C68U_(U)
5-1. Basic OperationsLexus Display Audio system ...........................................270
Steering wheel audio switches ....................................... 276
Mobile Assistant..........................277
USB/AUX ports ..........................279
5-2. Setup Setup menu .................................. 282
General settings......................... 283
Voice settings .............................. 286
Display settings........................... 287
5-3. Using the audio system Selecting the audio source .......................................... 288
Optimal use of the audio system .......................................... 289
Audio settings ............................. 290
Audio menu screen operation .................................... 293
5-4. Using the radio Radio operation.......................... 296
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation ................ 302
5-6. Using an external device Listening to an iPod................... 309
Using USB memory device ............................................313
Using the AUX port ................... 317 5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices ......................................... 318
Registering a Bluetooth
®
device .......................................... 320
Selecting a Bluetooth
®
device ............................................321
Connecting a Bluetooth
®
audio player .............................. 322
Connecting a Bluetooth
®
phone ........................................... 323
Displaying a Bluetooth
®
device details ............................ 324
Detailed Bluetooth
®
settings ........................................ 325
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ........................................... 328
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone........................................... 329
Making a call..................................331
Receiving a call ........................... 334
Speaking on the phone ........... 335
Using a Bluetooth
®
phone message ........................337
Using the steering wheel switches ...................................... 339
Bluetooth
® phone
settings ........................................ 340
5Lexus Display Audio system

5
ES350_OM_OM33C68U_(U)
1
9 8
7 4 3
2
10
5
6
5-10. PhonebookContact settings ......................... 342
Messaging setting ..................... 345
5-11. Bluetooth
®
What to do if... (Troubleshooting) ................... 346
Bluetooth
®................................... 350
5-12. Other function “Information” screen................. 356
USB photo ....................................358
Weather information ................ 360
Voice command system ............ 361
6-1. Using the air conditioning system and defogger
Automatic air conditioning system .......................................... 368
Heated steering wheel/ seat heaters/seat
ventilators....................................377
6-2. Using the interior lights Interior lights list ..........................379• Interior lights..........................380
• Personal lights .......................380 6-3. Using the storage features
List of storage features ............ 382• Glove box ............................... 383
• Console box .......................... 383
• Cup holders ........................... 384
• Auxiliary box..........................385
Trunk features .............................. 386
6-4. Using the other interior features
Other interior features ............388 • Sun visors ................................388
• Vanity mirrors ........................388
• Clock ........................................ 389
• Power outlets ......................... 389
• Armrest.................................... 390
• Rear sunshade/rear door sunshades ................................ 391
• Trunk storage extension ................................. 393
• Coat hooks............................. 394
• Assist grips ............................. 394
Garage door opener ............... 395
Compass ....................................... 402
LEXUS Enform Safety Connect...................................... 406
LEXUS Enform Remote ............ 411
LEXUS Enform Service Connect........................................ 412
6Interior features

268
ES350_OM_OM33C68U_(U)
5-1. Basic OperationsLexus Display Audio system .......................................... 270
Steering wheel audio switches........................................ 276
Mobile Assistant..........................277
USB/AUX ports ......................... 279
5-2. Setup Setup menu .................................. 282
General settings......................... 283
Voice settings .............................. 286
Display settings ........................... 287
5-3. Using the audio system Selecting the audio source ..........................................288
Optimal use of the audio system .......................................... 289
Audio settings.............................. 290
Audio menu screen operation .................................... 293
5-4. Using the radio Radio operation .......................... 296
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation ................302
5-6. Using an external device Listening to an iPod ...................309
Using USB memory device............................................ 313
Using the AUX port ...................317

269
ES350_OM_OM33C68U_(U)
Lexus Display Audiosystem
5
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices ..........................................318
Registering a Bluetooth
®
device .......................................... 320
Selecting a Bluetooth
®
device ............................................ 321
Connecting a Bluetooth
®
audio player ...............................322
Connecting a Bluetooth
®
phone ...........................................323
Displaying a Bluetooth
®
device details ............................ 324
Detailed Bluetooth
®
settings.........................................325
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ............................................328
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone ...........................................329
Making a call ................................. 331
Receiving a call ...........................334
Speaking on the phone ............335
Using a Bluetooth
®
phone message ........................ 337
Using the steering wheel switches .......................................339
Bluetooth
® phone
settings........................................ 340 5-10. Phonebook
Contact settings ......................... 342
Messaging setting...................... 345
5-11. Bluetooth
®
What to do if... (Troubleshooting).................... 346
Bluetooth
®...................................350
5-12. Other function “Information” screen ................. 356
USB photo ....................................358
Weather information ................360
Voice command system ............361

276
ES350_OM_OM33C68U_(U)5-1. Basic Operations
Steering wheel audio switches
Volume switch
• Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
Radio mode: • Press: Select a radio station
• Press and hold: Seek up/down
CD, MP3/WMA/AAC disc, Bluetooth
®, iPod or USB mode:
• Press: Select a track/file/video
• Press and hold (except iPod): Quickly move up/down through tracks/files/ videos.
“MODE” switch • Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current operation. To can- cel the mute or pause, press and hold.
Some audio features can be controlle d using the switches on the steering
wheel.
Operation may differ depending on the type of audio system or navigation
system. For details, refer to the manual provided with the audio system or nav-
igation system.
Operating the audio system us ing the steering wheel switches
1
2
WA R N I N G
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3

279
ES350_OM_OM33C68U_(U)5-1. Basic Operations
5
Lexus Display Audio system
USB/AUX ports
Push the knob to release the lock,
and lift the armrest to open fully.
Open the cover.
■iPod
Open the cover and connect an iPod using an iPod cable.
Turn on the power of the iPod
if it is not turned on.
■USB memory
Open the cover and connect the USB memory device.
Turn on the power, if applicable, of the US B memory device if it is not turned on.
■Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
Connect an iPod, USB memory device or portable audio player to the USB/
AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “External” on
the audio source selection screen and the device can be operated via Lexus
Display Audio system.
Connecting using the USB/AUX port
1
2

2805-1. Basic Operations
ES350_OM_OM33C68U_(U)

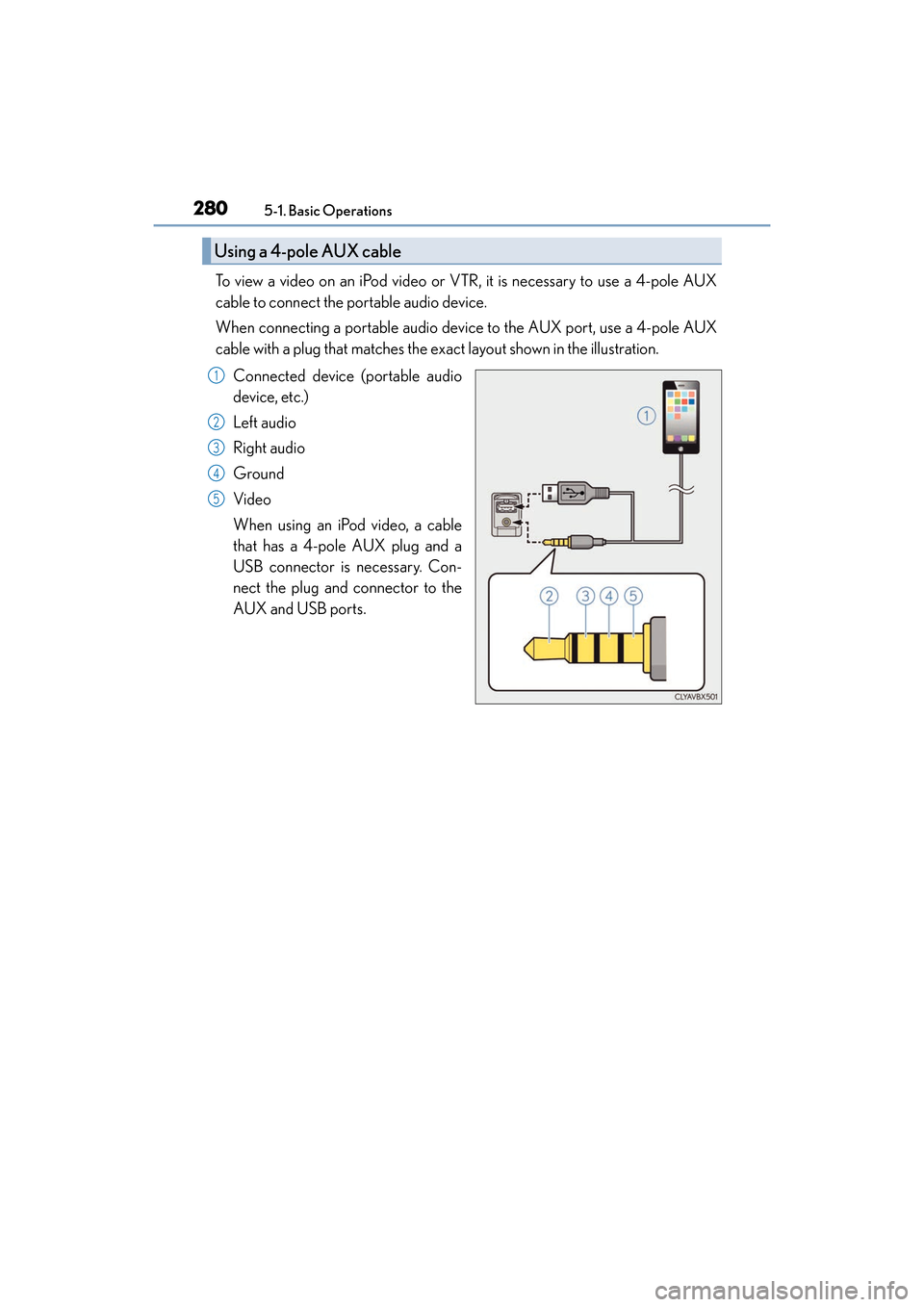

To view a video on an iPod video or VTR, it is necessary to use a 4-pole AUX
cable to connect the portable audio device.
When connecting a portable audio device to the AUX port, use a 4-pole AUX
cable with a plug that matches the ex act layout shown in the illustration.
Connected device (portable audio
device, etc.)
Left audio
Right audio
Ground
Video
When using an iPod video, a cable
that has a 4-pole AUX plug and a
USB connector is necessary. Con-
nect the plug and connector to the
AUX and USB ports.
Using a 4-pole AUX cable
1
2
3
4
5

2845-2. Setup
ES350_OM_OM33C68U_(U)
Go to “Customize Images”: “MENU” button → “Setup” → “General” →
“Customize Images”
Select “Set Images” and then select the desired image.
Set as startup image.
Set as screen off image.
Set as startup image and screen
off image.
■Adding an imageConnect a USB memory device. ( →P. 2 7 9 )
Select “Copy from USB” on the “Customize Images” screen and then
select the desired image.
Move the controller to the left and then select “Copy”.
Up to 10 images can be downloaded.
■Deleting images
Select “Delete Images” on the “Customize Images” screen and then select the
desired images.
■USB memory
When saving the images to a USB memory device, name the folder that the images are
saved to “Image”.
●Compatible device formats
The following device format can be used: • USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
The following types of files can be used:
• The image’s file format must be JPEG.
• The file name may only contain ASCII characters.
●JPEG file compatibility
Compatible image size: Maximum 5MB
Customizing images
1
2
1
2
3
1
2
3
