2017 Lexus ES350 tire type

530
ES350_OM_OM33C68U_(U)9-1. Spec
ifications
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Ti r e s i z e c o d e
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code
*: The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle
Safety Standards.

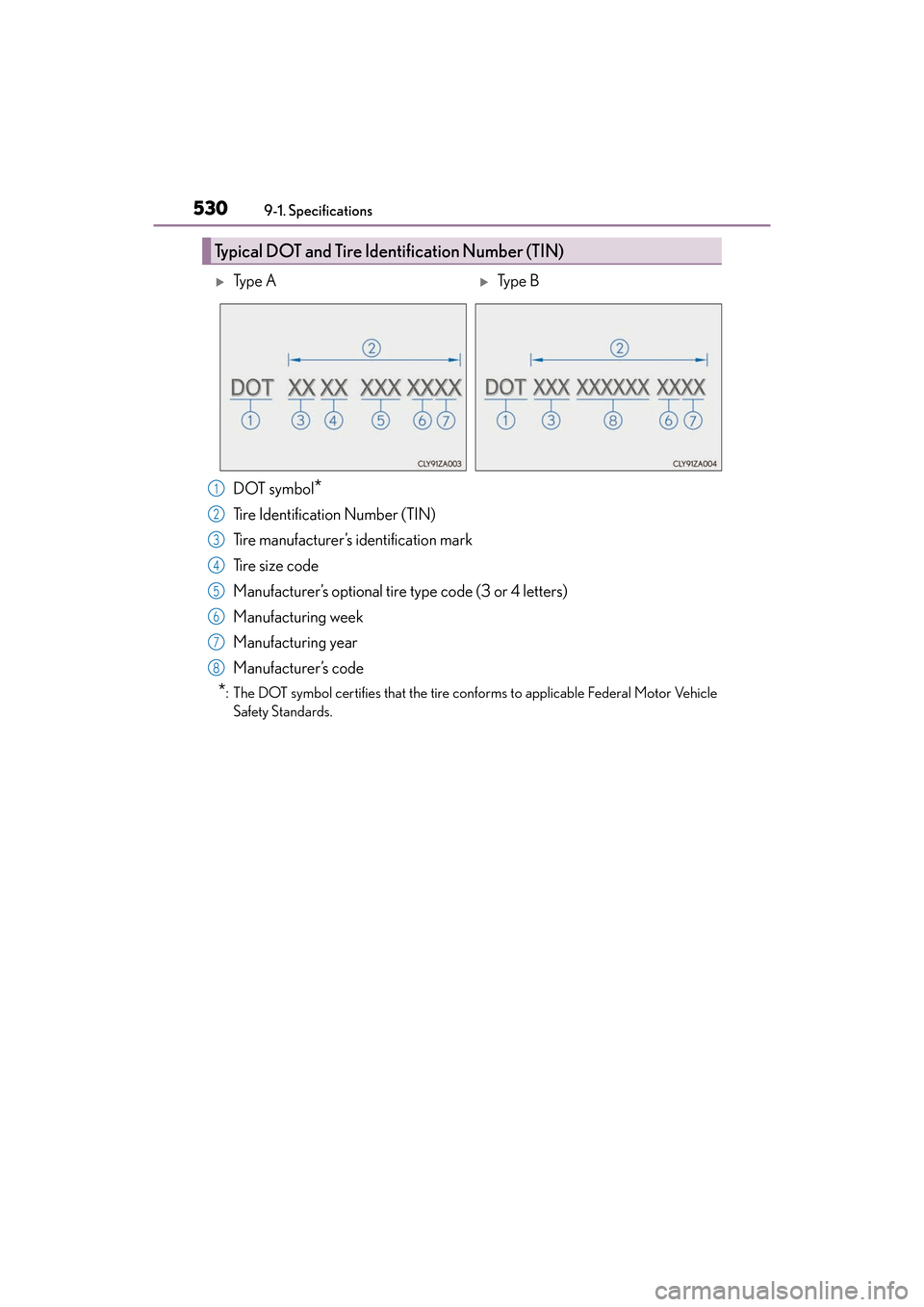

Typical DOT and Tire Identification Number (TIN)
XTy p e AXTy p e B
1
2
3
4
5
6
7
8

534
ES350_OM_OM33C68U_(U)9-1. Spec
ifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air conditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1* below
Production options weight
The combined weight of in stalled regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code

562What to do if... (Troubleshooting)
ES350_OM_OM33C68U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 4 8 3 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 1 6 4 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 482, 488)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 6 7 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 4 8 8 )
●When a warning light turns on or a warning message is displayed, refer to
P. 482, 488.
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(→ P. 4 9 1 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(→ P. 5 1 3 )
A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
A warning buzzer sounds wh en leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

569Alphabetical index
ES350_OM_OM33C68U_(U)
FuelCapacity .................................................. 518
Fuel gauge ................................................ 76
Fuel pump shut off system.............. 481
Information ........................................... 525
Refueling................................................... 177
Type ........................................................... 518
Warning light ...................................... 483
Fuel filler door .......................................... 177 Refueling................................................... 177
When the fuel filler door cannot be opened ...........................179
Fuel pump shut off system.................. 481
Fuses .......................................................... 459
Garage door opener .......................... 395
Gauges .........................................................76
Glove box ................................................383
Grocery bag hooks ............................. 386
Hands-free system (for cellular phone)
*........................ 329
Head restraints ......................................... 121
Headlights Adaptive Front-lighting System
(AFS) ................................................... 484
Light switch ............................................ 165
Replacing light bulbs ........... 464, 470
Wattage ..................................................524 Heaters
Air conditioning
system ..................................................368
Heated steering wheel ................... 378
Outside rear view mirrors .............372
Seat heaters .......................................... 378
Hill-start assist control ....................... 258
Hood ..........................................................429
Hooks Cargo hooks .......................................386
Coat hooks ........................................... 394
Grocery bag hooks .........................386
Retaining hooks (floor mat)............. 26
Horn............................................................. 125
I/M test ......................................................426
Identification
Engine ....................................................... 517
Vehicle ...................................................... 517
Ignition switch (engine switch) ......... 154
Illuminated entry system .....................381
Immobilizer system .................................65
Indicators ..................................................... 74
Initialization Maintenance .......................................... 421
Tire pressure warning system ............................... 443
Initiators (tire pressure warning system) ................................ 448
G
H
I
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

573Alphabetical index
ES350_OM_OM33C68U_(U)
Rear door sunshades ............................391
Rear sunshadeOperation ............................................... 391
Reverse operation feature.............392
Rear turn signal lights Replacing light bulbs ....................... 468
Turn signal lever .................................. 163
Wattage ..................................................524
Rear view mirror Inside rear view mirror ..................... 126
Outside rear view mirrors .............. 128
Rear window defoggers .................... 372
Refueling .................................................... 177 Capacity .................................................. 518
Fuel types ................................................ 518
Opening the fuel tank cap.............. 178
When the fuel filler door cannot be opened ...........................179
Remote Touch
*
Replacing Electronic key battery ......................457
Fuses........................................................ 459
Light bulbs ............................................. 462
Tires ........................................................... 491
Reporting safety defects for U.S. owners...................................550
Resetting the message indicating maintenance is required ..................421 Safety Connect ..................................... 406
Seat belts
Adjusting the seat belt........................ 30
Automatic Locking Retractor .......... 31
Child restraint system
installation .............................................58
Cleaning and maintaining
the seat belt .........................................418
Emergency Locking
Retractor.................................................. 31
How to wear your seat belt............. 30
How your child should wear the seat belt ............................................ 31
Pregnant women, proper seat belt use ..........................................32
Reminder light and buzzer ...........483
Seat belt extender .................................. 31
Seat belt pretensioners ........................ 31
SRS warning light .............................. 482
Seat heaters............................................ 378
Seat position memory ............................117
Seat ventilators...................................... 378
Seating capacity ...................................... 151
S
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

580
ES350_OM_OM33C68U_(U)GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 4 2 9 P. 1 0 1 P. 1 7 8
Hood lock release leverFuel filler door openerTi r e i n f l a t i o n p r e s s u r e
P. 4 2 9 P. 1 7 8 P. 5 2 2
Fuel tank capacity
(Reference) 17.0 gal. (64.35 L, 14.2 Imp.gal.)
Fuel type
Unleaded gasoline only P. 518
Cold tire inflation
pressure P. 5 2 2
Engine oil capacity
(Drain and refill —
reference)qt. (L, Imp.qt.)
With filter 6.4 (6.1, 5.4)
Without filter 6.0 (5.7, 5.0)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
P. 5 1 8
