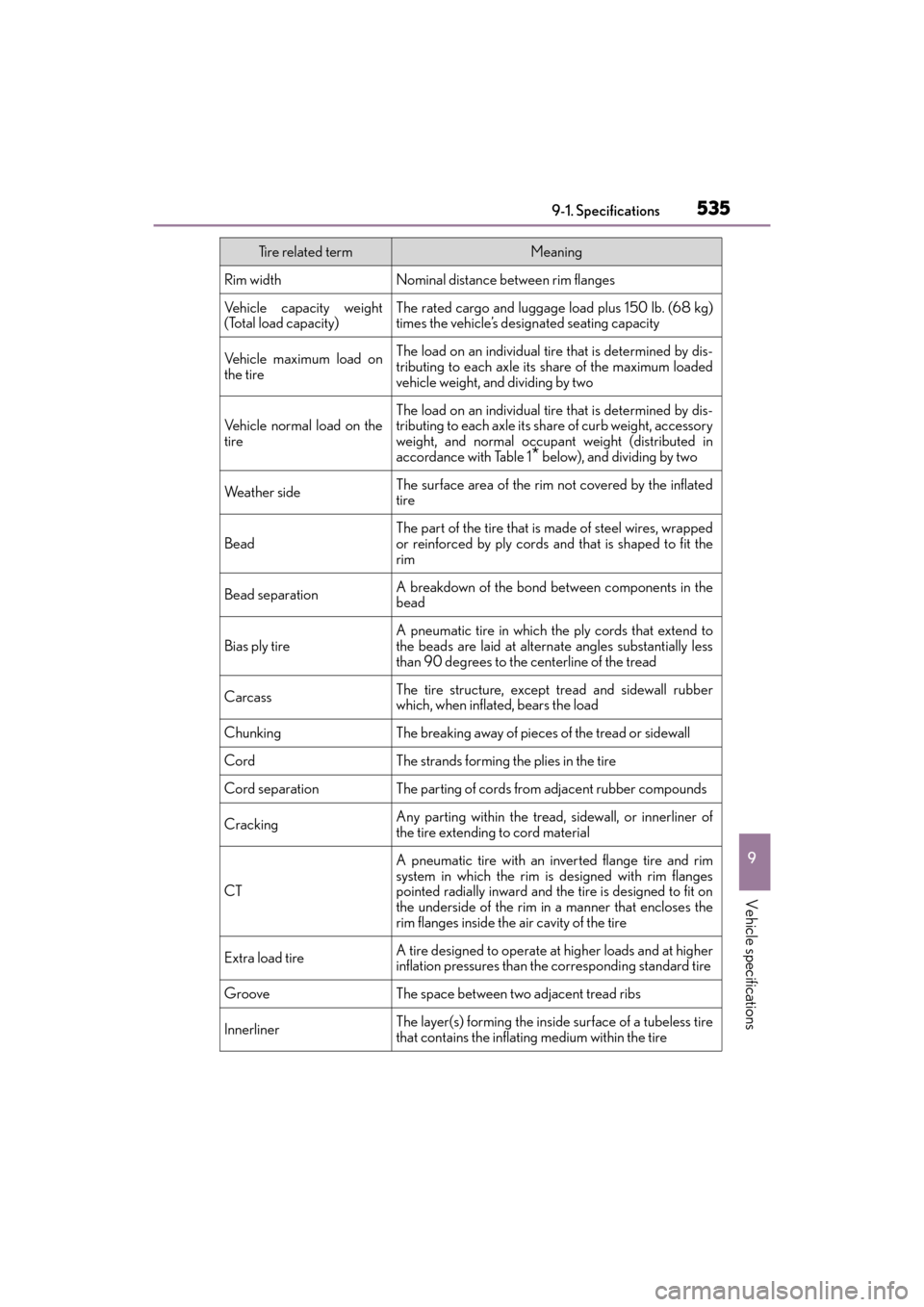

5359-1. Specifications
9
Vehicle specifications
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68 kg)
times the vehicle’s designated seating capacity
Vehicle maximum load on
the tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of the maximum loaded
vehicle weight, and dividing by two
Vehicle normal load on the
tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of curb weight, accessory
weight, and normal occupant weight (distributed in
accordance with Table 1
* below), and dividing by two
We a t h e r s i d eThe surface area of the rim not covered by the inflated
tire
BeadThe part of the tire that is made of steel wires, wrapped
or reinforced by ply cords and that is shaped to fit the
rim
Bead separationA breakdown of the bond between components in the
bead
Bias ply tireA pneumatic tire in which the ply cords that extend to
the beads are laid at alternate angles substantially less
than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming the plies in the tire
Cord separationThe parting of cords from adjacent rubber compounds
CrackingAny parting within the tread, sidewall, or innerliner of
the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on
the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire
Extra load tireA tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless tire
that contains the inflating medium within the tire
Tire related termMeaning

576Alphabetical index
ES350_OM_OM33C68U_(U)
Tire inflation pressureMaintenance data .............................. 522
Tire inflation pressure display function .................................................... 81
Warning light ...................................... 484
Tire information ..................................... 528
Glossary .................................................534
Size ............................................................. 531
Tire identification number............. 530
Uniform Tire Quality Grading...............................................532
Tire pressure warning system
Function ..................................................443
Initializing ................................................443
Installing tire pressure warning valves and transmitters ................443
Registering ID codes ....................... 444
Tire pressure warning reset switch.................................................... 444
Warning light ...................................... 484
Tires Chains...................................................... 264
Checking................................................ 442
If you have a flat tire ........................... 491
Inflation pressure ................................ 522
Information ........................................... 528
Replacing ................................................ 491
Rotating tires ........................................ 442
Size ............................................................ 522
Snow tires ..............................................266
Spare tire ................................................. 491
Tire inflation pressure display
function .................................................... 81
Tire pressure warning system .....443
Warning light ...................................... 484 Tools ...........................................................492
Top tether strap ......................................... 61
Total load capacity.................................. 151
Towing
Dinghy towing .......................................153
Emergency towing ........................... 476
Towing eyelet ...................................... 478
Trailer towing.........................................152
TRAC (Traction Control)................. 258
Transmission Automatic transmission ....................159
Driving mode select switch .......... 248
If the shift lever cannot be shifted from P ..................................... 162
Trip information ........................................87
Trip meters.................................................. 76
Trunk Internal trunk release lever ............ 103
Jam protection function................... 103
Luggage security system.................102
Power trunk opener and closer .... 101
Smart access system
with push-button start................... 108
Trunk closer switch.............................102
Trunk easy closer ............................... 103
Trunk features......................................386
Trunk handle ..........................................102
Trunk light............................................... 103
Trunk opener main switch ..............102
Trunk opener switch ........................... 101
Trunk storage extension ................ 393
Wireless remote control................... 95
Trunk light Trunk light............................................... 103
Wattage ................................................. 524

577Alphabetical index
ES350_OM_OM33C68U_(U)
Turn signal lightsReplacing light
bulbs.............................465, 468, 470
Turn signal lever .................................. 163
Wattage ..................................................524
USB memory
*....................................... 279
Vanity lights Vanity lights ......................................... 388
Wattage ..................................................524
Vanity mirrors ........................................... 388
Vehicle data recordings .......................... 9
Vehicle identification number...........517
Vehicle Stability Control
(VSC) ..................................................... 258
Ventilators (seat ventilators)............ 378
VSC (Vehicle Stability Control) ............ 258
Warning buzzers Approach warning ............................. 215
Downshifting ........................................... 161
Seat belt reminder ............................ 483 Warning lights ........................................... 73
ABS .......................................................... 482
AFS OFF indicator ........................... 484
Brake system ....................................... 482
Electric power steering ..................483
Low fuel level .......................................483
Malfunction indicator lamp........... 482
Master warning light ........................ 483
Pre-collision system ......................... 483
Seat belt reminder light ..................483
Slip indicator ........................................483
SRS............................................................ 482
Tire pressure ........................................484
Warning messages.............................. 488
Washer Checking ................................................. 441
Preparing and checking before winter .................................... 263
Switch ........................................................ 173
Washing and waxing ............................ 414
Weight Cargo capacity...................................... 151
Load limits ................................................ 151
Weight ......................................................516
Welcome light illumination control .......................................................96
Wheels Replacing wheels .............................. 453
Size ........................................................... 522
U
V
W
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
