5008-2. Steps to take in an emergency
ES350_OM_OM33C68U_(U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire. (→P. 5 2 2 )
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire pressure
warning system. Also, if you replace the compact spare tire after the tire pressure warn-
ing light comes on, the light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to when
driving with standard tires.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the follow-
ing steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
1
2
3

5018-2. Steps to take in an emergency
ES350_OM_OM33C68U_(U)
8
When trouble arises
WA R N I N G
■When using the compact spare tire
●Remember that the compact spare tire provid ed is specifically designed for use with
your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
NOTICE
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact your Lexus dealer as the tire pressure warning valve and transmitter
may be damaged if not handled correctly.
• ABS & Brake assist
•VSC
•TRAC
•Cruise control
• Dynamic radar cruise control (if equipped)
•PCS (if equipped) •EPS
• LDA (Lane Departure Alert with
steering control) (if equipped)
• Lexus parking assist monitor
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)

ES350_OM_OM33C68U_(U)
5339-1. Specifications
9
Vehicle specifications
■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and they rep-
resent the tire’s ability to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking (straight
ahead) traction tests and does not include cornering (turning) traction.
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing the tire’s
resistance to the generation of heat and its ability to dissipate heat when
tested under controlled conditions on a specified indoor laboratory test
wheel.
Sustained high temperature can cause the material of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory test
wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly inflated and
not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in com-
bination, can cause heat buildup and possible tire failure.

540
ES350_OM_OM33C68U_(U)9-2. Customization
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered
(indicated on the multi-information display)
*3: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
■LDA (Lane Departure Alert with steering control) (if equipped) ( →P. 199)
■PCS (Pre-Collision System) (if equipped) ( →P. 1 8 7 )
FunctionDefault
settingCustomized setting
Steering AssistOnOff—O—
Alert means
(Steering
vibration)
(Buzzer)—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning sensi-
tivityStandardLow—O—High
123
FunctionDefault settingCustomized setting
PCS (Pre-Collision System)OnOff—O—
Alert timing
(Middle)

(Far)
—O—

(Near)
123

548

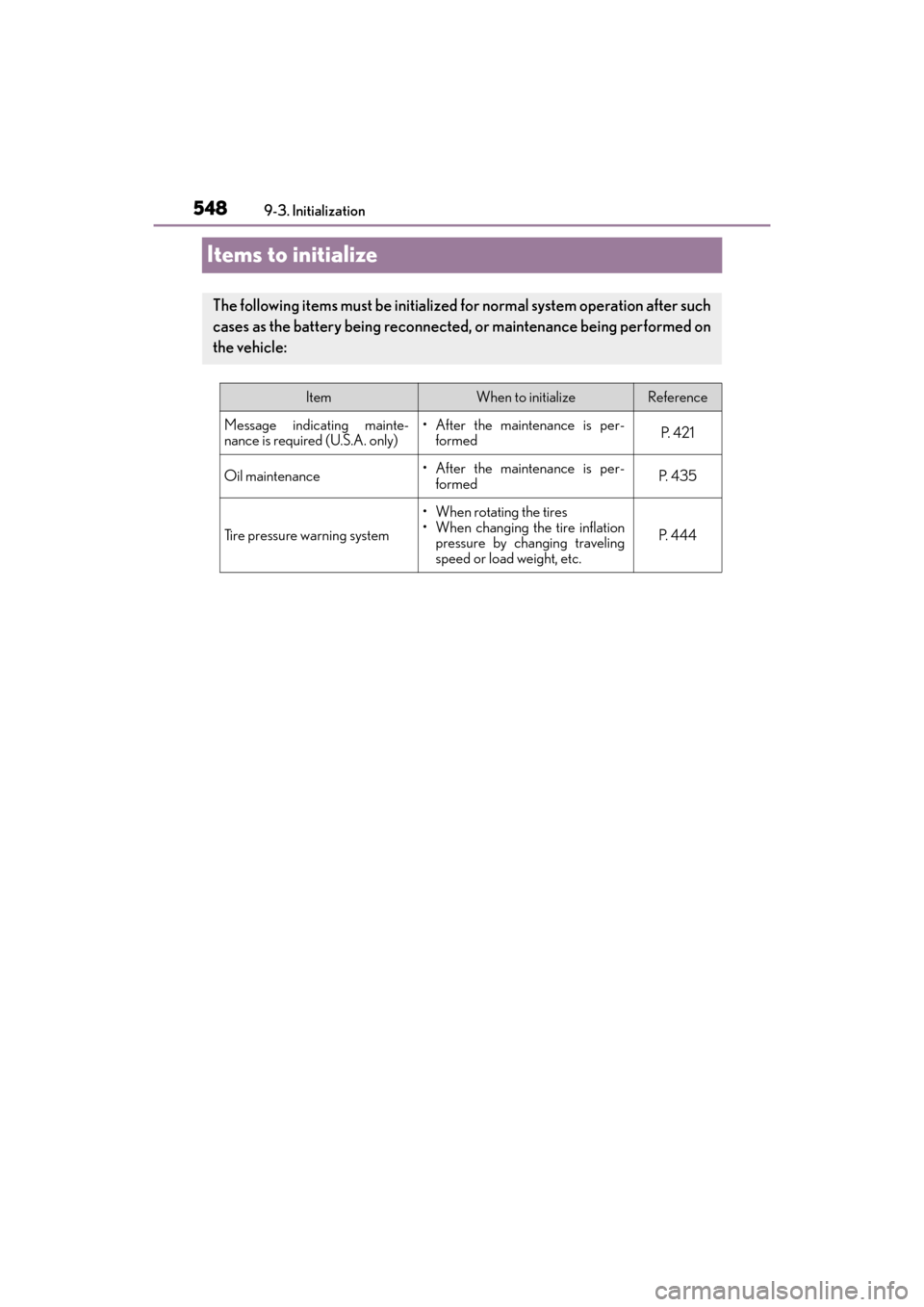

ES350_OM_OM33C68U_(U)9-3. Initialization
Items to initialize
The following items must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)• After the maintenance is per-
formedP. 4 2 1
Oil maintenance• After the maintenance is per-
formedP. 4 3 5
Tire pressure warning system
• When rotating the tires
• When changing the tire inflationpressure by changing traveling
speed or load weight, etc.
P. 4 4 4

562What to do if... (Troubleshooting)
ES350_OM_OM33C68U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 4 8 3 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 1 6 4 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 482, 488)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 6 7 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 4 8 8 )
●When a warning light turns on or a warning message is displayed, refer to
P. 482, 488.
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(→ P. 4 9 1 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(→ P. 5 1 3 )
A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
A warning buzzer sounds wh en leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

564Alphabetical index
ES350_OM_OM33C68U_(U)
Alphabetical index
A/CAir conditioning filter ....................... 455
Automatic air conditioning system ................................................. 368
Micro dust and pollen
filter ........................................................ 373
ABS (Anti-lock Brake System)
Function ................................................. 258
Warning light .......................................482
Adaptive Front-lighting System (AFS) ..................................................... 484
AFS (Adaptive Front-lighting System) .................................................. 484
Air conditioning filter .......................... 455
Air conditioning system Air conditioning filter ....................... 455
Automatic air conditioning system ................................................. 368
Micro dust and pollen
filter ........................................................ 373 Airbags
Airbag operating conditions ............ 41
Airbag precautions for your child ........................................37
Airbag warning light ........................ 482
Correct driving posture .................... 28
Curtain shield airbag operating conditions ......................... 41
Curtain shield airbag precautions ...........................................37
Front passenger occupant classification system......................... 44
General airbag precautions ............37
Locations of airbags............................ 35
Modification and disposal of airbags............................................... 40
Side airbag operating conditions ............................................... 41
Side airbag precautions .....................37
Side and curtain shield airbags operating conditions ......................... 41
Side and curtain shield
airbags precautions ..........................37
SRS airbags ............................................. 35
Alarm ............................................................ 67 Warning buzzer ................................. 482
Anchor brackets...................................... 55
Antennas (smart access system with push-button start) .................... 108
Anti-lock Brake System (ABS)
Function ..................................................258
Warning light ....................................... 482
Approach warning (dynamic radar cruise control).......................... 215
Armrest .................................................... 390
A

565Alphabetical index
ES350_OM_OM33C68U_(U)
Armrest door ......................................... 393
Assist grip ................................................ 394
Audio input.............................................. 279
Audio system
*....................................... 270
Audio input............................................ 279
AUX port ............................................... 279
Bluetooth
® audio ............................. 328
CD player ............................................. 302
iPod .......................................................... 309
MP3/WMA disc .............................. 302
Optimal use ......................................... 289
Portable music player ........................317
Radio ........................................................296
Setup menu ...........................................282
Steering wheel audio switches ............................................... 276
USB memory ........................................ 313
Automatic air conditioning
system .................................................... 368
Automatic headlight leveling
system ...................................................... 167
Automatic High Beam ........................ 168
Automatic light control system ......................................................165
Automatic transmission ...................... 159 If the shift lever
cannot be shifted from P ............. 162
AUX port
*.............................................. 279
Auxiliary box ..........................................385 Back-up lights
Replacing light bulbs ....................... 469
Wattage ................................................. 524
Battery ...................................................... 439 If the battery
is discharged ................................... 506
Preparing and checking before
winter.................................................... 263
Bluetooth
®*
Audio system ........................................ 318
Hands-free system
(for cellular phone) ....................... 329
Brake
Fluid ..........................................................438
Parking brake ........................................164
Warning light ....................................... 482
Brake assist ............................................. 258
Break-in tips ............................................. 142
Brightness control
Instrument panel light control ......... 77
BSM (Blind Spot Monitor) ............... 250
Care Aluminum wheels ................................415
Exterior ..................................................... 414
Interior ....................................................... 417
Seat belts..................................................418
Cargo capacity ........................................ 151
Cargo hooks .......................................... 386
CD player
*............................................. 302
Chains........................................................264
B
C
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
