2017 Lexus ES350 seat memory

TABLE OF CONTENTS2
ES350_OM_OM33C68U_(U)
For your information ................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index ............................................... 14
1-1. For safe useBefore driving................................. 26
For safe driving .............................. 28
Seat belts .......................................... 30
SRS airbags ..................................... 35
Front passenger occupant classification system.................. 44
Safety information for children ................................... 50
Child restraint systems .................51
Installing child restraints............. 55
Exhaust gas precautions............ 64
1-2. Theft deterrent system Engine immobilizer system....... 65
Alarm ..................................................67
2. Instrument cluster Warning lights and indicators ...............................72
Gauges and meters ...................... 76
Multi-information display ..........80
Fuel consumption information ................................... 86 3-1. Key information
Keys .................................................... 92
3-2. Opening, closing and locking the doors and trunk
Doors ................................................. 95
Trunk...................................................101
Smart access system with push-button start ............ 108
3-3. Adjusting the seats Front seats........................................ 116
Driving position memory........... 117
Head restraints .............................. 121
3-4. Adjusting the steering wheel and mirrors
Steering wheel .............................. 124
Inside rear view mirror .............. 126
Outside rear view mirrors........128
3-5. Opening, closing the windows and moon roof
Power windows .............................. 131
Moon roof .......................................134
1For safety and security
2Instrument cluster
3Operation of each
component

91
ES350_OM_OM33C68U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................................... 92
3-2. Opening, closing and locking the doors and trunk
Doors ................................................. 95
Trunk ...................................................101
Smart access system with push-button start ............ 108
3-3. Adjusting the seats Front seats........................................ 116
Driving position memory ........... 117
Head restraints .............................. 121
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................124
Inside rear view mirror...............126
Outside rear view mirrors ....... 128
3-5. Opening, closing the windows and moon roof
Power windows .............................. 131
Moon roof ...................................... 134

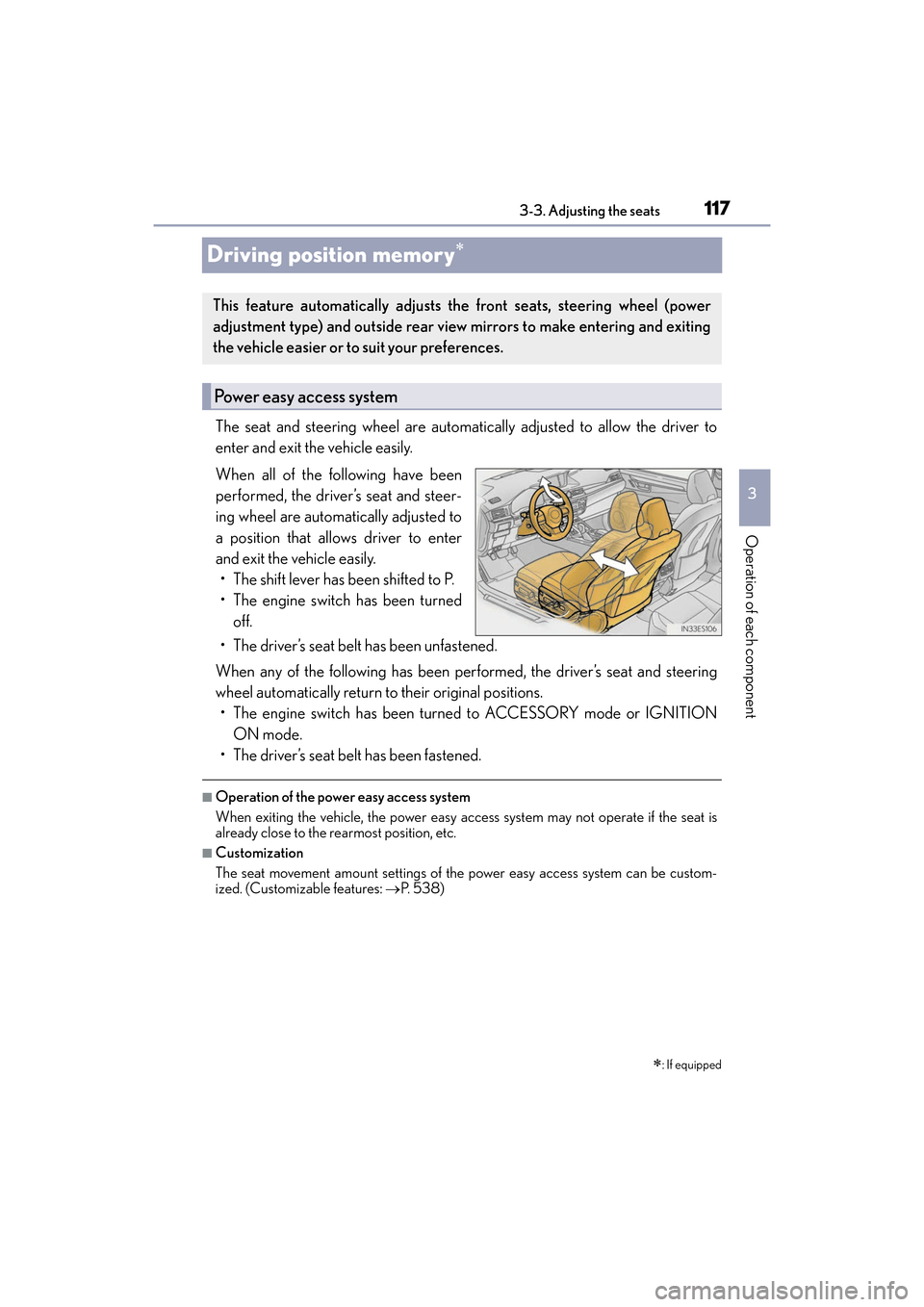

117
ES350_OM_OM33C68U_(U)3-3. Adjusting the seats
3
Operation of each component
Driving position memory∗
The seat and steering wheel are automatically adjusted to allow the driver to
enter and exit the vehicle easily.
When all of the following have been
performed, the driver’s seat and steer-
ing wheel are automatically adjusted to
a position that allows driver to enter
and exit the vehicle easily.
• The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and steering
wheel automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode or IGNITION
ON mode.
• The driver’s seat belt has been fastened.
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat is
already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be custom-
ized. (Customizable features: →P. 5 3 8 )
∗: If equipped
This feature automatically adjusts the front seats, steering wheel (power
adjustment type) and outside rear view mirrors to make entering and exiting
the vehicle easier or to suit your preferences.
Power easy access system

118
ES350_OM_OM33C68U_(U)3-3. Adjusting the seats
Your preferred driving position (the position of the driver’s seat, steering wheel
and outside rear view mirrors) can be recorded and recalled by pressing a but-
ton.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors to the
desired positions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the
buzzer sounds.
If the selected button has already
been preset, the previously recorded
position will be overwritten.
Vehicles with the driving position memory for the front passenger’s seat: To
record the position of the front passenger’s seat, adjust the front passenger’s
seat to the desired position and perform step using the buttons on the front
passenger’s side.
■Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
Driving position memory
1
2
3
4
4
1
2
3

ES350_OM_OM33C68U_(U)
1193-3. Adjusting the seats
3
Operation of each component
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
■Seat positions that can be memorized (→P. 1 1 6 )
The adjusted positions other th an the position adjusted by lumbar support switch can be
recorded.
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passenger’s
door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in the
same direction, the recorded position may be slightly different when it is recalled.
Each electronic key can be registered to recall your preferred driving position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the
following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded
properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
While pressing the recalled but-
ton, press and hold the door lock
switch (either lock or unlock) until
the buzzer sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function (driver’s side only)
1
2
3
4

120
ES350_OM_OM33C68U_(U)3-3. Adjusting the seats
■Recall procedure
Carry the electronic key that has been registered to the driving position,
and then unlock and open the driver’s door using the smart access system
with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the steering
wheel). However, the seat will move to a position slightly behind the recorded posi-
tion in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat and
outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON mode,
or fasten a seat belt.
The seat and steer ing wheel will move to the recorded position.
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the driving
position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: →P. 5 3 8 )
WA R N I N G
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
1
2
1
2

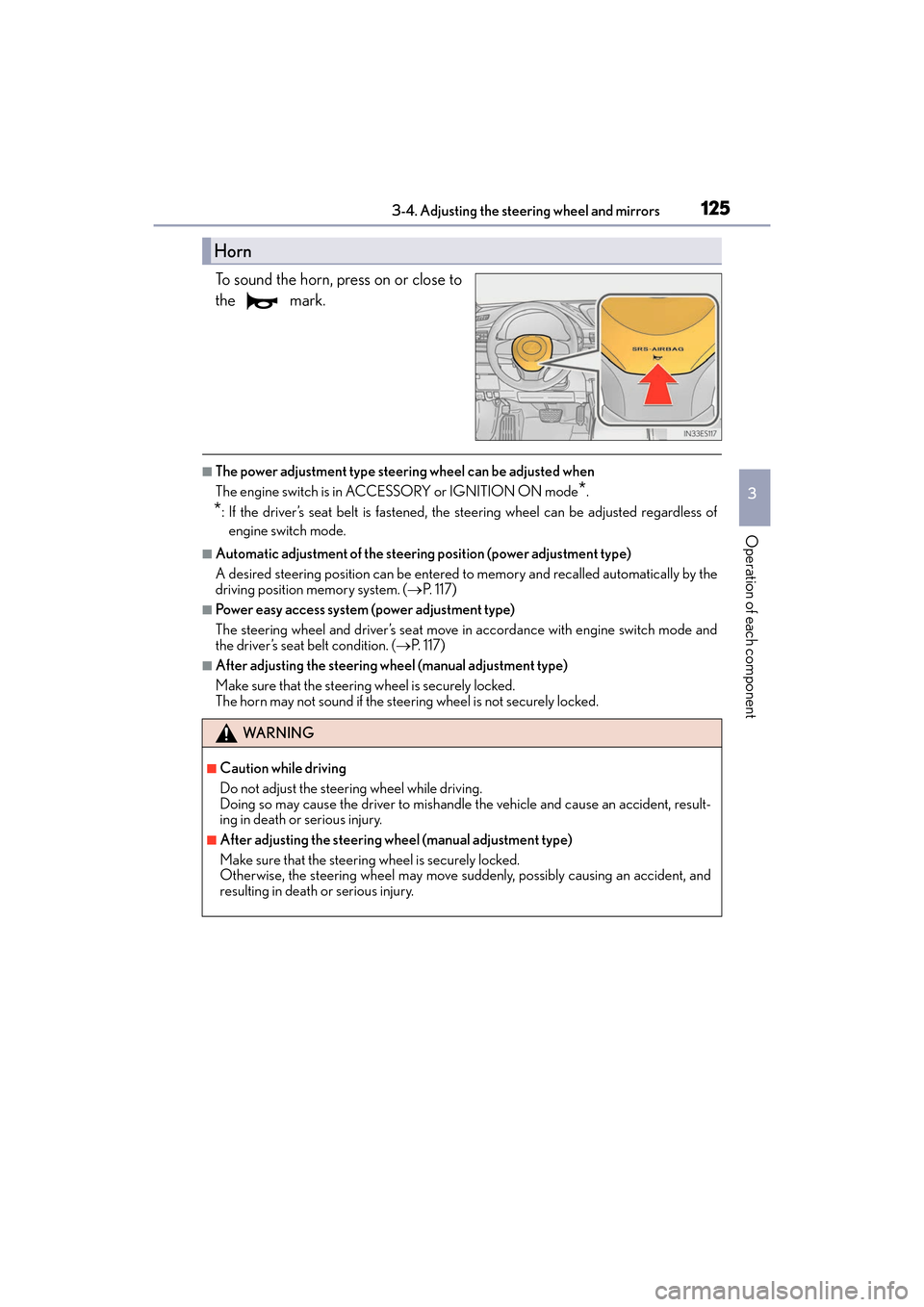

1253-4. Adjusting the steering wheel and mirrors
ES350_OM_OM33C68U_(U)
3
Operation of each component
To sound the horn, press on or close to
the mark.
■The power adjustment type steering wheel can be adjusted when
The engine switch is in AC CESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of
engine switch mode.
■Automatic adjustment of the steering position (power adjustment type)
A desired steering position can be entered to memory and recalled automatically by the
driving position memory system. ( →P. 1 1 7 )
■Power easy access system (power adjustment type)
The steering wheel and driver’s seat move in accordance with engine switch mode and
the driver’s seat belt condition. ( →P. 1 1 7 )
■After adjusting the steering wh eel (manual adjustment type)
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Horn
WA R N I N G
■Caution while driving
Do not adjust the steer ing wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.
■After adjusting the steering wh eel (manual adjustment type)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident, and
resulting in death or serious injury.

ES350_OM_OM33C68U_(U)
5439-2. Customization
9
Vehicle specifications
■Wireless remote control (→P. 9 5 )
■Driving position memory (if equipped) ( →P. 1 1 7 )
■Po w e r w i n d o w s ( →P. 131) and moon roof ( →P. 1 3 4 )
FunctionDefault settingCustomized
setting
Wireless remote controlOnOff——O
Allows all doors to be
unlocked by pressing
on the electronic key twiceOn (Driver’s
door unlocked in one step, all
doors unlocked in two steps)Off (All doors
unlocked in one
step)O—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
123
FunctionDefault settingCustomized setting
Driver’s seat movement when
exiting the vehicleFullOffO—OPa r t i a l
Selecting the door linking
driving position memory with
door unlock operationDriver’s doorAll doors——O
123
FunctionDefault settingCustomized setting
Mechanical key linked opera-
tionOffOn——O
Wireless remote control
linked operation (Open only)OffOn——O
Buzzer sounds if operated
using wireless remote controlOnOff——O
123
