2017 Lexus ES300h ignition

3
ES300h_QG_OM33C90U_(U)
Moon Roof............................................................................................................................................. 94
Multi-information Display ..............................................................................................................33
Navigation System
*
Register home .................................................................................................................. ...............56
Destination search............................................................................................................. ............ 57
Outside Rear View Mirrors ...........................................................................................................25
Po r t a b l e A u d i o D e v i c e Po r t s .........................................................................................................82
Power (Ignition) Switch .................................................................................................................... 26
Po we r Wi n d o w s ...................................................................................................................................93
Rear Sunshade/Rear Door Sunshades ....................................................................................83
Remote Touch (with navigation system) ................................................................................... 52
Seat Heaters and Ventilators ........................................................................................................82
Smart Access System with Push-button Start ........................................................................ 19
Theft Deterrent System ...................................................................................................................20
Tire Pressure Warning System ....................................................................................................... 51
Tr u n k .......................................................................................................................................................... 96
Tu r n S i g n a l L e v e r ................................................................................................................................. 32
Vo i c e C o m m a n d S y s t e m Basic operation ................................................................................................................ ............... 77
Command list ................................................................................................................... ............... 78
Windshield Wipers and Washer ...................................................................................................38
XM Satellite Radio .............................................................................................................................. 9 1
*: These features may be operated by Voice Command (See P.77)

6
ES300h_QG_OM33C90U_(U)
∗: If equipped
*: Refer to “OWNER’S MANUAL”.
Remote Touch screen∗
Navigation system∗
Lexus Display Audio system
∗
P.52
P.56
P.65
Clock*
Trunk opener main switch
P.96
Audio system P.61, 70
Air conditioning system P.74
Emergency flasher switch*
See P.9 Power (ignition) switch
P.26
Parking brake*
Tilt and telescopic steering control switch∗*
Floor mats P.11

15
ES300h_QG_OM33C90U_(U)
●How to display on the multi-information display
Press or of the meter control switches and select , and then press or
to select the energy monitor display.
■Fuel Consumption
● Trip information
Navigation system screen
Press the “MENU” button on the Remote Touch, then select on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the hybrid
system was started
Elapsed time since the hybrid system
was started
Cruising range
Average fuel consumption for the past 15 minute s is divided by color into past averages and
averages attained since the engine switch was last turned to IGNITION ON mode. Use the
displayed average fuel consumption as a reference.
The image is an example only.
The flow of energy is indicated by the movement of the
arrows on the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery A light blue arrow appears when regenerative braking
occurs.
The displayed energy flow, battery level, etc. will change in response to the current driving
conditions.
1
2
3
4
5
6
7

26
ES300h_QG_OM33C90U_(U)

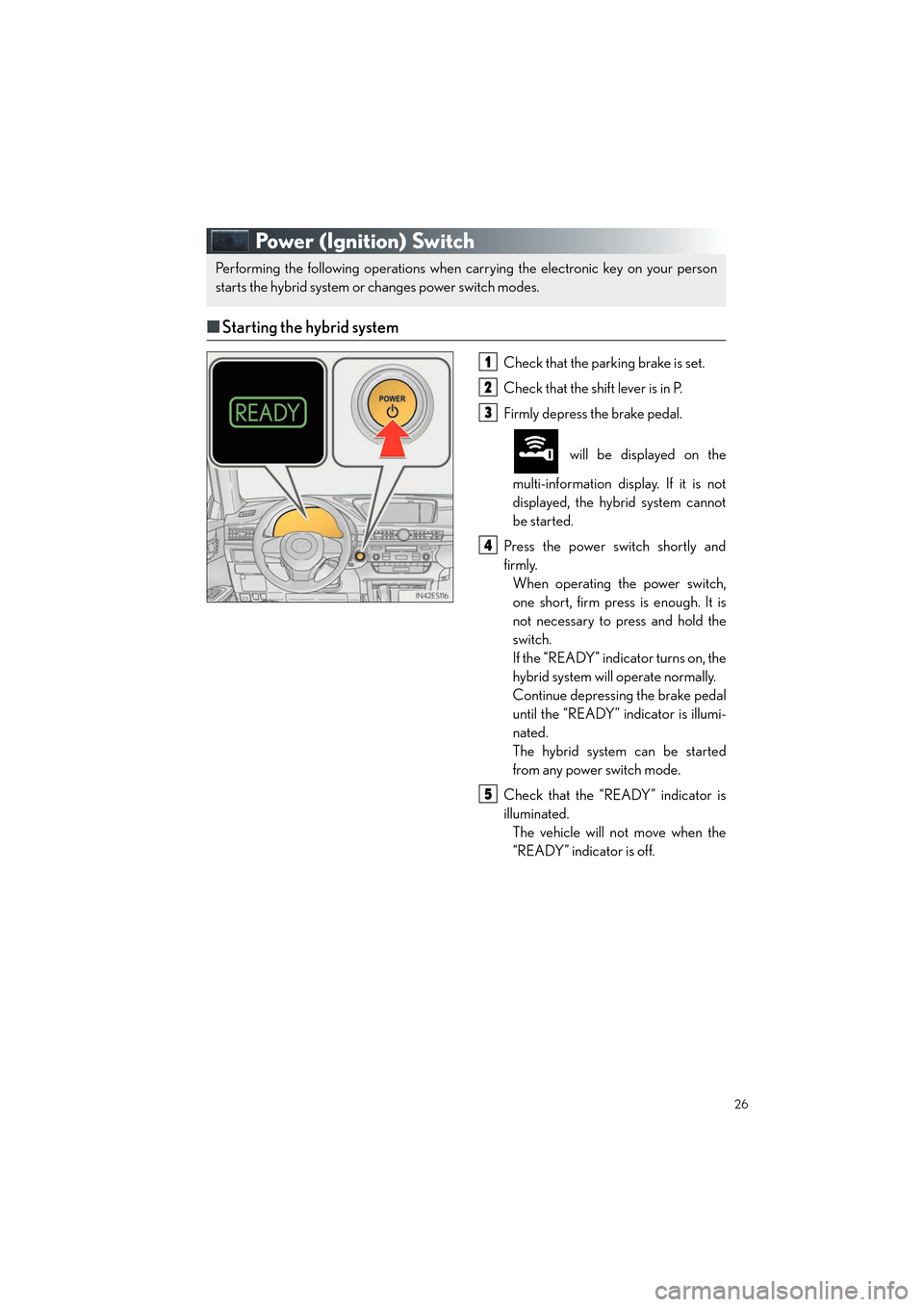

Power (Ignition) Switch
■Starting the hybrid system
Check that the parking brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal.
will be displayed on the
multi-information display. If it is not
displayed, the hybrid system cannot
be started.
Press the power switch shortly and
firmly. When operating the power switch,
one short, firm press is enough. It is
not necessary to press and hold the
switch.
If the “READY” indicator turns on, the
hybrid system will operate normally.
Continue depressing the brake pedal
until the “READY” indicator is illumi-
nated.
The hybrid system can be started
from any power switch mode.
Check that the “READY” indicator is
illuminated. The vehicle will not move when the
“READY” indicator is off.
Performing the following operations when carrying the electronic key on your person
starts the hybrid system or changes power switch modes.
1
2
3
4
5
