ES300h_OM_OM33C75U_(U)

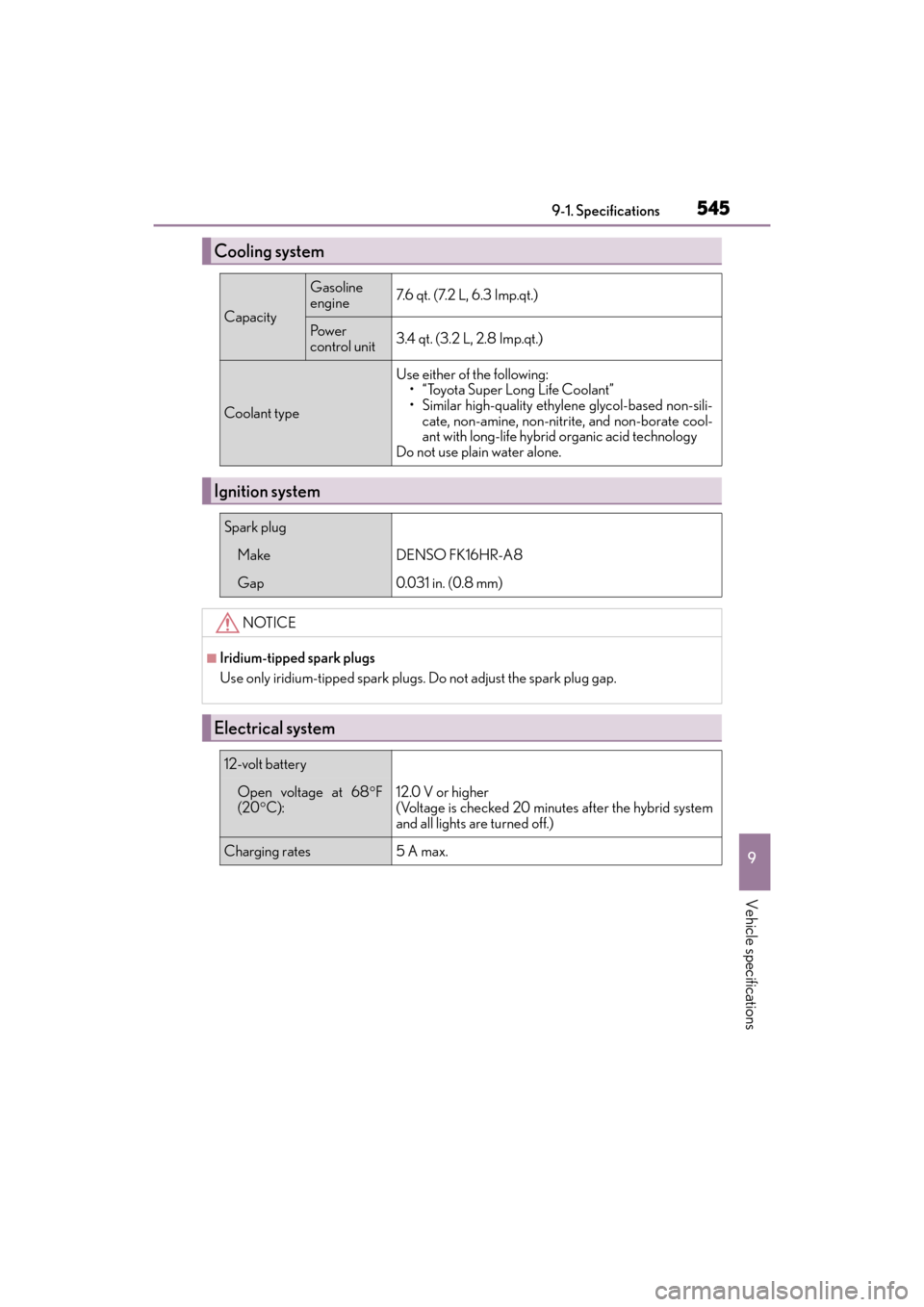

5459-1. Specifications
9
Vehicle specifications
Cooling system
Capacity
Gasoline
engine7.6 qt. (7.2 L, 6.3 Imp.qt.)
Pow e r
control unit3.4 qt. (3.2 L, 2.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16HR-A8
Gap0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68 °F
(20 °C):12.0 V or higher
(Voltage is checked 20 minutes after the hybrid system
and all lights are turned off.)
Charging rates5 A max.
594Alphabetical index
ES300h_OM_OM33C75U_(U)
Emergency, in case ofIf a warning buzzer
sounds................................................. 505
If a warning light turns on.............. 505
If a warning message is displayed ........................................... 511
If the 12-volt battery is discharged .........................................529
If the electronic key does not operate properly ........ 527
If the hybrid system will not start ............................................... 525
If you have a flat tire ........................... 515
If you think something is wrong.............................................. 504
If your vehicle becomes
stuck ...................................................... 537
If your vehicle has to be
stopped in an emergency ......... 499
If your vehicle needs
to be towed ......................................500
If your vehicle overheats ............... 533
Emergency flashers ............................. 498
Energy monitor .........................................97 Engine
Accessory mode .................................169
Compartment .......................................451
Hood........................................................ 449
How to start the hybrid system ................................................... 168
Identification number ....................... 542
Ignition switch (power switch) ..... 168
Overheating.........................................533
Power switch. ....................................... 168
Engine compartment cover..............452
Engine coolant Capacity .................................................545
Checking ............................................... 457
Preparing and checking before winter .................................... 284
Engine coolant temperature gauge ........................................................ 86
Engine oil Capacity ................................................. 543
Checking ............................................... 453
Preparing and checking
before winter .................................... 284
