CT200h_OM_OM76215U_(U)5-7. Setup menu
5
Audio system
Setting a cellular phone
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
●Registering a cellular phone
1. “Setup”
 2. “Phone Setup”  3. “Pair Phone”
●Selecting a cellular phone to be used
1. “Setup”  2. “Phone Setup”  3. “Connect Phone (Connect)”
●Changing the registered name of a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Change Name”
●Listing the registered cellular phones
1. “Setup”  2. “Phone Setup”  3. “List Phones”
●Changing the passkey
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”
●Deleting a registered cellular phone
1. “Setup”  2. “Phone Setup”  3. “Delete Phone”
Select “Pair Phone” using a voice command or the “TUNE•SEL” knob, and per-
form the procedure for registering a cellular phone. ( P. 2 9 7 )
Registering a cellular phone in the hands-free phone system allows the system
to function. The following functions can be used for registered cellular
phones:
Functions and operation procedures
Registering a cellular phone

CT200h_OM_OM76215U_(U)
3055-7. Setup menu
5
Audio system
Select “Set Passkey” using a voice command or the “TUNE•SEL” knob.
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select “Confirm” using a
voice command or the knob.
Pattern B
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Select “Delete Phone” using a voice command or the “TUNE•SEL” knob.
Pattern A
Select the cellular phone to be deleted by either of the following methods and
select “Confirm” using a voice command or the knob:
a. Press the talk switch and say the name of the desired cellular phone.
b. Press the talk switch and say “List Phones”. When the name of the desired cellular phone is read aloud, press the talk switch.
Pattern B
Select the desired cellular phone to be deleted using the knob.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player, the
registration of the audio player can be deleted at the same time. A voice guid-
ance instruction to delete a Bluetooth
® audio player is heard.
Select “Yes” or “No” using a voice command or the knob.
(Bluetooth
® audio player P. 3 2 1 )
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
Changing the passkey
Deleting a registered cellular phone
1
2
2
3
1
2
2
3

3085-7. Setup menu
CT200h_OM_OM76215U_(U)
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
•Guidance volume
• Receiver volume
• Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its original
state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book

CT200h_OM_OM76215U_(U)
4196-1. Using the air conditioning system and defogger
6
Interior features

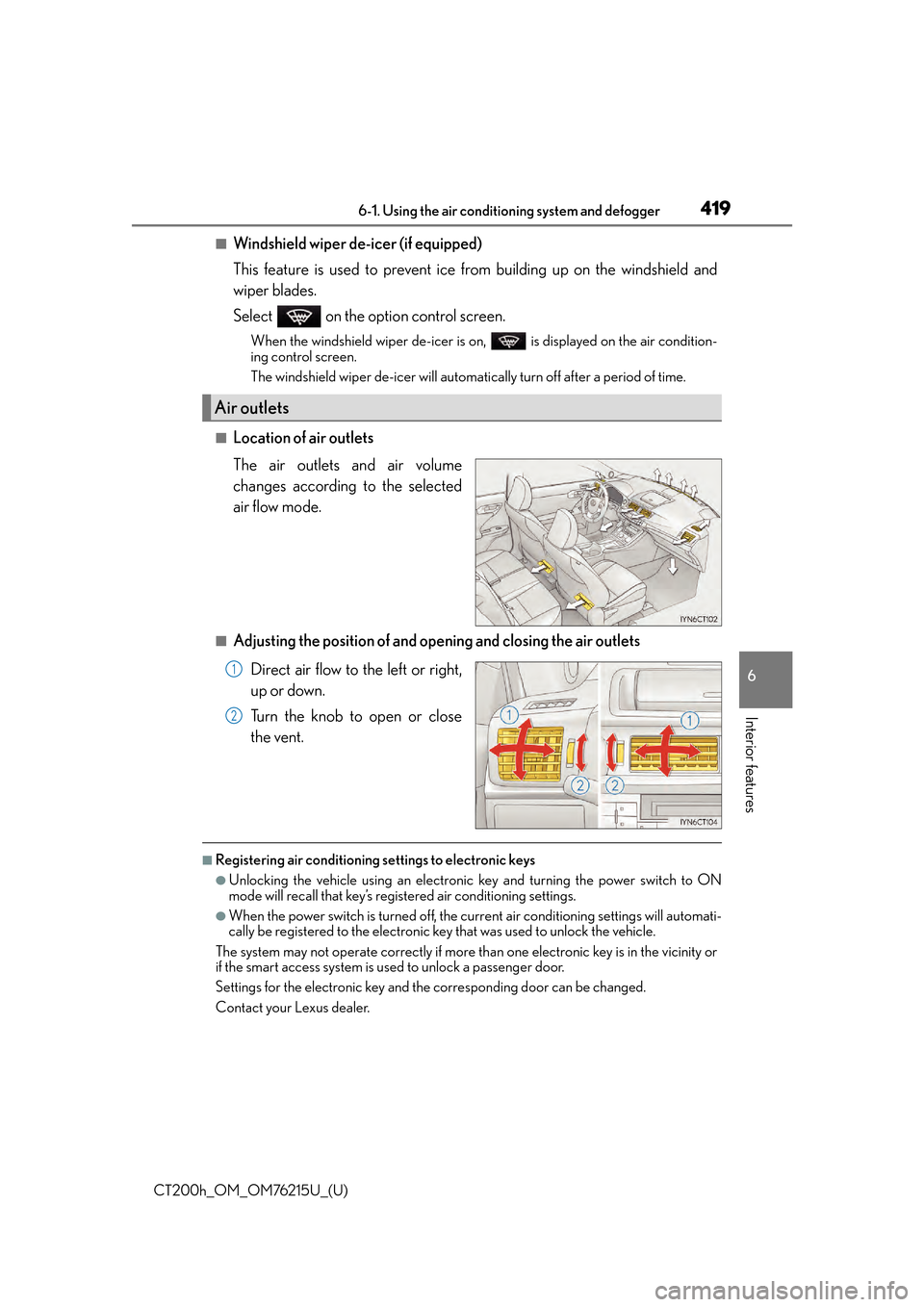

■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice fr om building up on the windshield and
wiper blades.
Select on the option control screen.
When the windshield wiper de-icer is on , is displayed on the air condition-
ing control screen.
The windshield wiper de-icer will automati cally turn off after a period of time.
■Location of air outlets
The air outlets and air volume
changes according to the selected
air flow mode.
■Adjusting the position of and opening and closing the air outlets
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic key and turning the power switch to ON
mode will recall that key’s registered air conditioning settings.
●When the power switch is turned off, the curr ent air conditioning settings will automati-
cally be registered to the electronic key that was used to unlock the vehicle.
The system may not operate correctly if more th an one electronic key is in the vicinity or
if the smart access system is used to unlock a passenger door.
Settings for the electronic key and the corresponding door can be changed.
Contact your Lexus dealer.
Air outlets
1
2

4266-1. Using the air conditioning system and defogger
CT200h_OM_OM76215U_(U)
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic key and turning the power switch to ON
mode will recall that key’s registered air conditioning settings.
●When the power switch is turned off, the curr ent air conditioning settings will automati-
cally be registered to the electronic key that was used to unlock the vehicle.
The system may not operate correctly if more th an one electronic key is in the vicinity or
if the smart access system is used to unlock a passenger door.
■Using automatic mode
Fan speed is adjusted automatically accordin g to the temperature setting and the ambi-
ent conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately
after the “AUTO” button is pressed.
■When the outside temperature exceeds 75 F (24 C) and the air conditioning system
is on
●In order to reduce the air conditioning po wer consumption, the air conditioning system
may switch to recirculated air mode automatically.
This may also reduce fuel consumption.
●Recirculated air mode is selected as a default mode when the power switch is turned to
ON mode.
●It is possible to switch to outside air mode at any time by pressing .
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Pressing “A/C”
button on will dehumidify the air from the outlets and defog the windshield effectively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set to
the recirculated air mode. This is effective in preventing outside air from entering the
vehicle interior. During cooling operation, setting the recirculated air mode will also
cool the vehicle interior effectively.
●Outside/recirculated air mode may automa tically switch depending on the tempera-
ture setting or the inside temperature.

432
CT200h_OM_OM76215U_(U)6-2. Using the interior lights
Turns the lights on/off
Tu r n s t h e l i g h t o n
Turns the door position on
*
*
: When the personal/interior light main switch is in the off position, the rear inte-
rior light will not turn on even if the door
is opened with the rear interior light
switch in door position.
●Illuminated entry system: The lights automatical ly turn on/off according to power switch
mode, the presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
●If the interior lights remain on when the power switch is turned off, the lights will go off
automatically after 20 minutes.
●Settings (e.g. the time elapsed before the lights turn off) can be changed.
(Customizable features: P. 5 9 8 )
Front personal/interior lights
Rear interior light
1
2
NOTICE
To prevent 12-volt battery discharge, do not leave the lights on longer than necessary
when the hybrid system is off.

434
CT200h_OM_OM76215U_(U)6-3. Using the storage features
Open (press the button)
Lock with the mechanical key
Unlock with the mechanical key
Lift the lid while pushing the knob to
release the lock.
■Cup holders
Glove box
1
2
3
Console box
The tray slides forward/backward and can be
removed.
Cup holders/bottle holders/door pockets

465
CT200h_OM_OM76215U_(U)
7Maintenance and care
7-1. Maintenance and careCleaning and protecting the vehicle exterior ........................ 466
Cleaning and protecting the vehicle interior ......................... 469
7-2. Maintenance Maintenance requirements..............................472
General maintena nce ............... 474
Emission inspection and maintenance (I/M)
programs .....................................477
7-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................ 478
Hood .............................................. 480
Positioning a floor jack ............. 482
Engine compartment ...............483
12-volt battery............................... 491
Tires .................................................. 495
Tire inflation pressure ...............502
Wheels .......................................... 505
Air conditioning filter ............... 507
Electronic key battery ..............509
Checking and replacing fuses ................................................. 511
Light bulbs...................................... 514
