CT200h_OM_OM76215U_(U)5-1. Basic Operations
Using the steering wheel audio switches
Volume switch:
• Press: Increases/decreases vol- ume
• Press and hold: Continuously increases/decreases volume
Radio mode: • Press: Selects a radio station
• Press and hold: Seeks up/down
CD, MP3/WMA disc, Bluetooth
®, iPod or USB mode:
• Press: Selects a track/file/song
• Press and hold: Selects a folder or album (MP3/WMA disc, Bluetooth
®,
iPod or USB)
“MODE” switch: • Press: Turns the power on, selects an audio source
• Press and hold: Turns the power off
■Canceling automatic select ion of a radio station
Press the “ ” or “” button again.
Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on th e type of audio system or navigation
system. For details, refer to the manual provided with the audio system or nav-
igation system.
1
2
WA R N I N G
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3

329
CT200h_OM_OM76215U_(U)5-11. Basic Operations (Lexus Display Audio System)
5
Audio system
Steering wheel audio switches
Volume switch
• Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
Radio mode: • Press: Select a radio station
• Press and hold: Seek up/down
CD, MP3/WMA/AAC disc,
Bluetooth
®, iPod or USB mode:
• Press: Select a track/file/video
• Press and hold: Fast up/down tracks/files/videos (MP3/WMA/AAC disc, iPod or USB)
“MODE” switch • Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current operation. To can- cel the mute or pause, press and hold.
Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on th e type of audio system or navigation
system. For details, refer to the manual provided with the audio system or nav-
igation system.
Operating the audio system us ing the steering wheel switches
1
2
WA R N I N G
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3

CT200h_OM_OM76215U_(U)
4095-22. Other function (Lexus Display Audio System)
5
Audio system
■Microphone
●Wait for the listening beeps before using the Mobile Assistant.
●The Mobile Assistant may not recognize commands in the following situations:
• When spoken too quickly.
• When spoken at a low or high volume.
• When the roof or windows are open.
• When passengers are talking while th e Mobile Assistant is being used.
• When the air conditioning syst em’s fan speed is set high.
• When the air conditioning vents ar e turned toward the microphone.
■Mobile Assistant precautions
●The available features and functions may vary based on the iOS version installed on the
connected device.
●Some Siri features are limited in Eyes Free mode. If you attempt to use an unavailable
function, Siri will inform you that the function is not available.
●If Siri is not enabled on the cellular phone connected via Bluetooth®, an error message
will be displayed on the screen.
●While a phone call is active, the Mobile Assistant cannot be used.
●If using the navigation feature of the cellular phone, ensure the active audio source is
Bluetooth® audio or iPod in order to hear turn by turn direction prompts.
It is not necessary to speak directly into the
microphone when using
the Mobile Assistant.

413
CT200h_OM_OM76215U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system (Vehicles with a
navigation system or Lexus
Display Audio System)........... 414
Automatic air conditioning system (Vehicles without a
navigation system or Lexus
Display Audio System).......... 422
Heated steering wheel/ seat heaters................................ 429
• Heated steering wheel...... 430
• Seat heaters........................... 430 6-2. Using the interior lights
Interior lights list .......................... 431• Personal/interior light main switch .............................. 431
•Front personal/ interior lights .......................... 432
• Rear interior light ................. 432
6-3. Using the storage features List of storage features ............ 433• Glove box ............................... 434
• Console box........................... 434
•Cup holders/ bottle holders/
door pockets .......................... 434
• Auxiliary boxes ..................... 436
Luggage compartment features........................................438
6-4. Using the other interior features Other interior features ............ 443• Sun visors ................................ 443
• Vanity mirrors ........................ 443
• Clock ........................................ 444
• Power outlet ........................... 444
• Assist grips.............................. 446
Garage door opener................ 447
Compass ....................................... 454
LEXUS Enform Safety Connect ......................................460

414
CT200h_OM_OM76215U_(U)6-1. Using the air conditioning system and defogger
Automatic air conditioning
system (Vehicles with a
navigation system or Lexus Display Audio System)
Air outlets and fan speed are automatica lly adjusted according to the temper-
ature setting.
Vehicles with a Lexus Display Audio Sy stem: Press the “MENU” button on the
Lexus Display Audio controller, then select “Climate” to display the air condi-
tioning operation screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 326.
Vehicles with a navigati on system: Press the “MENU” button on the Remote
Touch, then select “Climate” to display the air conditioning control screen.
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.

4166-1. Using the air conditioning system and defogger
CT200h_OM_OM76215U_(U)
Vehicles with a Lexus Display Audio System
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
“AUTO”: Select to set automatic
mode on/off
“OFF”: Turn the fan off : Display the option control
screen ( P. 4 1 7 )
Select the air flow mode
Adjust the right-hand side temperature setting
Move the Lexus Display Audio controller left/right to select the desired item
( to ).
When , or is selected:
Move the controller forward/backward or turn it left/right for adjusting.
When or is selected:
Move the controller forward/backward or turn it left/right to select a screen
button, then press the controller.
Vehicles with a navigation system
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side tempera-
ture setting
Display the option control screen
( P. 4 1 7 )
Tu r n t h e f a n o f f
Select to set automatic mode on/off
To adjust or select settings, move the Remote Touch knob to select the screen
button, and then press the Remote Touch knob to enter the selected function.
Control screen
1
2
3
4
5
1
15
2125
34
1
2
3
4
5
6
7

CT200h_OM_OM76215U_(U)
4176-1. Using the air conditioning system and defogger
6
Interior features
■Option control screen
Select on the climate screen to display the option control screen. The
functions can be switched on and off.
Select to set cooling and dehumidification function on/off
Adjust the temperature for driver and passenger seats separately (“DUAL”
mode) ( P. 4 1 7 )
Prevent ice from building up on th e windshield and wiper blades (if
equipped) ( P. 4 1 9 )
Remove pollen from the air (Micro dust and pollen filter) ( P. 4 1 8 )
■Using the automatic mode
Press the “AUTO” button.
Adjust the temperature setting.
To stop the operation, press the “OFF” button.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic mode
indicator goes off. However, automati c mode for functions other than that
operated is maintained.
■Adjusting the temperature for driver and passenger seats separately
(“DUAL” mode)
To turn on the “DUAL” mode, perform any of the following procedures:
●Press the “DUAL” button.
●Select “DUAL” on the option control screen.
●Adjust the passenger’s side temperature setting.
The indicator comes on when the “DUAL” mode is on.
Vehicles with a Lexus Display Audio
SystemVehicles with a navigation system
Air conditioning controls
1
2
3
4
1
2
3

422

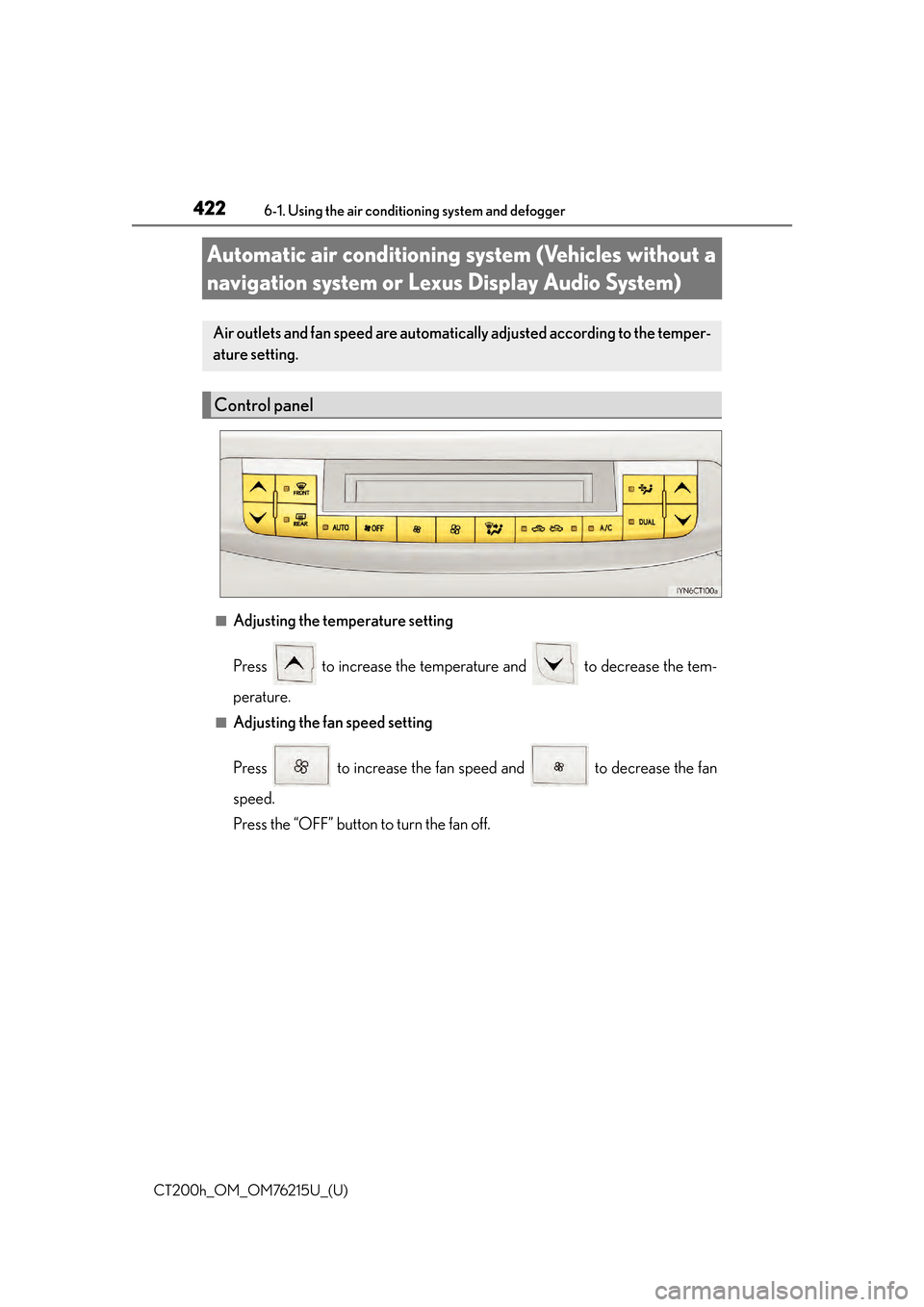

CT200h_OM_OM76215U_(U)6-1. Using the air conditioning system and defogger
Automatic air conditioning
system (Vehicles without a
navigation system or Le xus Display Audio System)
■Adjusting the temperature setting
Press to increase the temperature and to decrease the tem-
perature.
■Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan
speed.
Press the “OFF” button to turn the fan off.
Air outlets and fan speed are automatica lly adjusted according to the temper-
ature setting.
Control panel
