2017 KIA SEDONA key

Maintenance
66
7
If you do not have a spare, use a
fuse of the same rating from a circuityou may not need for operating thevehicle, such as the power outletfuse.
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced.
Fuse switch
Always, put the fuse switch at the ON
position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly. When the switch is
Off, the caution will be displayed on
the instrument cluster.
Always place the fuse switch in the
ON position while driving the vehicle.
Engine compartment fuse
replacement
1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up.
When the blade type fuse is dis- connected, remove it by using the
clip designed for changing fuses
located in the engine room fuse
box. Upon removal, securely
insert reserve fuse of equal quan-
tity.
OYP076011
OYP074012N

769
Maintenance
Inner fuse panel
Fuse Name Fuse ratingCircuit Protected
ECU 10A PCM, Injector Drive Box, Smart Key Control Module/Immobilizer Module
MODULE4 7.5AHead Lamp Leveling Device Actuator LH/RH, Multipurpose Check Connector, Bezel Switch, MTS
Module, Electro Chromic, A/V & Navigation Head Unit, A/C Control Module, Heater Control Module,
Passenger Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat Heater Control
Module, Auto Head Leveling Device Module, ATM Shift Lever ILL.
MODULE3 10A LDWS Module, Stop Lamp, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor LH/RH
(CENTER), Rear Parking Assist Buzzer, Rear Parking Assist Sensor LH/RH, Rear Parking Assist
Sensor LH/RH (CENTER), Blind Spot Detection Radar LH/RH
MODULE5 7.5A Rear Seat Heater Control Module, AC Inverter Unit, Heater Control Module, Passenger Ventilation Seat
Control Module, Portable Lamp, Around View Unit
MODULE6 7.5A BCM, Smart Key Control Module
WIPER RR 15A Rear Wiper Motor, Wiper RR Relay
CLUSTER 7.5A Instrument Cluster
A/CON1 7.5A A/C Control Module, Ionizer, Rear A/C Control Switch, PCB Block (Blower Relay, Blower RR Relay)
MEMORY2 10A Data Link Connector, Instrument Cluster, Digital Clock, A/C Control Module, BCM, Power Sliding Door
Module, Driver Door Module, Passenger Safety Power Window Switch, Driver IMS Control Module
SMART KEY3 10A Start/Stop Button Switch, Immobilizer Module
POWER OUTLET2 20A Console Power Outlet A/BAG IND 7.5A Instrument Cluster, Digital Clock, A/C Control Module(Auto)
WASHER 15A Multifunction Switch, BCM
HEATED STEERING 15A Clock Spring (Steering Wheel Switch) MEMORY1 10A Clock Spring (Steering Wheel Switch)
SMART KEY1 25A Smart Key Control Module
POWER OUTLET3 20A Rear Power Outlet MODULE2 7.5A BCM, Driver Door Module, Passenger Door Module

Maintenance
70
7
Fuse Name Fuse rating Circuit Protected
MULTIMEDIA 15A USB Charger #1/#2, MTS Module, Audio, A/V & Navigation Head Unit S/ROOF FRT 20A Front Sunroof Motor AMP 25A AMP IG1 20A PCB BLOCK (Fuse - ABS3, TCU, MDPS, CRUISE)
SMART KEY2 7.5A Smart Key Control Module
INTERIOR LAMP 10A Portable Lamp, Overhead Console Lamp, Cargo Lamp, Front Vinity Lamp Switch LH/RH, Glove Box
Lamp, Key Warning Switch
START 7.5A With IMMO./Smart Key : Transmission Range Switch, W/O IMMO. : PCB Block (B/Alarm Relay)
S/ROOF RR 25A Rear Sunroof Motor
DOOR LOCK 20A Tail Gate Relay, Door Lock/Unlock Relay, Sliding Door Lock/Unlock Relay
FOG LAMP REAR 10A -
MODULE1 10A Audio, A/V & Navigation Head Unit, Around View Unit, BCM, Overhead Console Lamp, MTS Module,
Digital Clock, USB Charger #1/#2
AIR BAG 15A SRS Control Module, Passenger Occupant Detection Sensor
A/CON2 7.5A A/C Control Module, Blower Resistor (Manual)
HEATED MIRROR 10A Passenger Power Outside Mirror, A/C Control Module BRAKE SWITCH 7.5A Smart Key Control Module, Stop Lamp Switch
P/WINDOW LH 25ADriver Safety Window Module, Driver Door Module, Rear Power Window Switch LH, Rear Safety Power
Window Switch LH, Rear Safety Power Window Module LH
MODULE7 7.5A Key Inter Lock Solenoid, Fuel Lid Switch, ATM Lever Switch, Rear A/C Control Switch, Electro Chromic
Mirror
POWER OUTLET1 20A Front Power Outlet P/SEAT (DRV) 30A Driver Manual Switch, Driver Lumbar Support Switch, Driver IMS Control Module
P/WINDOW RH 25APassenger Safety Window Module, Passenger Power Window Motor, Passenger Door Module, Rear
Power Window Switch RH, Rear Safety Power Window Switch RH, Rear Safety Power Window Module
RH
S/HEATER FRT 20A Heater Control Module, Passenger Ventilation Seat Control Module

Maintenance
72
7
Engine compartment fuse panel
Fuse Name Fuse rating Circuit Protected
ABS1 40A ESC Module, Multipurpose Check Connector
ABS2 40A ESC Module
INVERTER 30A AC Inverter Unit
IDB 15A Injector Drive Box
S/HEATER RR 25A Rear Seat Heater Control Module
FOG LAMP FRONT 15A Fog Lamp Front Relay P/SEAT (PASS) 30A Passenger Manual Switch
COOLING FAN1 60A Cooling Fna1 Relay
COOLING FAN2 50A Cooling Fna2 Relay B+4 50A Smart Junction Block (IPS Control Module, IPS3, IPS4, IPS5, IPS6, Fuse - MODULE7)
POWER TAIL GATE 40A Power Tail Gate Module B+2 50A Smart Junction Block (Leak Current Autocut Device, Fuse - P/SEAT DRV, P/WDW RH)
IG1 40A With Smart Key : PDM1/2 Relay, W/O Smart Key : Ignition Switch
IG2 40A Start Relay, With Smart Key : PDM3 Relay, W/O Smart Key : Ignition Switch,
B+1 50A Smart Junction Block (IPS Control Module, Fuse - P/WDW LH, S/HEATER FRT, DR LOCK)
TRAILER 30A Trailer Power Outlet
B+5 50ASmart Junction Block (Motor Driver, Power Outlet Relay, Fuse - S/ROOF FRT, S/ROOF RR, BRAKE
SWITCH, SMART KEY1, SMART KEY3, AMP)
PSD1 40A Power Sliding Door Module
PSD2 40A Power Sliding Door Module
B+3 50A Smart Junction Block (IPS Control Module, IPS1, IPS2)
MDPS 125A MDPS Unit (Rack)

Index
4I
Operating door locks from inside the vehicle . . . . . 4-27
Operating door locks from outside the vehicle . . . . 4-25
Drive mode integrated control system . . . . . . . . . . . . . 5-67 DRIVE mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-67
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-81
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Push-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Emission control system . . . . . . . . . . . . . . . . . . . . . . . . 7-94 Crankcase emission control system . . . . . . . . . . . . . 7-94
Evaporative emission control (including ORVR:Onboard Refueling Vapor Recovery) system. . . . . 7-95
Exhaust emission control system . . . . . . . . . . . . . . . 7-95
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6, 7-3
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-34
Checking the coolant level . . . . . . . . . . . . . . . . . . . . 7-32
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
30 Changing the engine oil and filter . . . . . . . . . . . . . . 7-31
Checking the engine oil level . . . . . . . . . . . . . . . . . 7-30
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-9 ENGINE START/STOP button position . . . . . . . . . . 5-9
Illuminated ENGINE START/STOP button . . . . . . . 5-9 Starting the engine with a smart key . . . . . . . . . . . . 5-11
Explanation of scheduled maintenance items . . . . . . . 7-26
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-199 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-199
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
5 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Limp home (override) procedure . . . . . . . . . . . . . . . 4-12
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-5
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-8
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-58
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-61
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-58
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Gasoline containing alcohol and methanol . . . . . . . . 1-3
Operation in foreign countries . . . . . . . . . . . . . . . . . . 1-6
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-64 Engine compartment fuse replacement . . . . . . . . . . 7-66
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-68
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 7-65
F
E

Index
6I
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 5-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 5-6
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Lane departure warning system (LDWS) . . . . . . . . . . . 5-77 The LDWS does not operate when . . . . . . . . . . . . . 5-79
Warning indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 5-79
LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89 A/V Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
SCC/LDWS Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-74\
Front light bulb replacement . . . . . . . . . . . . . . . . . . 7-75
High mounted stop lamp replacement . . . . . . . . . . . 7-83
Interior light bulb replacement. . . . . . . . . . . . . . . . . 7-84
License plate light bulb replacement . . . . . . . . . . . 7-83
Rear combination lamp bulb replacement . . . . . . . . 7-80
Side repeater lamp replacement . . . . . . . . . . . . . . . 7-80 Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-131
Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-131
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-131
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Headlight escort function . . . . . . . . . . . . . . . . . . . . 4-131
High beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-133
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
Turn signals and lane change signals . . . . . . . . . . . 4-136
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4 Owner maintenance precautions . . . . . . . . . . . . . . . . 7-5
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Manual climate control system. . . . . . . . . . . . . . . . . . 4-146 Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-161
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-160
Heating and air conditioning . . . . . . . . . . . . . . . . . 4-147
Rear climate control . . . . . . . . . . . . . . . . . . . . . . . . 4-154
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-71 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-71
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-77
K
L
M

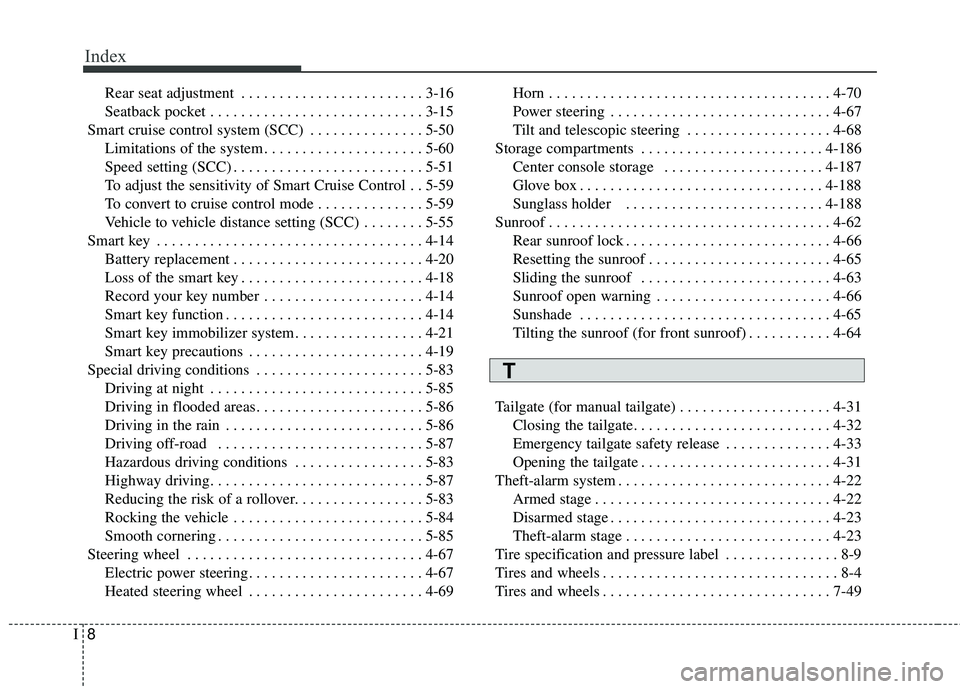

Index
8I
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Smart cruise control system (SCC) . . . . . . . . . . . . . . . 5-50 Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-60
Speed setting (SCC) . . . . . . . . . . . . . . . . . . . . . . . . . 5-51
To adjust the sensitivity of Smart Cruise Control . . 5-59
To convert to cruise control mode . . . . . . . . . . . . . . 5-59
Vehicle to vehicle distance setting (SCC) . . . . . . . . 5-55
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
14 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Record your key number . . . . . . . . . . . . . . . . . . . . . 4-14
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Smart key immobilizer system. . . . . . . . . . . . . . . . . 4-21
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . 4-19
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 5-83 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 5-86
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 5-86
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-87
Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-83
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-87
Reducing the risk of a rollover. . . . . . . . . . . . . . . . . 5-83
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67 Electric power steering. . . . . . . . . . . . . . . . . . . . . . . 4-67
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-69 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-70
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . 4-68
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 4-186 Center console storage . . . . . . . . . . . . . . . . . . . . . 4-187
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-188
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . 4-188
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-62 Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-66
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Tilting the sunroof (for front sunroof) . . . . . . . . . . . 4-64
Tailgate (for manual tailgate) . . . . . . . . . . . . . . . . . . . . 4-31 Closing the tailgate. . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Emergency tailgate safety release . . . . . . . . . . . . . . 4-33
Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22 Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Tire specification and pressure label . . . . . . . . . . . . . . . 8-9
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
T
