2017 KIA Rondo bluetooth

Audio system
94
5
Bluetooth®Wireless Technology
When No Devices have been
Paired
➀ Press the [PHONE] button or the
[CALL] button on the steering
wheel controls. The following
screen is displayed.
\b Press the [OK] to enter the Pair
Phone screen. Vehicle Name: Name of device as
shown when searching from your
Bluetooth®Wireless Technology
device.
Passkey: Passkey used to pair the device.
➂ From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your
car audio system.
❈ SSP: Secure Simple Pairing
Non SSP supported device:
➃ After a few moments, a screen is
displayed where the passkey is
entered.
Enter the passkey “0000” to pair your
Bluetooth®Wireless Technology
device with the car audio system. SSP supported device:
➃
After a few moments, a screen is
displayed 6 digits passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
➄ Once pairing is complete, the fol-
lowing screen is displayed.

Audio system
595

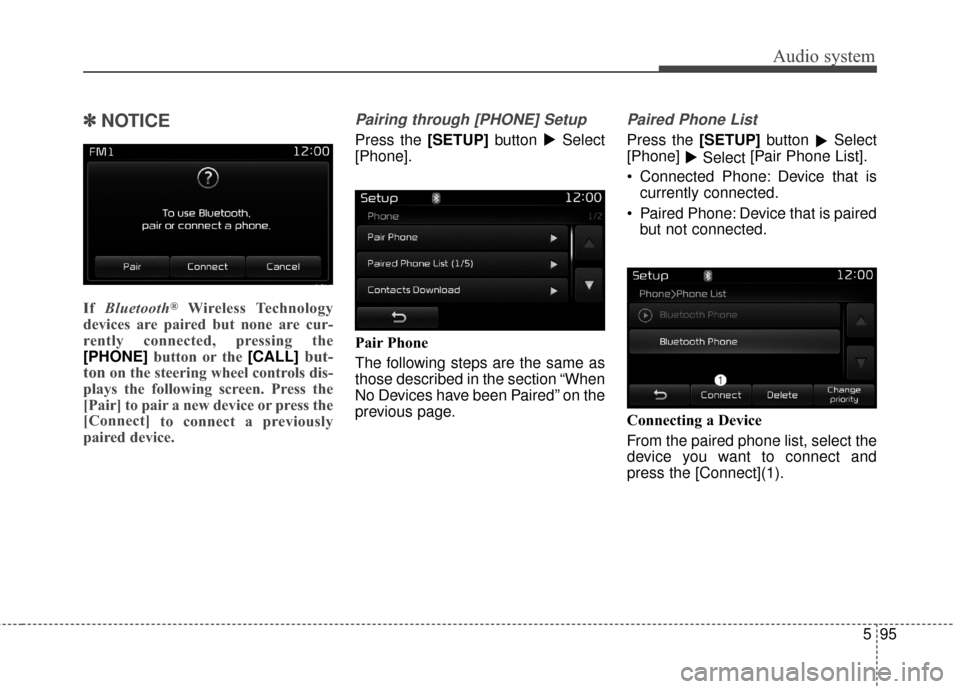

✽ ✽NOTICE
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE] button or the [CALL]
but-
ton
on the steering wheel controls dis-
plays the following screen. Press the
[Pair] to pair a new device or press the
[Connect] to connect a previously
paired device.
Pairing through [PHONE] Setup
Press the [SETUP] button Select
[Phone].
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Paired Phone List
Press the [SETUP] button
Select
[Phone] Select [Pair Phone List].
Connected Phone: Device that is currently connected.
Paired Phone: Device that is paired but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1).

Audio system
96
5 Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2).
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3).
✽ ✽
NOTICE
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
• If a paired Bluetooth
®Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
• To re-use a deleted device, you must pair the device again.
Changing Priority
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
The “Change Priority” feature is used
to set the connection priority of
paired phones. From the paired
phone list, select the phone you want
to switch to the highest priority, then
press the [Change priority](4) from
the Menu. The selected device will
be changed to the highest priority.

Audio system
597
Phone Menu Screen
Phone Menus
With a
Bluetooth®Wireless Technology
device connected, press the
[PHONE] button to display the
Phone menu screen.
Favorites: Up to 20 frequently used contacts can be saved for easy
access.
Call History: Displays the call history list screen.
Contacts: Displays the Contacts list screen.
Dial Number: Displays the dial screen where numbers can be
dialed to make calls.
Setup: Displays Phone related set- tings.
✽ ✽ NOTICE
• If you press the [Call History] but
there is no call history data, a
prompt is displayed which asks to
download call history data.
• If you press the [Contacts] but there is no contact data stored, a prompt is
displayed which asks to download
contacts data.
• This feature may not be supported in some mobile phones. For more infor-
mation on download support, refer
to your mobile phone user’s manual. Favorites
Saved favorite contact: Connects
call upon selection.
To add favorite: Downloaded con- tacts be saved as favorite.
Delete All: Deletes all stored favorite contacts.
✽ ✽ NOTICE
• To save Favorite, contacts should
be downloaded.
• Contact saved in Favorites will not be automatically updated if the
contact has been updated in the
phone. To update Favorites, delete
the Favorite and create a new
Favorite.

Audio system
98
5 Call History
A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] to download
the call history.
Call History:
- Displays recent calls (call history).
- Connects call upon selection.
Download: Download Recent Call History.
Call history may not be saved in the call history list in some mobile
phones.
Calls received with hidden caller ID will not be saved in the call history
list. Calling through the call history is
not possible when there is no call
history stored or a
Bluetooth®
Wireless Technology phone is not
connected.
Up to 50 received, dialed and missed calls are stored in Call
History.
Time of received/dialed calls and call time information are not saved.
Contacts
The list of saved phone book entries
is displayed. Press the [Download] to
download the call history.
Contacts List:- Displays downloaded contactentries.
- Connects call upon selection.
Sort by: Find a contact in alphabet- ical order.
Download: Download contact entries.

Audio system
599
✽ ✽NOTICE
• Up to 1,000 contacts saved in your
Bluetooth®Wireless Technology
phone can be downloaded into the
car contacts. Contacts that have
been downloaded to the car cannot
be edited or deleted on the phone.
• Mobile phone contacts are man- aged separately for each paired
Bluetooth
®Wireless Technology
device (max 5 devices x 1,000 con-
tacts each). Previously down-
loaded data is maintained even if
the Bluetooth
®Wireless Technology
device has been disconnected.
(However, the contacts and call
history saved to the phone will be
deleted if a paired phone is delet-
ed.)
• It is possible to download contacts during Bluetooth
®streaming audio.
• When downloading contacts, the icon will be displayed within the
status bar. (Continued)(Continued)
• It is not possible to begin down-
loading a contact list when the
contact download feature has been
turned off within the Bluetooth
®
Wireless Technology device. In
addition, some devices may
require device authorization upon
attempting to download contacts.
If downloading does not normally
occur, check the Bluetooth
®
Wireless Technology device set-
tings or the screen state.
• The contacts download feature may not be supported in some
mobile phones. For more informa-
tion of supported Bluetooth
®
devices and function support,
refer to your phone’s user manual.
Calling by Dialing a Number
Dial Pad: Used to enter phone
number.
Call: If a number has been entered, calls the number. If no number has
been entered, switches to call his-
tory screen.
End: Deletes the entered phone number.
Delete: Deletes entered numbers one digit at a time.

Audio system
100
5 Answering a Call
Answering a call with a
Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
Caller: Displays the other party’s
name when the incoming caller is
saved within your contacts.
Incoming Number: Displays the incoming number.
Accept: Accepts the incoming call.
Reject: Rejects the incoming call.
✽ ✽ NOTICE
• When an incoming call pop-up is dis-
played, most Audio and SETUP
mode features are disabled. Only the
call volume will operate.
•The telephone number may not be properly displayed in some mobile
phones.
During a Handsfree Call
Caller: Displays the other party’sname if the incoming caller is
saved within your contacts.
Incoming Number: Displays the incoming number.
Call time: Displays the call time.
End: Ends call.
Private: Converts to Private mode.
Out Vol.: Sets call volume as heard by the other party.
Mute: Turns Mic Mute On/Off.
✽ ✽ NOTICE
If the mic is muted, the other party
will not be able to hear your voice.

Audio system
5 103
Voice Command List
Common Commands
These commands can be used in most operations.
(However a few commands may not be available during certain operations)
CommandFunction
More HelpProvides guidance on commands that can be used
anywhere in the system.
HelpProvides guidance on commands that can be used
within the current mode.
Call Calls saved in Contacts.
Ex) Call “John Smith”
Call
on MobileCalls to the number that is saved as
“Mobile” in Contacts.
Ex) Call “John Smith” on Mobile
Call
in OfficeCalls to the number that is saved as
“Office” in Contacts.
Ex) Call “John Smith” in Office
Call
at HomeCalls to the number that is saved as
“Home” in Contacts
Ex) Call “John Smith” at Home
Call
on OtherCalls to the number that is saved as
“Other” in Contacts
Ex) Call “John Smith” on Other
PhoneProvides guidance on Phone related commands.
After saying this command, say “Favorites”,“Call
History”, “Contacts” or ”Dial Number” execute cor-
responding functions.
FavoritesDisplays the Favorite screen.
CommandFunction
Call HistoryDisplays the Call History screen.
ContactsDisplays the Contacts screen. After saying this
command, say the name of a contact saved in the
Contacts to automatically connect the call.
Dial NumberDisplays the Dial number screen. After saying this
command, you can say the number that you want
to call.
RedialConnects the last dialed call number.
TutorialProvides guidance on how to use voice recognition
and Bluetooth®connections
Radio
When listening to the radio, displays the nextradio screen. (FM1➟FM2➟AM➟ SAT1➟ SAT2➟
SAT3➟ FM1)
When listening to a different mode, displays the most recently played radio screen.
When currently listening to the FM radio, main- tains the current state.
When listening to a different mode, displays the most recently played FM screen.
FM1(FM One)Displays the FM1 screen.
FM2(FM Two)Displays the FM2 screen.
AMDisplays the AM screen.
