2017 KIA RIO HATCHBACK display

Driving your vehicle
42
5
- The fan speed is in the highest
position when the air conditioning is
on.
- Engine is turned off by Auto Stop for a long time.
- If you unfasten the seat belt or open the driver's door while depressing
the brake pedal.
- When a certain amount of time has passed with the climate control sys-
tem on.
The green AUTO STOP indicator
( ) on the instrument cluster will go
out after blinking for 5 seconds and
the notice will illuminate on the LCD
display (for type B cluster).Condition of ISG system oper-
ation
The ISG system will operate under the following condition:
- The driver’s seat belt is fastened.
- The driver’s door and hood are closed.
- The brake vaccum pressure is ade- quate.
- The battery is sufficiently charged.
- The outside temperature is more than 28.4°F (-2°C).
- The outside temperature is under 89.6°F (32°C).
- The engine coolant temperature is not low.
- The vehicle is on a flat road surface.
If the ISG system does not meetthat operation condition, the ISG
system is deactivated. The light on
the ISG OFF button will illuminate.
If the light comes on continuously, please check the operation condi-
tion.
OUB051022
OUB051067N

543
Driving your vehicle
ISG system deactivation
If you want to deactivate the ISGsystem, press the ISG OFF button.
The light on the ISG OFF button
will illuminate and the notice will
illuminate on the LCD display (for
type B cluster).
If you press the ISG OFF button again, the system will be activated
and the light on the ISG OFF but-
ton will turn off.
ISG system malfunction
The system may not operate
when:
- The ISG related sensors or system error occurs.
The yellow AUTO STOP indicator
( ) on the instrument cluster will
stay on after blinking for 5 seconds
and the light on the ISG OFF button
will illuminate. If your vehicle is equipped with clus-
ter type B cluster, the notice will illu-
minate on the LCD display.
If the ISG OFF button light is not
turned off by pressing the ISG OFF
button again or if the ISG system
continuously does not work correctly,
please contact an authorized Kia
dealer as soon as possible.
OUB051023
■
Type A■Type B
■Type BOUB051006/OUB051059
WARNING - Engine
Repair
Turn the ignition switch to the
LOCK (OFF) position or remove
the key from the ignition com-
pletely before performing work
on the vehicle in the engine
area. Failure to do so could
result in serious injuries due to
sudden engine reactivation.
OUB051011
Type : B

625

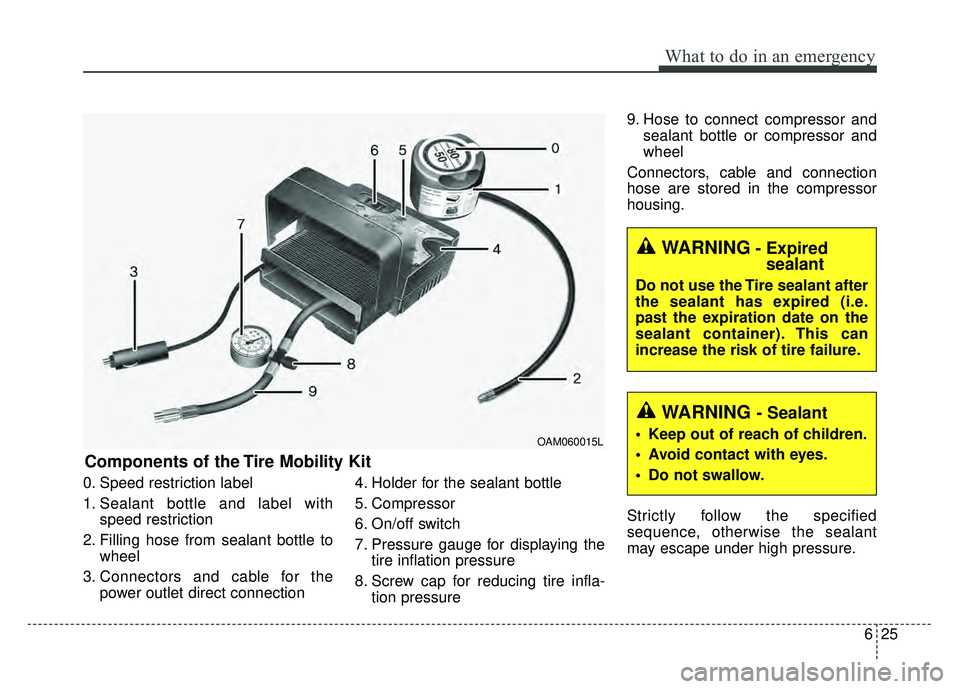

What to do in an emergency
0. Speed restriction label
1. Sealant bottle and label withspeed restriction
2. Filling hose from sealant bottle to wheel
3. Connectors and cable for the power outlet direct connection 4. Holder for the sealant bottle
5. Compressor
6. On/off switch
7. Pressure gauge for displaying the
tire inflation pressure
8. Screw cap for reducing tire infla- tion pressure 9. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified
sequence, otherwise the sealant
may escape under high pressure.
Components of the Tire Mobility Kit
OAM060015L
WARNING- Expired sealant
Do not use the Tire sealant after
the sealant has expired (i.e.
past the expiration date on the
sealant container). This can
increase the risk of tire failure.
WARNING - Sealant
• Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.

Maintenance
58
7
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over 6 years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1616 represents
that the tire was produced in the 16th
week of 2016.
4. Tire ply composition and mate-rial
The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and the
letter "B" means belted-bias ply con-
struction.
5. Maximum permissible inflationpressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
WARNING - Tire age
Replace tires within the recom-
mended time frame. Failure to
replace tires as recommended
can result in sudden tire failure,
which could lead to a loss of
control and an accident.

I3
Index
Calendar ··················\
··················\
··················\
·················4-12\
2
Capacities (Lubricants) ··················\
··················\
················8-6
CareExterior care ··················\
··················\
··················\
··········7-91
Interior care ··················\
··················\
··················\
···········7-96
Tire care ··················\
··················\
··················\
·················7-51\
Cargo capacity ··················\
··················\
··················\
·········5-57
Cargo weight ··················\
··················\
··················\
············5-61
Center console storage ··················\
··················\
·············4-114
Central door lock switch··················\
··················\
············4-19
Certification label ··················\
··················\
···············5-59, 8-9
Chains Tire chains ··················\
··················\
··················\
·············5-53
Changing tires ··················\
··················\
··················\
··········6-15
Checking tire inflation pressure··················\
··················\
·7-52
Child restraint system ··················\
··················\
················3-23 Automatic locking mode ··················\
··················\
·········3-25
Lower anchor ··················\
··················\
··················\
·········3-29
Tether anchor system ··················\
··················\
···············3-28
Child-protector rear door lock ··················\
··················\
···4-20
Cigarette lighter ··················\
··················\
··················\
·····4-118
Climate control air filter··················\
··············4-96/107, 7-43
Clock (Digital) ··················\
··················\
··················\
·······4-122
Clothes hanger ··················\
··················\
··················\
·······4-123 Combined instrument, see instrument cluster ···············4-46
Compact spare tire ··················\
··················\
··················\
···6-20
Compact spare tire replacement ··················\
··················\
7-55
Coolant ··················\
··················\
··················\
··················\
···7-36
Cooling fluid, see engine coolant ··················\
················7-36
Crankcase emission control system ··················\
·············7-98
Cruise control system ··················\
··················\
················5-35
Cup holder ··················\
··················\
··················\
·············4-119
Curtain air bag ··················\
··················\
··················\
·········3-46
Dashboard illumination, see instrument panel
illumination··················\
··················\
··················\
············4-47
Dashboard, see instrument cluster ··················\
···············4-46
Defogging (Windshield) ··················\
··················\
··········4-109
Defogging logic (Windshield) ··················\
··················\
·4-111
Defroster (Rear window) ··················\
··················\
···········4-87
Defrosting (Windshield) ··················\
··················\
··········4-109
Digital clock··················\
··················\
··················\
···········4-122
Dimensions ··················\
··················\
··················\
················8-2
Display illumination, see instrument panel illumination··················\
··················\
··················\
············4-47
Displays, see instrument cluster ··················\
··················\
4-46
Door locks··················\
··················\
··················\
················4-17 Central door lock switch ··················\
··················\
·········4-19
Child-protector rear door lock ··················\
··················\
·4-20
D
C

I5
Index
Fuel filler lid ··················\
··················\
··················\
············4-33
Fuel gauge··················\
··················\
··················\
················4-48
Fuel requirements ··················\
··················\
··················\
······1-3
Fuses ··················\
··················\
··················\
··················\
······7-65Engine compartment panel fuse ··················\
················7-68
Fuse/relay panel description ··················\
··················\
····7-69
Instrument panel fuse ··················\
··················\
··············7-66
Memory fuse··················\
··················\
··················\
··········7-67
Multi fuse ··················\
··················\
··················\
··············7-68
Gauge Engine coolant temperature gauge ··················\
············4-48
Fuel gauge ··················\
··················\
··················\
·············4-48
GAW (Gross axle weight) ··················\
··················\
·········5-61
GAWR (Gross axle weight rating) ··················\
··············5-61
Glove box··················\
··················\
··················\
···············4-114
GVW (Gross vehicle weight) ··················\
··················\
····5-61
GVWR (Gross vehicle weight rating) ··················\
·········5-61
Hazard warning flasher ··················\
··················\
··············4-77
Hazardous driving conditions ··················\
··················\
····5-48
Headrest(front) ··················\
··················\
··················\
···········3-5
Headrest(rear) ··················\
··················\
··················\
············3-9
Hight adjustment··················\
··················\
··················\
······3-16 Highway driving ··················\
··················\
··················\
······5-51
Hill-start assist control (HAC) ··················\
··················\
···5-31
Hood··················\
··················\
··················\
··················\
·······4-31
Horn ··················\
··················\
··················\
··················\
·······4-42
How to use this manual ··················\
··················\
···············1-2
Idle stop and go system (ISG) ··················\
··················\
···5-40
Immobilizer system ··················\
··················\
··················\
·4-12
Indicators and warnings ··················\
··················\
·············4-59
Inside rearview mirror ··················\
··················\
···············4-43
Instrument cluster ··················\
··················\
··················\
····4-46
Engine coolant temperature gauge ··················\
············4-48
Fuel gauge ··················\
··················\
··················\
·············4-48
Instrument panel illumination ··················\
··················\
·4-47
LCD display warning ··················\
··················\
··············4-70
Maintenance ··················\
··················\
··················\
··········4-57
Odometer ··················\
··················\
··················\
···············4-49
Speedometer ··················\
··················\
··················\
··········4-47
Tachometer ··················\
··················\
··················\
············4-47
Trip computer ··················\
··················\
··················\
········4-50
User settings ··················\
··················\
··················\
··········4-55
Warning and indicators ··················\
··················\
············4-59
Instrument panel fuse··················\
··················\
·················7-66\
Instrument panel illumination··················\
··················\
····4-47
Instrument panel overview··················\
··················\
···········2-5
G
H
I

Index
6I
Interior care··················\
··················\
··················\
··············7-96
Interior features··················\
··················\
··················\
······4-118Ashtray ··················\
··················\
··················\
················4-118
Cigarette lighter ··················\
··················\
··················\
···4-118
Clothes hanger ··················\
··················\
··················\
·····4-123
Cup holder ··················\
··················\
··················\
···········4-118
Digital clock and calendar ··················\
··················\
·····4-122
Floor mat anchor(s) ··················\
··················\
···············4-123
Power outlet ··················\
··················\
··················\
·········4-121
Shopping bag holder ··················\
··················\
···············4121
Sliding armrest ··················\
··················\
··················\
····4-120
Sunvisor ··················\
··················\
··················\
···············4-120
Interior light ··················\
··················\
··················\
·············4-85
Interior overview··················\
··················\
··················\
········2-4
ISG system ··················\
··················\
··················\
···············5-40
Jack and tools··················\
··················\
··················\
···········6-14
Jump starting··················\
··················\
··················\
··············6-5
Key positions ··················\
··················\
··················\
·············5-5
Keys ··················\
··················\
··················\
··················\
·········4-3 Immobilizer key··················\
··················\
··················\
·····4-11
Remote(or Smart) key battery replacement ················4-10 Label
Air bag warning label ··················\
··················\
··············3-54
Refrigerant label ··················\
··················\
··················\
····8-10
Tire sidewall labeling ··················\
··················\
··············7-56
Tire specification and pressure label ··················\
·········8-10
Vehicle certification label ··················\
··················\
··········8-9
LCD display warning··················\
··················\
·················4-70\
Light bulbs ··················\
··················\
··················\
···············7-77
Lighting··················\
··················\
··················\
··················\
··4-77 Battery saver function··················\
··················\
··············4-77
Lower anchor ··················\
··················\
··················\
···········3-29
Lubricants and capacities··················\
··················\
·············8-7
Luggage net ··················\
··················\
··················\
···········4-115
Luggage tray ··················\
··················\
··················\
··········4-116
Maintenance ··················\
··················\
··················\
·············4-57 Explanation of scheduled maintenance items ·············7-32
Maintenance services·············\
··················\
··················\
····7-4
Maintenance under severe usage conditions ···············7-30
Normal maintenance schedule··················\
··················\
···7-9
Owner maintenance ··················\
··················\
··················\
·7-6
Scheduled maintenance service ··················\
··················\
·7-8
Tire maintenance ··················\
··················\
··················\
···7-56
J
L
M
K

I7
Index
Maintenance schedule··················\
··················\
··················\
7-8
Maintenance under severe usage conditions ·················7-30\
Normal maintenance schedule··················\
··················\
···7-9
Maintenance services ··················\
··················\
··················\
·7-4
Manual climate control system··················\
··················\
··4-88 Air conditioning ··················\
··················\
··················\
····4-94
Climate control air filter ··················\
··················\
··········4-96
Heating and air conditioning ··················\
··················\
···4-89
Manual transaxle··················\
··················\
··················\
······5-13
Memory fuse ··················\
··················\
··················\
············7-67
Mirrors ··················\
··················\
··················\
··················\
···4-43 Day/night rearview mirror ··················\
··················\
·······4-43
Folding the outside rearviwe mirror ··················\
··········4-45
Inside rearview mirror ··················\
··················\
·············4-43
Outside rearview mirror ··················\
··················\
··········4-43
Remote control ··················\
··················\
··················\
······4-44
Multi fuse ··················\
··················\
··················\
·················7-68\
Occupant detection system ··················\
··················\
········3-37
Odometer ··················\
··················\
··················\
·················4-49\
Oil (Engine) ··················\
··················\
··················\
·············7-35
Outside rearview mirror··················\
··················\
·············4-43
Outside rearview mirror remote control ··················\
······4-44
Overheats ··················\
··················\
··················\
··················\
·6-8
Owner maintenance ··················\
··················\
··················\
···7-6 Parking brake··················\
··················\
··················\
··5-24, 7-41
Power brakes ··················\
··················\
··················\
············5-22
Power outlet ··················\
··················\
··················\
···········4-121
Power window lock button ··················\
··················\
········4-29
Pre-tensioner seat belt··················\
··················\
················3-18
Push starting··················\
··················\
··················\
···············6-7
Rear seat··················\
··················\
··················\
··················\
···3-9
Rear-Camera Display··················\
··················\
·················4-76\
Recommended cold tire inflation pressures ··················\
7-51
Recommended lubricants and capacities ··················\
·······8-7
Recommended SAE viscosity number ··················\
········8-8
Refrigerant label ··················\
··················\
··················\
······8-10
Remote control (Mirror) ··················\
··················\
············4-44
Remote keyless entry ··················\
··················\
··················\
·4-9
Remote(or Smart) key battery replacement ··················\
·4-11
Replacement light bulb ··················\
··················\
··············7-78
Road warning ··················\
··················\
··················\
·············6-2
Rocking the vehicle ··················\
··················\
··················\
·5-48
O
P
R
