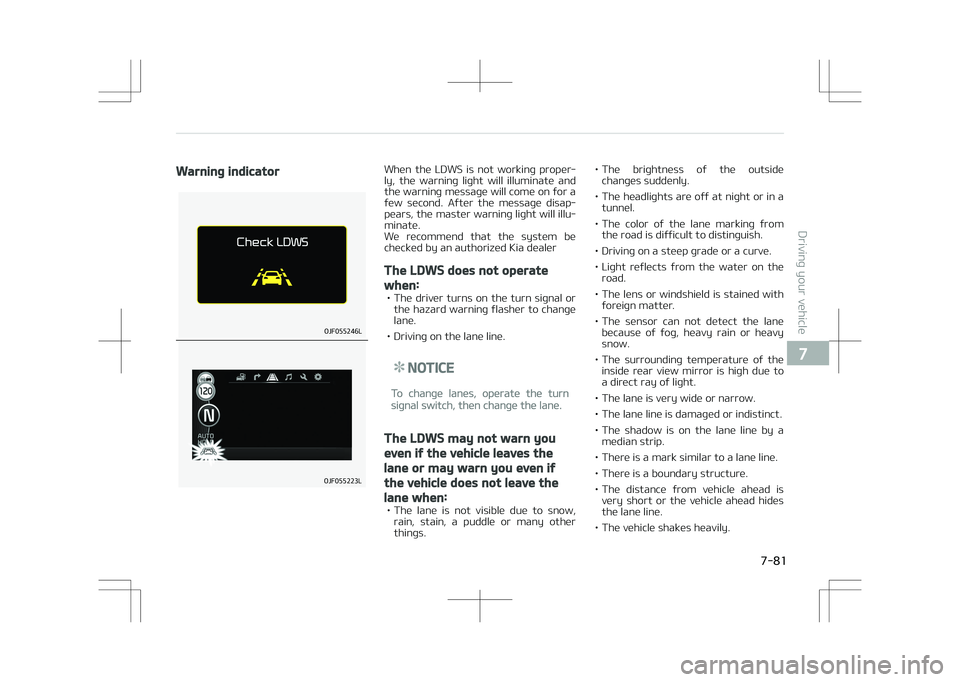

Warning indicator
0+'-
0+'-
When the LDWS is not working proper‐
ly, the warning light will illuminate and the warning message will come on for a
few second. After the message disap‐
pears, the master warning light will illu‐ minate.
We recommend that the system be
checked by an authorized Kia dealer
The LDWS does not operate
when:
• The driver turns on the turn signal or the hazard warning flasher to change
lane.
• Driving on the lane line.
NOTICE
To change lanes, operate the turn
signal switch, then change the lane.
The LDWS may not warn you
even if the vehicle leaves the
lane or may warn you even if
the vehicle does not leave the
lane when:
• The lane is not visible due to snow, rain, stain, a puddle or many other
things. • The brightness of the outside
changes suddenly.
• The headlights are off at night or in a tunnel.
• The color of the lane marking from the road is difficult to distinguish.
• Driving on a steep grade or a curve.
• Light reflects from the water on the road.
• The lens or windshield is stained with foreign matter.
• The sensor can not detect the lane because of fog, heavy rain or heavy
snow.
• The surrounding temperature of the inside rear view mirror is high due to
a direct ray of light.
• The lane is very wide or narrow.
• The lane line is damaged or indistinct.
• The shadow is on the lane line by a median strip.
• There is a mark similar to a lane line.
• There is a boundary structure.
• The distance from vehicle ahead is very short or the vehicle ahead hides
the lane line.
• The vehicle shakes heavily.

7-81
7
Driving your vehicle

LANE KEEPING ASSIST SYSTEM (LKAS) (IF EQUIPPED)
05'4
The Lane Keeping Assist System de‐
tects lane markers on the road, and as‐ sists the driver’s steering to help keep
the vehicle between lanes. When the system detects the vehicle
straying from its lane, it alerts the driv‐
er with a visual and audible warning, while applying a slight counter steering
torque, trying to prevent the vehicle
from moving out of its lane.
WARNING
•The steering wheel is not continu‐ously controlled so if the vehiclespeed is very fast when leaving alane the vehicle may not be con‐trolled by the system.
•The operation of the LKAS can beaffected by several factors (in‐cluding environmental conditions).It is the responsibility of the driverto pay attention to the roadwayand to maintain the vehicle in itslane at all times.
•Do not steer the steering wheelsuddenly when the steering wheelis being assisted by the system.
(Continued)
(Continued)
•LKAS prevents the driver frommoving out of the lane uninten‐tionally by assisting the driver'ssteering. However, the drivershould not solely rely on the sys‐tem but always pay attention onthe steering wheel to stay in thelane.
•Always check the road conditionand surroundings and be cautiouswhen the system cancels, doesnot operate or malfunctions.
•Do not place any accessories,stickers or tint the windshield nearthe rearview mirror.
•The system detects lane markersand controls the steering wheel bya camera, therefore, if the lanemarkers are hard to detect, thesystem may not work properly.Please refer to L

• The width of the lane is below 2.6 mor over 4.5 m.
• ESC(Electronic Stability Control) and VSM(Vehicle stability management)are activated.
• When the system is on or after changing a lane, drive in the middle of
the lane. If not, the system will not
provide the steering assist function.
• The steering will not be assisted when you drive fast on a sharp curve.
• The steering will not be assisted when you change lanes fast.
• The steering will not be assisted when you brake suddenly.
Driver's attention
The driver must be cautious in the be‐
low situations for the system may not assist the driver and may not work
properly. • The lane is not visible due to snow, rain, stain, a puddle or many other
things.
• The brightness of the outside changes suddenly such as passing
through a tunnel.
• Not turning on the headlight or the light is weak even at night or in a
tunnel. • Difficult to distinguish the color of
the lane marker from the road.
• Driving on a steep grade or a curve.
• Light reflects from the water on the road such as sunlight, streetlight or
the light of oncoming vehicles.
• The lens or windshield is stained with foreign matter.
• The surrounding of the inside rear view mirror temperature is high due
to direct light.
• The lane is very wide or narrow.
• The lane marker is damaged or indis‐ tinct.
• The shadow is on the lane marker by a median strip.
• There is a mark similar to a lane marker.
• There is a boundary structure.
• The distance from vehicle ahead is very short or the vehicle ahead driveshiding the lane marker.
• The vehicle shakes heavily.
• The lane number increases or decrea‐ ses or the lane marker are crossing
complicatedly.
• Placing something on the dashboard. • Driving with the sun in front of you.
• Driving in areas under construction.
• The lane marker is more than two.
• The lane marker in a tunnel is hard to
distinguish due to dust or grease.
• The lane marker is hard to distinguish after raining at night.
• The lane marker is hard to distinguish due to dust.
• MDPS (motor driven power steering) is not operational.
• Some objects are attached in steering wheel.
• The windshield is fogged by humid air in the vehicle.
• The distance from the vehicle ahead is very short or the vehicle ahead
drives covering the lane line.
• The lane line is merged or divided.
• Driving through a toll plaza or toll gate.

7-87
7
Driving your vehicle

When the system is not used turn the
system off by pressing the switch.
When the system is turned on the warning light will illuminate for 3 sec‐
onds on the outside rearview mirror.
Warning type
The system will activate when: 1. The system is on
2. Vehicle speed is above 30 km/h (18.6 mph)
3. Other vehicles are detected in the rear side
TU
TUBHF
06.
If a vehicle is detected within the boun‐
dary of the system, a warning light will illuminate on the outside rearview mir‐
ror. If the detected vehicle is not in detec‐
tion range, the warning will be turned off.
OE
TUBHF
06.
The second stage alarm will activate
when: 1. The first stage alert is on
2. The turn signal is on to change a lane
When the second stage alert is activa‐ ted, a warning light will be blinking on
the outside rearview mirror and an
alarm will sound.
If you move the turn signal switch to origin position, the second stage alert
will be deactivated. The second stage alarm can be deacti‐
vated. • To activate the alarm: Go to the User Settings Mode
Sound and select "BSD" on the LCD
display.
• To deactivate the alarm: Go to the User Settings Mode
Sound and deselect "BSD" on the LCD
display.
CAUTION
The alarm function helps alert thedriver. Deactivate this function onlywhen it is necessary
Driving your vehicle
7-92

Warning type
0+'-
0+'-
0+'-
• If an approaching vehicle detected bysensors, the warning is chime and the
warning light will blink on the outside
rearview mirror.
• If the detected vehicle is out of de‐ tection range, moving away in the
opposite direction or moving slow,
the warning is cancelled.
• The system may not be operating properly due to other factors or cir‐
cumstances, so always pay attention to your surrounding.
❈ If the bumper on either side is
blocked by a barrier or vehicles, the
system sensing ability may be de‐
teriorated.
WARNING
•The warning light on the outsiderearview mirror will illuminatewhenever a vehicle is detected atthe rear side by the system.To avoid accidents, do not focusonly on the warning light and ne‐glect to see the surrounding of thevehicle.
•Drive safely even though the vehi‐cle is equipped with a BSD (Blindspot detection) system. Do notsolely rely on the system butcheck for yourself before changinglanes.The system may not alert thedriver in some conditions so al‐ways check the surroundings whiledriving.
CAUTION
•The system may not work proper‐ly if the bumper has been replacedor if a repair work has been donenear the sensor.
(Continued)

7-95
7
Driving your vehicle

(Continued)
•The detection area differs accord‐ing to the roads width. If the roadis narrow the system may detectother vehicles in the second nextlane.
•On the contrary, if the road is verywide the system may not detectother vehicles in the next lane.
•The system might be turned offdue to strong electromagneticwaves.

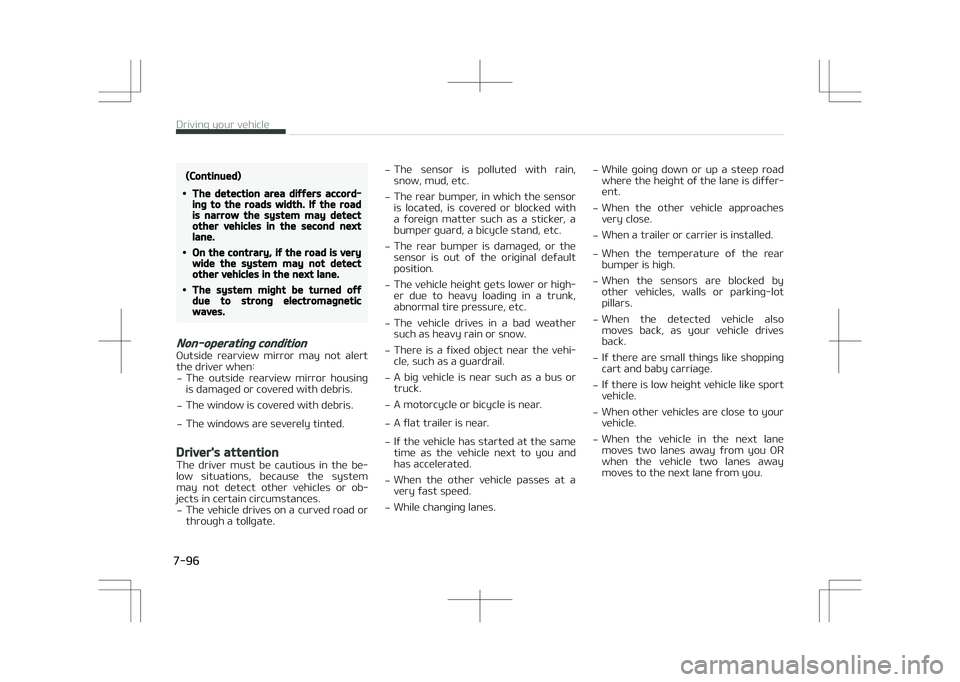

Non-operating condition
Outside rearview mirror may not alert
the driver when:
- The outside rearview mirror housing
is damaged or covered with debris.
- The window is covered with debris.
- The windows are severely tinted.
Driver's attention
The driver must be cautious in the be‐
low situations, because the system may not detect other vehicles or ob‐
jects in certain circumstances.
- The vehicle drives on a curved road or
through a tollgate. -
The sensor is polluted with rain,
snow, mud, etc.
- The rear bumper, in which the sensor
is located, is covered or blocked with
a foreign matter such as a sticker, a bumper guard, a bicycle stand, etc.
- The rear bumper is damaged, or the
sensor is out of the original default
position.
- The vehicle height gets lower or high‐
er due to heavy loading in a trunk,
abnormal tire pressure, etc.
- The vehicle drives in a bad weather
such as heavy rain or snow.
- There is a fixed object near the vehi‐
cle, such as a guardrail.
- A big vehicle is near such as a bus or
truck.
- A motorcycle or bicycle is near.
- A flat trailer is near.
- If the vehicle has started at the same
time as the vehicle next to you and has accelerated.
- When the other vehicle passes at a
very fast speed.
- While changing lanes. -
While going down or up a steep road
where the height of the lane is differ‐ ent.
- When the other vehicle approaches
very close.
- When a trailer or carrier is installed.
- When the temperature of the rear
bumper is high.
- When the sensors are blocked by
other vehicles, walls or parking-lot
pillars.
- When the detected vehicle also
moves back, as your vehicle drives
back.
- If there are small things like shopping
cart and baby carriage.
- If there is low height vehicle like sport
vehicle.
- When other vehicles are close to your
vehicle.
- When the vehicle in the next lane
moves two lanes away from you OR
when the vehicle two lanes away moves to the next lane from you.
Driving your vehicle
7-96

Instrument panel (Driver’s side fuse
panel)
Fuse NameSymbolFuse rat‐ingCircuit Protected
MODULE 7
10A Around View Monitor Unit, Front Air Ventilation Seat Control Module, Front
Seat Warmer Control Module, Rear Seat Warmer Control Module
MODULE 5
10A A/C Control Module, Electro Chromic Mirror, Driver IMS Module, Head Lamp
LH/RH, Auto Head Lamp Leveling Device Module, Fuel Lid & Trunk Open Switch,
Shift Lever Indicator, Front Air Ventilation Seat Control Module, Front Seat
Warmer Control Module, Rear Seat Warmer Control Module
MODULE 6
10A BCM, Smart Key Control Module
A/CON
10A A/C Control Module, E/R Junction Block (RLY. 4 - Blower Relay), Ionizer, Active
Incar Sensor, Electronic A/C Compressor
START
10A Transaxle Range Switch, Smart Key Control Module
A/BAG
15A SRS Control Module, Passenger Occupant Detection Sensor
MODULE 3
10A BCM, Stop Lamp Switch, AFLS Unit, Keyboard, VESS Unit, A/V & Navigation Head Unit, Sport Mode Switch
MODULE 4
10A Console Switch, Blind Spot Detection Radar LH/RH, Smart Parking Assist Con‐
trol Module, Smart Cruise Control Unit, Lane Keeping Assist Module, Active Air
Flap Unit, Electric Parking Brake Module, BMS Control Module
INTERIOR LAMP
10A Trunk Room Lamp, Driver/Passenger Door Lamp, Glove Box Lamp, Driver/
Passenger Smart Key Outside Handle, Front Vanity Lamp Switch LH/RH, Over‐
head Console Lamp, Rear Personal Lamp LH/RH, Driver/Passenger Foot Lamp,Room Lamp, Center Personal Lamp
MDPS
10A MDPS Unit (Column/Rack)
Maintenance
9-58

Fuse NameSymbolFuse rat‐ingCircuit Protected
FOG LAMP REAR
10A ICM Relay Box (Rear Fog Lamp Relay)
GATEWAY
10A Gateway
S/HEATER REAR
25A Rear Seat Warmer Control Module
SUNROOF 1
20A Sunroof Control Unit (Glass)
S/HEATER FRONT
25A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
ECS
15A Not Used
MODULE 2
10A Audio, A/V & Navigation Head Unit, Keyboard, Wireless Charger, Around View
Monitor Unit, AMP, Power Outside Mirror Switch, Smart Key Control Module,
BCM, Rear USB Charger, VESS Unit, E/R Junction Block (RLY. 7 - Power OutletRelay)
P/WDW RH
25A Power Window RH Relay, Rear Safety Power Window Module LH, Rear Power
Window Switch LH, Power Window Main Switch,
[LHD] Passenger Safety Power Window Module
[RHD] Driver Safety Power Window Module
P/SEAT PASS
30A Passenger Seat Manual Switch, Walk In Relay Module, Passenger Reclining Lim‐ it Switch
AMP
25A AMP
BRAKE SWITCH
10A Stop Lamp Switch, Smart Key Control Module, Start/Stop Button Switch
P/WDW LH
25A Power Window LH Relay, Rear Safety Power Window Module RH, Rear Power
Window Switch RH, Power Window Main Switch,
[LHD] Driver Safety Power Window Module
[RHD] Passenger Safety Power Window Module
P/SEAT DRV
30A Driver Seat Manual Switch, Driver IMS Module
Maintenance
9-60
