2017 KIA OPTIMA PHEV Trunk

Maintenance
74
8
Fuse NameFuse ratingCircuit Protected
MULTI
FUSE
B+160ASmart Junction Block (Fuse - TRUNK, SUNROOF2, S/HEATER REAR, SUNROOF1, P/WDW RH,
P/SEAT PASS, P/WDW LH, P/SEAT DRV)
EEWP60AEngine Electric Water Pump
B+260ASmart Junction Block (IPS 1, IPS 4, Fuse - FOG LAMP REAR, S/HEATER FRONT, AMP)
ACTIVE
HYDRAULIC
BOOSTER 140AIntegrated Brake Actuation Unit
IG140APCB Block (IG1/ACC Relay)
PTC
HEATER 150APTC HEATER

887
Maintenance

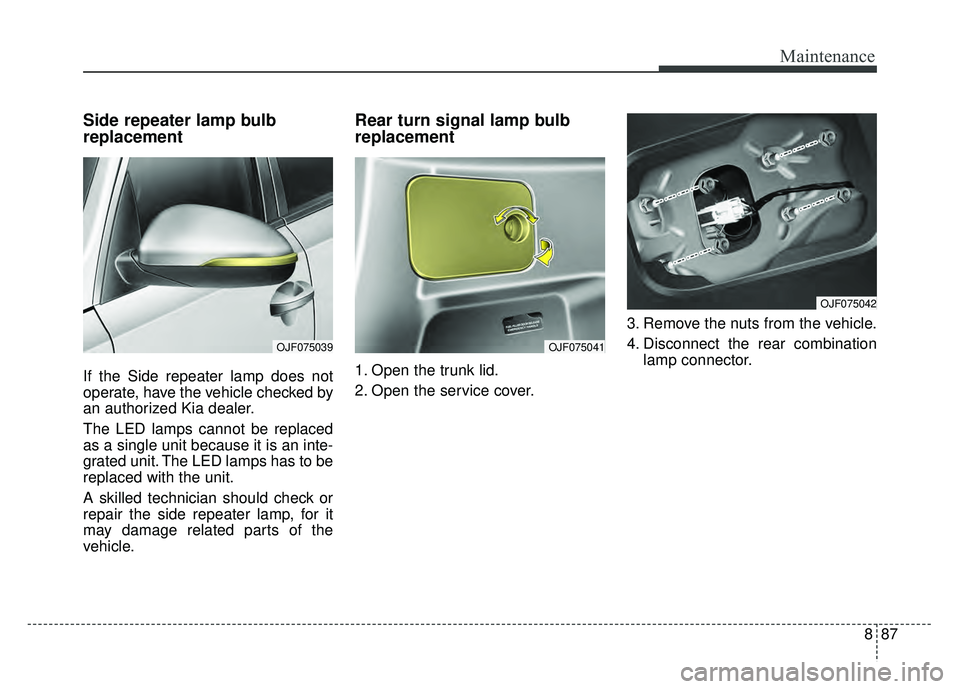

Side repeater lamp bulb
replacement
If the Side repeater lamp does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the side repeater lamp, for it
may damage related parts of the
vehicle.
Rear turn signal lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover.3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp connector.
OJF075039OJF075041
OJF075042

889
Maintenance

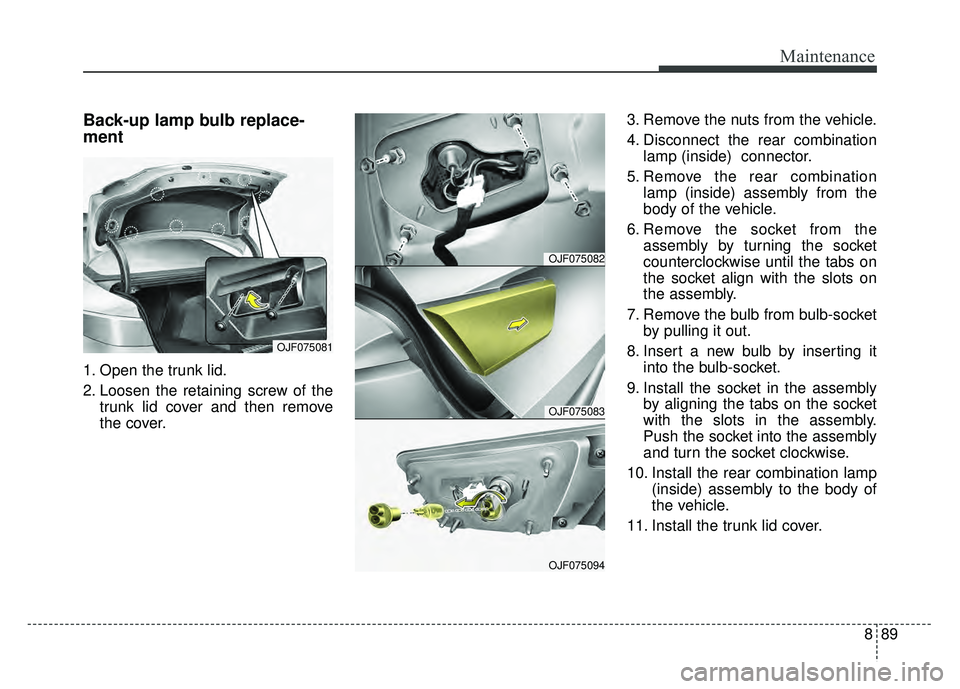

Back-up lamp bulb replace-
ment
1. Open the trunk lid.
2. Loosen the retaining screw of thetrunk lid cover and then remove
the cover. 3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp (inside) connector.
5. Remove the rear combination lamp (inside) assembly from the
body of the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from bulb-socket by pulling it out.
8. Insert a new bulb by inserting it into the bulb-socket.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp (inside) assembly to the body of
the vehicle.
11. Install the trunk lid cover.
OJF075081
OJF075082
OJF075083
OJF075094

Maintenance
90
8
License plate lamp bulb
replacement
1. Open the trunk lid.
2. Loosen the retaining screw of the
trunk lid cover and then remove
the cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the trunk lid cover.
High mounted stop lamp bulb
replacement
If the high mounted stop lamp (LED)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the high mounted stop lamp
(LED), for it may damage related
parts of the vehicle.
OJF075081
OJF075085
OJF075049

893
Maintenance
Glove box lamp bulb replace-
ment
1. Using a flat-blade screwdriver,gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
✽ ✽ NOTICE
Be careful not to dirty or damage
the lens, lens tab, and plastic hous-
ings.
Trunk lamp bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
✽ ✽NOTICE
Be careful not to dirty or damage the
lens, lens tab, and plastic housings.
OJF075054
OJF075053

93
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage (W)Bulb type
Front Headlamps (Low)
55WH7SL
Headlamps (Low) – LED type 25WLED
Headlamps (High) 65W HB3 HYPER L/L(9005HL)
Headlamps (High) – LED type 17WLED
Front turn signal lamps 28/8WAMBER L/L
Front position lamps 0.7WLED
Daytime running light LED type 6.5W LED
Side Repeater lamps LED type 0.5W LED
Rear Rear Stop/Tail lamps (outside)
LED type12W
LED
Rear tail lamps (Inside) 6WLED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 3WLED
License plate lamps 5WW5W
Interior Map lamps
Bulb type 10W
FESTOON BULB
LED type 1W LED
Room lamps 10WFESTOON BULB
Personal lamps 1WLED
Vanity mirror lamps 5WFESTOON BULB
Glove box lamp 5WFESTOON BULB
Trunk lamp 5WFESTOON BULB
